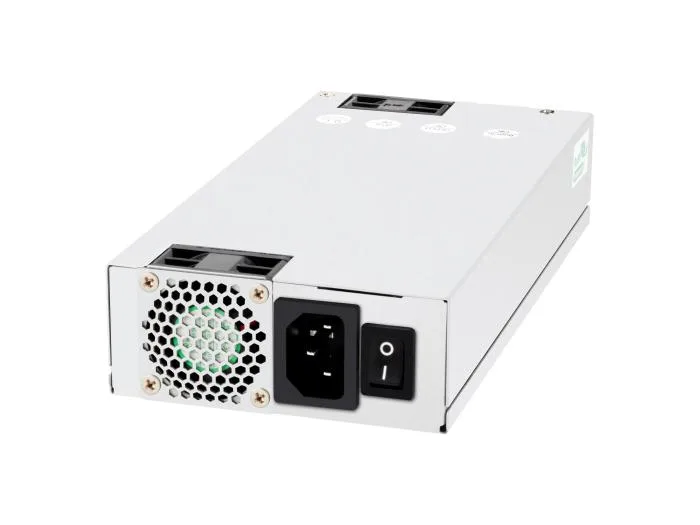

Silver metal 1U server power supply, 200 mm long, dual 40 mm fans front and rear, 700W rating

Athena Power

Athena Power AP-1U70P868 700W 1U server power supply

SKU CH-03GQ-DZ6XW

A 700 W single 1U server supply with dual 40 mm fans, active PFC and 80 %+ efficiency for 1U rackmount systems

  • Type1U EPS
  • Single/RedundantSingle
  • Maximum Power700W
  • Main Connector20+4Pin
  • Output Current+3.3V@18A, +5V@20A,12V1/V2@28/28A, [email protected] , [emai
  • Output+3.3V, +5V,12V1/V2, -12V, +5Vsb
  • 700W output powers dense 1U servers
  • 80Plus Platinum efficiency cuts energy waste
  • Dual 40mm fans with smart speed control
  • Certified to UL/TUV 62368-1 safety standards
  • 250000-hour MTBF at full load 25°C

Compact 1U server power unit

The Athena Power AP-1U70P868 is a single 700W supply built for 1U rackmount chassis. It delivers +3.3V@18A, +5V@20A and dual 12V rails at 28A each, plus -12V and +5Vsb outputs. The unit accepts 90-264V input at 47-63Hz and meets IEC/UL/CSA/EN 62368-1 safety standards for deployments in the United States, Canada and Europe.

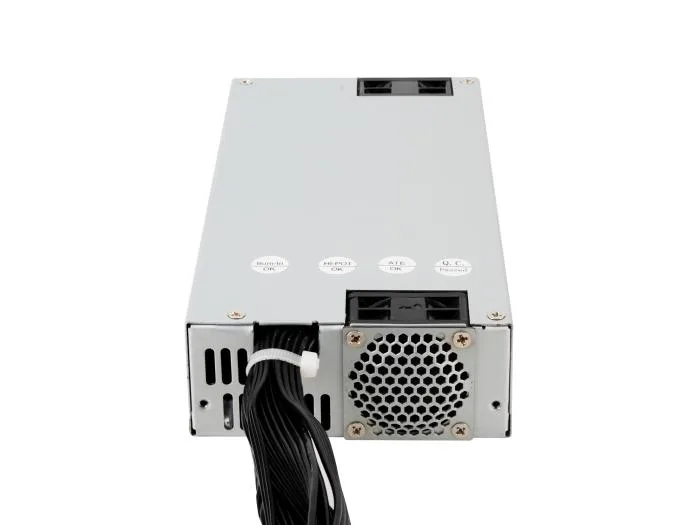

Front-to-rear dual-fan cooling

Two 40mm ball-bearing fans pull air from the front and exhaust it at the rear, while a smart controller adjusts speed to the internal heat load. Installation uses the standard 200mm depth and four mounting screws; the 20+4 pin main connector, one EPS 8-pin and one 8(4+4) pin CPU cables, two PCIe 6+2 pin, three SATA and two Molex leads are all fixed. Verify cable reach in deeper chassis before fitting.

Check rack depth and CPU power needs

Confirm the rack can accommodate 200mm length and that the motherboard requires both an 8-pin and an 8(4+4) pin EPS connector. The supply provides only two PCIe 6+2 pin plugs, so GPUs needing more must be excluded. Input current draws 9.0A at 110V or 4.5A at 240V; ensure the PDU circuit can sustain that load. No redundant module is present.

Points forts

  • 700W output powers dense 1U servers
  • 80Plus Platinum efficiency cuts energy waste
  • Dual 40mm fans with smart speed control
  • Certified to UL/TUV 62368-1 safety standards
  • 250000-hour MTBF at full load 25°C

Caractéristiques

BrandAthena Power
ModelAP-1U70P868
Type1U EPS
Single/RedundantSingle
Maximum Power700W
Main Connector20+4Pin
Output Current+3.3V@18A, +5V@20A,12V1/V2@28/28A, [email protected] , [email protected]
Output+3.3V, +5V,12V1/V2, -12V, +5Vsb
Input Voltage90 - 264 V
Input Frequency Range47 - 63 Hz
Input Current9.0A@110V, 4.5A@ 240V
MTBF250,000 Hours on Maximum Load at +25 degree C
Efficiency> 80%
Hold-up Time11 ms Minimum at Nominal Input Voltage
ProtectionOCP, OVP,
FeaturesRise time: Less than 70 ms
Dimensions(L x W x H) 200 x 100 x 40.5 mm/ 7.87 x 3.94 x 1.59 in
Weight4.50 lbs
Humidity20%-90%
TemperatureOperating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C

Questions sur cet article

How can I confirm the AP-1U70P868 is operating correctly after installation?

Verify the dual 40 mm fans spin up, the main 20+4 pin and EPS 8-pin connectors deliver stable voltages, and the unit stays within the 0 °C to 55 °C operating range under load.

What cables come with the AP-1U70P868 and what must I source separately?

The box includes one 20+4 pin ATX, one EPS 12V 8-pin, one 8 (4+4) pin, two PCIe 6+2 pin, three SATA 15-pin, two Molex 4-pin and one floppy 4-pin connector; any extra SATA or PCIe cables must be purchased separately.

Which version of the AP-1U70P868 should I choose for a dual-processor 1U server?

Select the single 700 W model with both the EPS 12V 8-pin and the 8 (4+4) pin connectors, which together provide full support for dual-processor configurations.
