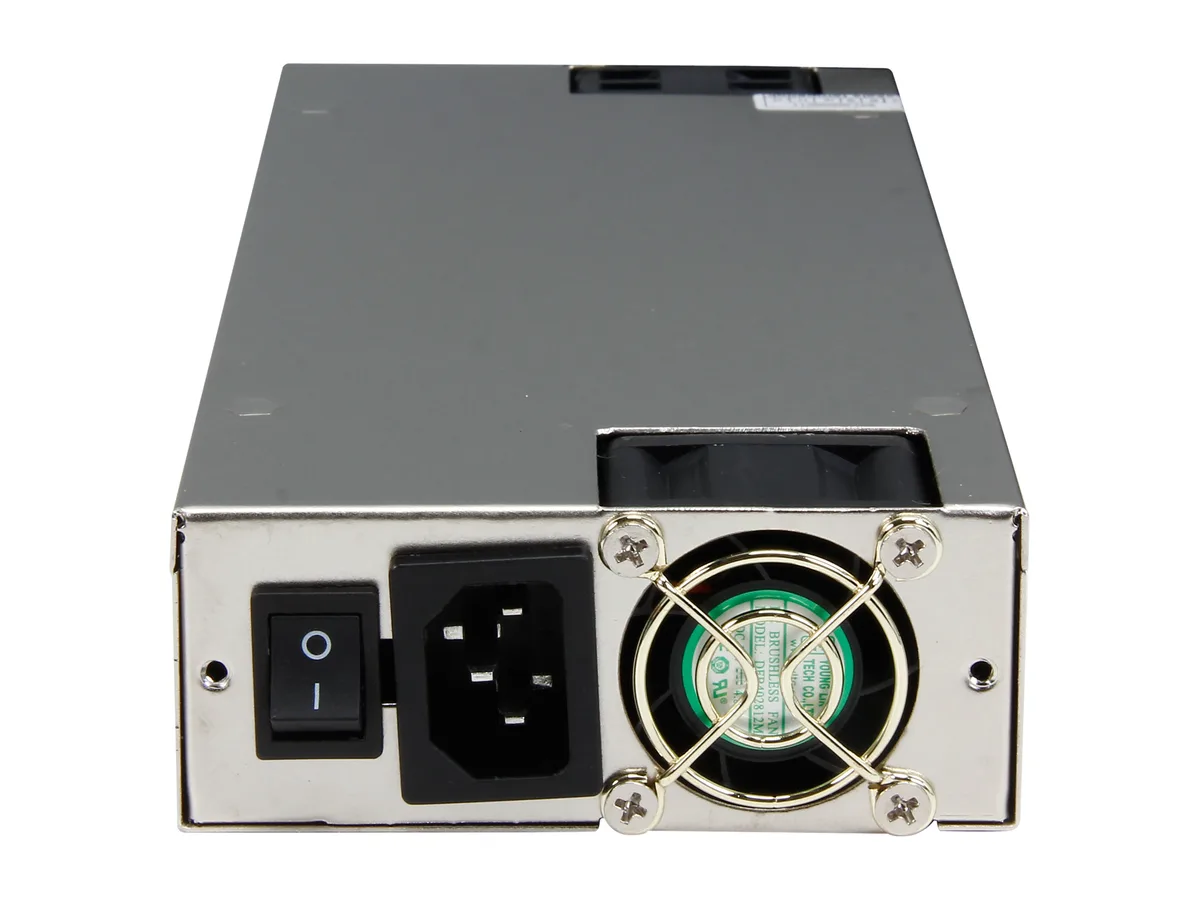

Silver 1U rectangular server PSU with rear fan grille and cable bundle

Athena Power

Athena Power AP-U1ATX6022FEP8 600W server power supply

SKU CH-D9G1-0QPAG MPN AP-U1ATX6022FEP8

A 1U 600W server power supply with ATX, EPS, PCIe, SATA and Molex connectors, 80+ Bronze efficiency and 100,000-hour MTBF

  • Maximum Power600W
  • Main ConnectorATX Connector 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 EPS 12V 8 P
  • Output+5V(20A) +3.3V(18A) +12V1(24A) +12V(24A) -12V(1.0A) -5V(N/A)
  • Input Voltage88 ~ 264 Volts AC
  • Input Frequency Range47 - 63 Hz
  • MTBF100,000 Hours on Maximum Load at +25 degree C

Option 600W

  • 600W maximum power supports demanding server workloads
  • 80+ bronze efficiency reduces energy waste and heat
  • 100,000-hour MTBF at 25°C ensures long-term reliability
  • 1U compact form factor fits dense rack deployments
  • Comprehensive connector set includes EPS 8-pin, PCIe 6+2-pin and SATA power

Server power supply for 1U rack builds

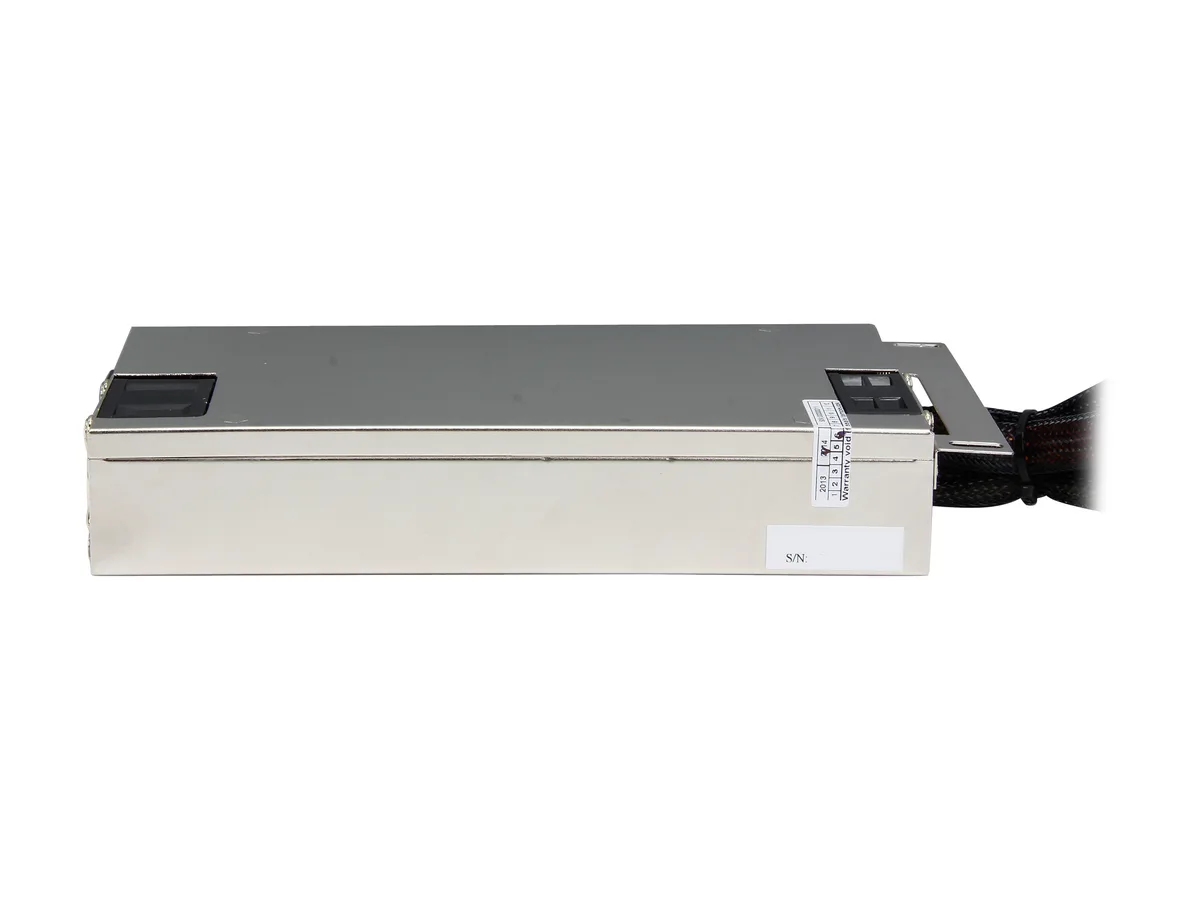

The Athena Power AP-U1ATX6022FEP8 delivers 600W in a 1.59-inch tall chassis that fits standard 1U server enclosures. It targets system integrators who need a compact, high-density unit for rackmount workstations or storage nodes. The wide 88 to 264 VAC input range supports global deployment without voltage switching.

Thermal behaviour and electrical efficiency

An 80+ Bronze rating means the unit converts mains power with reduced waste heat during typical server loads. MTBF is rated at 100,000 hours at full load and 25 °C, indicating a design optimised for continuous operation. Hold-up time of 17 ms at nominal input helps ride through brief mains interruptions.

Connector layout and daily integration

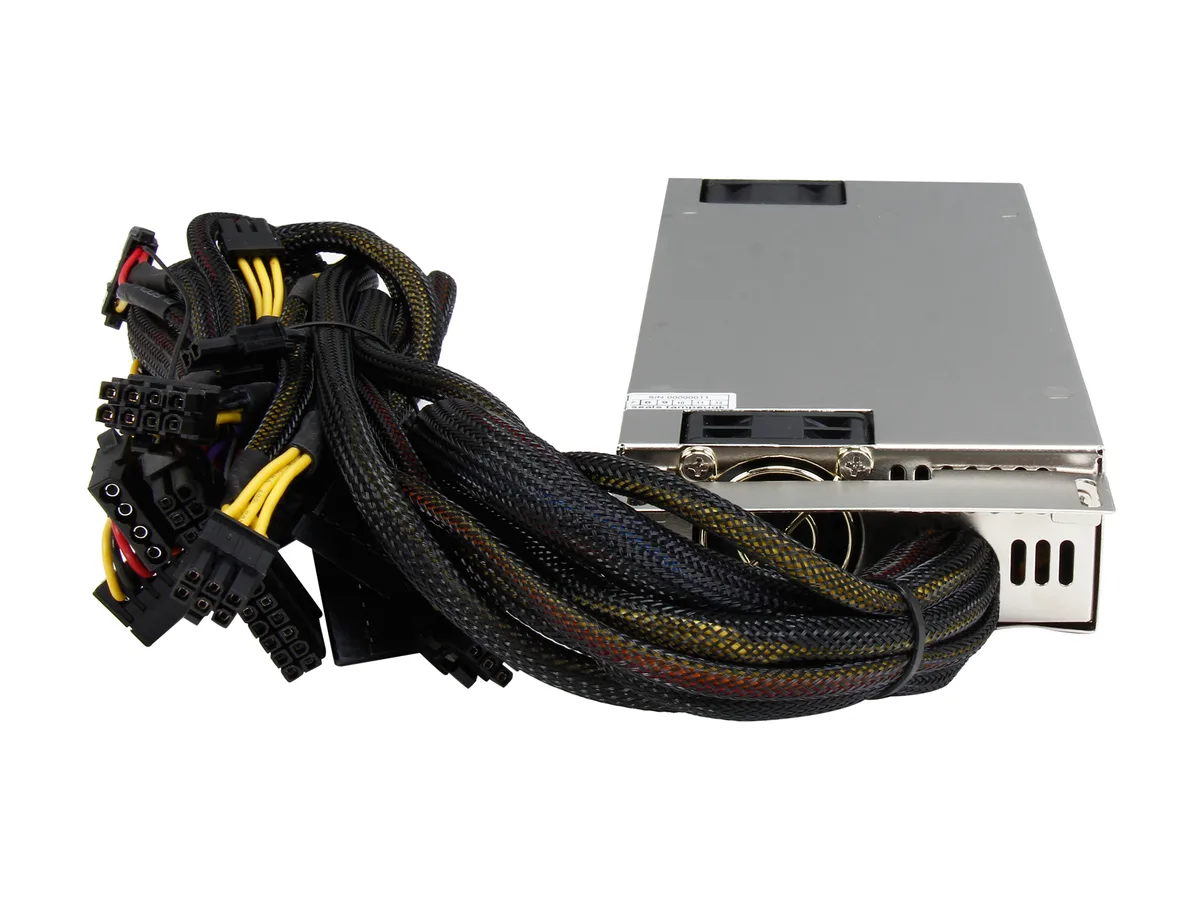

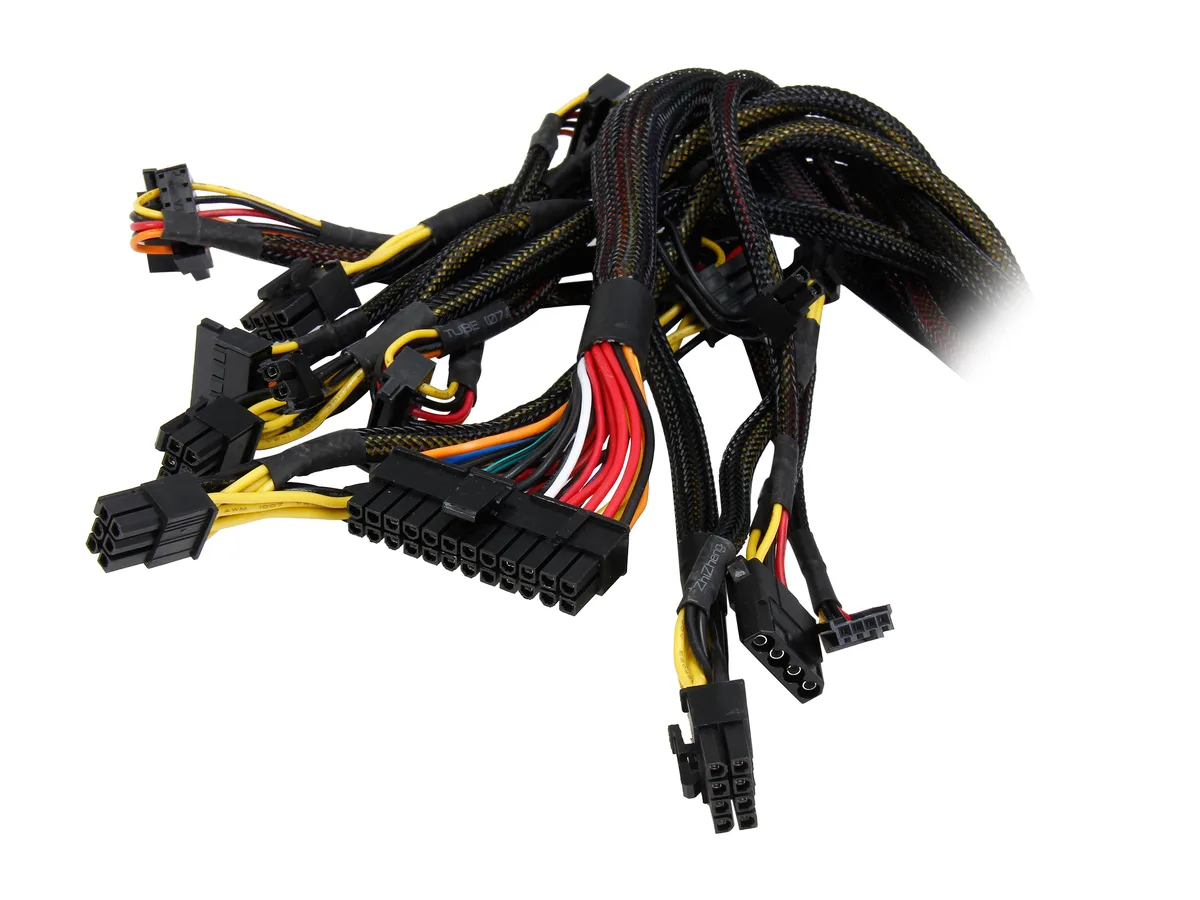

The cable set includes one 24-pin ATX, one 4-pin P4, one 8-pin EPS, one 6-pin and one 6+2-pin PCIe, three SATA and three Molex plugs. This mix covers a single-processor motherboard, a mid-range GPU and multiple drive bays in one harness. Builders needing dual EPS or additional PCIe cables for multi-GPU configurations will find the complement insufficient.

Points forts

  • 600W maximum power supports demanding server workloads
  • 80+ bronze efficiency reduces energy waste and heat
  • 100,000-hour MTBF at 25°C ensures long-term reliability
  • 1U compact form factor fits dense rack deployments
  • Comprehensive connector set includes EPS 8-pin, PCIe 6+2-pin and SATA power

Caractéristiques

BrandAthena Power
ModelAP-U1ATX6022FEP8
Maximum Power600W
Main ConnectorATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
EPS 12V 8 Pin
PCIE 6 Pin x 1
PCIE 6+2 Pin
SATA 15 Pin x 3
Molex 4 Pin x 3
Output+5V(20A) +3.3V(18A) +12V1(24A) +12V(24A) -12V(1.0A) -5V(N/A) +5V_SB(3.5A)
Input Voltage88 ~ 264 Volts AC
Input Frequency Range47 - 63 Hz
MTBF100,000 Hours on Maximum Load at +25 degree C
Hold-up Time17 ms Minimum at Nominal Input Voltage
FeaturesRise time: Less than 20 ms
Dimensions1.59" x 3.94" x 8.66"(H x W x L)
Weight4.50lbs
TemperatureOperating: 0 degree C ~ +50 degree C on Full Load
Storage & Shipping: -20 degree C ~ +80 degree C
Poids d’expédition1.96 kg
Dimensions du colis312 × 206 × 97 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the AP-U1ATX6022FEP8 into a 1U rack chassis and which step is often missed?

Slide the 1.59" high unit into the bay, secure it with the four chassis screws, then plug the 24-pin ATX, 8-pin EPS, 4-pin P4, PCIe 6-pin, PCIe 6+2-pin, three SATA 15-pin and three Molex 4-pin cables; the step often missed is connecting both the 8-pin EPS and the 4-pin P4 for dual-CPU boards.

What maintenance or replacement will this 600W supply need over its service life?

The internal fan is the only moving part; expect to clean dust from the intake every 6-12 months and plan a full unit replacement around the 100,000-hour MTBF mark at 25°C ambient.

What is the first limit reached when the AP-U1ATX6022FEP8 runs at full 600W load continuously?

The operating temperature ceiling of 50°C is reached first; beyond that the protection circuitry shuts the unit down to prevent overheating.
