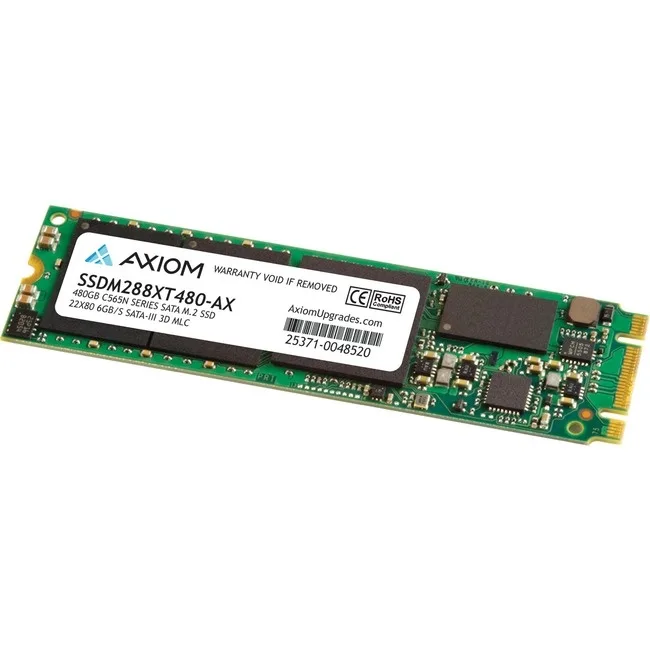

Green rectangular circuit board with gold edge connector and black controller chip

Axiom

Axiom SSDM288XT480-AX C565n 480GB M.2 2280 SATA internal SSD

SKU CH-QTQ9-4FPY1 MPN SSDM288XT480-AX

A 480 GB M.2 2280 SATA internal SSD delivering up to 565 MB/s reads and 525 MB/s writes with 1,500,000 hours MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity480GB
  • InterfaceSATA III
  • ControllerSilicon Motion SM2258
  • M.2 2280 form factor fits slim laptops and desktops
  • 480 GB capacity stores OS, apps and files
  • SATA III interface delivers up to 565 MB/s read speed
  • Silicon Motion SM2258 controller enables 86,000 IOPS random read performance
  • Low 0.09 W idle power extends battery life in mobile devices

Axiom C565n 480GB SATA M.2 2280 SSD

The Axiom C565n is a 480GB internal solid-state drive built in the M.2 2280 form factor with a SATA III interface. It uses a Silicon Motion SM2258 controller and has no moving parts. The drive is designed for consumer workloads and is TAA compliant.

Suits SATA M.2 slots needing low power

This drive fits systems with an M.2 slot wired for SATA signalling and benefits builds where low power draw matters; idle consumption is 0.09W and active use reaches 2.1W. It operates from 0°C to 70°C and stores from -40°C to 85°C. Buyers whose platform only supports PCIe signalling on the M.2 connector must choose a different drive.

Interface decides compatibility

The single specification that determines fit is the SATA III interface on an M.2 2280 connector; the slot must carry SATA signals, not PCIe lanes. Sequential speeds reach 565 MBps read and 525 MBps write, with 86,000 IOPS random read and 80,000 IOPS random write. MTBF is rated at 1,500,000 hours.

Points forts

  • M.2 2280 form factor fits slim laptops and desktops
  • 480 GB capacity stores OS, apps and files
  • SATA III interface delivers up to 565 MB/s read speed
  • Silicon Motion SM2258 controller enables 86,000 IOPS random read performance
  • Low 0.09 W idle power extends battery life in mobile devices

Caractéristiques

BrandAxiom
SeriesC565n
ModelSSDM288XT480-AX
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity480GB
InterfaceSATA III
ControllerSilicon Motion SM2258
Max Sequential ReadUp to 565 MBps
Max Sequential WriteUp to 525 MBps
4KB Random ReadUp to 86,000 IOPS
4KB Random WriteUp to 80,000 IOPS
MTBF1,500,000 hours
FeaturesReduced Power Requirements
- No moving parts
- Super-low operating and standby power needs
- Power requirements notably reduced over a typical HD
Fast Performance
- Virtually zero spin up or seek times
- Zero rotational latency
- High sustained data transfer rate
Reliable
- No volatile memory elements
- Improved resistance to shock & vibration
- Predictable and manageable failure modes reduce IT costs
Improved Operation
- Noise and vibration free
- Virtually no heat emissions
Power Consumption (Idle)0.09W
Power Consumption (Active)Up to 2.1W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Operating Humidity5-95% relative
Max Shock Resistance1500G / 0.5 ms
Max Vibration Resistance2-500 Hz, 3.1G
Width22.00mm
Depth80.00mm
Weight39.92g
Poids d’expédition0.01 kg
Dimensions du colis216 × 165 × 64 mm

Questions sur cet article

Does the drive throttle at 70 °C under sustained writes?

The C565n is rated for 0 °C to 70 °C operation and uses a Silicon Motion SM2258 controller with reduced power requirements to manage heat.

How much power and noise should I expect when it runs all day?

Active draw peaks at 2.1 W and idle drops to 0.09 W; with no moving parts the drive produces zero acoustic noise.

What slot and cable does my laptop or motherboard need for this M.2 2280 SATA drive?

An M.2 2280 key-M or key-B slot wired for SATA 600 is required; no separate cable is used.
