Small square black mini PC barebone unit on a plain surface

BRE NUC

BRE NUC N7P AMD Ryzen 7 8845HS barebone mini PC

SKU CH-ASM2-RMS8E MPN N7P

Barebone mini PC with AMD Ryzen 7 8845HS up to 5.1GHz, dual DDR5 5600 slots, dual M.2 PCIe 4.0 bays, Radeon 780M graphics, triple 4K 60Hz display output, dual 2.5GbE LAN, WiFi 6, Bluetooth 5.2.

  • CPU TypeAMD Ryzen 7 8845HS
  • Memory installedNo Memory
  • Memory slot2 x 288Pin DIMM
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes

Group Barebone

  • 8-core Ryzen 7 8845HS reaches 5.1 GHz for fast multitasking
  • Integrated Radeon 780M graphics handles gaming and creative workloads
  • Dual-channel DDR5 5600 memory support up to 64 GB
  • Triple 4K 60 Hz display output via HDMI 2.0, DP 1.4 and USB4
  • Dual 2.5 GbE LAN plus WiFi 6 and Bluetooth 5.2

Barebone mini PC

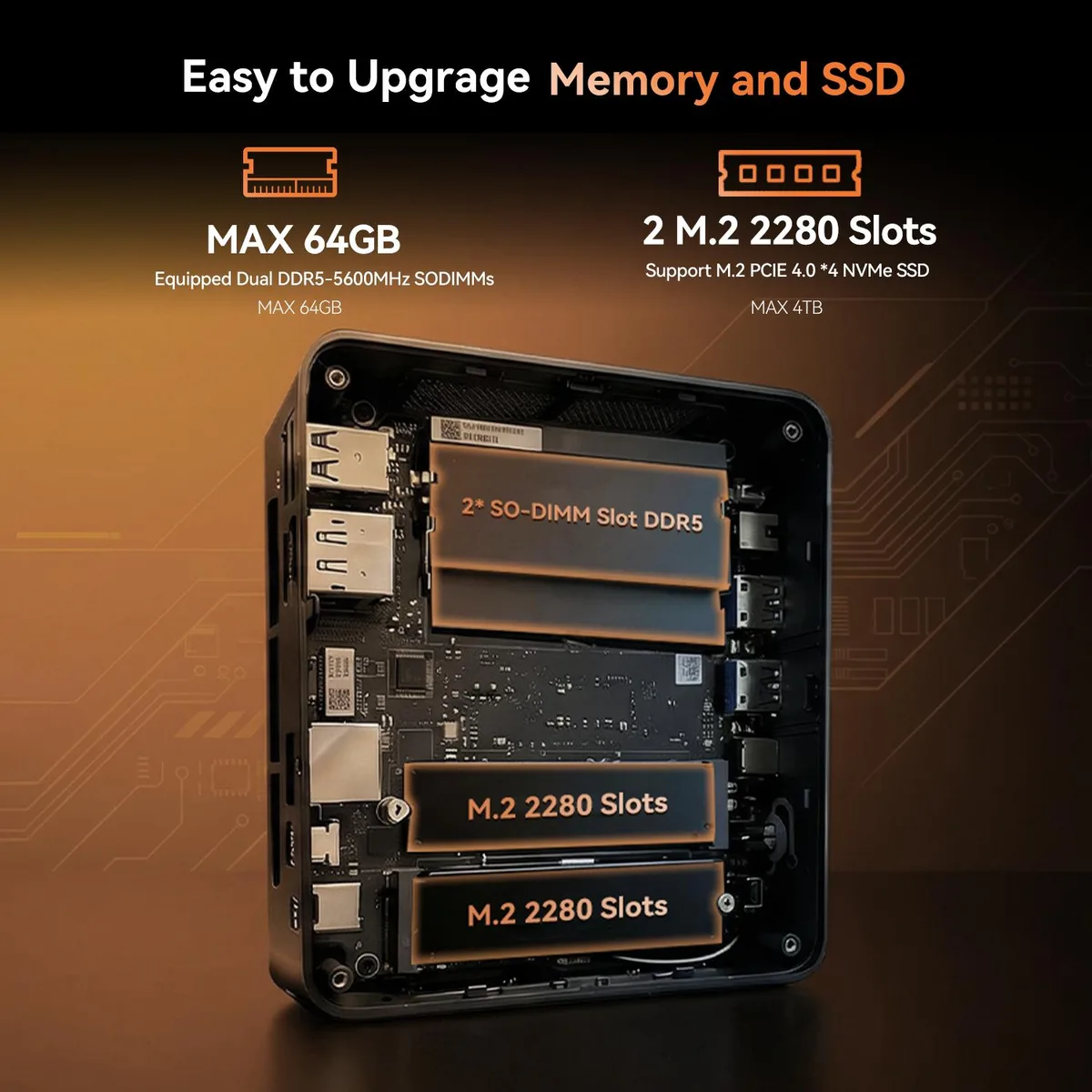

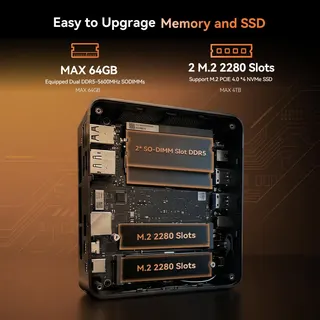

The BRE NUC N7P is a barebone mini PC built around the AMD Ryzen 7 8845HS processor with integrated Radeon 780M graphics. It arrives without memory or storage, ready for you to populate two DDR5 SO-DIMM slots and two M.2 PCIe 4.0 drive bays. A 120 W power adapter, HDMI cable and manual are included.

Expandability limits

This unit suits builders who want a compact system they can configure with up to 64 GB of DDR5 5600 memory and two NVMe SSDs. It is not for buyers who need ECC memory support, more than two storage drives, discrete GPU expansion or 10 Gbps networking.

Triple 4K 60 Hz output

The single specification that decides fit is the triple-display engine: HDMI 2.0, DisplayPort 1.4 and USB4 each drive a 4K panel at 60 Hz. If your workflow requires more than three screens or higher refresh rates at 4K, this barebone cannot meet that need.

Points forts

  • 8-core Ryzen 7 8845HS reaches 5.1 GHz for fast multitasking
  • Integrated Radeon 780M graphics handles gaming and creative workloads
  • Dual-channel DDR5 5600 memory support up to 64 GB
  • Triple 4K 60 Hz display output via HDMI 2.0, DP 1.4 and USB4
  • Dual 2.5 GbE LAN plus WiFi 6 and Bluetooth 5.2

Caractéristiques

BrandBRE NUC
SeriesN7P
ModelN7P 8845HS
CPU TypeAMD Ryzen 7 8845HS
Memory installedNo Memory
Memory slot2 x 288Pin DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Integrated GraphicsAMD Radeon 780M
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6
BluetoothBluetooth 5.2
Front USB2 x USB 3.2Gen2 (10Gbps ) Type-A
1 x USB 3.2 Gen2 (10Gbps ) Type-C
Front Audio Ports3.5mm Audio Jack
HDMI1 x HDMI 2.0
DisplayPort1 x DP1.4
Rear USB2 x USB 2.0 Type-A
1 x USB 4
RJ452 x 2.5Gb RJ45
Input19V/5.26A
Power Supply120W
Dimensions136mmx123mmx51mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What RAM and storage do I need to add before this barebone will boot?

You must install two DDR5 5600 SO-DIMMs up to 64 GB total and at least one M.2 2280 PCIe 4.0 SSD; the system ships with no memory and no drive installed.

Can I keep using my existing 2.5 GbE switch and Wi-Fi 6 router with the N7P?

Yes, the dual Intel i226V 2.5 GbE ports and the onboard Wi-Fi 6 plus Bluetooth 5.2 module will connect to those devices at their rated speeds.

How do I verify the triple-display outputs are all active after assembly?

Plug monitors into the HDMI 2.0, DisplayPort 1.4 and USB4 ports, then open Windows Display Settings and confirm three displays are detected and set to 4K 60 Hz with the Radeon 780M shown as the graphics adapter.
