Rackmount NAS chassis, four drive bays, matte black finish, front status LEDs visible

Buffalo Technology

Buffalo Technology TS3430RN1604 16TB 4-Bay NAS

SKU CH-JZRF-XMW28 MPN TS3430RN1604

Four-bay rackmount NAS with 16TB pre-installed, quad-core 2.0GHz processor, 2GB DDR4, 2.5GbE and 1GbE ports, plus USB 3.0 and 2.0

  • TypeRackmount NAS
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • Ports1 x 1GbE
  • Port RJ-451 x 2.5GbE + 1 x 1GbE
  • Port USB2 x USB3.0 + 1 x USB2.0
  • HDD Interface4 x SATA (4 x Bay)

Included HDD Capacity 16TB (4 x 4TB)

Option Fully Populated

  • Ready-to-use 16 TB storage from four 4 TB drives
  • Quad-core Annapurna Labs AL-524 processor at 2.0 GHz with 2 GB DDR4 memory
  • Flexible data protection with RAID 0, 1, 5, 6, 10 and JBOD
  • Faster network access via 2.5 GbE and 1 GbE ports
  • Expand connectivity with two USB 3.0 and one USB 2.0 ports

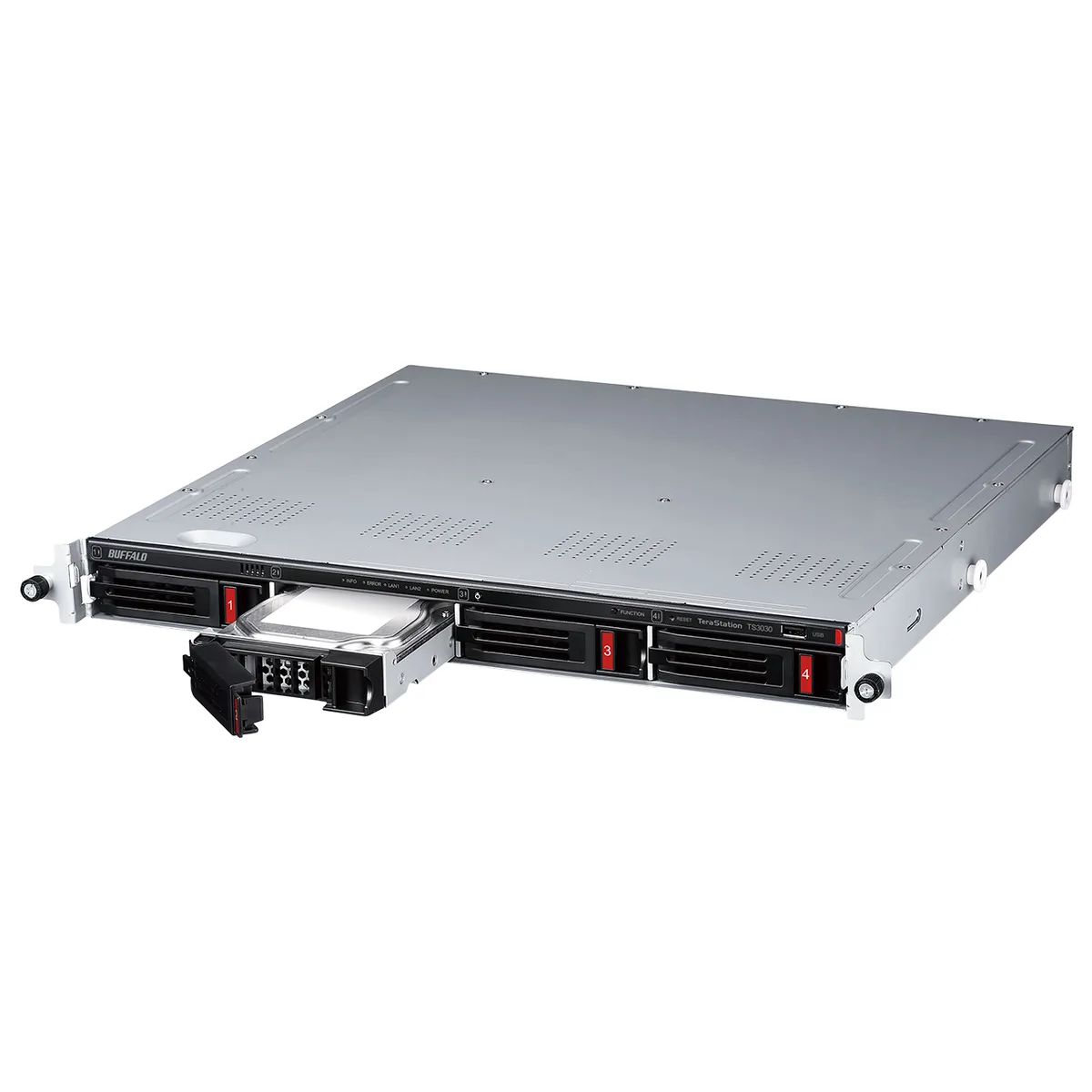

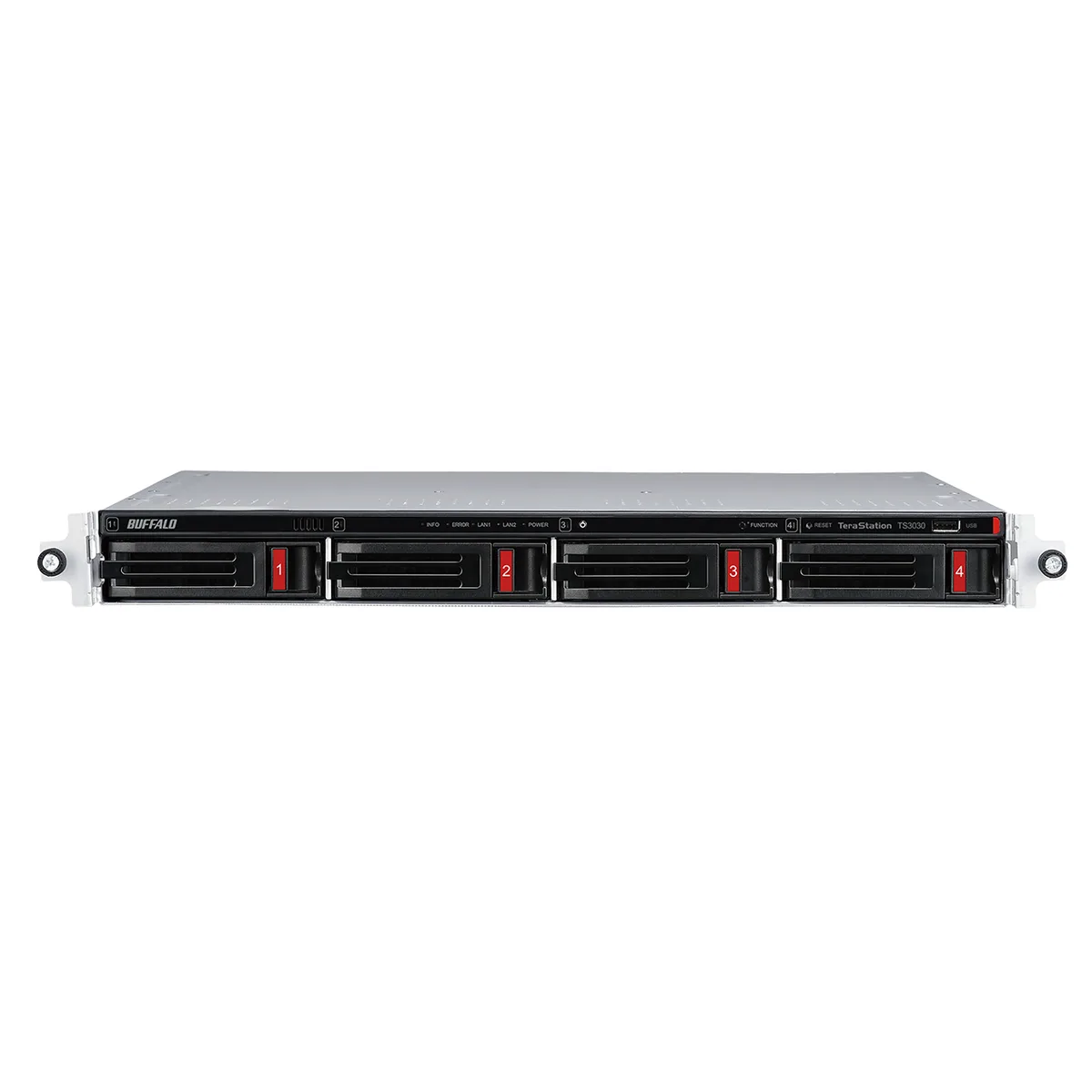

Purpose-built 4-bay rackmount NAS

The Buffalo TeraStation 3030 TS3430RN1604 arrives populated with four 4 TB drives for 16 TB total capacity. An Annapurna Labs AL-524 quad-core processor at 2.0 GHz and 2 GB DDR4 memory handle file serving, backup and RAID management for small offices or workgroups.

Network limits and expansion

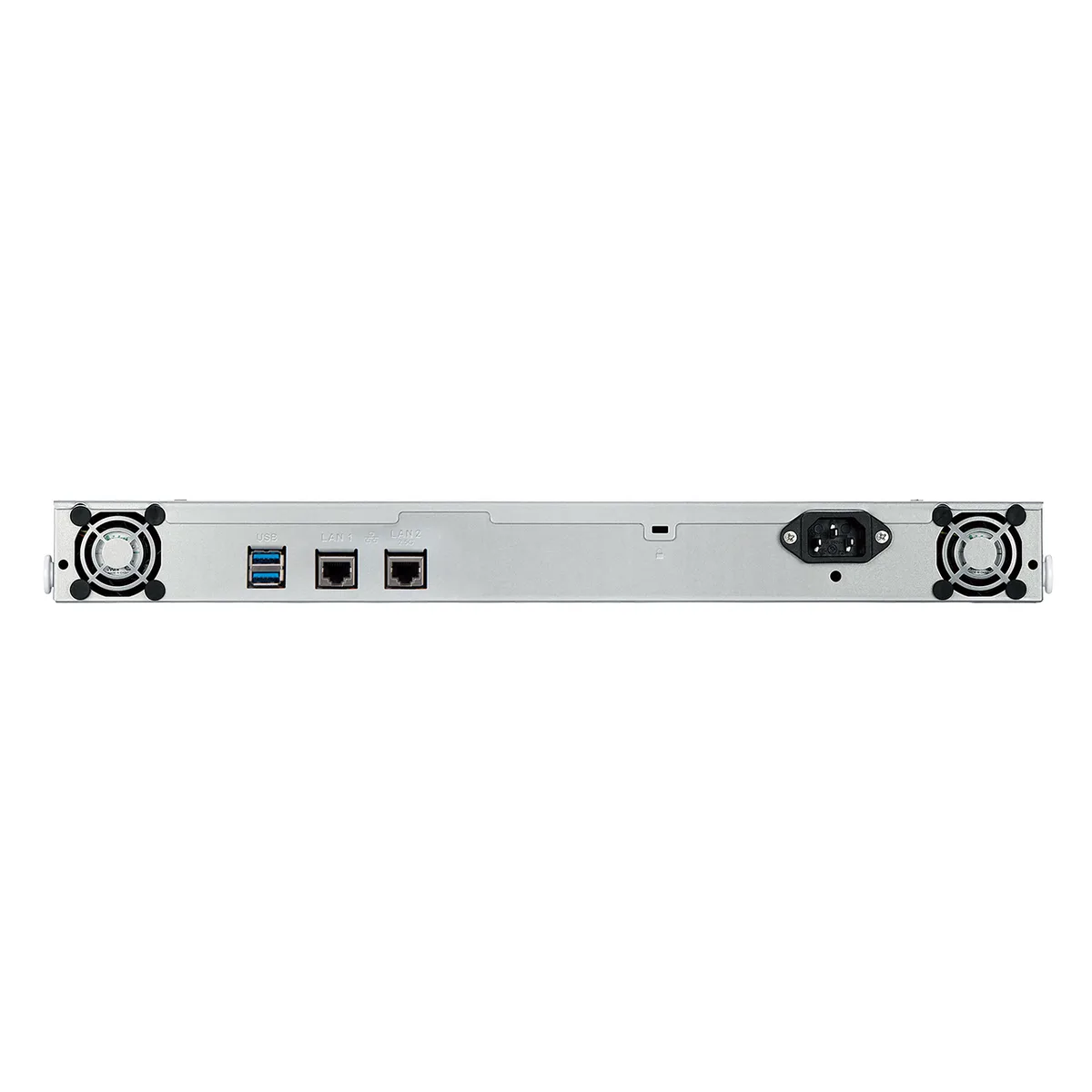

Two RJ-45 ports provide 2.5 GbE and 1 GbE links conforming to IEEE 802.3, 802.3u and 802.3ab, so throughput tops out at 2.5 Gbps on the faster port. Three USB ports (two USB 3.0, one USB 2.0) add external storage or printer sharing but do not increase LAN bandwidth.

Installation notes

The 1U chassis mounts in a standard rack using the included rail kit and operates on 100-240 VAC power. Drives are pre-installed; RAID 0, 1, 5, 6, 10 or JBOD can be selected during initial setup. Buyers needing more than four drive bays, 10 GbE connectivity or ECC memory should consider other platforms.

Points forts

  • Ready-to-use 16 TB storage from four 4 TB drives
  • Quad-core Annapurna Labs AL-524 processor at 2.0 GHz with 2 GB DDR4 memory
  • Flexible data protection with RAID 0, 1, 5, 6, 10 and JBOD
  • Faster network access via 2.5 GbE and 1 GbE ports
  • Expand connectivity with two USB 3.0 and one USB 2.0 ports

Caractéristiques

BrandBUFFALO
SeriesTeraStation 3030
ModelTS3430RN1604
Part NumberTS3430RN1604
TypeRackmount NAS
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ports1 x 1GbE
Port RJ-451 x 2.5GbE + 1 x 1GbE
Port USB2 x USB3.0 + 1 x USB2.0
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
ProcessorAnnapurna Labs Alpine Processor AL-524 2.0GHz Quad-core
Installed Memory2GB DDR4
Included HDD Capacity16TB (4 x 4TB)
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Drive CompatibilityOP-HD4.0N
Supported ProtocolsTCP/IP
LEDsPower, HDD (Hard Disk Drive), LAN (10/100)
Power100-240 VAC 50/60Hz
Power Consumption33.88W
Temperature0°C - 40 °C
Humidity10-80% Non-condensing
UsageHigh read/write performance with RAID
Dimensions16.9 x 16.9 x 1.7 in
Weight17.0 lbs.
Package ContentsTeraStation, Railkit, Quick Setup Guide, AC Cable, and Warranty Statement
Poids d’expédition12.38 kg
Dimensions du colis584 × 536 × 201 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick RAID 5 or RAID 6 for the 16TB (4 x 4TB) setup?

RAID 5 uses one drive for parity, leaving three drives of capacity, while RAID 6 uses two drives for parity, leaving two drives of capacity; both survive drive failures as described.

What does the 2.0GHz quad-core Annapurna Labs AL-524 processor mean for everyday file serving?

The quad-core AL-524 at 2.0GHz with 2GB DDR4 handles multi-user SMB/AFP/NFS transfers and RAID parity calculations without bottlenecks on the 2.5GbE link.

How does the single 2.5GbE port limit real-world throughput?

The 2.5GbE RJ-45 caps sustained reads and writes at roughly 2.5Gbps, so large sequential transfers will not exceed that ceiling even if the RAID array is faster.
