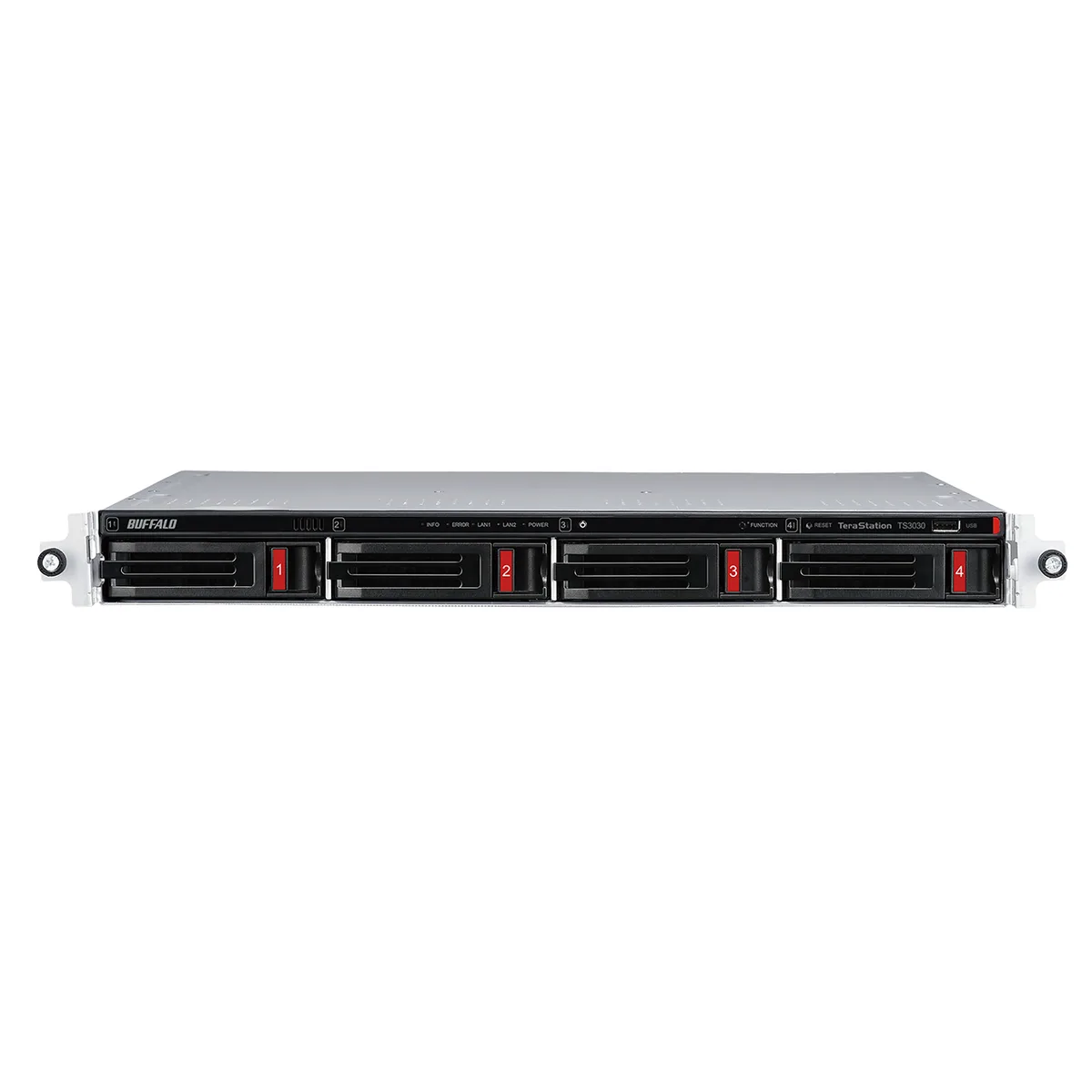

Black 4-bay rackmount NAS unit with front drive trays and status LEDs

Buffalo Technology

Buffalo Technology TS3430RN3204 4-Bay Rackmount NAS 32TB

SKU CH-TKGJ-FKAHQ MPN TS3430RN3204

A 4-bay rackmount NAS with 32 TB across four 8 TB drives, quad-core AL-524 processor, 2 GB DDR4, 2.5 GbE plus 1 GbE ports, and RAID 0, 1, 5, 6, 10, JBOD support

  • TypeRackmount NAS
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • Ports1 x 1GbE
  • Port RJ-451 x 2.5GbE + 1 x 1GbE
  • Port USB2 x USB3.0 + 1 x USB2.0
  • HDD Interface4 x SATA (4 x Bay)

Included HDD Capacity 32TB (4 x 8TB)

Option Fully Populated

  • High read/write performance with RAID 0, 1, 5, 6, 10 and JBOD
  • 32TB total capacity from four 8TB drives included
  • Quad-core Annapurna Labs AL-524 2.0GHz processor with 2GB DDR4
  • Dual Ethernet: 2.5GbE and 1GbE ports for flexible networking
  • Three USB ports: two USB3.0 and one USB2.0 for external storage

4-Bay Rackmount NAS with 32TB

The Buffalo TeraStation 3030 TS3430RN3204 is a new 4-bay rackmount network storage device that ships with four 8TB drives for 32TB of total capacity. It runs on an Annapurna Labs Alpine AL-524 quad-core processor at 2.0GHz with 2GB of DDR4 memory. The unit supports RAID 0, 1, 5, 6, 10 and JBOD for flexible data protection.

Small offices needing high read/write RAID

Teams that want redundant storage with hardware RAID levels and dual-speed Ethernet will find this a fit. Buyers who need more than four drive bays, 10GbE connectivity, or expandable RAM beyond the soldered 2GB should look at other models.

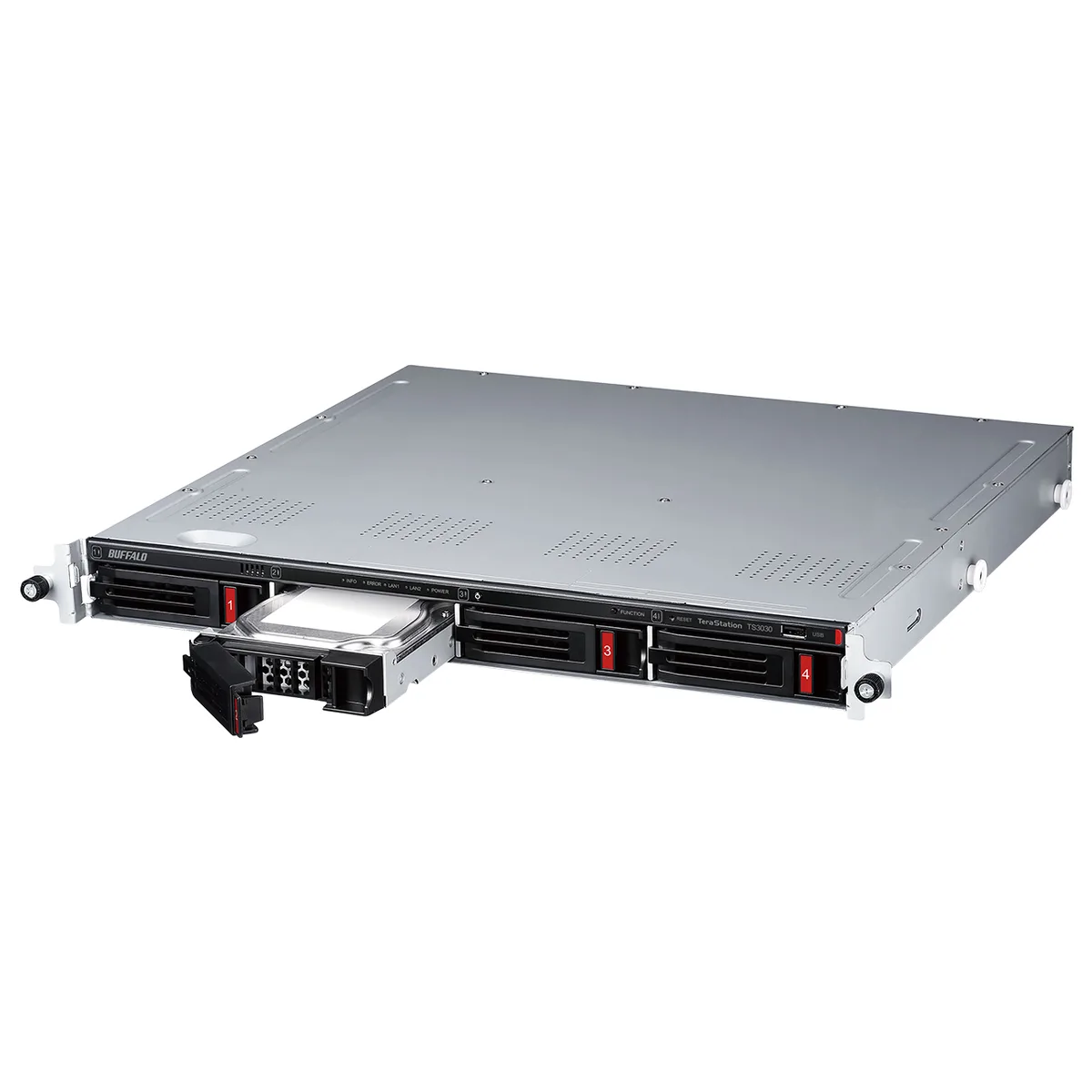

32TB pre-installed in RAID-ready bays

The four included 8TB SATA drives deliver 32TB raw capacity out of the box. This fixed drive set determines the starting storage ceiling before any RAID overhead is applied.

Points forts

  • High read/write performance with RAID 0, 1, 5, 6, 10 and JBOD
  • 32TB total capacity from four 8TB drives included
  • Quad-core Annapurna Labs AL-524 2.0GHz processor with 2GB DDR4
  • Dual Ethernet: 2.5GbE and 1GbE ports for flexible networking
  • Three USB ports: two USB3.0 and one USB2.0 for external storage

Caractéristiques

BrandBUFFALO
SeriesTeraStation 3030
ModelTS3430RN3204
Part NumberTS3430RN3204
TypeRackmount NAS
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ports1 x 1GbE

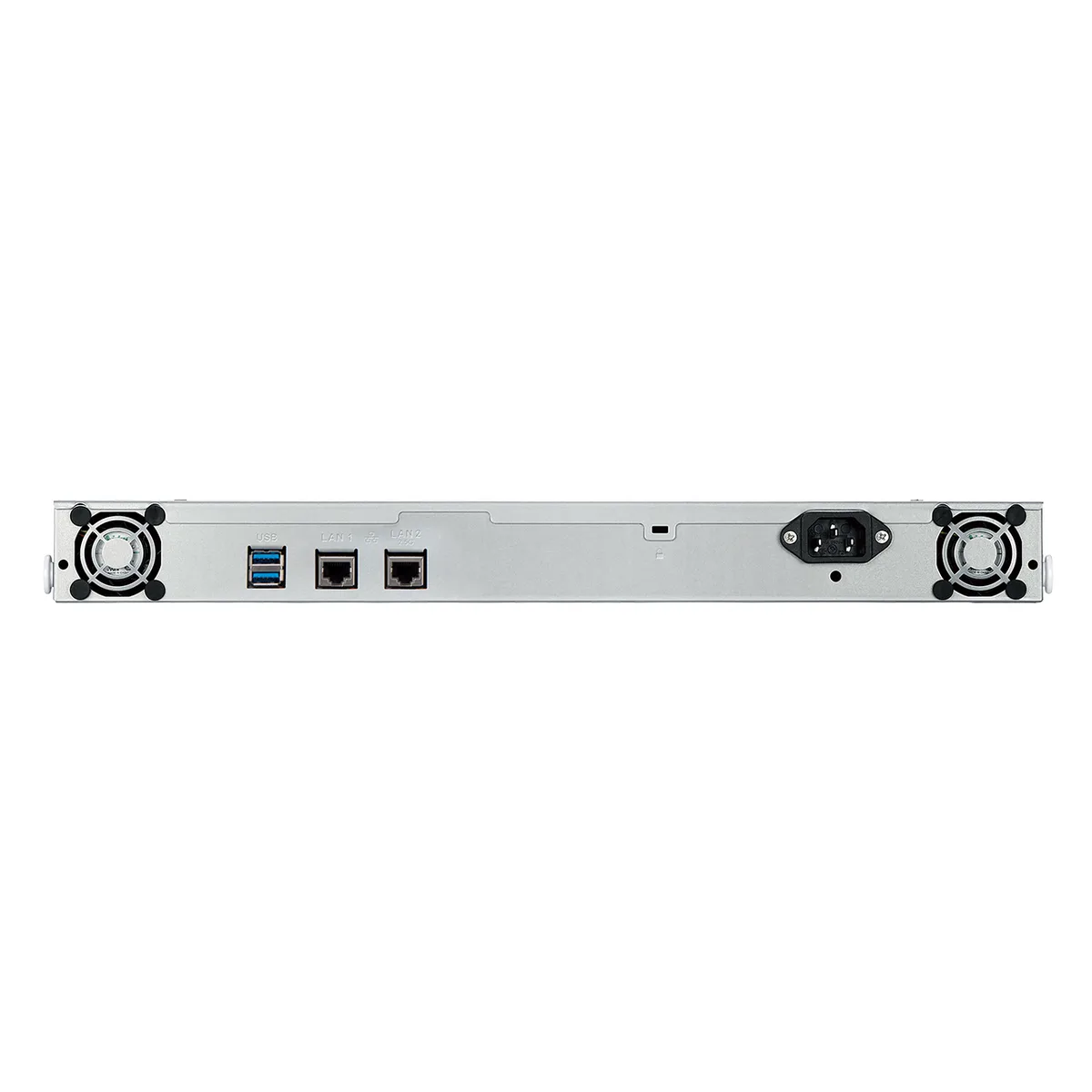

Port RJ-451 x 2.5GbE + 1 x 1GbE
Port USB2 x USB3.0 + 1 x USB2.0
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
ProcessorAnnapurna Labs Alpine Processor AL-524 2.0GHz Quad-core
Installed Memory2GB DDR4
Included HDD Capacity32TB (4 x 8TB)
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Drive CompatibilityOP-HD8.0N
Supported ProtocolsTCP/IP
LEDsPower, HDD (Hard Disk Drive), LAN (10/100)
Power100-240 VAC 50/60Hz
Power Consumption33.88W
Temperature0°C - 40 °C
Humidity10-80% Non-condensing
UsageHigh read/write performance with RAID
Dimensions16.9 x 16.9 x 1.7 in
Weight17.0 lbs.
Package ContentsTeraStation, Railkit, Quick Setup Guide, AC Cable, and Warranty Statement
Poids d’expédition12.38 kg
Dimensions du colis584 × 536 × 201 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What replacement drives are approved for the four SATA bays when a disk fails?

The compatibility list specifies OP-HD8.0N drives, so matching 8TB SATA units from that series are the direct replacements.

Which component limits sustained throughput first — the 2.5GbE port or the Annapurna AL-524 processor?

The single 2.5GbE RJ-45 port sets the network ceiling, while the quad-core 2.0GHz processor handles RAID 5 or 6 parity without becoming the bottleneck.

How much heat and noise should I expect from the 33.88W power draw in a 0°C – 40°C rack environment?

At 33.88W the unit runs cool enough for standard rack airflow; fan noise stays low under typical loads and the operating range covers 0°C to 40°C non-condensing.
