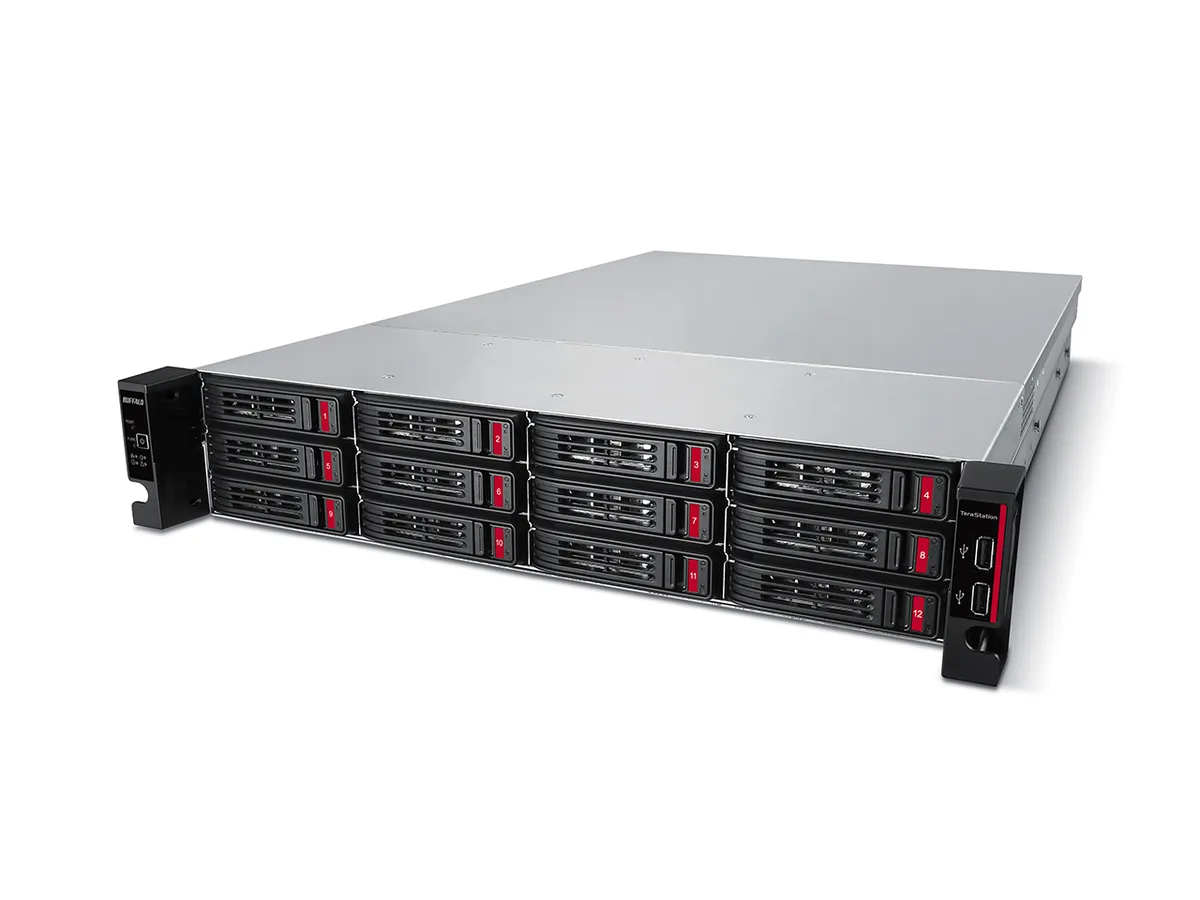

Silver 12-bay rackmount NAS unit with front drive trays and rear ports visible

Buffalo Technology

Buffalo Technology TS51220RH8004 12-Bay 80TB rackmount NAS

SKU CH-X5A1-9R5DQ MPN TS51220RH8004

A 12-bay rackmount NAS with 80 TB of pre-installed enterprise drives, native 10 GbE, 16 GB DDR4 and RAID 0/1/5/6/10/JBOD ready to deploy

  • StandardsIEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T),
  • Port USB2x USB 3.2, 2x USB 2.0
  • Port eSATASATA III (6 Gbps)
  • Form Factor12-Bay
  • Operating SystemWindows® 11, Windows® 10, Windows® 8.1 (32-bit/64-bit), Wind
  • Installed Memory16GB DDR4

Included HDD Capacity 80TB (4 x 20TB)

Option Partially Populated

  • 80TB raw capacity with four pre-installed 20TB enterprise drives
  • Native 10GbE port supports IEEE802.3an for high-speed file transfers
  • 16GB DDR4 memory handles multi-user workloads and virtualization
  • RAID 0, 1, 5, 6, 10 and JBOD protect data against drive failure
  • AES-256 encryption plus two-factor authentication secure stored files

12-bay rackmount NAS with 80 TB

The Buffalo TeraStation 51220 is a 12-bay rackmount network-attached storage appliance that ships with four 20 TB enterprise-grade hard drives for a total of 80 TB. RAID is pre-configured and the unit includes 16 GB of DDR4 memory. A native 10 GbE port and multi-gigabit Ethernet standards provide high-throughput connectivity without cable upgrades.

Small-business teams needing turnkey capacity

This system suits organisations that want a ready-to-rack file server with cloud-sync support for Amazon S3, Dropbox, Microsoft Azure and OneDrive. It is not intended for buyers who require more than twelve drive bays, who need a different drive interface than SATA, or who plan to run workloads outside the listed Windows, Windows Server and macOS versions.

80 TB raw capacity in four pre-installed drives

The array delivers 80 TB of raw storage across four 20 TB drives with RAID 0, 1, 5, 6, 10 and JBOD options. This capacity figure determines whether the appliance matches the data-retention and redundancy requirements of the target deployment.

Points forts

  • 80TB raw capacity with four pre-installed 20TB enterprise drives
  • Native 10GbE port supports IEEE802.3an for high-speed file transfers
  • 16GB DDR4 memory handles multi-user workloads and virtualization
  • RAID 0, 1, 5, 6, 10 and JBOD protect data against drive failure
  • AES-256 encryption plus two-factor authentication secure stored files

Caractéristiques

BrandBUFFALO
ModelTS51220RH8004
StandardsIEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Port USB2x USB 3.2, 2x USB 2.0
Port eSATASATA III (6 Gbps)
Form Factor12-Bay
Operating SystemWindows® 11, Windows® 10, Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2022, Windows Server® 2019, Windows
Server® 2016, Windows Server® 2012, Windows Server® 2012R2, Mac® OS® X 10.9 or later
Installed Memory16GB DDR4
Included HDD Capacity80TB (4 x 20TB)
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Supported ProtocolsTCP/IP
PowerMax 500W
Temperature32° - 104°F (0° - 40°C)
Humidity10 - 85% non-condensing
Dimensions29.0'' x 18.9'' x 3.4''
Weight41.03 - 55.37 lbs
Package ContentsIncluded Material : TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement
Included Software : NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration)
Additional : For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact [email protected] .
Poids d’expédition29.48 kg
Dimensions du colis1067 × 635 × 305 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How often will the four 20TB drives need replacement in a RAID 6 array?

The 20TB enterprise drives are rated for continuous operation; replace any drive that SMART reports as failing or after the manufacturer's rated service life.

What limits sustained write throughput on the 10GBASE-T port?

The 10GBASE-T network interface and the SATA III 6 Gbps drive links set the maximum sustained write speed.

How much heat does the 500W power supply add to a rack running all day?

At full load the unit draws up to 500W, converting most of that power into heat inside the rack.
