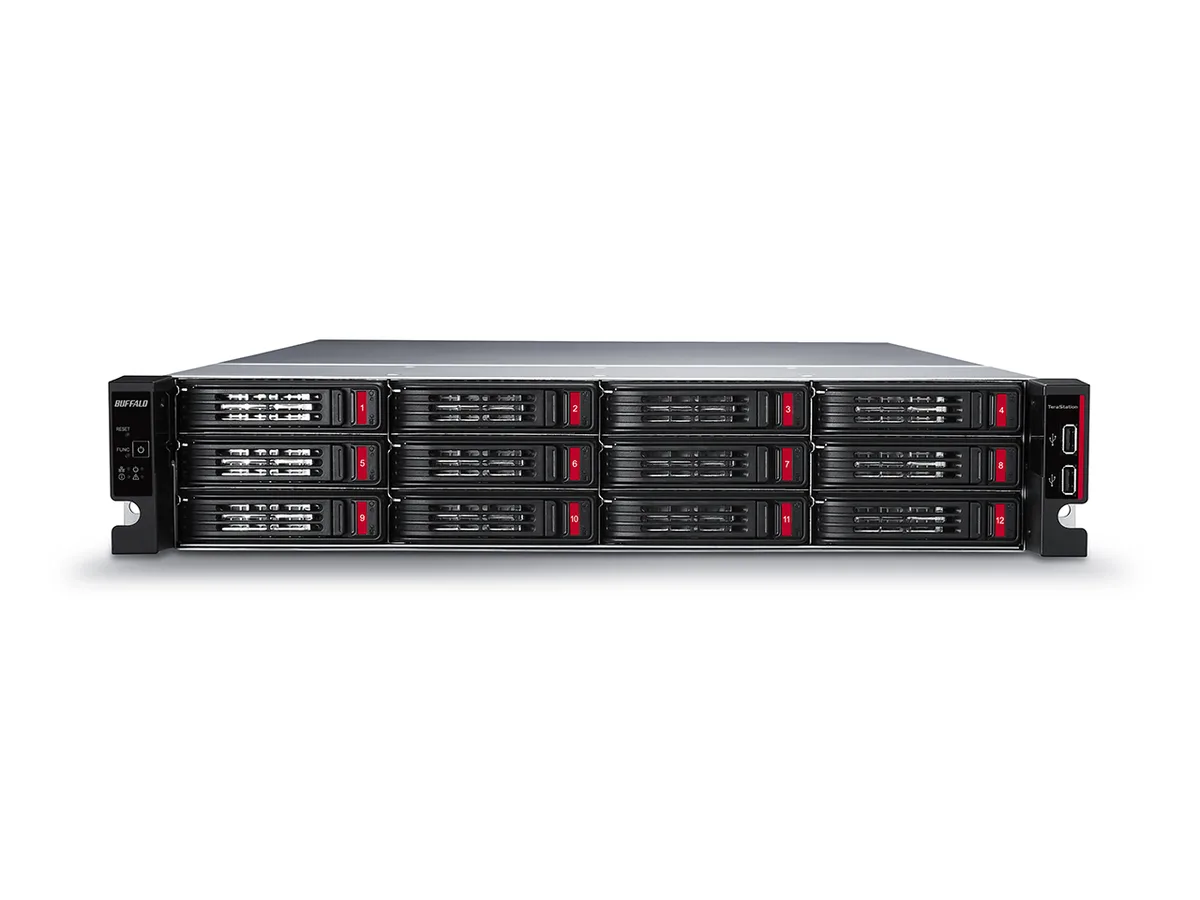

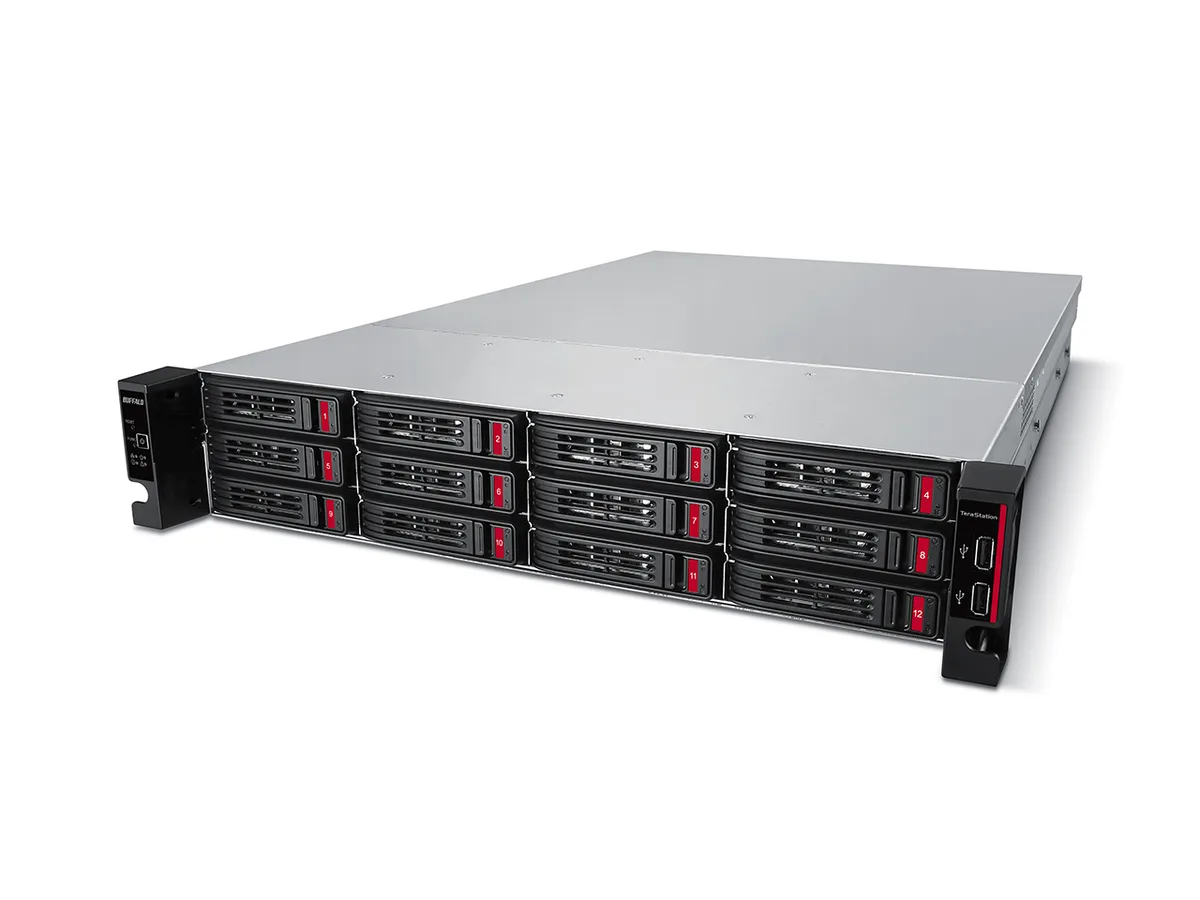

Black rackmount NAS chassis with twelve front drive bays and handle pulls

Buffalo Technology

Buffalo Technology TS51220RH4804 12-Bay 48TB rackmount NAS

SKU CH-6PXY-6ERNB MPN TS51220RH4804

A 12-bay rackmount NAS with 48 TB of pre-installed enterprise drives, 16 GB DDR4 memory, native 10 GbE and RAID 0/1/5/6/10/JBOD support

  • StandardsIEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T),
  • Port USB2x USB 3.2, 2x USB 2.0
  • Port eSATASATA III (6 Gbps)
  • Form Factor12-Bay
  • Operating SystemWindows® 11, Windows® 10, Windows® 8.1 (32-bit/64-bit), Wind
  • Installed Memory16GB DDR4

Included HDD Capacity 48TB (4 x 12TB)

Option Partially Populated

  • Native 10GbE port enables high-speed transfers without cable upgrades
  • Pre-tested enterprise-grade drives included with RAID pre-configured for immediate use
  • 16GB DDR4 memory supports demanding workloads and virtualization
  • VMware and Windows Server 2022 certified for virtualized environments
  • AES-256 encryption with 2-factor authentication secures stored data

12-Bay Rackmount NAS with 48TB Pre-installed

The Buffalo Technology TS51220RH4804 is a 12-bay rackmount network-attached storage system shipped with four 12TB enterprise-grade hard drives pre-configured in RAID. It targets businesses that need immediate, high-capacity shared storage for file serving, backup targets or virtualization workloads without the delay of drive sourcing and array setup.

Sustained Load Behaviour with 16GB DDR4

Sixteen gigabytes of DDR4 memory support the native 10GbE port and multi-protocol file services during continuous read and write streams. The system maintains throughput for concurrent users and virtual machines by keeping hot data in RAM while the four installed drives handle the persistent write path across RAID 0, 1, 5, 6, 10 or JBOD configurations.

Practical Limits of 10GBASE-T and SATA III

The single 10GBASE-T interface tops out at ten gigabits per second over copper cabling up to one hundred metres, so aggregate throughput cannot exceed that ceiling even with faster drives. Each drive bay connects through SATA III at six gigabits per second, which bounds individual drive performance and makes the eight empty bays useful for capacity expansion rather than raw speed gains.

Points forts

  • Native 10GbE port enables high-speed transfers without cable upgrades
  • Pre-tested enterprise-grade drives included with RAID pre-configured for immediate use
  • 16GB DDR4 memory supports demanding workloads and virtualization
  • VMware and Windows Server 2022 certified for virtualized environments
  • AES-256 encryption with 2-factor authentication secures stored data

Caractéristiques

BrandBUFFALO
ModelTS51220RH4804
StandardsIEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Port USB2x USB 3.2, 2x USB 2.0
Port eSATASATA III (6 Gbps)
Form Factor12-Bay
Operating SystemWindows® 11, Windows® 10, Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2022, Windows Server® 2019, Windows
Server® 2016, Windows Server® 2012, Windows Server® 2012R2, Mac® OS® X 10.9 or later
Installed Memory16GB DDR4
Included HDD Capacity48TB (4 x 12TB)
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Supported ProtocolsTCP/IP
PowerMax 500W
Temperature32° - 104°F (0° - 40°C)
Humidity10 - 85% non-condensing
Dimensions29.0'' x 18.9'' x 3.4''
Weight41.03 - 55.37 lbs
Package ContentsIncluded Material : TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement
Included Software : NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration)
Additional : For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact [email protected] .
Poids d’expédition29.03 kg
Dimensions du colis1067 × 635 × 305 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How much power does the TS51220RH4804 draw and what temperature range is it rated for when running continuously?

The unit has a maximum power rating of 500W and an operating temperature range of 32° - 104°F (0° - 40°C) with 10 - 85% non-condensing humidity.

Which drives and memory are already installed so I do not need to buy them separately?

Four 12TB enterprise-grade hard drives are pre-installed for 48TB total capacity, and 16GB of DDR4 memory is installed.

Can the native 10GbE port connect directly to my existing 1GbE switches and older servers without extra adapters?

Yes, the 10GbE port supports IEEE802.3an, IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX) and IEEE802.3 (10BASE-T) for backward compatibility.
