White SFX power supply with 92mm fan and modular cables

Cooler Master

Cooler Master MPY-7501-SFHAGV-3EWF White 750W SFX Gold power supply

SKU CH-VA3N-JKD24 MPN MPY-7501-SFHAGV-3EWF

Fully modular SFX unit delivers 750 W with 80 PLUS Gold efficiency, ATX 3.1 and PCIe 5.1 support, and a 92 mm FDB fan in a 100 mm white chassis

  • ColorWhite
  • TypeSFX 12V Ver. 3.42
  • Maximum Power750 W
  • Fans1 x 92mm FDB fan
  • PFCActive
  • Main Connector20+4Pin

Option SFX 80+ Gold (750W) White

  • 750 W output powers demanding builds in small cases
  • 90 % 80 PLUS Gold efficiency lowers heat and waste

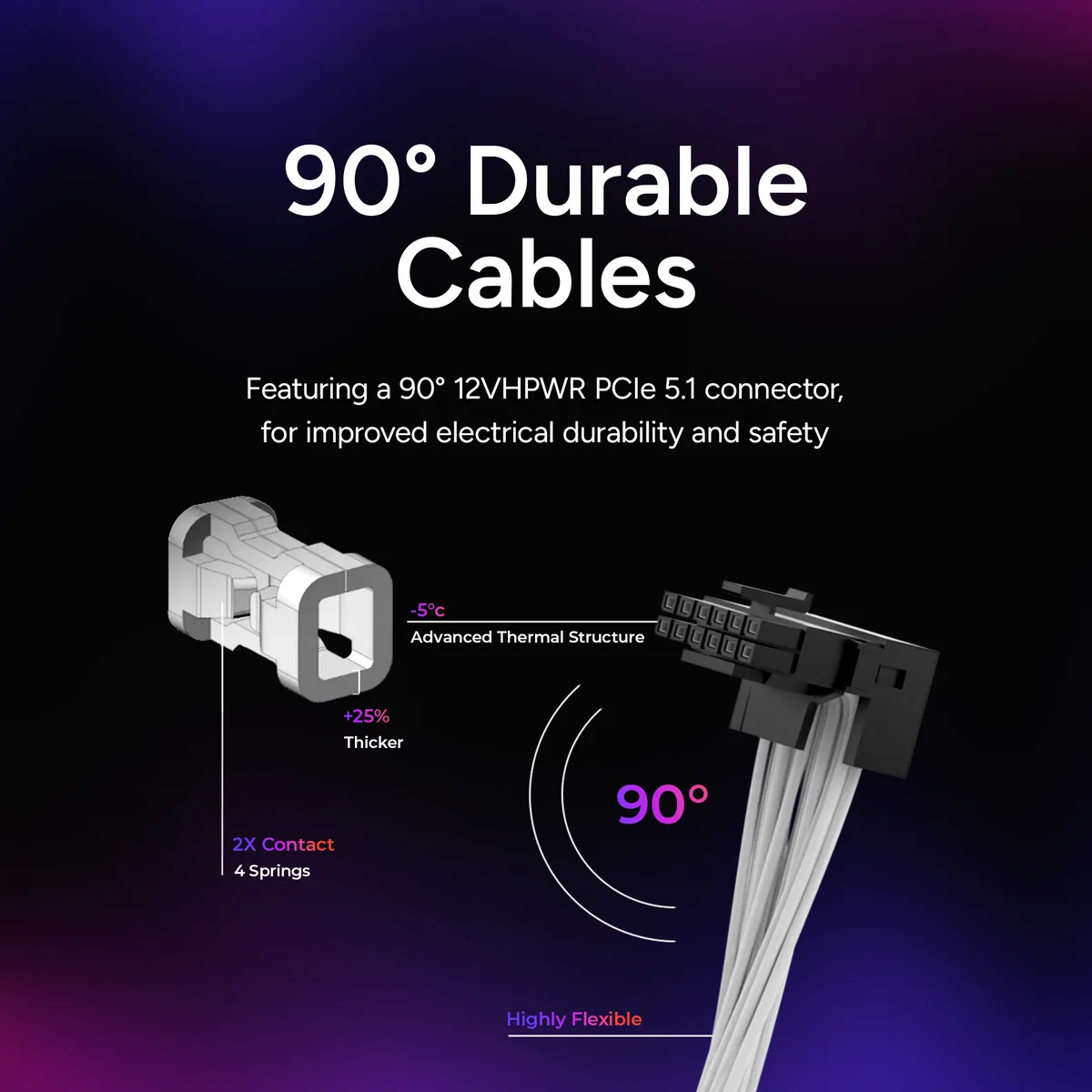

  • Fully modular cabling with 90 ° 12VHPWR connector simplifies routing

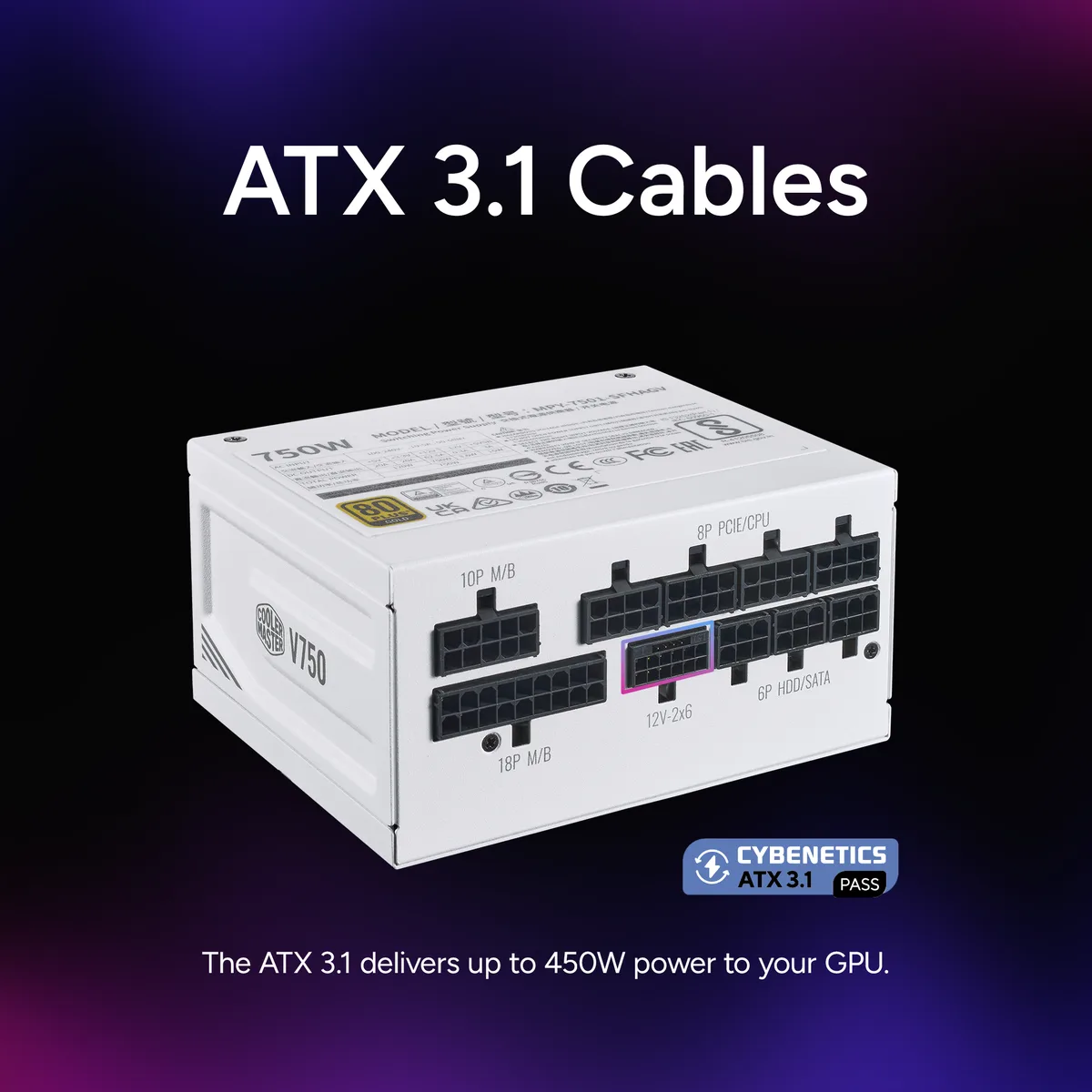

  • ATX 3.1 and PCIe 5.1 ready delivers up to 450 W to modern GPUs
  • Cybenetics Standard + rating confirms low-noise operation

Small Form Factor Power

The Cooler Master V750 SFX Gold delivers 750 W from an SFX chassis measuring 100 mm long. It targets gamers, creators and professionals who need full modular cabling in compact ITX builds. The unit carries 80 PLUS Gold certification at 90 % efficiency and meets ATX 3.1 with PCIe 5.1 readiness.

Sustained Load Behaviour

A single +12 V rail supplies the full 750 W continuously, while the 12 VHPWR connector rated for 450 W handles modern GPU transients. Active PFC operates across 90 to 264 V input at 47 to 63 Hz, and the LLC resonant topology with amorphous metal components maintains stable output during extended sessions.

Thermals Noise And Power Draw

The 92 mm FDB fan achieves Cybenetics Standard Plus acoustics while moving air through the dense internal layout. Full modular cables reduce clutter and improve case airflow, lowering overall system temperatures. Comprehensive protections including OVP, OPP, SCP, OCP, UVP, OTP and surge guard cover abnormal conditions.

Points forts

  • 750 W output powers demanding builds in small cases
  • 90 % 80 PLUS Gold efficiency lowers heat and waste
  • Fully modular cabling with 90 ° 12VHPWR connector simplifies routing
  • ATX 3.1 and PCIe 5.1 ready delivers up to 450 W to modern GPUs
  • Cybenetics Standard + rating confirms low-noise operation

Caractéristiques

BrandCooler Master
ModelMPY-7501-SFHAGV-3EWF
ColorWhite
TypeSFX 12V Ver. 3.42
Maximum Power750 W
Fans1 x 92mm FDB fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector8
Max PSU Length100 mm
ModularFull Modular
Efficiency90%
Energy-Efficient80 PLUS GOLD Certified
PSU Noise LevelCybenetics Standard +
ProtectionOVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
Input Voltage90 - 264 V
Input Frequency Range47 - 63 Hz
Input Current12 - 5 A
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , +5VSB@3A
ApprovalsTUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB

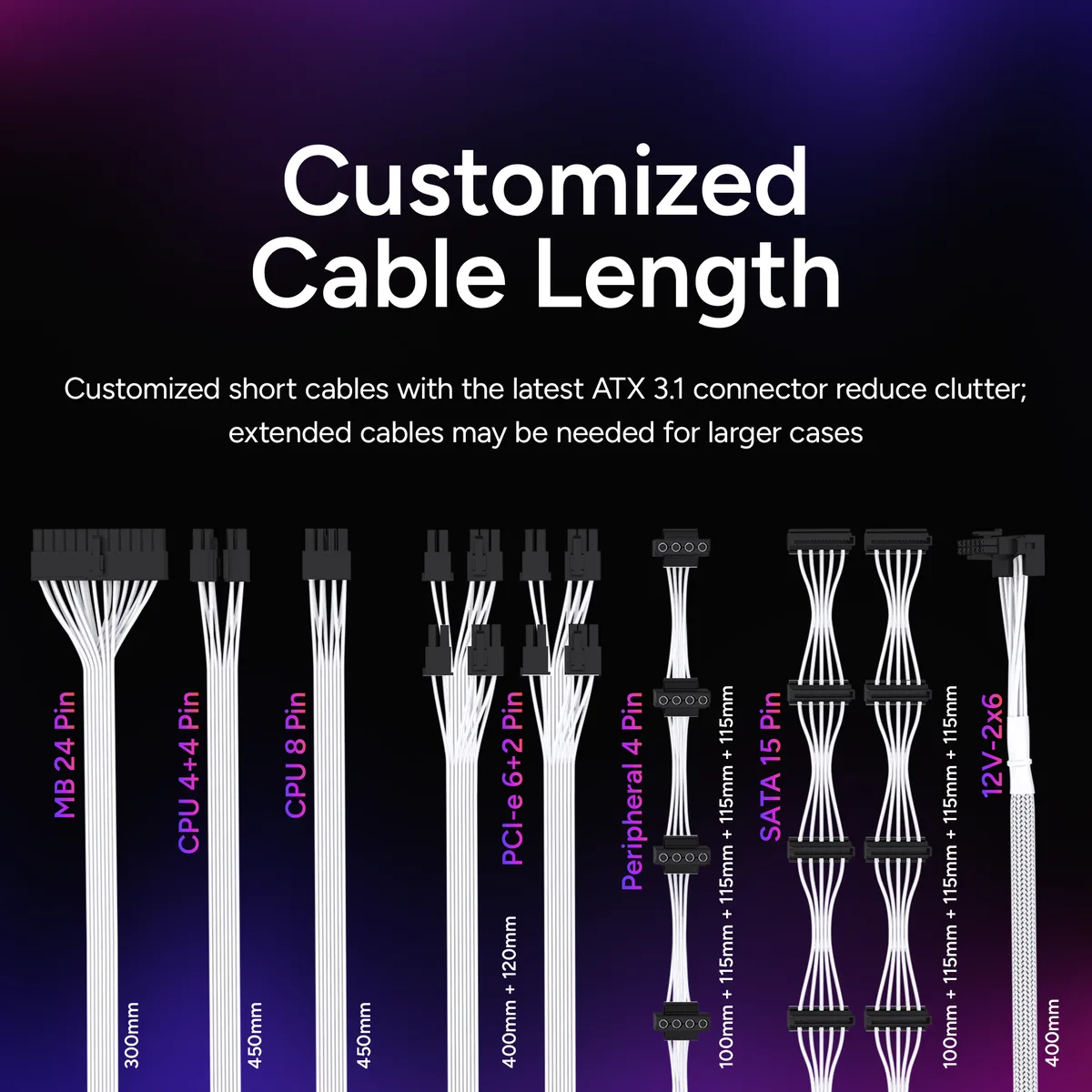

Connectors1 x ATX 20+4 Pin
1 x EPS 4+4 Pin
1 x EPS 8 Pin
8 x SATA
4 x Peripheral 4 Pin
4 x PCI-e 6+2 Pin
Power Good Signal100-500ms
Hold-up Time16ms
MTBF>100,000 Hours
Dimensions2.50" x 4.92" x 3.93"
Weight3.88 lbs.
Package ContentV750 SFX Gold White Edition
SFX-to-ATX Bracket
Connectors
Power Cord
4 x screws
Manuel
FeaturesSFX Form Factor: High-quality PSU that's compatible with all SFX cases and suitable for mini-ITX system builds.
SFX-to-ATX Bracket: With the included bracket, users can install the V SFX Gold securely to an ATX case.
80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions.
16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
Qui
Poids d’expédition1.92 kg
Dimensions du colis264 × 191 × 102 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud and hot does the 92 mm FDB fan run when the 750 W unit is under continuous load?

The PSU carries Cybenetics Standard+ noise certification and 80 PLUS Gold efficiency at 90 %, so waste heat and fan speed stay low even during all-day operation.

Which cables or connectors must my build already provide for this fully modular SFX unit to work?

You need a motherboard with a 20+4 pin ATX socket, a graphics card that accepts up to four 6+2 pin PCIe plugs, and drives that use SATA power connectors.

Will the 100 mm long SFX form factor and ATX 3.1 / PCIe 5.1 ready 12VHPWR cable work with my older ATX 2.x motherboard and GPU?

Yes — the 20+4 pin main connector and 6+2 pin PCIe plugs are backward compatible, while the 12VHPWR cable simply remains unused until you upgrade.
