Compact white SFX power supply with 92mm fan and modular cables

Cooler Master

Cooler Master MPY-8501-SFHAGV-3EWF V850 SFX Gold 850W power supply

SKU CH-MPR2-H620B MPN MPY-8501-SFHAGV-3EWF

A fully modular SFX power supply delivering 850 W with 80 PLUS Gold efficiency and a 92 mm FDB fan for compact builds

  • ColorWhite
  • TypeSFX 12V Ver. 3.42
  • Maximum Power850 W
  • Fans1 x 92mm FDB fan
  • PFCActive
  • Main Connector20+4Pin

Option SFX 80+ Gold (850W) White

  • 850 W output powers demanding small-form-factor builds
  • 80 PLUS Gold certified efficiency reaches 90 % at typical load

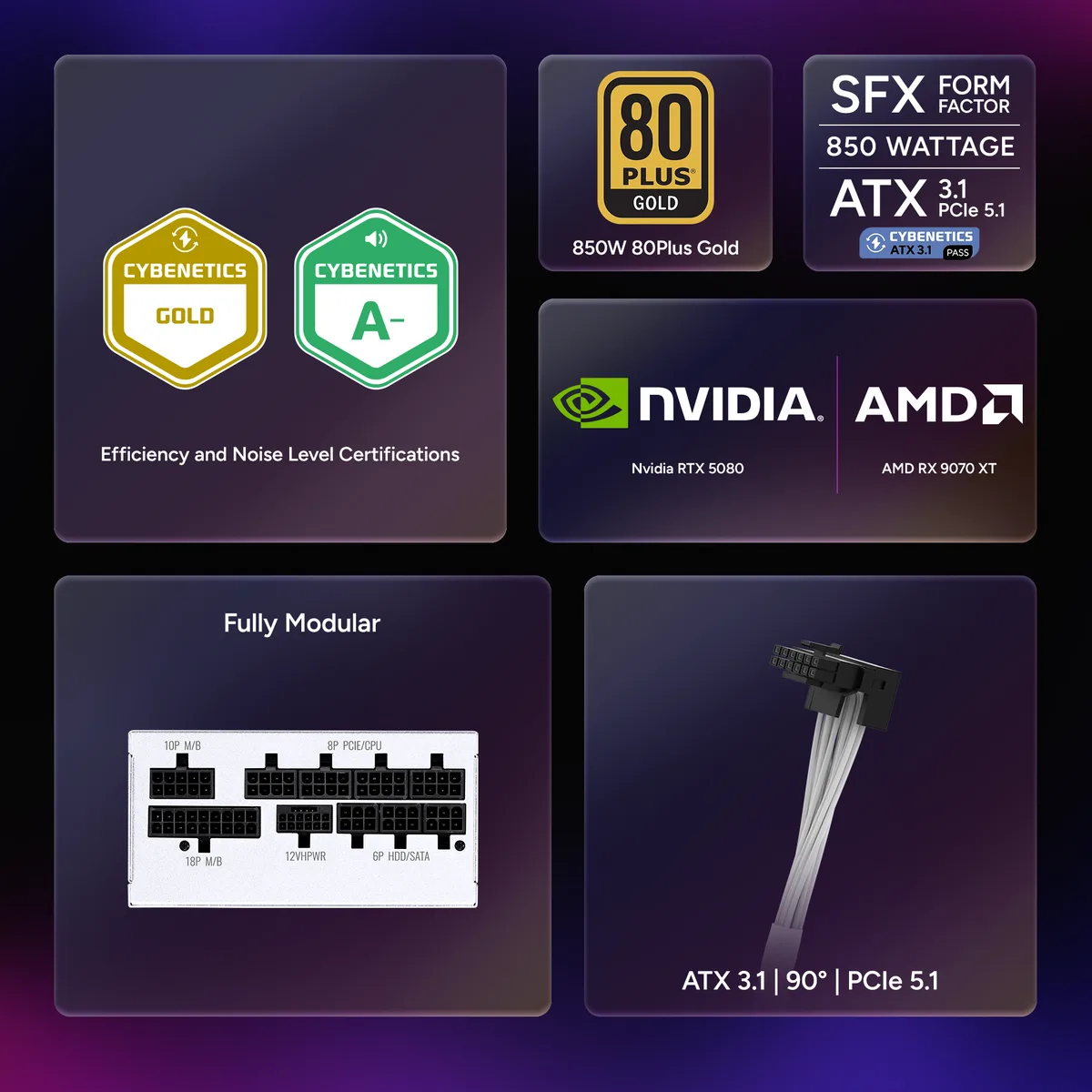

  • Fully modular cabling keeps the interior tidy
  • 92 mm FDB fan runs at Cybenetics Standard+ noise level

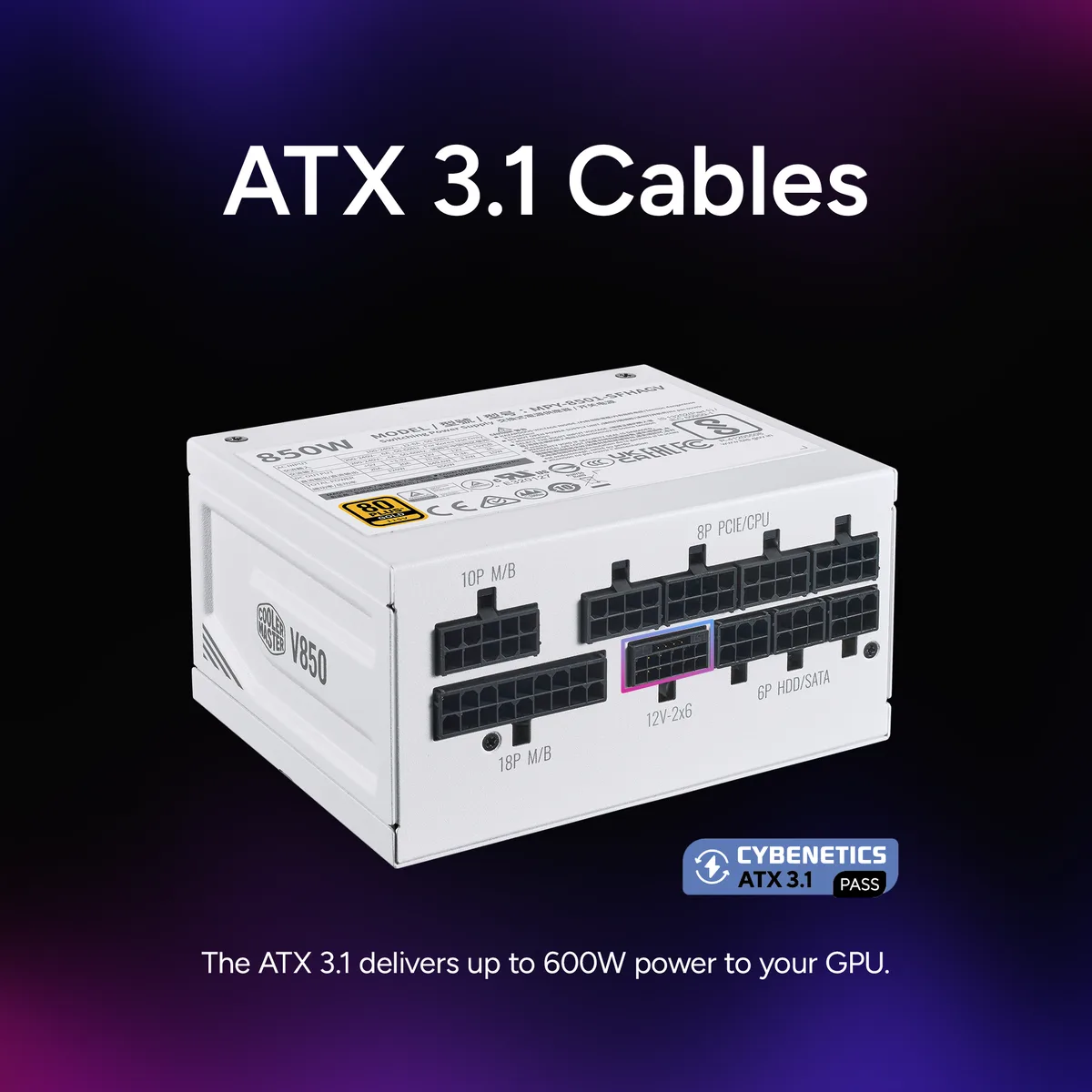

  • ATX 3.1 and PCIe 5.1 ready for modern GPUs

Compact SFX power supply

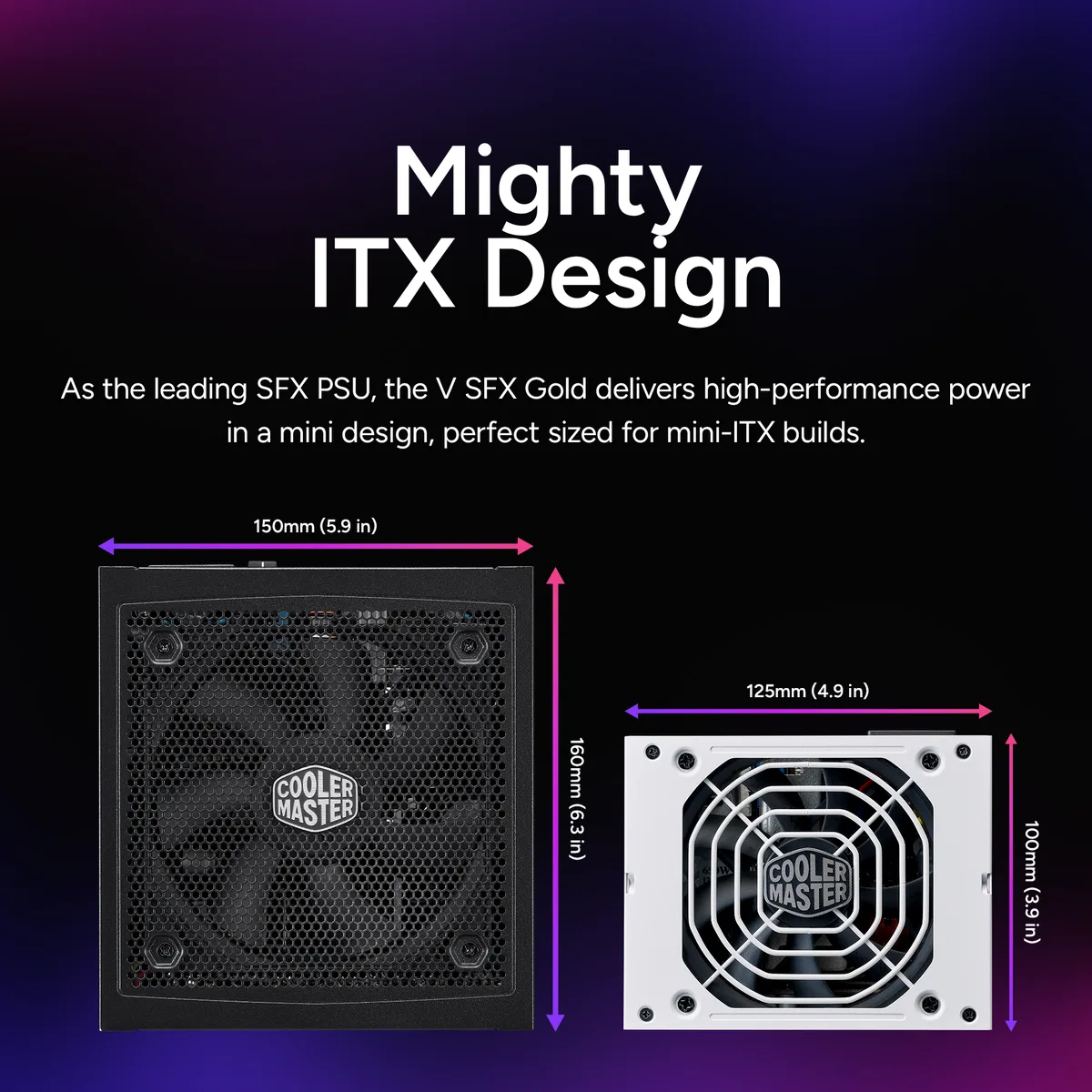

The Cooler Master V850 SFX Gold White Edition is an 850 W fully modular unit built to the SFX 12V 3.42 standard. It fits small-form-factor and ITX builds that need high output in a 100 mm long chassis. The single +12 V rail delivers stable power for modern graphics cards and processors. White finish suits clean, light-themed interiors.

Gold efficiency and angled cable

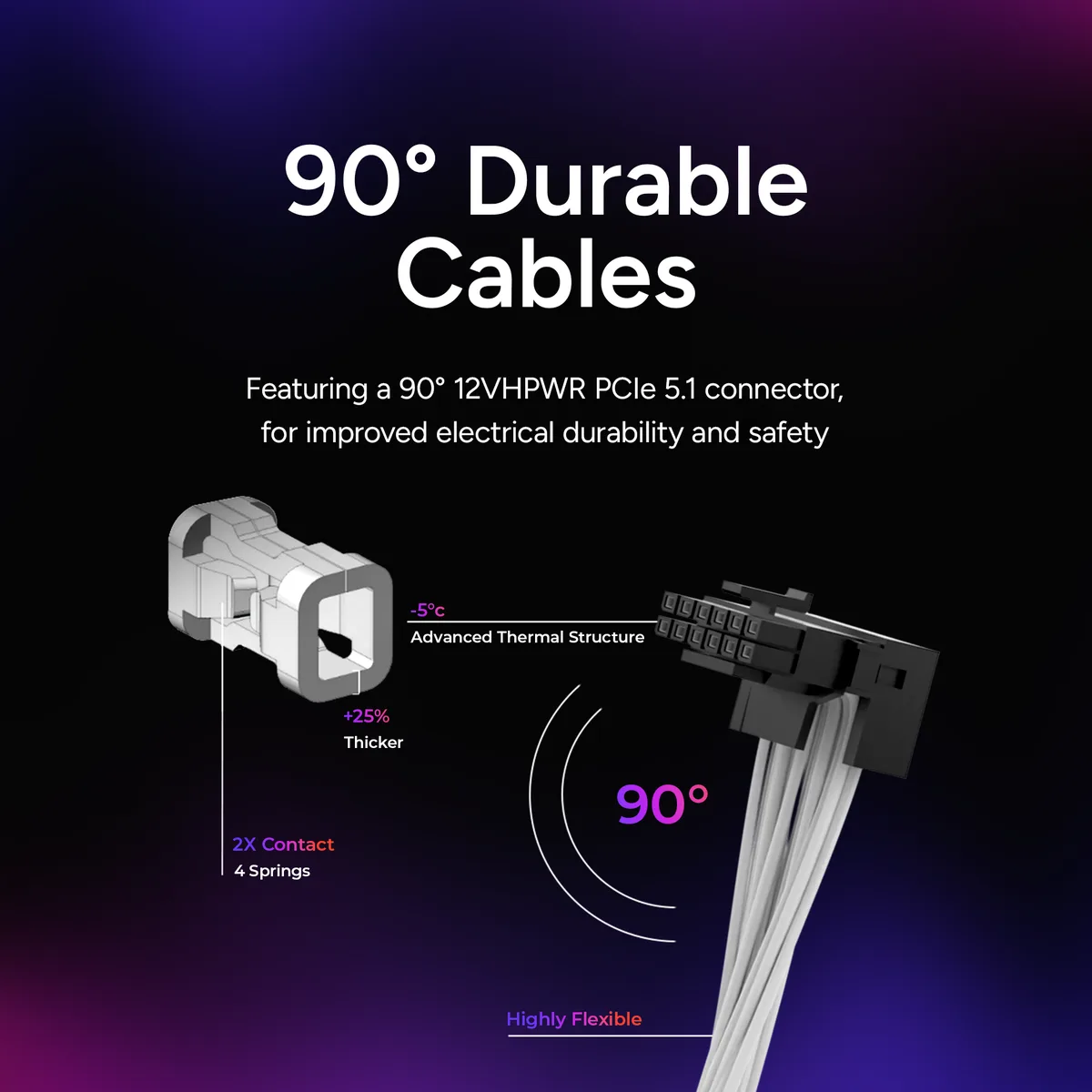

80 PLUS Gold certification confirms 90 % typical efficiency, reducing waste heat and electricity cost. Full modularity lets you connect only the cables required, improving airflow in tight cases. A 90-degree angled ATX 20+4 pin connector eases routing behind motherboard trays. Six PCIe 6+2-pin and eight SATA connectors cover multiple drives and high-end GPUs.

Quiet cooling with broad protection

A 92 mm fluid-dynamic-bearing fan runs under Cybenetics Standard+ noise rating for low acoustic output. Active PFC accepts 90 to 264 V input at 47 to 63 Hz for worldwide use. Protections include OVP, OPP, SCP, OCP, UVP, OTP plus surge and inrush guard. The unit carries a 10-year manufacturer warranty.

Points forts

  • 850 W output powers demanding small-form-factor builds
  • 80 PLUS Gold certified efficiency reaches 90 % at typical load
  • Fully modular cabling keeps the interior tidy
  • 92 mm FDB fan runs at Cybenetics Standard+ noise level
  • ATX 3.1 and PCIe 5.1 ready for modern GPUs

Caractéristiques

BrandCooler Master
SeriesV850 SFX Gold White Edition
ModelMPY-8501-SFHAGV-WU
ColorWhite
TypeSFX 12V Ver. 3.42
Maximum Power850 W
Fans1 x 92mm FDB fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector8
Max PSU Length100 mm
ModularFull Modular
Efficiency90%
Energy-Efficient80 PLUS GOLD Certified
PSU Noise LevelCybenetics Standard +
ProtectionOVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
Input Voltage90 - 264 V
Input Frequency Range47 - 63 Hz
Input Current12 - 6 A
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , +5VSB@3A
ApprovalsTUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB

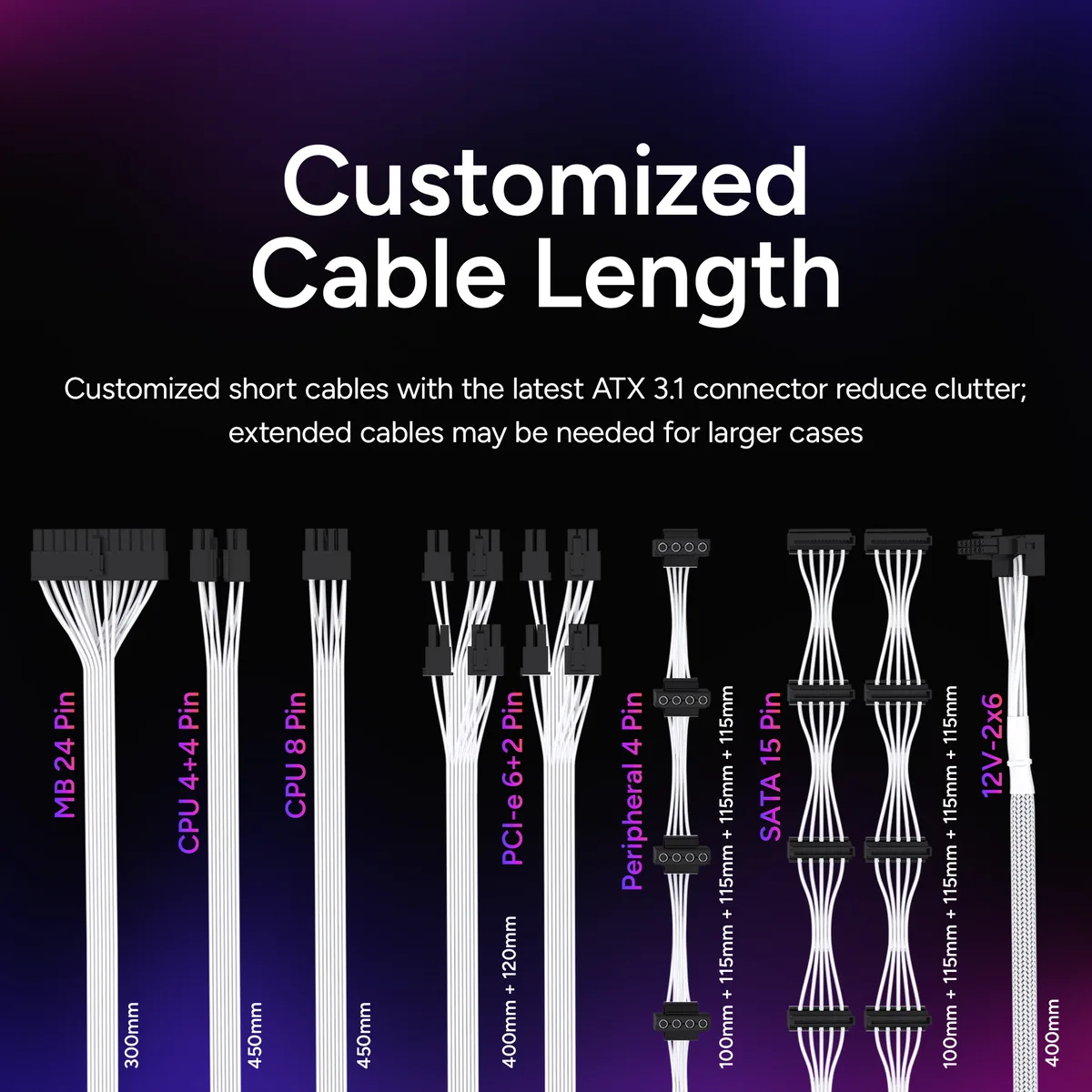

Connectors1 x ATX 20+4 Pin
1 x EPS 4+4 Pin
1 x EPS 8 Pin
8 x SATA
4 x Peripheral 4 Pin
6 x PCI-e 6+2 Pin
Power Good Signal100-500ms
Hold-up Time16ms
MTBF>100,000 Hours
Dimensions2.50" x 4.92" x 3.93"
Weight3.97 lbs.
Package ContentV850 SFX Gold White Edition
SFX-to-ATX Bracket
Connectors
Power Cord
4 x screws
Manuel
FeaturesSFX Form Factor: High-quality PSU that's compatible with all SFX cases and suitable for mini-ITX system builds.
SFX-to-ATX Bracket: With the included bracket, users can install the V SFX Gold securely to an ATX case.
80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions.
16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
Qui
Poids d’expédition2.10 kg
Dimensions du colis260 × 190 × 100 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does ATX 3.1 support mean for this 850 W unit?

The power supply meets the ATX 3.1 specification and delivers up to 850 W through a single +12 V rail.

Will the 100 mm length and 92 mm fan fit my SFX case?

The unit is 100 mm long with a 92 mm FDB fan, matching the SFX form factor used in many small-form-factor cases.

How do I connect the 90-degree angled cables without blocking the fan?

Route the fully modular cables through the case cut-outs first, then seat the 90-degree connectors so the bend points away from the fan intake.
