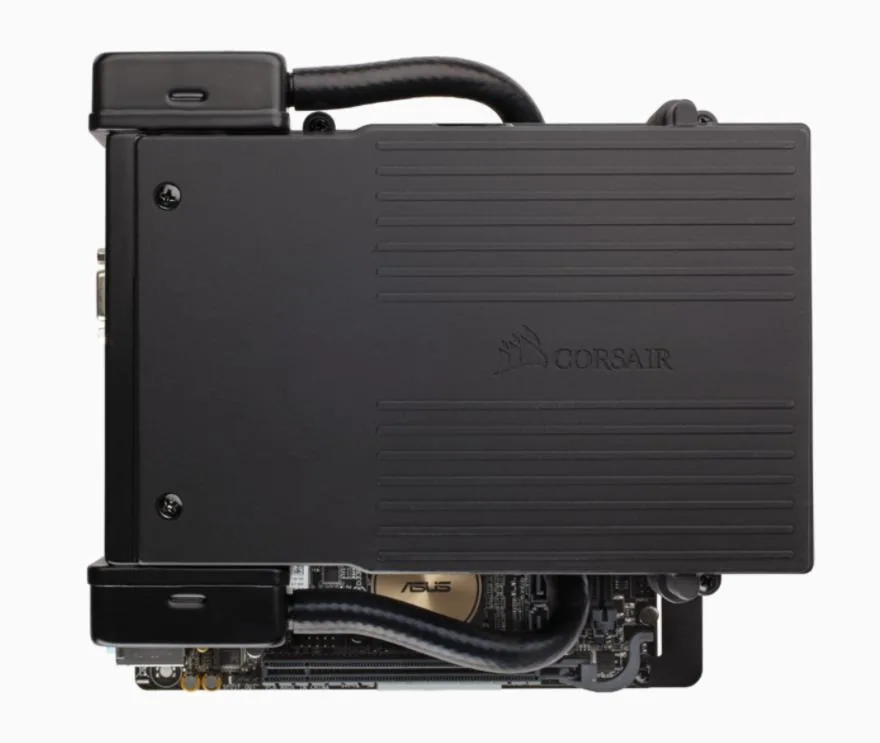

Compact black liquid cooler with 120 mm blower fan and copper cold plate

Corsair

Corsair H5 SF Mini liquid cooler 120 mm blower 1800 RPM

SKU CH-SB8M-HNH1C

Compact liquid cooler with integrated 120 mm blower exhausting heat at 1800 RPM while fitting Mini-ITX builds

  • TypeLiquid Cooling System
  • Block Compatibility - AMDAM4,AM3, AM2,FM1,FM2
  • Block Compatibility - IntelLGA1200, 115X, 1366, 2011
  • Block MaterialCopper
  • Radiator Size200mm × 168mm × 87mm
  • Radiator MaterialCopper
  • High-pressure blower exhausts heat from the case at 1800 RPM

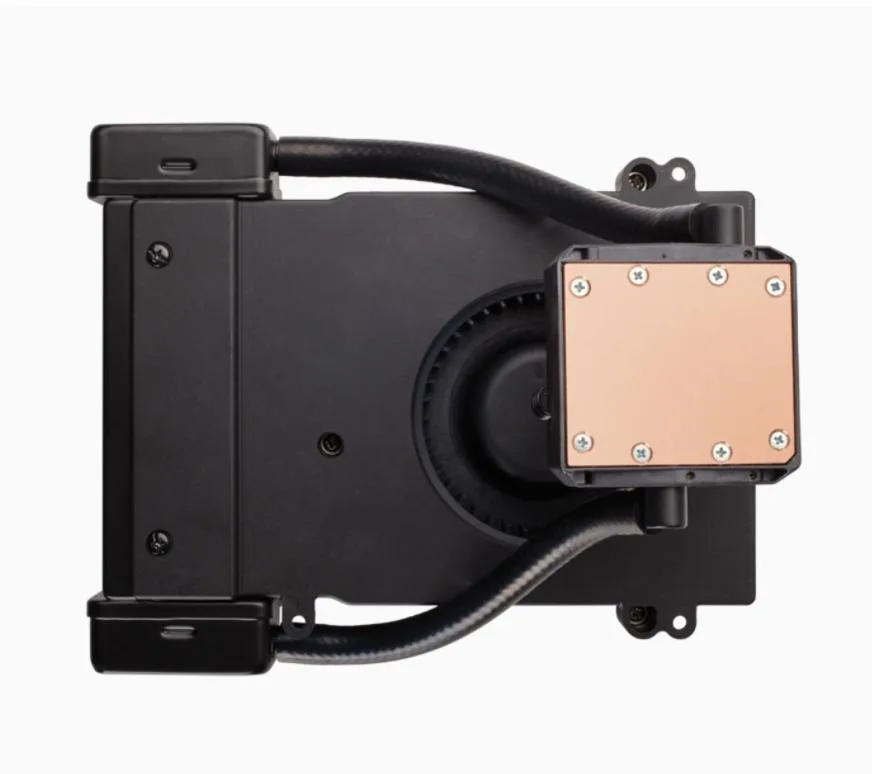

  • Copper cold plate transfers CPU heat efficiently with pre-applied compound
  • Fits Mini-ITX builds with 200 × 168 × 87 mm radiator
  • Supports Intel LGA1200, 115X, 1366, 2011 and AMD AM4, AM3, AM2, FM1, FM2
  • Low-permeability tubing maintains coolant integrity for long service life

Compact liquid cooler for small-form-factor builds

The Corsair H5 SF Mini is a closed-loop liquid cooler built for high-performance CPUs in cases where a full-sized Hydro Series unit will not fit. It uses a copper cold plate with pre-applied thermal compound, flexible low-permeability tubing and a 200 mm × 168 mm × 87 mm copper radiator cooled by a single 120 mm blower fan that exhausts heat out of the chassis.

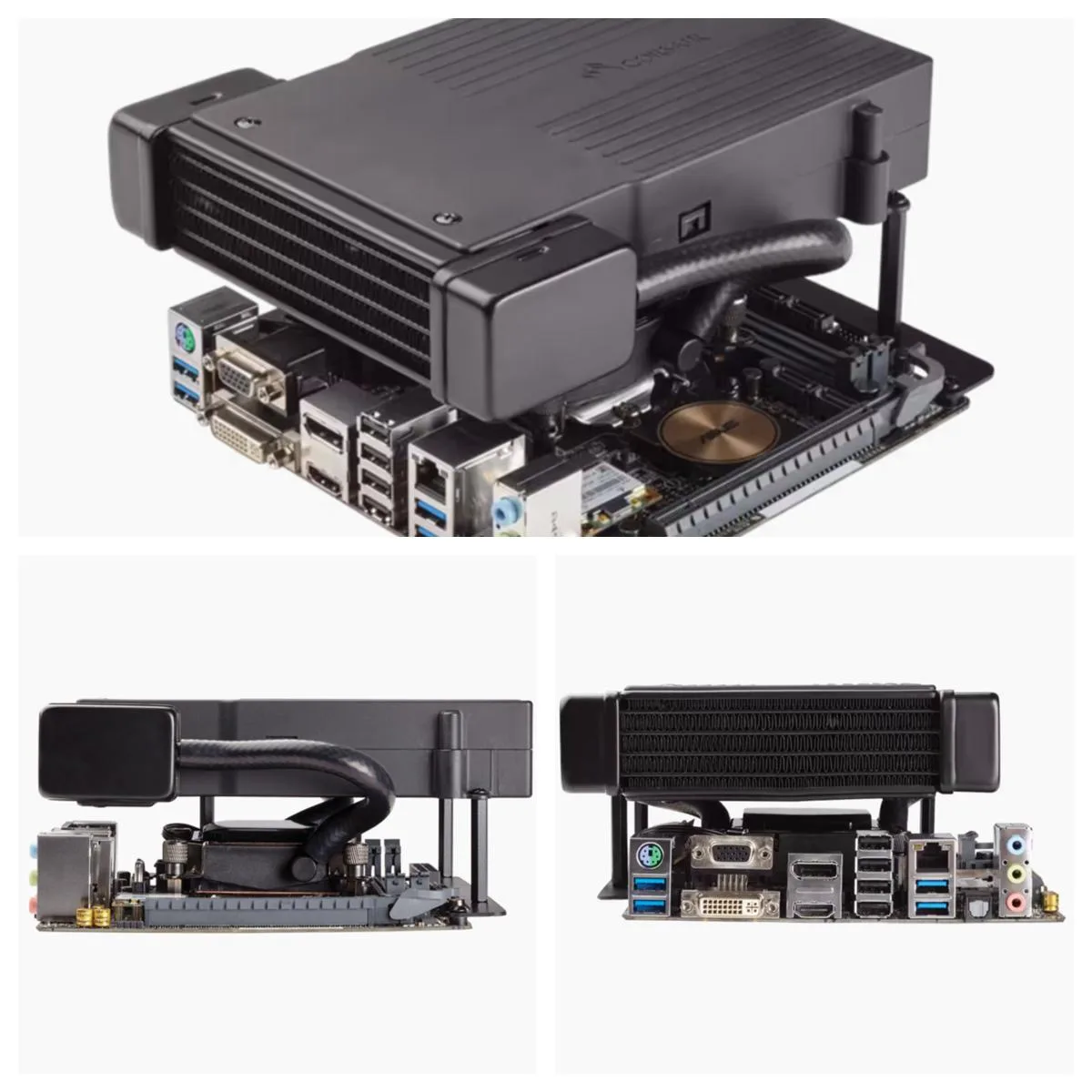

Suited for Mini-ITX systems with supported sockets

This cooler fits Intel LGA 1200, 115X, 1366 and 2011 platforms plus AMD AM4, AM3, AM2, FM1 and FM2 sockets, making it a drop-in upgrade for many older compact builds. Builders using newer socket generations or who want RGB lighting will not find those features here, and the single 120 mm blower limits thermal headroom compared with dual-fan radiators.

120 mm blower fan at 1800 RPM with 24 CFM airflow

The integrated high-pressure blower spins at 1800 RPM, delivering 24 CFM of airflow and 2.5–8.3 mm-H₂O static pressure while operating at 36–42 dBa. This single fan both cools the liquid and pulls air across the motherboard, so the cooler’s total dissipation capacity is defined by this blower’s performance envelope.

Points forts

  • High-pressure blower exhausts heat from the case at 1800 RPM
  • Copper cold plate transfers CPU heat efficiently with pre-applied compound
  • Fits Mini-ITX builds with 200 × 168 × 87 mm radiator
  • Supports Intel LGA1200, 115X, 1366, 2011 and AMD AM4, AM3, AM2, FM1, FM2
  • Low-permeability tubing maintains coolant integrity for long service life

Caractéristiques

BrandCORSAIR
SeriesHydro Series
Part NumberH5 SF Mini
TypeLiquid Cooling System
Block Compatibility - AMDAM4,AM3, AM2,FM1,FM2
Block Compatibility - IntelLGA1200, 115X, 1366, 2011
Block MaterialCopper
Radiator Size200mm × 168mm × 87mm
Radiator MaterialCopper
Fan Size1 Fan Slot (120 mm)
Fan RPM1800 RPM
Fan Noise36 - 42 dBa
ColorBlack
LED ColorNone

Questions sur cet article

Will the 200 mm × 168 mm × 87 mm radiator fit my Mini-ITX case?

The radiator measures 200 mm by 168 mm by 87 mm and uses a single 120 mm × 32 mm blower fan, so verify your case has a 120 mm rear or top exhaust slot with at least 87 mm clearance behind it.

How do I mount the pump block on an LGA1200 socket without overtightening?

Use the supplied LGA1200 bracket, place the pre-applied thermal compound side down, and tighten the four thumbscrews in a cross pattern until snug — do not force them past finger-tight or the cold plate can bow.

When should I plan to replace the low-permeability tubing or refill the loop?

The sealed loop is maintenance-free for the cooler's lifespan; tubing is non-serviceable and the unit carries no refill port, so replacement means swapping the entire cooler if performance degrades.
