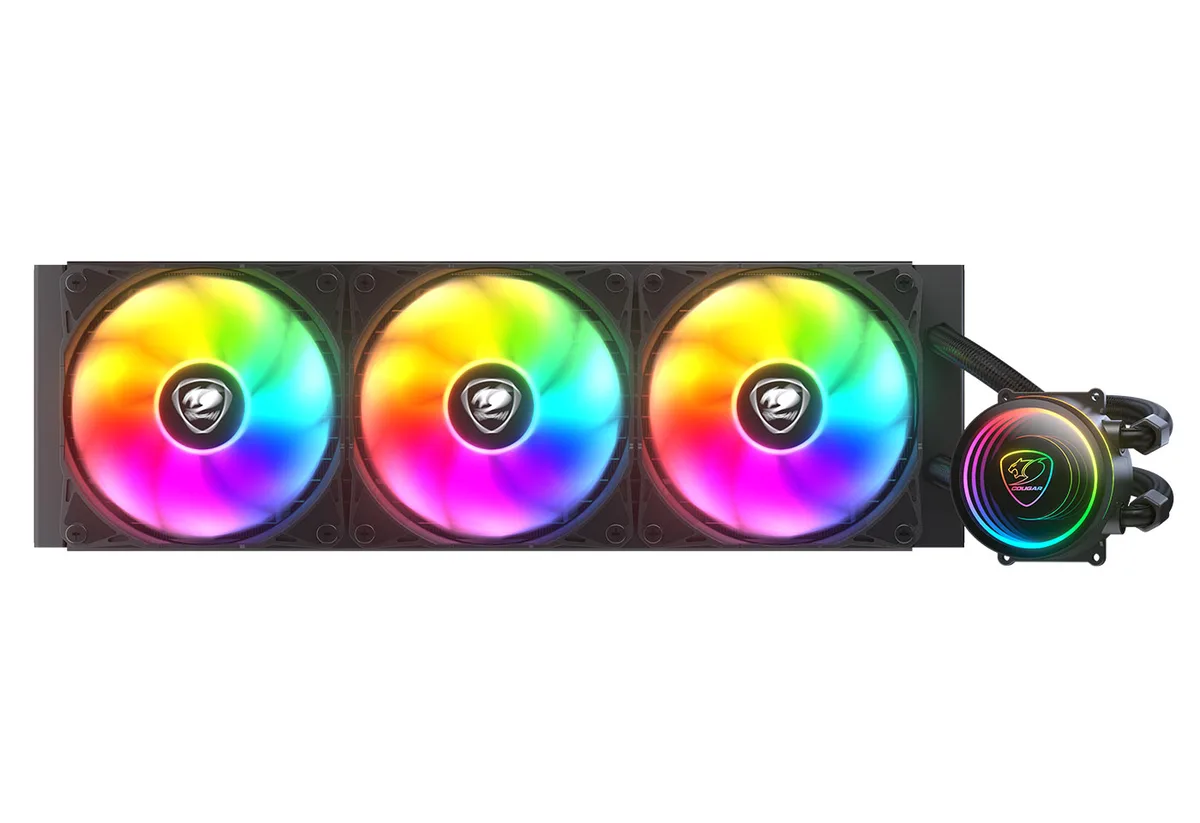

Black 360 mm radiator with three 120 mm ARGB fans and copper pump block

COUGAR

COUGAR Poseidon Elite ARGB 360 liquid cooler

SKU CH-9ZZG-YDG6K

A 360 mm liquid cooler with three 120 mm PWM fans, a copper cold plate and 5 V ARGB lighting for broad Intel and AMD socket support

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM2 / AMD Socket AM3 / AMD Socket AM4 / AMD Socke
  • Block MaterialCopper
  • Pump Dim.82.9 x 73.3 x 50.7mm
  • Radiator Size360 mm
  • Radiator MaterialAluminum
  • Broad CPU compatibility across AMD and Intel sockets
  • Copper cold plate transfers heat efficiently from the processor
  • 360 mm aluminium radiator provides large surface area for cooling
  • Three 120 mm PWM fans deliver up to 62.53 CFM airflow
  • Addressable RGB lighting via 5V 3-pin connector for system sync

360 mm liquid cooler for mainstream sockets

The COUGAR Poseidon Elite ARGB 360 is a closed-loop liquid cooler built around a 360 mm aluminum radiator and three 120 mm PWM fans. Its copper cold plate supports AMD sockets AM2, AM3, AM4, AM5, FM1 and FM2 as well as Intel LGA 1150, 1151, 1155, 1156, 1200, 1366 and 1700. Addressable RGB lighting runs on a 5 V three-pin header. The unit ships new with 400 mm tubing.

Thermals noise and power draw at typical speeds

Three 120 x 120 x 25 mm fans spin between 500 and 2200 RPM ±10 % and deliver 62.53 CFM each at a static pressure of 2.4 mmH2O. At normal operating points the fans produce 33.5 dB(A) and draw power through a 2510 four-pin PWM connector. The pump measures 82.9 x 73.3 x 50.7 mm and sits directly on the copper block.

Behaviour under sustained load rather than burst

Under continuous load the fans can ramp toward the upper end of the 500 to 2200 RPM range to maintain airflow across the 360 mm radiator. The aluminum fins and copper base dissipate heat steadily while the 400 mm tubes allow flexible routing in most chassis. Builders who need a smaller radiator or a different socket layout will not be served by this model.

Points forts

  • Broad CPU compatibility across AMD and Intel sockets
  • Copper cold plate transfers heat efficiently from the processor
  • 360 mm aluminium radiator provides large surface area for cooling
  • Three 120 mm PWM fans deliver up to 62.53 CFM airflow
  • Addressable RGB lighting via 5V 3-pin connector for system sync

Caractéristiques

BrandCOUGAR
ModelPoseidon Elite ARGB 360
Part Number3MPSD360.0001
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM2 / AMD Socket AM3 / AMD Socket AM4 / AMD Socket AM5 / AMD Socket FM1 / AMD Socket FM2 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1366 / Intel LGA 1700
Block MaterialCopper
Pump Dim.82.9 x 73.3 x 50.7mm
Radiator Size360 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Fan RPM500-2200 RPM ±10%
Fan Air Flow62.53 CFM
Fan Noise33.5 dB(A)
Fan ConnectorFan: 2510-4Pin PWM
Lights: 5V-3Pin ARGB
ColorBlack
LED ColorARGB
Pressure2.4 mmH2O
Tube Dim.400 mm

Questions sur cet article

How do I mount the 360 mm radiator with the 400 mm tubes and connect the 5V 3-pin ARGB header?

Install the three 120 mm fans onto the 360 mm aluminium radiator, secure it to a compatible case location, attach the copper cold-plate using the supplied brackets for AM2 AM3 AM4 AM5 FM1 FM2 or LGA 1150 1151 1155 1156 1200 1366 1700, then plug the pump and fan 4-pin PWM connectors plus the 5V 3-pin ARGB lead into the motherboard.

What part of the COUGAR Poseidon Elite ARGB 360 will need replacement first?

The three 120 mm PWM fans rated at 500 to 2200 RPM with 62.53 CFM airflow and 33.5 dB(A) noise are the only moving wear items; the sealed loop uses 400 mm tubes and a copper block with no user-serviceable fluid.

At what point does the 2.4 mmH2O static pressure limit cooling under sustained load?

The fans deliver 2.4 mmH2O at 2200 RPM; if coolant temperature keeps rising past that curve the radiator cannot reject heat fast enough and CPU temperatures will climb despite maximum fan speed.
