DELL
DELL PowerEdge M630 Blade 2x Xeon E5-2697 v4 256GB DDR4 2x 1.8TB SAS
Dual 18-core Xeon blade server with 256 GB DDR4 and 1.8 TB SAS storage
- TypeBlade
- CPU TypeIntel Xeon
- CPU Speed2.3 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size256GB
- Dual Xeon E5-2697 v4 deliver 36 cores at 2.3 GHz
- 256 GB DDR4 ECC registered memory supports up to 512 GB
- Two 1.8 TB SAS drives on PERC H330 RAID controller
- 10 GbE dual-port 562T adapter for high-throughput networking
- iDRAC8 Enterprise enables remote firmware updates and monitoring
Blade server for dense compute

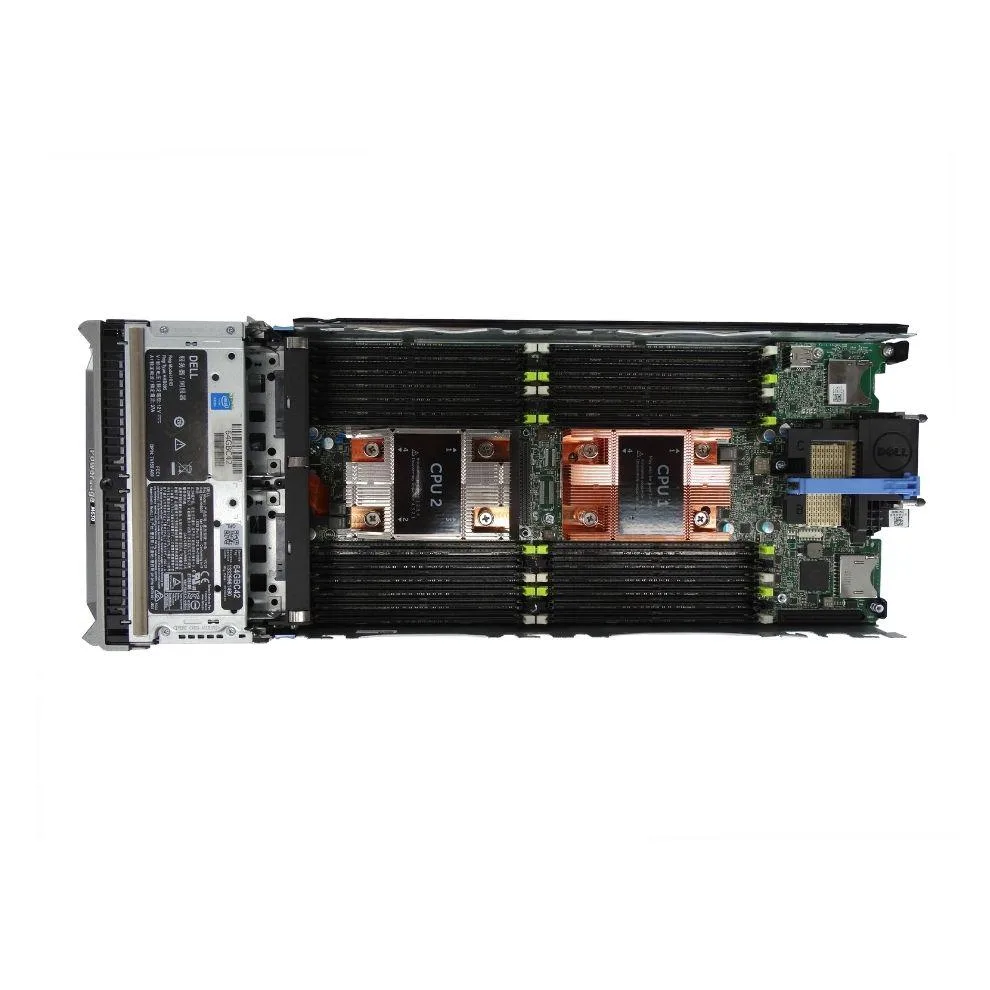

The Dell PowerEdge M630 is a dual-socket blade server built for high-density deployments. Two Intel Xeon E5-2697 v4 processors deliver 36 cores at 2.3 GHz with 45 MB cache each. 256 GB of DDR4 ECC registered memory is installed across the available slots, leaving room to expand toward the 512 GB maximum. The system ships with a PERC H330 SAS storage controller and integrated graphics.
Storage and expansion fit
This configuration suits workloads that need strong multi-threaded performance inside a standard blade envelope. The two 2.5-inch drive bays are populated with 1.8 TB SAS hard drives, so buyers who want more storage or solid-state media will need to look at a different chassis or external array. The 10 GbE 2-port 562T adapter handles network traffic, while iDRAC8 Enterprise provides remote management.
SAS controller and drive interface
The PERC H330 controller manages the SAS hard drives and defines the storage protocol for this blade. Any storage upgrade must use SAS drives compatible with the controller and the 2.5-inch bays.
Points forts
- Dual Xeon E5-2697 v4 deliver 36 cores at 2.3 GHz
- 256 GB DDR4 ECC registered memory supports up to 512 GB
- Two 1.8 TB SAS drives on PERC H330 RAID controller
- 10 GbE dual-port 562T adapter for high-throughput networking
- iDRAC8 Enterprise enables remote firmware updates and monitoring
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Blade |
| Type | Blade |
| CPU Type | Intel Xeon |
| CPU Speed | 2.3 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 256GB |
| Memory Type | DDR4 SDRAM |
| Max Memory Capacity | 512GB |
| Hard Drive (Installed) | 3,60 |
| Storage Controller | Dell PERC H330 SAS Storage Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 Enterprise |
| Dimensions | 22 x 22x 10 in |
| Weight | 20 |
Questions sur cet article
What SAS interface speed does the PERC H330 controller cap in practice?
The PERC H330 controller manages the two 1.8 TB SAS drives installed in the 2.5 inch bays.
What physical space does this half-height blade occupy inside the enclosure?
The unit measures 22 by 22 by 10 inches and weighs 20 units.
How is the blade installed and what step is often missed?
Slide the blade into the enclosure until it locks, then use iDRAC8 Enterprise to finish configuration.
