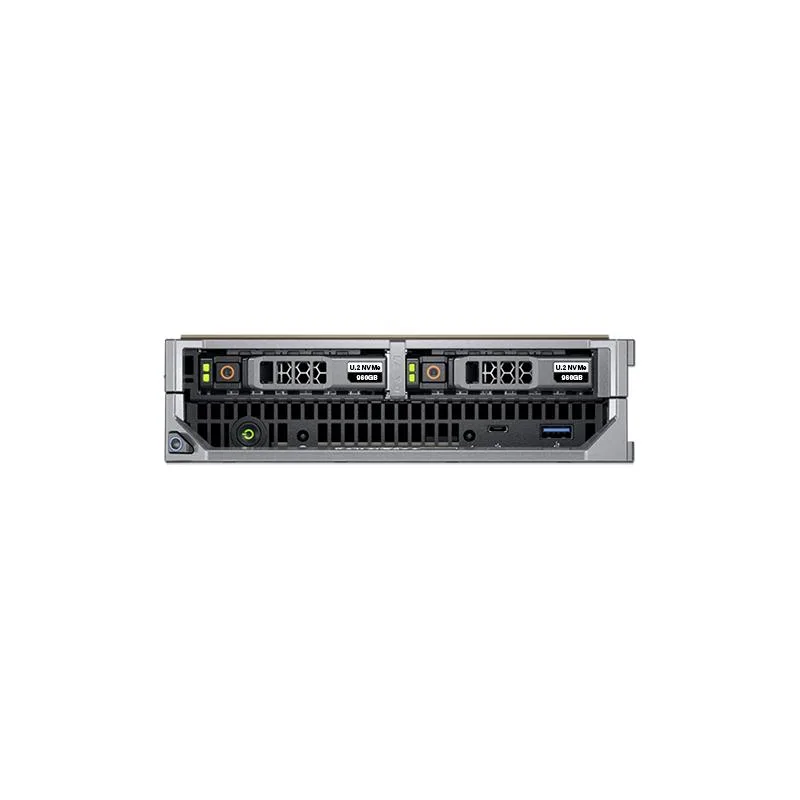

Half-height blade server with silver metal chassis and dual drive bays

DELL

DELL PowerEdge M640 Blade Server 2x Xeon Platinum 8260 2.4GHz 24-Core 16GB DDR4 2x 1.92TB SSD

SKU CH-WM62-E325D

Half-height blade server with dual 24-core Xeon Platinum 8260 CPUs, 16GB DDR4, and two 1.92TB SATA SSDs

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor

Installed Memory Size 16GB

SSD (Installed) 2 x 1.92TB SATA SSD

  • Dual 24-core Xeon Platinum 8260 CPUs deliver high compute density for virtualization
  • 16GB DDR4 registered ECC memory provides error-corrected performance for critical workloads
  • 2x 1.92TB SATA SSDs on PERC S140 controller enable RAID 0/1/5/10 data protection
  • Broadcom 57810S-K dual-port 10Gb blade network card ensures high-speed connectivity
  • iDRAC9 Enterprise remote management simplifies server administration across the data center

Blade Server for Virtualization and HPC

The Dell PowerEdge M640 is a half-height blade server built for dense compute environments. It ships with two Intel Xeon Platinum 8260 processors, each offering 24 cores at 2.4 GHz with a 3.9 GHz turbo frequency. The system includes 16 GB of DDR4 registered ECC memory across 16 slots. It targets workloads such as virtualization, private cloud and high-performance computing.

Memory and Storage Limits Within the Blade Form

The platform supports a maximum of 1.5 TB of DDR4 memory, though this unit arrives with 16 GB installed. Two 2.5-inch drive bays are populated with 1.92 TB SATA SSDs managed by the integrated PERC S140 controller, which supports RAID 0, 1, 5 and 10. The blade form factor restricts internal expansion to these two bays and the available PCIe mezzanine slots. NVMe support is provided by the controller but requires compatible drives.

Chassis Integration and Management Implications

The M640 requires a PowerEdge MX or M1000e chassis for power, cooling and networking fabric. It includes a Broadcom 57810S-K dual-port 10 Gb blade network daughter card for high-speed connectivity. iDRAC9 Enterprise enables remote management and automation without an operating system. The front bezel and ready rails are not included with this blade unit.

Points forts

  • Dual 24-core Xeon Platinum 8260 CPUs deliver high compute density for virtualization
  • 16GB DDR4 registered ECC memory provides error-corrected performance for critical workloads
  • 2x 1.92TB SATA SSDs on PERC S140 controller enable RAID 0/1/5/10 data protection
  • Broadcom 57810S-K dual-port 10Gb blade network card ensures high-speed connectivity
  • iDRAC9 Enterprise remote management simplifies server administration across the data center

Caractéristiques

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc S140 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 1.92TB SATA SSD
Raid LevelRAID 0/1/5/10
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick this dual 24-core Xeon 8260 blade or a single-processor version?

This unit ships with both sockets filled — two Xeon Platinum 8260 2.4 GHz 24-core CPUs — so you get the full 56-core ceiling the M640 platform allows without adding processors later.

What does the 3.9 GHz turbo mean for my VMs?

Each 24-core Xeon 8260 can lift from 2.4 GHz base to 3.9 GHz turbo under load, giving burst frequency for latency-sensitive threads while the 16 GB DDR4-2933 and PERC S140 keep storage queues fed.

What does the 57810S-K 10 Gb dual-port daughter card cap in practice?

The Broadcom 57810S-K provides two 10 Gb Ethernet links per blade; bandwidth tops out at 10 Gb/s per port and the card uses the blade's mezzanine slot, so no extra PCIe adapters are needed.
