DELL

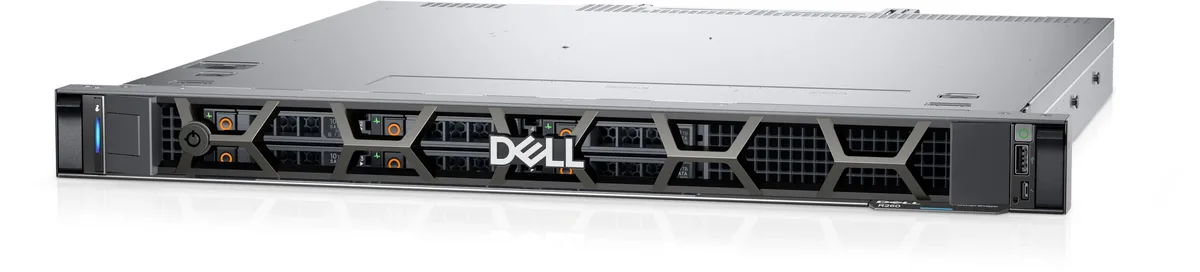

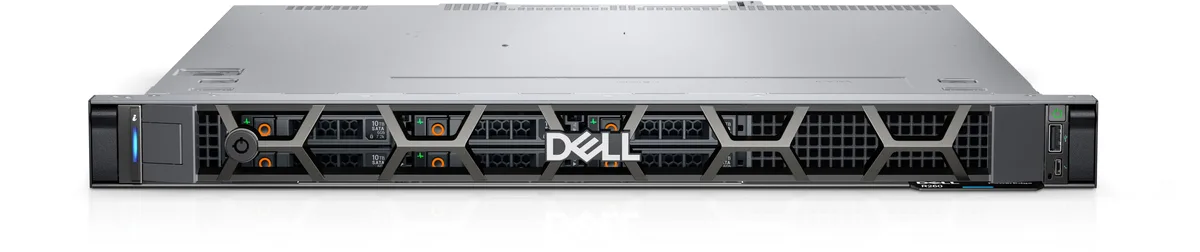

DELL PowerEdge R260 1U rack server
1U rack server supporting one Intel Xeon E-2400 processor, up to 128 GB DDR5 memory, and flexible front-bay storage up to 46.08 TB
- WorkloadSMB, Near-Edge, ROBO
- TypeRack
- Rack Height1U
- SecurityCryptographically signed firmware Data at Rest Encryption (S
- CPU TypeIntel Xeon E-2400
- # of Processors Installed0
- Secured-core server with cryptographically signed firmware and TPM 2.0
- One Intel Xeon E-2400 processor up to 8 cores
- DDR5 memory up to 128 GB at 4400 MT/s
- Up to 6 x 2.5-inch hot-plug SAS/SATA drives, 46.08 TB
- 1U rack form factor measuring 1.68" x 18.97" x 19.55
Entry rack server for SMB and edge sites

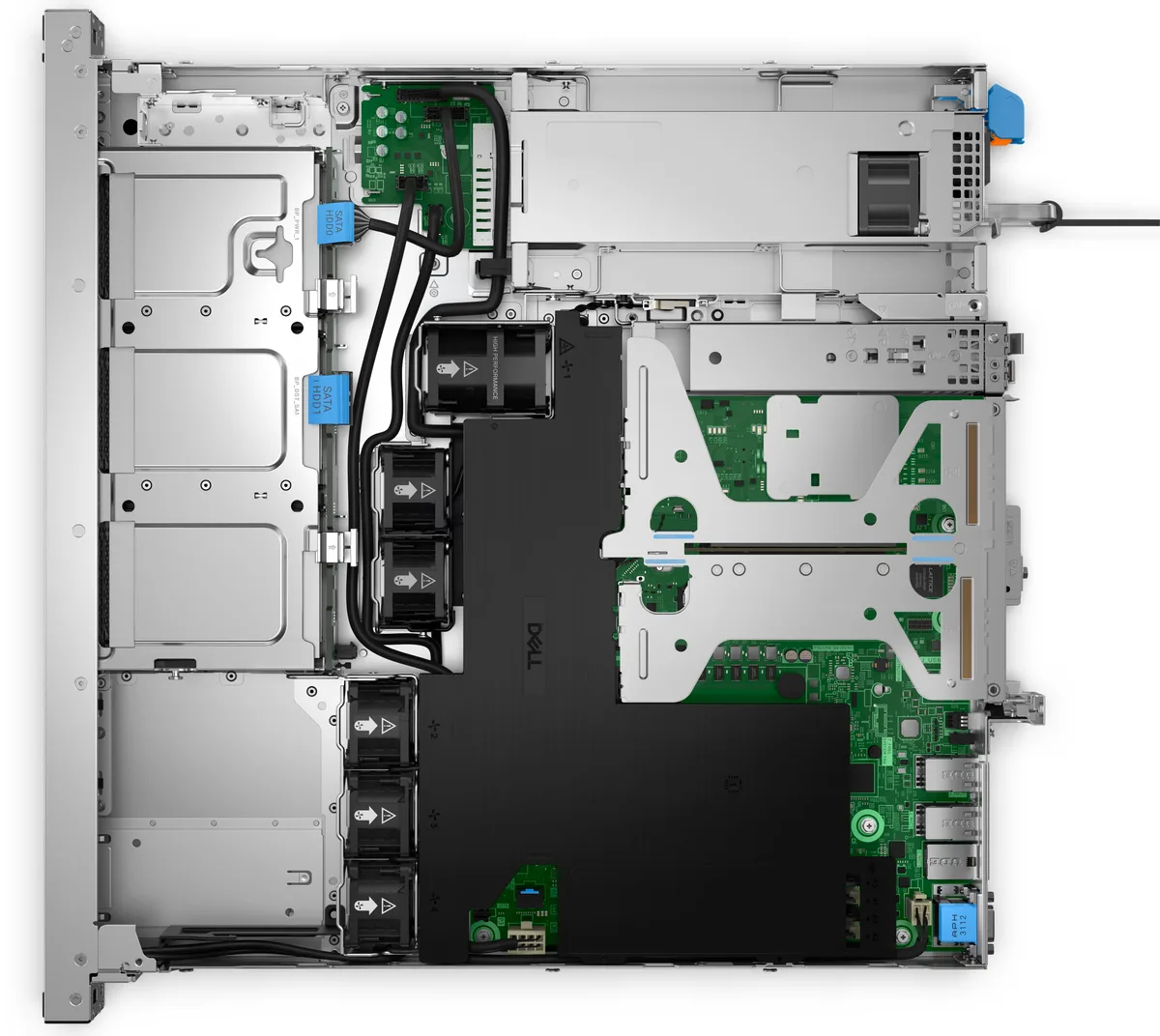

The Dell PowerEdge R260 is a 1U rack server built for small-business, near-edge and remote-office workloads. It ships without a processor or memory, letting you choose one Intel Xeon E-2400 or Pentium G7400 series CPU and up to 128 GB of DDR5 ECC UDIMMs across four slots.
Single-socket C262 platform with DDR5-only memory
The Intel C262 chipset supports exactly one processor and limits memory to unregistered ECC DDR5 DIMMs at up to 4400 MT/s. No other DDR generation fits, and the four slots cap total capacity at 128 GB, so larger memory footprints need a different platform.

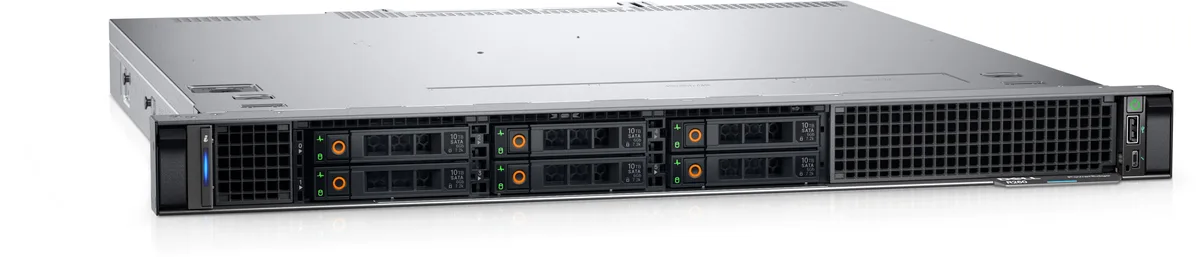

Front-bay storage up to 46.08 TB in 2.5-inch
You can populate the front bays with up to six 2.5-inch hot-plug SAS or SATA drives for 46.08 TB, or two 3.5-inch cabled SAS or SATA drives for 32 TB. Mixed drive types or larger arrays are not supported in this chassis.
Points forts
- Secured-core server with cryptographically signed firmware and TPM 2.0
- One Intel Xeon E-2400 processor up to 8 cores
- DDR5 memory up to 128 GB at 4400 MT/s
- Up to 6 x 2.5-inch hot-plug SAS/SATA drives, 46.08 TB
- 1U rack form factor measuring 1.68" x 18.97" x 19.55
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge R260 |
| Workload | SMB, Near-Edge, ROBO |
| Type | Rack |
| Rack Height | 1U |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured-core server Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| CPU Type | Intel Xeon E-2400 |
| # of Processors Installed | 0 |
| MAX Processors | 1 |
| Chipset | Intel C262 |
| Installed Memory Size | No |
| Memory Type | DDR5 |
| Max Memory Capacity | 128GB |
| Memory Features | Speeds up to 4400 MT/s Supports unregistered ECC DDR5 DIMMs only |
| Number of Memory Slots | 4 |
| Hard Drive (Installed) | None |
| SSD (Installed) | No |
| Servers_Graphic Installed | 0 |
| Expansion Bays | Front Bay - Up to 2 x 3.5-inch cable SAS/SATA HDD/SSD, max 32TB - Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB |
| Dimensions | 1.68" x 18.97" x 19.55" |
| Weight | 21.18 lbs. |
| Poids d’expédition | 22.68 kg |
| Dimensions du colis | 635 × 508 × 127 mm |
Questions sur cet article
Should I choose the 3.5-inch or 2.5-inch drive configuration for the front bays?
The 3.5-inch option supports up to 2 drives with a 32TB maximum, while the 2.5-inch option supports up to 6 hot-plug drives with a 46.08TB maximum.
What does the 128GB maximum memory mean for daily workloads?
Four DDR5 slots accept unregistered ECC modules up to 4400 MT/s, giving ample headroom for virtualisation, databases and near-edge applications.
Which storage interfaces does the chassis support and what do they limit?
Both SAS and SATA are supported on the front bays; the backplane caps total capacity at 32TB for 3.5-inch or 46.08TB for 2.5-inch configurations.
Également dans ce rayon
Les clients ont aussi comparé
Même rayon, même caisse — huit monnaies et un taux bloqué 30 minutes.
HighPoint Technologies, Inc.

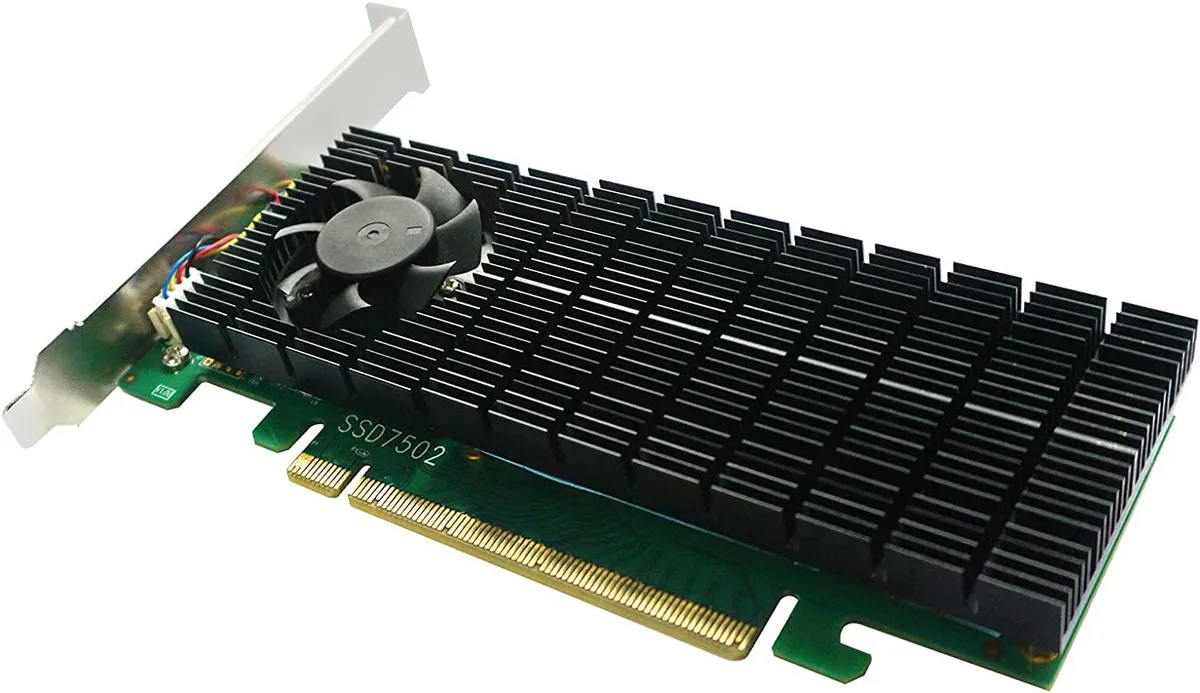

HighPoint Technologies, Inc. SSD7502 2-Port M.2 NVMe RAID Controller
