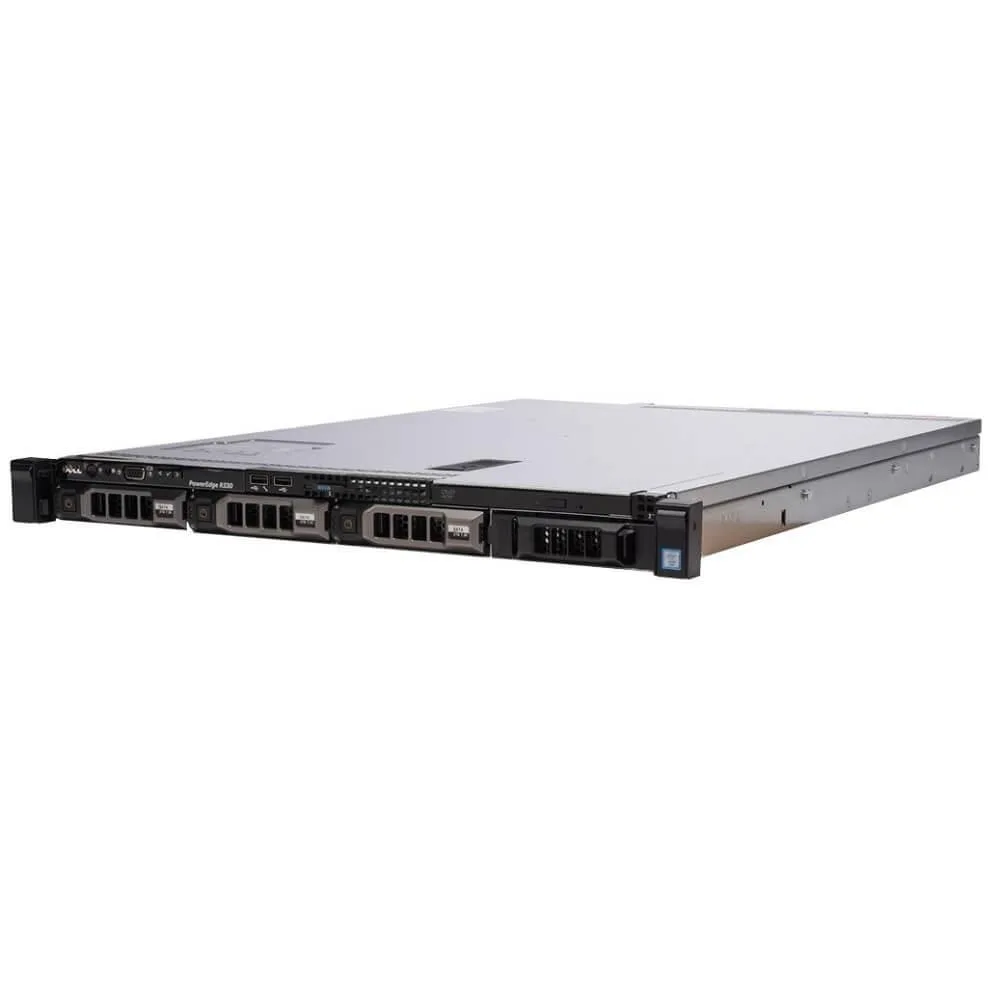

Silver 1U rack server with four front drive bays and dual power supplies

DELL

DELL PowerEdge R330 1U rack server E3-1220 v5 16GB 2x 4TB SAS H730 2x 350W

SKU CH-9EQM-7B7F3

1U rack server with Xeon E3-1220 v5, 16 GB DDR4, two 4 TB SAS drives and H730 RAID controller, dual 350 W redundant power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236
  • Quad-core Xeon E3-1220 v5 at 3 GHz delivers responsive compute
  • 16 GB DDR4 memory supports multi-tasking workloads
  • Dual 4 TB SAS drives provide 8 TB of mirrored storage
  • PERC H730 RAID controller enables RAID 0/1/5/6/10/50/60
  • Dual 350 W hot-swap power supplies ensure continuous uptime

1U rack server with Xeon E3-1220 v5

The Dell PowerEdge R330 is a 1U rack-mount server built around a single Intel Xeon E3-1220 v5 quad-core processor running at 3.0 GHz. It ships with 16 GB of DDR4 memory installed across four DIMM slots and includes a DVD-ROM drive. This configuration suits small-business workloads, remote-office infrastructure or edge deployments that need dense compute in a single rack unit.

PERC H730 RAID controller with 1 GB cache

Storage is managed by a Dell PERC H730 controller providing 1 GB of cache and a 12 Gbps SAS interface. The card supports RAID levels 0, 1, 5, 6, 10, 50 and 60, giving flexibility for redundancy or capacity-focused arrays. Two 4 TB 7.2 K SAS drives are installed in the front hot-plug bays, leaving two additional 3.5-inch bays available for expansion.

8 TB raw storage expandable to 40 TB

The two included 4 TB drives deliver 8 TB of raw capacity, with the chassis supporting up to 40 TB across four 3.5-inch bays. Memory is capped at 16 GB by the processor, so the system cannot utilise the 64 GB maximum quoted for the platform. Dual 350 W redundant power supplies and an iDRAC8 Express module provide baseline availability for essential services.

Points forts

  • Quad-core Xeon E3-1220 v5 at 3 GHz delivers responsive compute
  • 16 GB DDR4 memory supports multi-tasking workloads
  • Dual 4 TB SAS drives provide 8 TB of mirrored storage
  • PERC H730 RAID controller enables RAID 0/1/5/6/10/50/60
  • Dual 350 W hot-swap power supplies ensure continuous uptime

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R330
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots + 1 slot for internal storage.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Questions sur cet article

What does the 3.0 GHz Xeon E3-1220 v5 actually deliver in a 1U rack server?

The quad-core processor runs at 3.0 GHz base frequency and handles single-threaded workloads and light virtualization within the 1U chassis.

How does the H730 12Gbps controller limit real-world drive speed with 6Gbps SAS drives?

The controller supports 12Gbps SAS, but the installed 6Gbps drives cap throughput at their native 6Gbps link rate.

What rail depth and bay count does the 18.99-inch deep R330 need for four 3.5-inch hot-plug drives?

The 1U chassis is 18.99 inches deep and provides four front-accessible 3.5-inch hot-plug bays for SAS or SATA drives.
