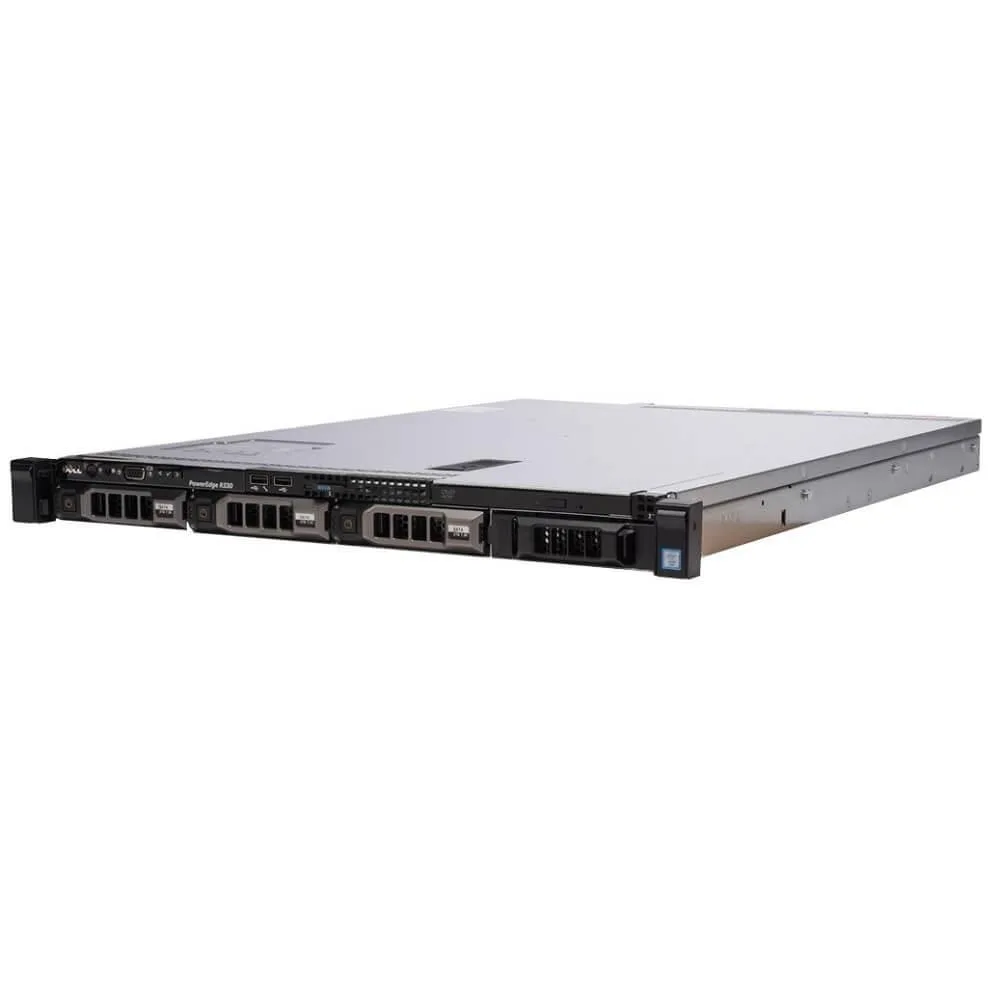

Silver 1U rack server front with four 3.5-inch drive bays and DVD slot

DELL

DELL PowerEdge R330 1U rack server E3-1220 v5 3GHz 4GB DDR4 2x 2TB SATA H330 2x 350W

SKU CH-980M-AC02H

A 1U rack server with Xeon E3-1220 v5, 4 GB DDR4, dual 2 TB SATA drives, H330 RAID controller and redundant 350 W power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236
  • Quad-core Xeon E3-1220 v5 at 3.0 GHz for responsive compute
  • 4 GB DDR4 with four DIMM slots expandable to 64 GB
  • Two 2 TB 7.2K SATA drives in hot-plug bays for immediate storage
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 350 W redundant power supplies keep the server running

1U rack server for small business workloads

The Dell PowerEdge R330 is a 1U rack server built around a single Intel Xeon E3-1220 v5 quad-core processor running at 3.0 GHz. It ships with 4GB of DDR4 memory and two 2TB 7.2K SATA drives managed by a PERC H330 RAID controller supporting levels 0, 1, 5, 10, 50 and 60. Dual 350W hot-swap power supplies provide redundancy for continuous operation in entry-level infrastructure roles.

Tool-free drive access and standard rail mounting

Four 3.5-inch hot-plug bays allow drive insertion without tools once the server is racked. The PERC H330 controller uses a dedicated internal slot, leaving two PCIe 3.0 slots free for additional cards. iDRAC8 Express is included for remote management; Enterprise features and vFlash media require a licence upgrade. Memory speed is limited by the installed processor to 2400 MT/s across the four DIMM slots.

Verify rack depth and memory upgrade path

Confirm your rack can accommodate the 18.99-inch depth and 1.68-inch height before ordering. The system arrives with only 4GB of RAM installed but supports up to 64GB using 4GB, 8GB or 16GB DDR4 modules. No operating system is included, so provision licences separately. Rails, bezel, keyboard, mouse and video cable are not supplied; network connectivity is provided by a dual-port 1GbE daughter card.

Points forts

  • Quad-core Xeon E3-1220 v5 at 3.0 GHz for responsive compute
  • 4 GB DDR4 with four DIMM slots expandable to 64 GB
  • Two 2 TB 7.2K SATA drives in hot-plug bays for immediate storage
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 350 W redundant power supplies keep the server running

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R330
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size4GB
Memory TypeDDR4
Max Memory Capacity4GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots + 1 slot for internal storage.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Questions sur cet article

How can I confirm the server is operating correctly after initial setup?

Check that iDRAC8 with Lifecycle Controller shows all components healthy and that the H330 controller reports the two 2 TB drives in a healthy RAID array.

What components are included and what must be purchased separately?

The unit ships with E3-1220 v5 CPU, 4 GB DDR4, two 2 TB 3.5" SATA drives, H330 RAID controller, two 350 W redundant power supplies, DVD drive and a power cable; rail kit, bezel, keyboard, mouse and video cable are not included.

Which memory capacity should I choose for this R330?

The board has four DIMM slots supporting 4 GB, 8 GB or 16 GB DDR4 modules up to 2400 MT/s; total capacity can reach 64 GB, so select modules based on the workload memory requirement.
