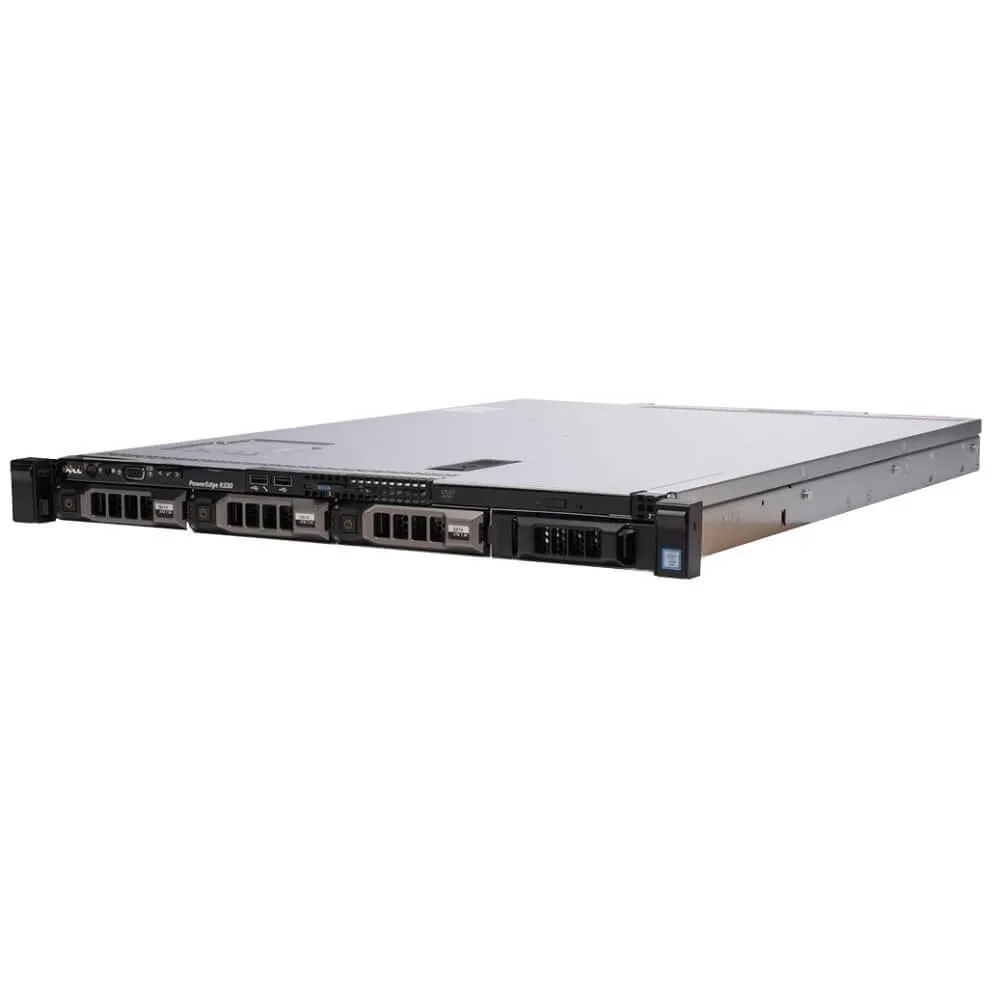

Silver 1U rack server with four hot-plug drive bays and dual power supplies

DELL

DELL PowerEdge R330 1U Rack Server E3-1220 v5 3GHz 4GB DDR4 4x 600GB SAS H730 2x 350W

SKU CH-YWG6-AW7VQ

1U rack server with Xeon E3-1220 v5, 4 GB DDR4, four 600 GB 15 K SAS drives on an H730 RAID controller and dual 350 W redundant power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236
  • Quad-core Xeon E3-1220 v5 at 3.0 GHz for responsive compute
  • Four 600 GB 15K SAS drives deliver fast storage throughput
  • H730 RAID controller supports RAID 0/1/5/6/10/50/60
  • Dual 350 W redundant power supplies keep the server running
  • 1U rack form factor fits dense data-centre deployments

Server purpose

The Dell PowerEdge R330 is a 1U rack server built around a single Intel Xeon E3-1220 v5 quad-core processor running at 3GHz with 4GB of DDR4 memory. It targets small-business workloads such as file serving, light virtualization or web hosting where a compact, redundant platform is required. Buyers needing more than one CPU socket or larger initial memory should look elsewhere.

Storage and RAID impact

Four 600GB 15K 6Gbps 3.5-inch SAS drives ship pre-installed behind the H730 controller with 1GB cache, delivering hardware RAID 0, 1, 5, 6, 10, 50 and 60. The hot-plug bays accept SAS or SATA media, so capacity can grow without downtime. The DVD-ROM remains for legacy media tasks. No solid-state drives or operating system are included.

Interface and expansion limits

The system provides two PCIe 3.0 slots plus one dedicated internal storage slot, limiting add-in cards to low-profile form factors. Network connectivity defaults to a dual-port 1GbE daughter card with no 10GbE option on board. Remote management runs iDRAC8 Express, upgradeable to Enterprise with optional vFlash media. Maximum supported memory is 64GB across four DIMM slots at up to 2400MT/s.

Points forts

  • Quad-core Xeon E3-1220 v5 at 3.0 GHz for responsive compute
  • Four 600 GB 15K SAS drives deliver fast storage throughput
  • H730 RAID controller supports RAID 0/1/5/6/10/50/60
  • Dual 350 W redundant power supplies keep the server running
  • 1U rack form factor fits dense data-centre deployments

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R330
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size4GB
Memory TypeDDR4
Max Memory Capacity4GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots + 1 slot for internal storage.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Questions sur cet article

Can the 4 GB DDR4 memory be expanded beyond the installed amount?

The system has four DIMM slots and the processor supports up to 64 GB of DDR4 at 2400 MT/s, so 8 GB or 16 GB modules can be added to reach that limit.

Which component will reach its ceiling first when the PERC H730 drives four 15 K SAS disks at full tilt?

The controller’s 12 Gbps SAS interface and 1 GB cache handle the aggregate throughput of the four 600 GB 15 K drives, so the disk spindle speed becomes the practical bottleneck.

How loud and hot does the 1 U chassis get with both 350 W redundant supplies running continuously?

Dual 350 W hot-swap supplies share the load, keeping each unit below peak stress; the 1 U form factor uses high-speed fans that produce noticeable airflow noise in a quiet room.
