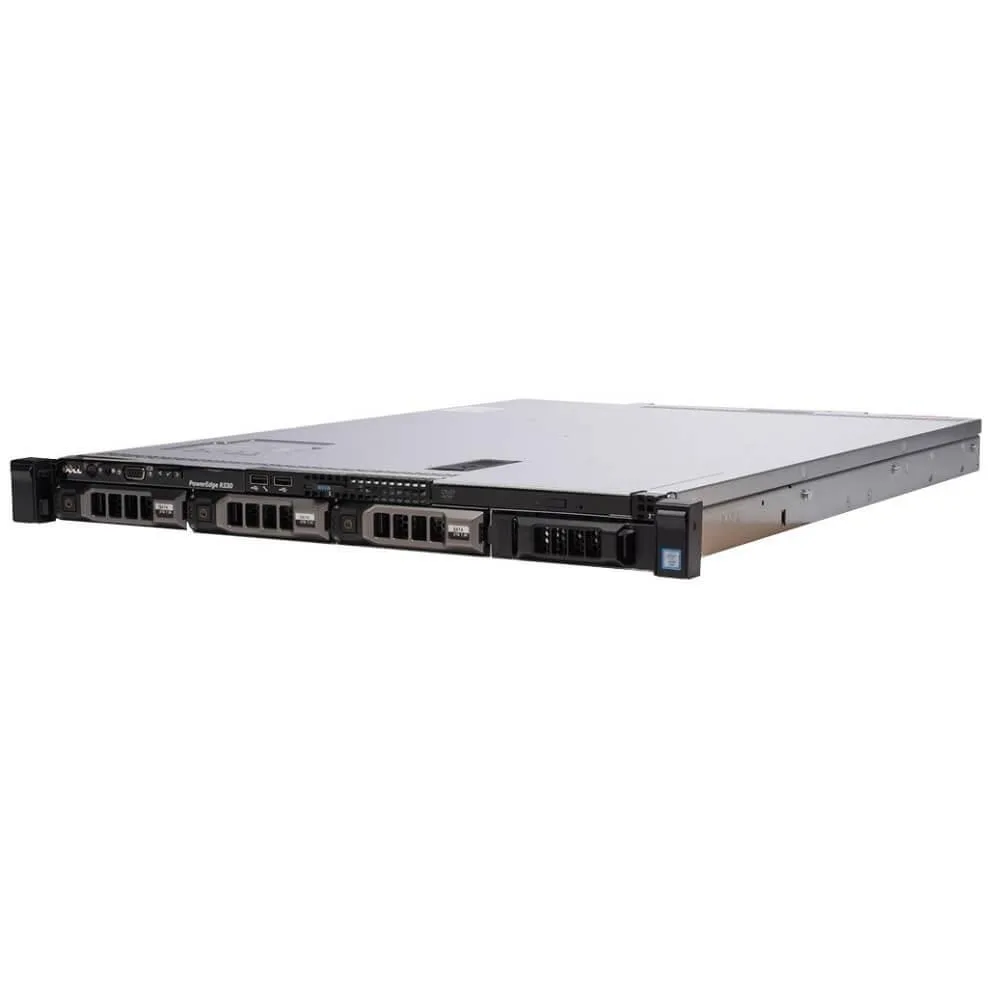

Silver 1U rack server with four front drive bays and dual power supplies

DELL

DELL PowerEdge R330 1U Rack Server E3-1220 v5 4GB 4x 2TB SAS H730 2x 350W

SKU CH-QPMW-QW4HB

A 1U rack server with a quad-core Xeon E3-1220 v5, 4GB DDR4, four 2TB SAS drives on an H730 RAID controller and dual 350W redundant power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236
  • Quad-core Xeon E3-1220 v5 at 3.0 GHz handles workloads efficiently
  • 4 GB DDR4 installed with four slots ready for up to 64 GB expansion
  • Four 2 TB 7.2K SAS drives provide 8 TB hot-plug storage
  • H730 1 GB 12 Gbps RAID controller supports RAID 0/1/5/6/10/50/60
  • Dual 350 W redundant power supplies keep the 1U server running

Compact 1U Server for Single-Workload Tasks

The Dell PowerEdge R330 is a 1U rack server built around a single Intel Xeon E3-1220 v5 quad-core processor running at 3 GHz. It ships with 4 GB of DDR4 memory and four 2 TB 7.2K SAS drives managed by a PERC H730 RAID controller supporting levels 0, 1, 5, 6, 10, 50 and 60. Dual 350 W redundant power supplies and a DVD ROM complete the configuration.

Suited for Light, Dedicated Roles

This platform fits buyers who need a space-efficient server for a single application, such as a file or print server, a small database instance or a virtualisation host with modest memory demands. The four 3.5-inch hot-plug bays and dual gigabit Ethernet ports support basic storage and networking needs. Organisations requiring more than one CPU socket, more than 4 GB of memory as delivered, or more than four drive bays should consider larger chassis because the R330 is limited to one processor and four 3.5-inch bays.

Memory Ceiling Decides Fit

The system board provides four DDR4 DIMM slots with a maximum capacity of 64 GB, although the supplied configuration only populates 4 GB. Actual memory speed depends on the installed processor capability, up to 2400 MT/s. If the target workload needs more than 64 GB of RAM, this server cannot meet that requirement.

Points forts

  • Quad-core Xeon E3-1220 v5 at 3.0 GHz handles workloads efficiently
  • 4 GB DDR4 installed with four slots ready for up to 64 GB expansion
  • Four 2 TB 7.2K SAS drives provide 8 TB hot-plug storage
  • H730 1 GB 12 Gbps RAID controller supports RAID 0/1/5/6/10/50/60
  • Dual 350 W redundant power supplies keep the 1U server running

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R330
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size4GB
Memory TypeDDR4
Max Memory Capacity4GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots + 1 slot for internal storage.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Questions sur cet article

How much power does the dual 350W redundant supply draw when the R330 runs continuously?

The server includes two 350W hot-swap power supplies in a redundant configuration; each unit can deliver up to 350 watts to the system components.

Which rails or cables must I already have to install this 1U rack server?

The package includes a power cable only; a rack rail kit, bezel, keyboard, mouse and video cable are not supplied and must be sourced separately.

Can the H730 controller use the existing 3.5" SAS drives if I add older SATA disks later?

The H730 12Gbps RAID controller supports both SAS and SATA drives in the four 3.5" hot-plug bays, allowing mixed drive types in the same array.
