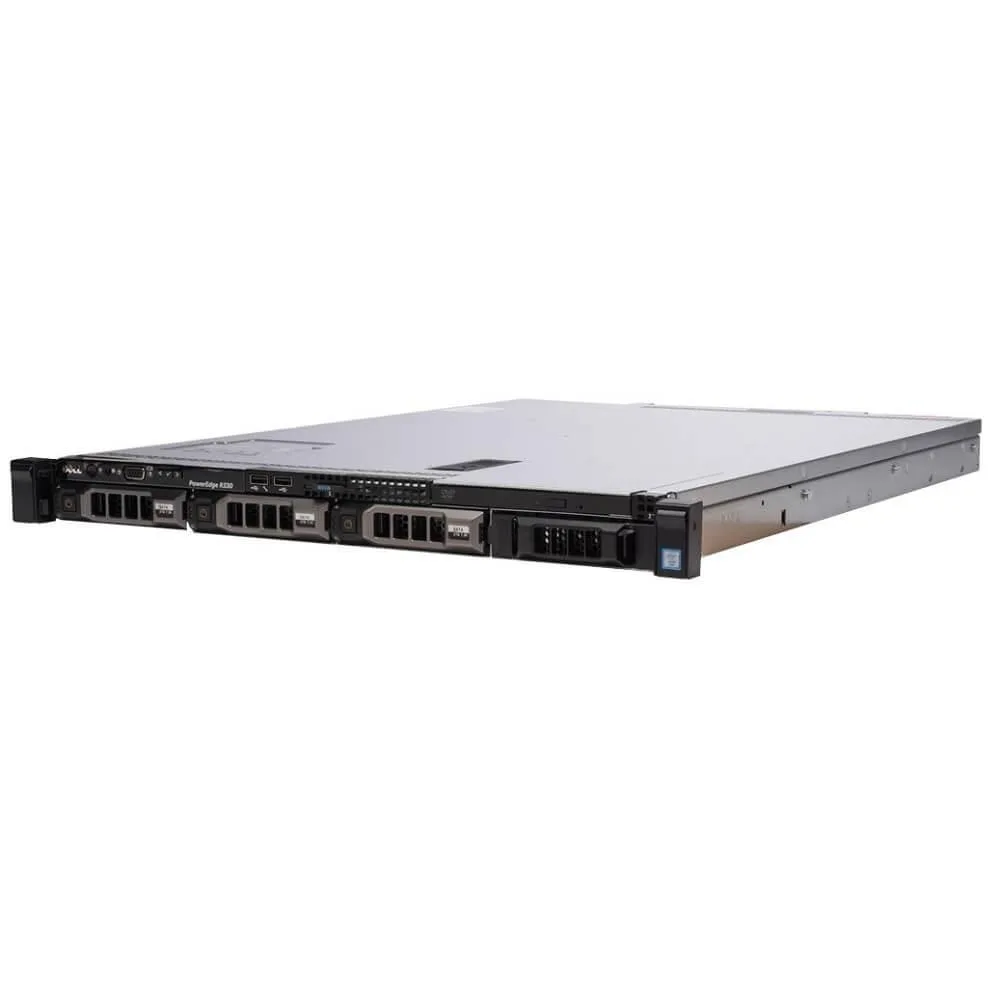

Silver 1U rack server front with four 3.5-inch drive bays and DVD slot

DELL

DELL PowerEdge R330 1U rack server E3-1220 v5 8GB 2x 1TB H330 2x 350W

SKU CH-M1S9-Q7ET7

1U rack server with Xeon E3-1220 v5, 8 GB DDR4, dual 1 TB SATA drives, H330 RAID controller and redundant 350 W power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236
  • Quad-core Xeon E3-1220 v5 at 3 GHz for responsive compute
  • 8 GB DDR4 memory with four slots supporting up to 64 GB total
  • Two 1 TB 7.2 K SATA drives in hot-plug bays for easy storage expansion
  • H330 12 Gbps RAID controller with RAID 0/1/5/10/50/60 for flexible data protection
  • Dual 350 W redundant power supplies keep the server running during a power-module failure

1U rack server for small-business workloads

The Dell PowerEdge R330 is a 1U rack server built around a single Intel Xeon E3-1220 v5 processor running at 3.0 GHz. It ships with 8 GB of DDR4 memory and two 1 TB 7.2K SATA drives managed by a PERC H330 RAID controller. Dual 350 W redundant power supplies and four hot-plug 3.5-inch drive bays support continuous operation in space-constrained environments.

E3-1220 v5 with 8 GB DDR4 and four DIMM slots

The installed quad-core Xeon E3-1220 v5 defines the compute ceiling for this configuration. Memory runs at up to 2400 MT/s across four slots, though the system board caps total capacity at 8 GB in this unit. Buyers who need more than 8 GB of RAM or a second processor socket should look at larger PowerEdge models because this chassis accepts only one CPU.

PERC H330 RAID and iDRAC8 remote management

The H330 controller brings hardware RAID 0, 1, 5, 10, 50 and 60 to the two included drives and any future SATA or SAS disks. iDRAC8 Express provides out-of-band monitoring and lifecycle control without an operating system. The server includes a DVD-ROM drive and a Matrox G200 video chip; rails, bezel, keyboard, mouse and video cable are not supplied.

Points forts

  • Quad-core Xeon E3-1220 v5 at 3 GHz for responsive compute
  • 8 GB DDR4 memory with four slots supporting up to 64 GB total
  • Two 1 TB 7.2 K SATA drives in hot-plug bays for easy storage expansion
  • H330 12 Gbps RAID controller with RAID 0/1/5/10/50/60 for flexible data protection
  • Dual 350 W redundant power supplies keep the server running during a power-module failure

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R330
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size8GB
Memory TypeDDR4
Max Memory Capacity8GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots + 1 slot for internal storage.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Questions sur cet article

What does the 3 GHz Xeon E3-1220 v5 deliver in a live 1U rack server?

The quad-core Xeon E3-1220 v5 runs at 3 GHz and is the single processor this 1U chassis supports, so all compute threads run on those four cores without a second socket option.

How does the H330 12 Gbps RAID controller limit drive performance?

The H330 caps each SATA or SAS drive at 12 Gbps and handles RAID 0, 1, 5, 10, 50 and 60 across the four 3.5-inch hot-plug bays.

What rack depth and rails does the 1U R330 need to mount?

The server is 18.99 inches deep and 1.68 inches high; a standard 1U rail kit is required but is not included with the unit.
