Silver 2U rack server front with eight 3.5-inch drive bays and bezel

DELL

DELL PowerEdge R540 2U rack server 2x Xeon 5118 2.3GHz 12-core 128GB DDR4 H330 8x 3.5" trays

SKU CH-JVH8-YGZR3

A 2U rack server with dual 12-core Xeon 5118 processors at 2.3 GHz, 128 GB DDR4 memory, a PERC H330 controller and eight 3.5-inch drive trays

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 3647
  • Dual Xeon 5118 CPUs with 3.2 GHz turbo for demanding workloads
  • 128 GB DDR4 2666 MHz ECC memory supports heavy virtualization
  • PERC H330 controller handles 8 SAS/SATA drive bays
  • iDRAC 9 Enterprise enables full remote server management
  • Dual 750 W platinum PSUs provide redundant power protection

Dual-socket Xeon 2U server

The Dell PowerEdge R540 is a 2U rack server equipped with two Intel Xeon Gold 5118 processors, each running at 2.3 GHz with 12 cores. It ships with 128 GB of DDR4 registered ECC memory across eight 16 GB modules. The system targets virtualization, database hosting, file serving and other business-critical workloads that benefit from dual-socket compute density.

Memory headroom to 384 GB

Installed memory sits at 128 GB across 16 DIMM slots, leaving eight slots free for expansion up to the platform maximum of 384 GB. The PERC H330 controller manages eight 3.5-inch SAS or SATA drive trays, though no drives are included. Storage capacity scales with the drives you add, while the controller provides 12 Gb/s SAS/SATA connectivity for each bay.

Redundant 750 W platinum supplies

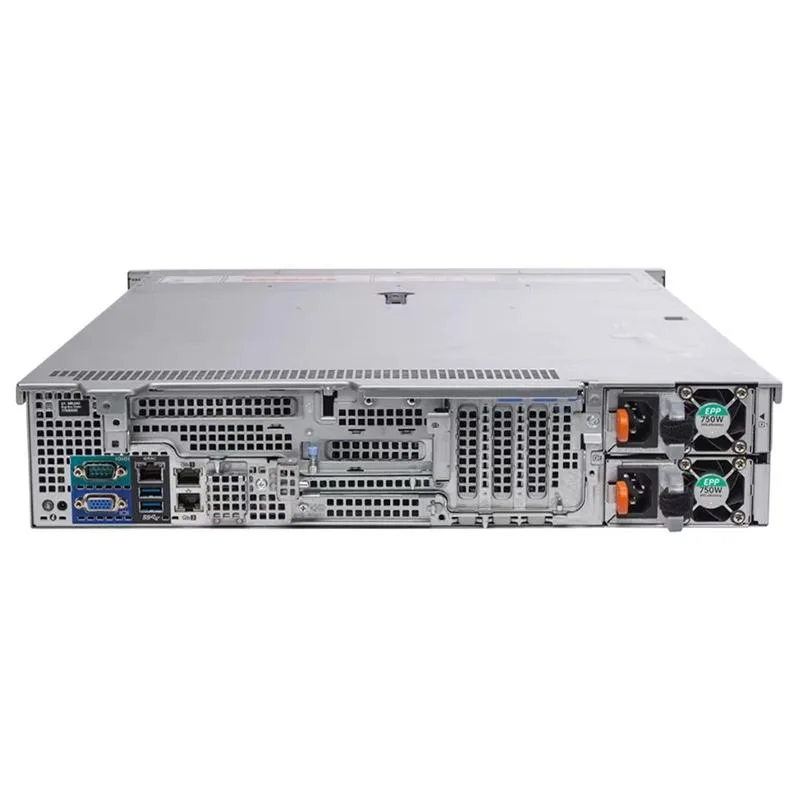

Dual hot-swap 750 W platinum-rated power supplies deliver redundancy and efficient power delivery under typical loads. Integrated iDRAC 9 Enterprise enables remote monitoring, automation and administration without requiring physical access. Ready rails and a front bezel are included for straightforward rack installation and airflow management.

Points forts

  • Dual Xeon 5118 CPUs with 3.2 GHz turbo for demanding workloads
  • 128 GB DDR4 2666 MHz ECC memory supports heavy virtualization
  • PERC H330 controller handles 8 SAS/SATA drive bays
  • iDRAC 9 Enterprise enables full remote server management
  • Dual 750 W platinum PSUs provide redundant power protection

Caractéristiques

BrandDELL
SeriesPowerEdge R740
ModelR540
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 3647
Number of CPU Cores12-Core Processor
# of Processors Installed2
MAX Processors2
Chipset0
Installed Memory Size128GB
Memory Type0
Max Memory Capacity384GB
Number of Memory Slots16
Hard Drive (Installed)None
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50
Media Drives0
GPU Type0
Video Memory0
Ethernet ControllerIntegrated Dell 2x1GbE Dual Port Ethernet Adapter
LAN Ports2 x Ports
Expansion Slots0
Management Port0
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions sur cet article

Will the 12-core Xeon 5118 CPUs work with my existing DDR4 2666MHz ECC memory modules?

The server already includes 128GB of DDR4 2666MHz registered ECC memory across 8 slots, leaving 8 additional slots available for expansion up to 384GB total capacity.

How do I verify the PERC H330 controller and both 750W power supplies are functioning correctly after installation?

Use iDRAC9 Enterprise remote management to monitor controller status, power supply redundancy, and system health indicators without needing physical access to the rack.

Which drive trays and rails are included, and do I need to purchase drives or caddies separately?

Eight 3.5-inch SAS/SATA drive trays and ready rails are included; no hard drives are installed, so you must supply your own SAS or SATA drives.
