DELL PowerEdge R540 2U rack server 2x Xeon Gold 5118 2.3GHz 12C 64GB DDR4 8x 4TB SAS H330 iDRAC9 2x 750W

Purpose-built server

The Dell PowerEdge R540 is a 2U rack server equipped with dual Intel Xeon Gold 5118 processors running at 2.3 GHz with 12 cores each and a 3.2 GHz turbo frequency. It includes 64 GB of DDR4 2666 MHz registered ECC memory across 16 slots and eight 4 TB 7.2K SAS drives managed by a PERC H330 controller. The system targets virtualization, database hosting, and file serving workloads.

Before ordering

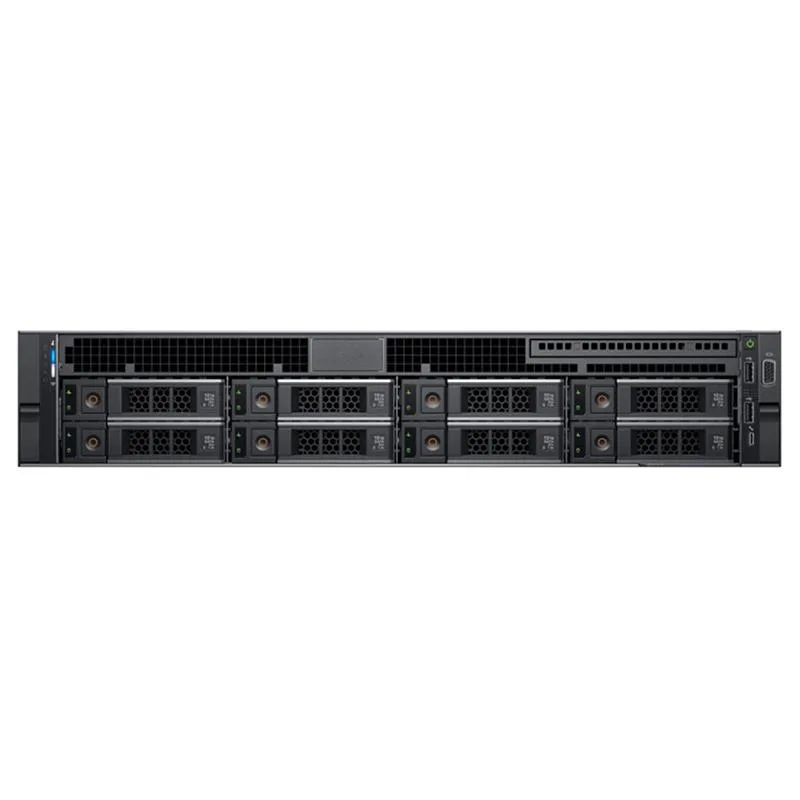

Verify that your rack provides a 2U bay with sufficient depth for the chassis and that your power distribution can supply two redundant 750 W platinum-efficiency supplies. Confirm the LGA 3647 socket matches any planned processor changes and that the 16 memory slots accept DDR4 registered ECC modules up to the 384 GB maximum. The H330 controller supports SAS and SATA drives in the eight 3.5-inch bays.

Thermals and power

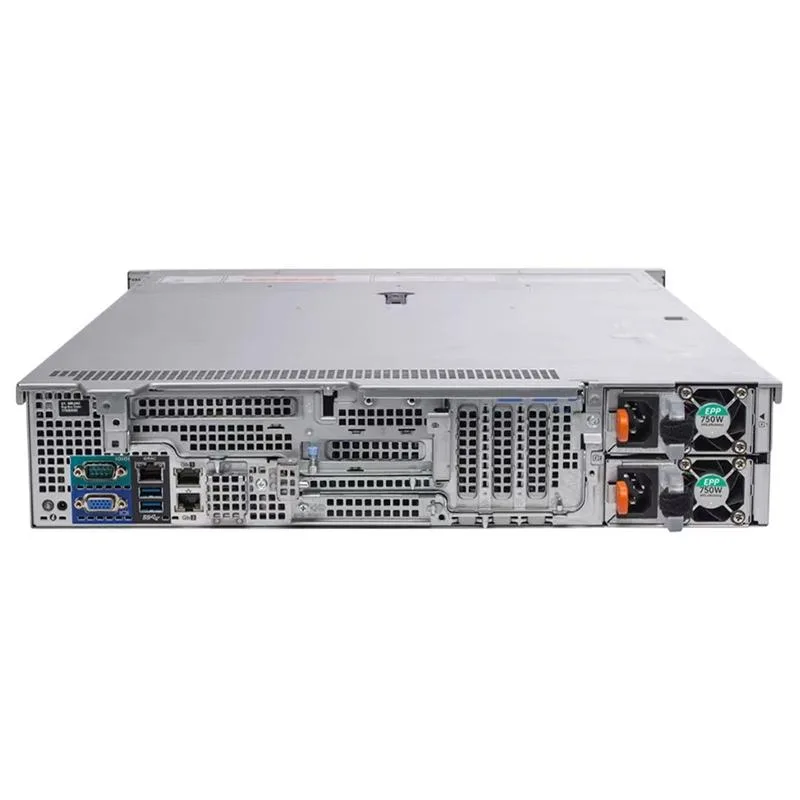

Redundant 750 W platinum supplies share the load and maintain operation if one unit fails. Intelligent cooling adjusts fan speed to the thermal profile of the dual 12-core CPUs, the memory population, and the eight spinning SAS drives. iDRAC 9 Enterprise provides continuous thermal monitoring and remote power control for ongoing management.
