DELL PowerEdge R540 2U rack server 2x Xeon Gold 6130 2.1GHz 16-core 64GB DDR4 8x 4TB SAS H740P

Server identity and target workloads

The Dell PowerEdge R540 is a 2U rack server equipped with two Intel Xeon Gold 6130 processors running at 2.1 GHz with 16 cores each. It ships with 64 GB of DDR4 registered ECC memory across four modules and eight 4 TB 7.2K SAS drives managed by a PERC H740P controller. This configuration suits virtualization hosts, database servers and file storage roles that demand high core counts and large internal capacity.

Compatibility checks before ordering

Verify that your rack provides 2U of vertical space and can supply adequate cooling for dual 750 W power supplies. Confirm the SAS backplane matches the 12 Gb/s controller and that your network infrastructure supports the dual 1 GbE RJ45 ports. Memory expansion uses DDR4 RDIMMs up to the 1 TB system limit across sixteen slots; ensure any added modules match the registered ECC specification.

Build quality and daily implications

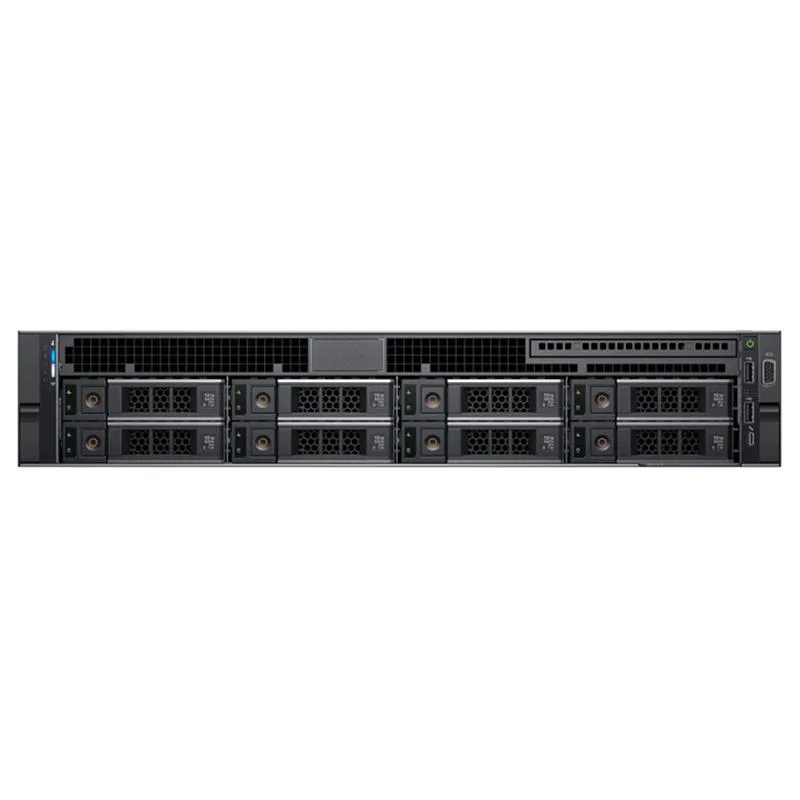

Hot-swap drive bays and redundant power supplies allow drive or PSU replacement without downtime. The PERC H740P includes an 8 GB cache battery for RAID 0, 1, 5, 6, 10, 50 and 60 protection during power loss. Sliding rails simplify installation and service access in standard racks. iDRAC9 Enterprise provides dedicated remote management over a separate network connection for out-of-band monitoring and control.
