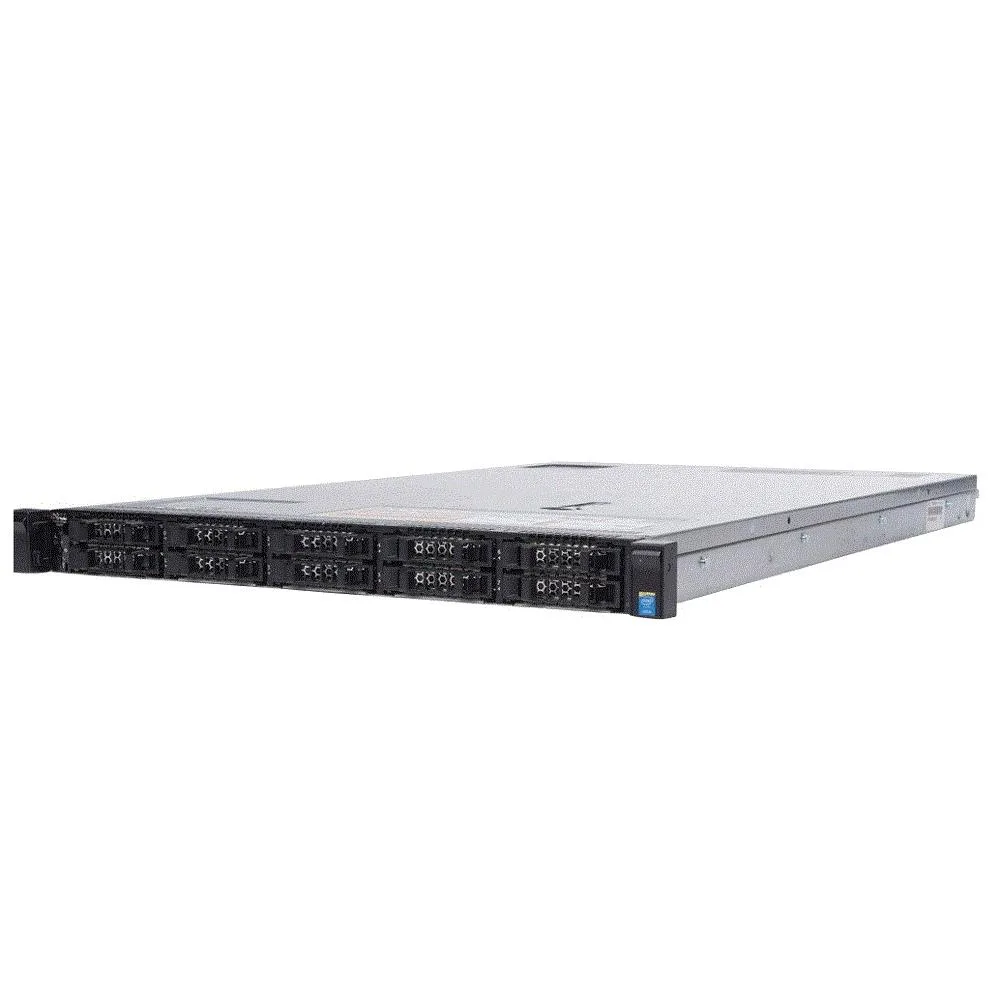

Silver 1U rack server with ten 2.5-inch drive bays and dual power supplies

DELL

DELL PowerEdge R630 10-bay E5-2609 v3 1.9 GHz 16 GB DDR4 H730 rack server

SKU CH-9TXM-5H7B2

1U rack server with ten 2.5-inch hot-plug bays, single Xeon E5-2609 v3 at 1.9 GHz, 16 GB DDR4 and H730 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD None

  • 10 hot-plug 2.5" drive bays for dense storage
  • Dual 750 W redundant power supplies keep workloads running
  • Single Xeon E5-2609 v3 six-core 1.9 GHz processor
  • 16 GB DDR4 installed across 24 DIMM slots
  • PERC H730 12 Gbps RAID controller supports RAID 0/1/5/6/10/50/60

1U 10-bay rack server for dense compute

The Dell PowerEdge R630 fits a single Intel Xeon E5-2609 v3 six-core 1.9 GHz processor and 16 GB of DDR4 memory into a 1U chassis. It targets workloads that need hot-plug drive density and redundant power in a shallow rack footprint.

Tool-less drive carriers and rail mounting

Ten 2.5-inch hot-plug bays accept SAS or SATA drives without trays supplied. The H730 controller with 1 GB cache manages RAID 0, 1, 5, 6, 10, 50 and 60. Dual 750 W hot-swap supplies install from the rear; forgetting to seat both units leaves the system without redundancy.

PCIe 3.0 expansion and 1 GbE baseline

Three PCIe 3.0 slots plus a dedicated PERC slot provide room for additional controllers or networking cards. The standard daughter card delivers four 1 GbE ports; 10 GbE requires an optional NDC upgrade. Maximum memory per processor is 12 DIMM slots, with total capacity limited by the installed CPU.

Points forts

  • 10 hot-plug 2.5" drive bays for dense storage
  • Dual 750 W redundant power supplies keep workloads running
  • Single Xeon E5-2609 v3 six-core 1.9 GHz processor
  • 16 GB DDR4 installed across 24 DIMM slots
  • PERC H730 12 Gbps RAID controller supports RAID 0/1/5/6/10/50/60

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 2GB Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I verify the E5-2609 v3 is recognised and the 16 GB DDR4 runs at 2400 MT/s after power-on?

Enter the BIOS or iDRAC8 Lifecycle Controller on first boot; both will show the single six-core 1.9 GHz Xeon and report the installed 16 GB DDR4 operating at up to 2400 MT/s.

The listing says no drives or trays are included — what exactly ships in the box and what must I purchase separately?

The server arrives with one E5-2609 v3 CPU, 16 GB DDR4, H730 1 GB RAID controller, dual 750 W redundant power supplies, a power cable and the Matrox G200 video; you must buy 2.5" SAS or SATA drives, drive trays, an operating system and any rail kit or bezel.

Which memory capacity should I choose if I want to expand beyond the factory 16 GB using the 24 DIMM slots?

Supported DDR4 modules are 4 GB, 8 GB, 16 GB, 32 GB, 64 GB or 128 GB per slot; populate up to 12 slots per processor to reach the 1536 GB maximum.
