DELL
DELL PowerEdge R630 8SFF 2x Xeon E5-2697 v3 512GB DDR4
A 1U rack server with dual 14-core Xeon E5-2697 v3 processors at 2.6 GHz, 512 GB DDR4 ECC memory, a PERC H730 SAS RAID controller and eight 2.5-inch drive bays ready for your storage configuration
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.6GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size512GB
- Dual Xeon E5-2697 v3 CPUs deliver 14 cores each for parallel workloads
- 512 GB DDR4 ECC memory supports large in-memory datasets
- PERC H730 SAS controller enables hardware RAID across eight 2.5" bays
- iDRAC8 Enterprise licence gives full remote console and lifecycle control
- Dual 495 W power supplies provide redundancy for continuous uptime

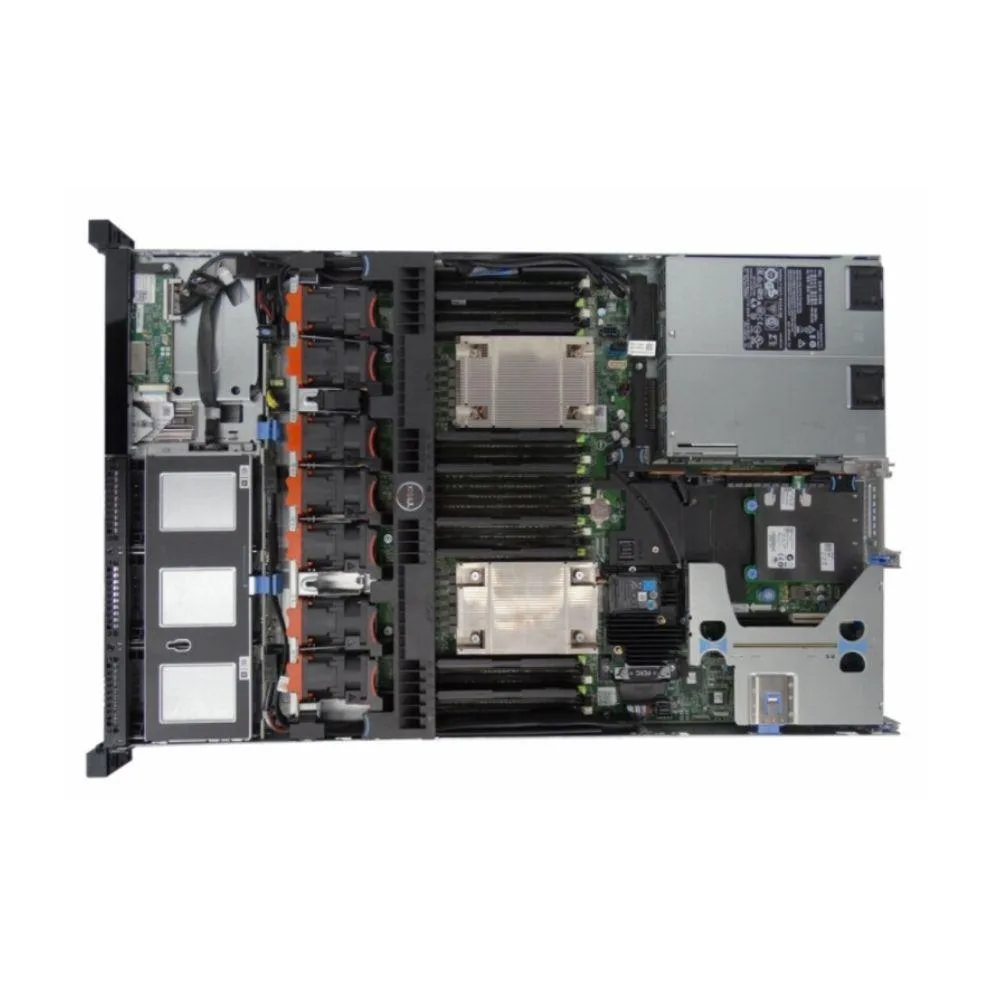

Dell PowerEdge R630 8-bay server
The Dell PowerEdge R630 is a 1U rack-mount server with eight 2.5-inch drive bays, dual Xeon E5-2697 v3 processors at 2.6 GHz and 512 GB of DDR4 ECC registered memory. It suits virtualization hosts, database nodes or compute clusters that need dense processing in a single rack unit.
Tool-less rails and cabled backplane
The chassis uses tool-less sliding rails for quick rack installation and the 8SFF backplane connects directly to the PERC H730 SAS RAID controller. Common issues include mismatched drive carriers for the 2.5-inch bays and forgetting to license iDRAC8 Enterprise for full remote management features.
Verify rack depth and power budget
Confirm the rack provides at least 36 inches of usable depth and that the PDU can supply two 495 W power supplies with the required IEC connectors. Network uplinks use a quad-port card offering two 10 GbE and two 1 GbE ports, so switch ports and cabling must match those speeds.
Points forts
- Dual Xeon E5-2697 v3 CPUs deliver 14 cores each for parallel workloads
- 512 GB DDR4 ECC memory supports large in-memory datasets
- PERC H730 SAS controller enables hardware RAID across eight 2.5" bays
- iDRAC8 Enterprise licence gives full remote console and lifecycle control
- Dual 495 W power supplies provide redundancy for continuous uptime
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.6GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 512GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1.5TB |
| Hard Drive (Installed) | 4,80 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How can I confirm both Xeon E5-2697 v3 processors and all 512GB DDR4 memory are recognised after installation?
The iDRAC8 Enterprise remote management interface reports CPU count, core totals and every installed DIMM slot so you can verify both processors and the full 512GB are seen before the OS loads.
Which components ship inside the 8SFF chassis and which items such as drives or rail kit must be ordered separately?
The box contains the 1U server with 2x Xeon E5-2697 v3 CPUs, 512GB DDR4 ECC registered memory, PERC H730 RAID controller, Intel I350/X540 2x10GbE + 2x1GbE network card, and 2x 495W power supplies; 2.5" SAS drives and the rail kit are not included.
How do I decide between adding 2.5" SAS drives now or expanding memory toward the 1.5TB maximum later?
The chassis supports eight 2.5" SAS bays for immediate storage, while the twelve remaining DDR4 slots allow memory upgrades up to 1.5TB when workloads demand more capacity.
