DELL
DELL PowerEdge R630 8SFF 2x Xeon E5-2698 v4 2.2GHz 512GB DDR4 No Drive
Dual Xeon E5-2698 v4 2.2GHz 20-core rack server with 512GB DDR4, PERC H730 RAID and eight 2.5-inch drive bays
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.2GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size512GB
- Dual Xeon E5-2698 v4 deliver 20 cores each at 2.2GHz
- 512GB DDR4 ECC registered memory supports up to 1.5TB capacity
- PERC H730 SAS controller manages up to 8 SFF drive bays
- iDRAC8 Enterprise license enables full remote server management
- Dual 495W power supplies with Intel 2x10GbE + 2x1GbE networking
Server configuration

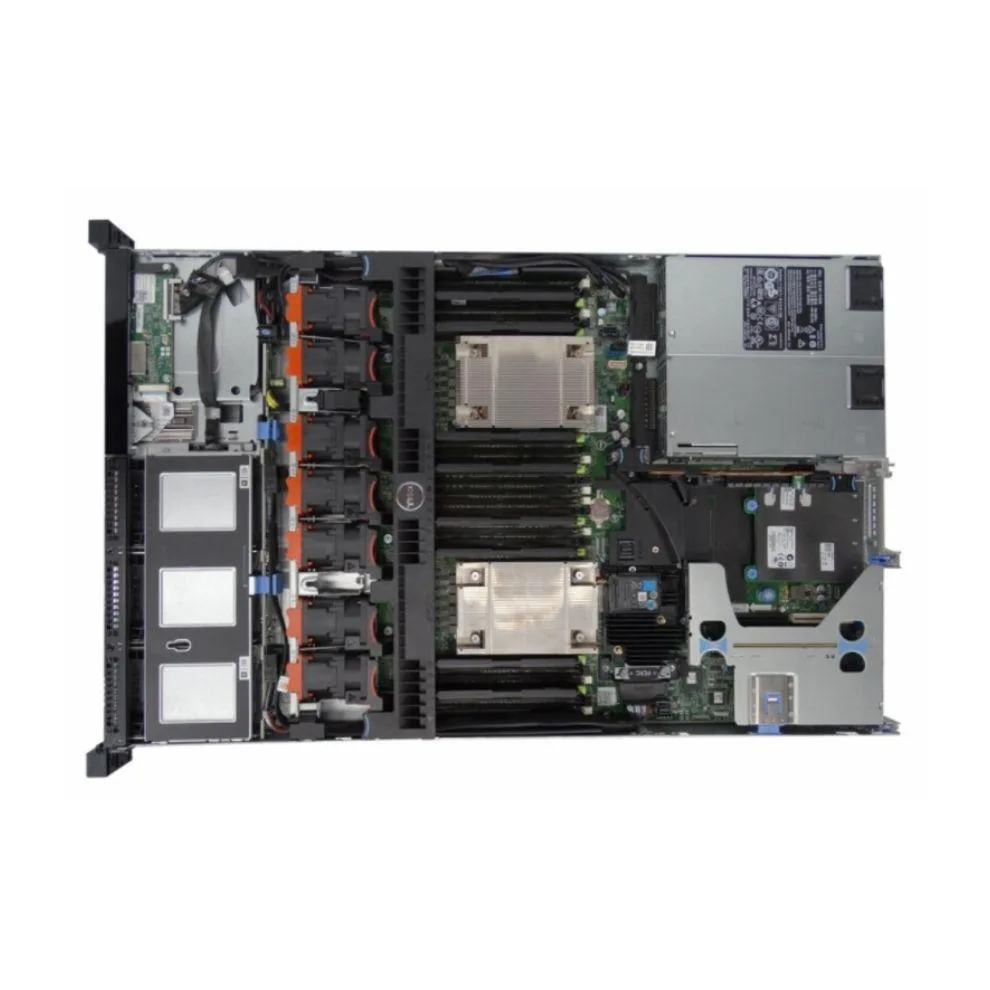

This Dell PowerEdge R630 rack server arrives with two Xeon E5-2698 v4 processors running at 2.2GHz and 512GB of DDR4 ECC registered memory. The eight-bay 2.5-inch chassis supports SATA and SAS drives through a PERC H730 RAID controller. Integrated graphics and iDRAC8 Enterprise remote management are included for headless operation.
Before ordering
Verify that your rack provides 36 inches of depth and 24 inches of width for the 1U form factor. The unit weighs 40 pounds and requires two 495W power supplies connected to suitable PDUs. Network uplinks use two 10GbE and two 1GbE ports, so confirm switch compatibility and cabling. No drives are installed; plan storage capacity and RAID level before deployment.
Thermals and power
Dual 495W supplies share the load, drawing up to 350W to 400W under typical virtualization workloads. Front-to-rear airflow keeps CPU temperatures within spec when inlet air stays below 35°C. Fan speed ramps with CPU utilisation, producing moderate noise in a server room but audible levels in quiet offices. Ensure adequate cold-aisle supply and hot-aisle exhaust clearance.
Points forts
- Dual Xeon E5-2698 v4 deliver 20 cores each at 2.2GHz
- 512GB DDR4 ECC registered memory supports up to 1.5TB capacity
- PERC H730 SAS controller manages up to 8 SFF drive bays
- iDRAC8 Enterprise license enables full remote server management
- Dual 495W power supplies with Intel 2x10GbE + 2x1GbE networking
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 512GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1.5TB |
| Hard Drive (Installed) | 4,00 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
What is included in the box and what must be purchased separately?
The server ships with 2x Xeon E5-2698 v4 processors, 512GB DDR4 ECC Registered memory, PERC H730 RAID controller, Intel I350/X540 network card with 2x 10GbE and 2x 1GbE ports, 2x 495W power supplies, and iDRAC8 Enterprise remote management. Drives and rail kit are not installed and must be bought separately.
Which drive capacity or version should I choose for the 8x 2.5-inch bays?
The chassis accepts eight 2.5-inch SATA or SAS drives. Capacity is not fixed by the server; select drives that match your workload and the PERC H730 controller.
What does the 512GB DDR4 figure mean once the server is running?
It provides 512GB of installed ECC Registered DDR4 memory across the two processors, with the platform supporting up to 1.5TB total if further expansion is needed.
