DELL

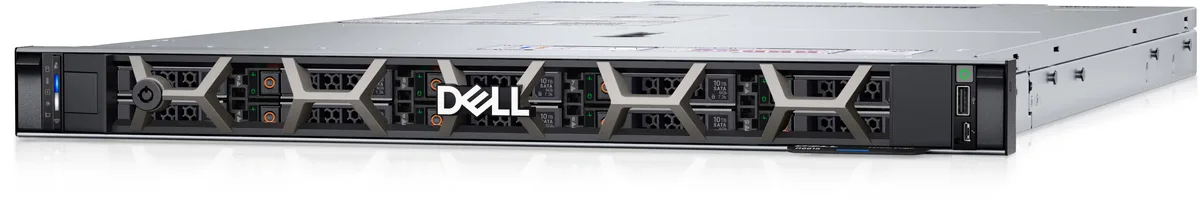

DELL PowerEdge R6615 1U rack server
1U rack server for virtualization and HCI workloads, supporting one AMD EPYC 9004 processor with up to 128 cores, 12 DDR5 slots at 4800 MT/s, and flexible front storage up to 153.6 TB NVMe
- WorkloadVirtualization, Hyper-Converged Infrastructure (HCI) and NFV
- TypeRack
- Rack Height1U
- SecurityAMD Secure Encrypted Virtualization (SEV) AMD Secure Memory
- CPU TypeAMD EPYC 9004 Series
- # of Processors Installed0
- Single-socket AMD EPYC 9004 series scales to 128 cores
- DDR5 memory runs at 4800 MT/s across 12 slots for 3 TB capacity

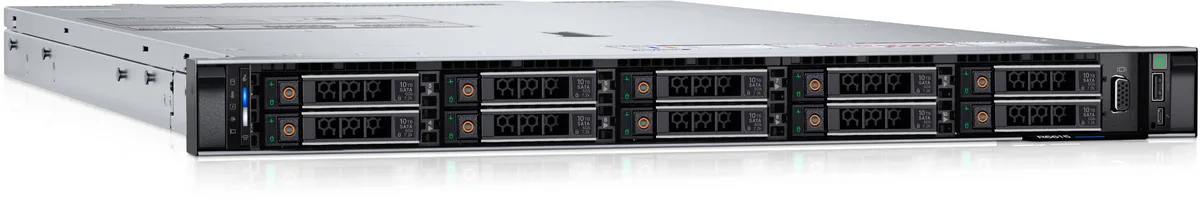

- Front bays take 10 x 2.5-inch SAS, SATA or NVMe drives up to 153.6 TB
- Three PCIe Gen5 x16 slots plus support for three single-wide GPUs
- Hardware root of trust with SEV, SME, signed firmware and TPM 2.0 FIPS
Purpose-built 1U rack server
The Dell PowerEdge R6615 is a single-socket 1U rack server designed for virtualization, hyper-converged infrastructure and NFV workloads. It targets data-centre operators who need dense compute in a compact form factor with AMD EPYC 9004 series processors. Buyers seeking multi-socket scaling or tower chassis should look elsewhere.
Installation and common pitfalls
The chassis arrives without a processor, memory modules or drives installed, so integrators must populate up to twelve registered ECC DDR5 DIMM slots and select a compatible EPYC CPU. Drive bays support multiple front configurations — 3.5-inch, 2.5-inch or E3.S — and rear 2.5-inch bays, but mixing bay types is not supported in a single build.
Deciding specification
The server accommodates one AMD EPYC 9004 series processor with up to 128 cores and a maximum of 3 TB DDR5 memory at 4800 MT/s across twelve slots. This single-socket limit and memory ceiling determine whether the platform fits the intended workload density.
Points forts
- Single-socket AMD EPYC 9004 series scales to 128 cores
- DDR5 memory runs at 4800 MT/s across 12 slots for 3 TB capacity
- Front bays take 10 x 2.5-inch SAS, SATA or NVMe drives up to 153.6 TB
- Three PCIe Gen5 x16 slots plus support for three single-wide GPUs
- Hardware root of trust with SEV, SME, signed firmware and TPM 2.0 FIPS
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge R6615 |
| Workload | Virtualization, Hyper-Converged Infrastructure (HCI) and NFV |
| Type | Rack |
| Rack Height | 1U |
| Security | AMD Secure Encrypted Virtualization (SEV) AMD Secure Memory Encryption (SME) Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| CPU Type | AMD EPYC 9004 Series |
| # of Processors Installed | 0 |
| MAX Processors | 1 |
| Installed Memory Size | No |
| Memory Type | DDR5 |
| Max Memory Capacity | 3TB |
| Memory Features | Speeds up to 4800 MT/s Supports registered ECC DDR5 DIMMs only |
| Number of Memory Slots | 12 |
| Hard Drive (Installed) | None |
| SSD (Installed) | No |
| Servers_Graphic Installed | 0 |
| GPU Type | Supports 3 x Single-Wide GPUs |
| Expansion Slots | Up to three PCIe slots (x16 connector) Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length |
| Expansion Bays | Front: - Up to 4 x 3.5-inch SAS/SATA (HDD/SDD) max 80 TB - Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB - Up to 16 x E3.S NVMe direct drives max 122.88 TB Rear: - Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB - Up to 2 x E3.S NVMe direct drives max 15.36 TB |
| Dimensions | 1.69" x 18.97" x 30.39" |
| Weight | 44.97 lbs. |
| Poids d’expédition | 22.68 kg |
| Dimensions du colis | 635 × 508 × 127 mm |
Questions sur cet article
How do I verify the server is operating correctly after installing an AMD EPYC 9004 processor and DDR5 memory?
Check iDRAC9 for CPU detection, memory speed at 4800 MT/s across all 12 slots, Secure Boot status, and Silicon Root of Trust attestation.
Which components ship with the chassis and which must be purchased separately?
The 1U chassis includes the system board, cooling, and power supplies. You must add one AMD EPYC 9004 CPU, registered ECC DDR5 DIMMs, and storage drives.
Which front-drive configuration should I choose: 3.5-inch, 2.5-inch, or E3.S?
Choose 4 x 3.5-inch for up to 80 TB HDD capacity, 10 x 2.5-inch for up to 153.6 TB mixed SAS/SATA/NVMe, or 16 x E3.S for up to 122.88 TB NVMe density.
