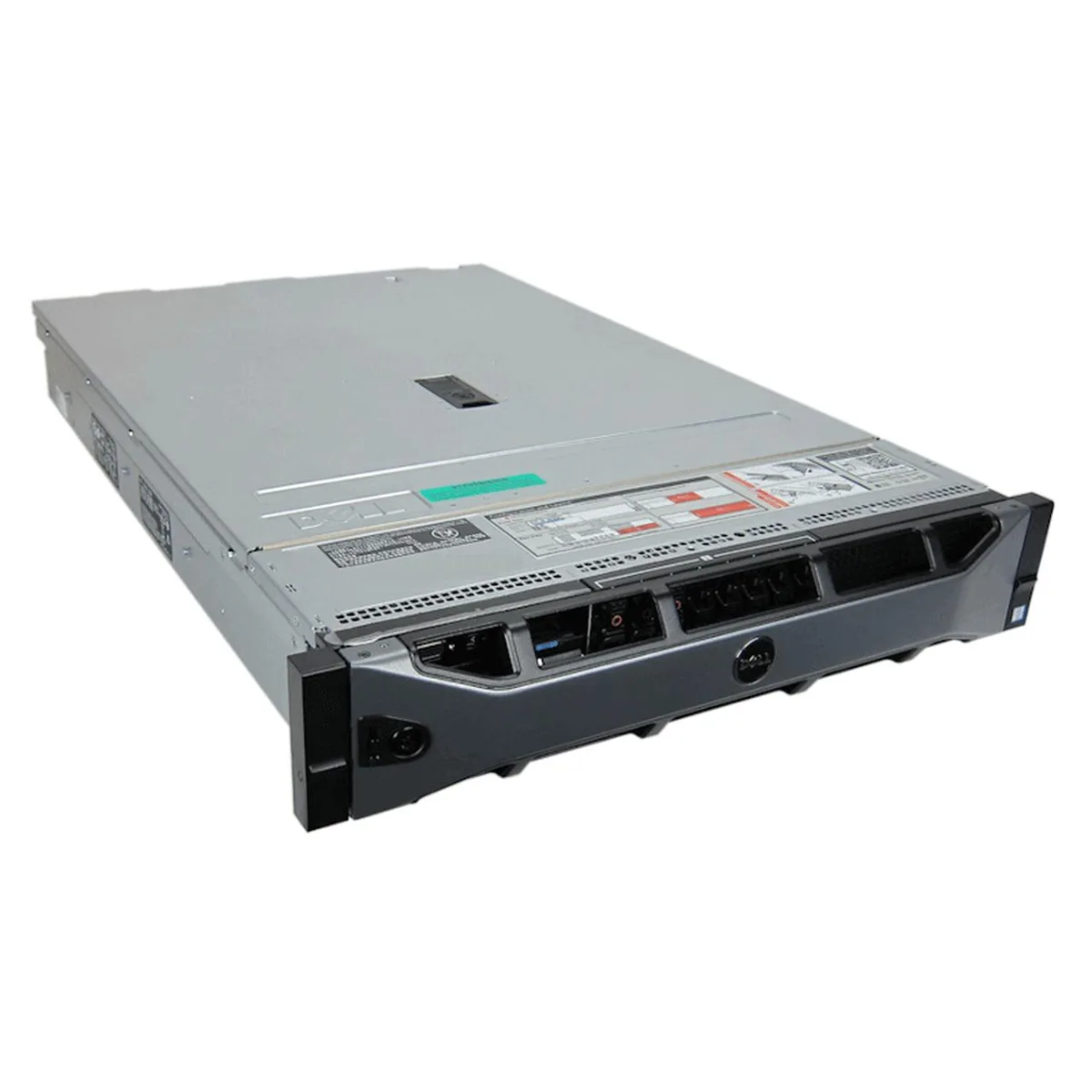

Silver 2U rack server front with eight 2.5 inch drive bays and bezel

DELL

DELL PowerEdge R730 2U 8 Bay 2x Xeon E5-2620 v3 2.4GHz 512GB DDR4 8x 800GB SSD

SKU CH-QSPY-M17B0

Dual 6-core Xeon server with 512GB DDR4, H730 RAID and eight 800GB SSDs in a 2U rack

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011-3
  • Dual Xeon E5-2620 v3 CPUs deliver 24 cores at 2.4 GHz base clock
  • 512 GB DDR4 2133 MHz ECC memory across 16 slots supports 1.5 TB max capacity
  • 8 x 800 GB SATA SSDs on PERC H730 RAID controller enable 12 Gb/s throughput
  • X520/I350 quad-port card provides 2 x 1 GbE and 2 x 10 Gb SFP+ connectivity
  • iDRAC 8 Enterprise plus dual 750 W Platinum PSUs ensure remote management and power redundancy

Dell PowerEdge R730 2U Server

The Dell PowerEdge R730 is a 2U rack server equipped with dual Intel Xeon E5-2620 v3 processors running at 2.40 GHz with a 3.2 GHz turbo frequency. It provides 512 GB of DDR4 registered ECC memory across 16 modules and includes a Dell PERC H730 storage controller with 1 GB cache. Eight 800 GB SATA SSDs populate the 2.5-inch drive bays, and redundant 750 W platinum power supplies support continuous operation.

Suited for virtualisation and database workloads

This server suits organisations deploying virtual desktop infrastructure, databases or high-performance computing data nodes that benefit from 12 total cores and 24 memory slots expandable to 1.5 TB. The quad-port network daughter card delivers dual 1 GbE and dual 10 Gb SFP+ connectivity. Buyers needing more than eight drive bays, GPU acceleration or a different storage interface should evaluate alternative platforms.

512 GB DDR4 registered ECC memory

The installed 512 GB of DDR4 2133 MHz registered ECC memory across 16 slots determines capacity for memory-intensive applications. With 24 total DIMM slots, the system can scale to 1.5 TB. Confirm that your workload fits within this memory configuration or plan for additional modules before purchase.

Points forts

  • Dual Xeon E5-2620 v3 CPUs deliver 24 cores at 2.4 GHz base clock
  • 512 GB DDR4 2133 MHz ECC memory across 16 slots supports 1.5 TB max capacity
  • 8 x 800 GB SATA SSDs on PERC H730 RAID controller enable 12 Gb/s throughput
  • X520/I350 quad-port card provides 2 x 1 GbE and 2 x 10 Gb SFP+ connectivity
  • iDRAC 8 Enterprise plus dual 750 W Platinum PSUs ensure remote management and power redundancy

Caractéristiques

BrandDELL
SeriesPowerEdge R730
ModelR730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011-3
Number of CPU Cores6-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size512GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)8 x 800GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What comes in the box and what must be bought separately?

The server ships with two Xeon E5-2620 v3 processors, sixteen 32GB DDR4 modules, eight 800GB SATA SSDs, PERC H730 controller, X520/I350 quad-port network card, iDRAC8 Enterprise, two 750W power supplies, bezel and rails; no extra components are included.

Which memory capacity should I choose for this configuration?

The system arrives with 512GB DDR4 installed across sixteen slots; twelve slots remain free for future expansion up to the 1.5TB maximum.

What does the 2.4GHz processor speed mean in real use?

Each of the two six-core Xeon E5-2620 v3 CPUs runs at 2.4GHz base with 3.2GHz turbo, delivering twelve threads for virtualization, databases and HPC workloads.
