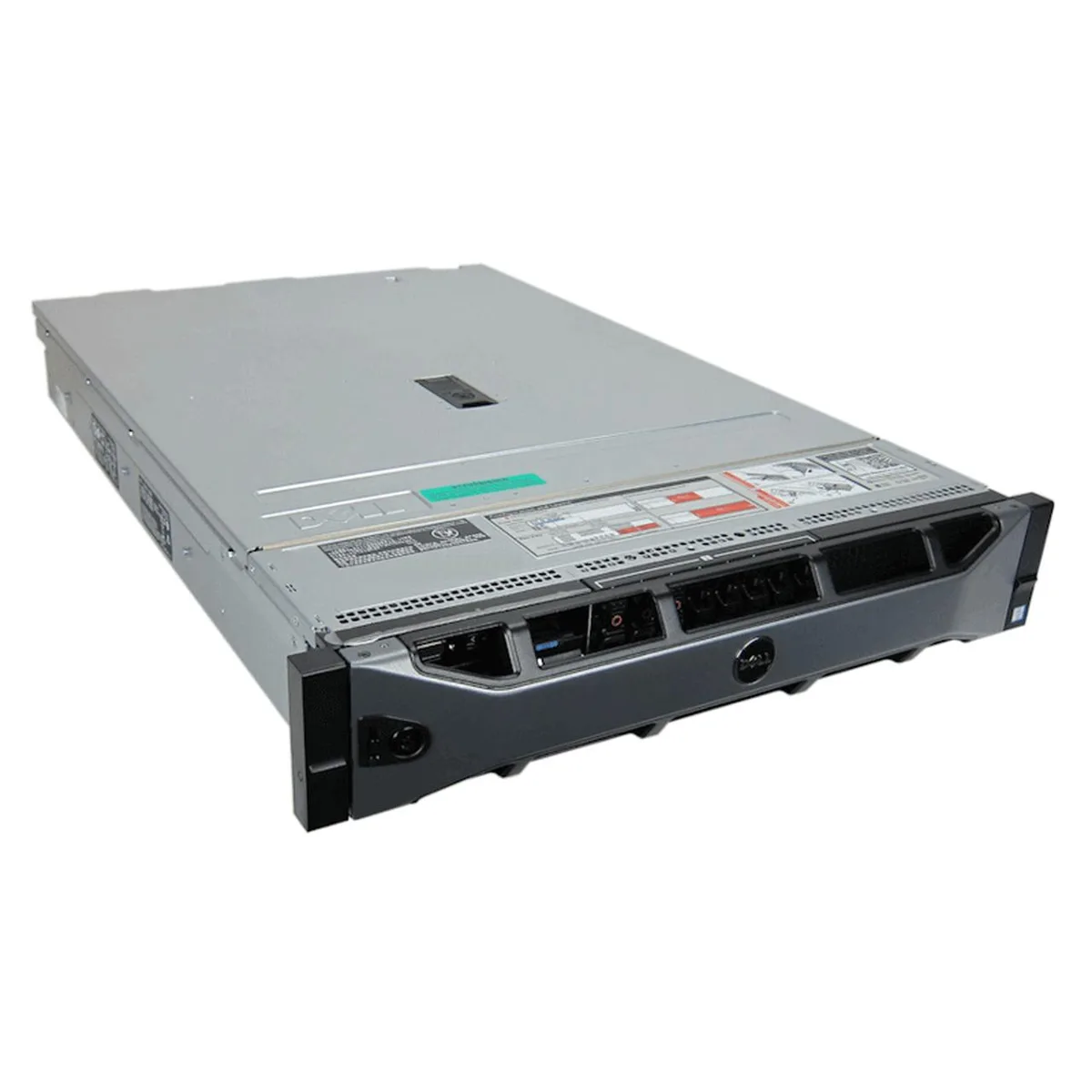

Silver 2U rack server with front bezel, eight 2.5-inch drive trays and dual power supplies

DELL

DELL PowerEdge R730 2U rack server 2x Xeon E5-2683 v4 2.1GHz 16-core 128GB DDR4 H730 8x 2.5" trays

SKU CH-D1JX-EPA12

Dual 16-core Xeon 2U rack server with 128GB DDR4, H730 RAID controller and eight 2.5-inch drive bays

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 128GB

SSD (Installed) No

  • Dual 16-core Xeon CPUs deliver 2.1 GHz base speed with 3.0 GHz turbo
  • 128 GB DDR4 2400 MHz ECC memory fits 24 slots for up to 1.5 TB capacity
  • PERC H730 1 GB controller supports RAID 0 1 5 6 10 50 60 plus pass-through
  • Eight 2.5-inch SAS SATA drive bays and quad-port 1 GbE 10 Gb SFP+ networking
  • iDRAC 8 Enterprise remote management with dual 750 W platinum power supplies rails bezel

Purpose-built rack server

This 2U Dell PowerEdge R730 is a dual-socket server system designed for midsize and large enterprise workloads. Two Intel Xeon E5-2683 v4 processors provide 16 cores each at 2.10 GHz with 3.0 GHz turbo. The system includes 128 GB of DDR4 2400 MHz registered ECC memory across eight modules. A PERC H730 1 GB storage controller supports RAID 0, 1, 5, 6, 10, 50 and 60 with battery-backed cache.

Fit and alternatives

Suits buyers who need a dense 2U platform with dual 16-core CPUs, large DDR4 capacity and integrated 10 GbE SFP+ plus 1 GbE networking. The eight 2.5-inch SAS/SATA trays and H730 controller fit storage-heavy virtualisation or database clusters. Not for buyers who need more than two processors, more than 1.5 TB of memory, or 3.5-inch drive bays. Also not for buyers who require a different drive interface than SATA or SAS.

Deciding specification

The storage controller is a Dell PERC H730 1 GB Mini 12 Gb/s SAS/SATA controller with battery backup. It enables RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode for the eight 2.5-inch trays. If your workload needs this RAID feature set and drive interface, the server matches; if it needs a different controller or drive protocol, look elsewhere.

Points forts

  • Dual 16-core Xeon CPUs deliver 2.1 GHz base speed with 3.0 GHz turbo
  • 128 GB DDR4 2400 MHz ECC memory fits 24 slots for up to 1.5 TB capacity
  • PERC H730 1 GB controller supports RAID 0 1 5 6 10 50 60 plus pass-through
  • Eight 2.5-inch SAS SATA drive bays and quad-port 1 GbE 10 Gb SFP+ networking
  • iDRAC 8 Enterprise remote management with dual 750 W platinum power supplies rails bezel

Caractéristiques

BrandDELL
SeriesPowerEdge R730
ModelR730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I confirm the dual Xeon E5-2683 v4 processors and 128GB DDR4 are running correctly after installation?

Boot the server and open the iDRAC 8 Enterprise interface; the System Inventory page shows both 16-core CPUs at 2.1GHz, all 128GB of registered ECC memory, and the PERC H730 controller with its battery healthy.

Which drives, rails or cables must I purchase separately to populate the eight 2.5-inch bays?

The unit ships with 8x 2.5" SAS/SATA trays, ready rails and a front bezel; you must supply your own 2.5" SAS or SATA hard drives or SSDs and any SFP+ modules for the 10GbE ports.

Should I choose the 128GB DDR4 configuration or add more memory up to the 1.5TB maximum?

The installed 128GB uses 8 of 24 DDR4 slots; workloads such as virtualization or large databases benefit from filling additional slots with matching registered ECC modules up to the 1.5TB limit.
