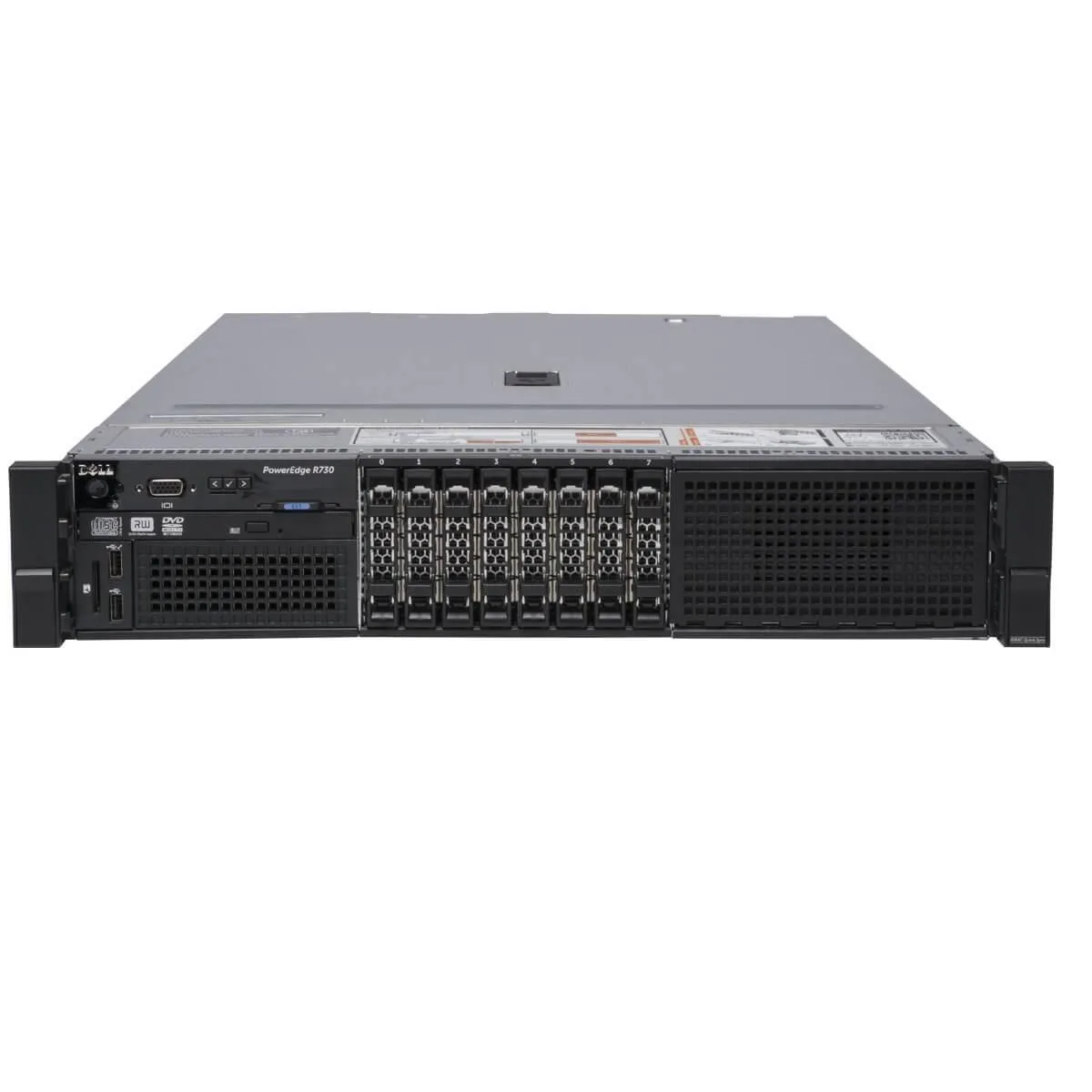

Silver 2U rack server with eight 2.5 inch drive bays front

DELL

DELL PowerEdge R730 2U rack server E5-2609v3 1.9GHz 16GB 2x 900GB SAS H730

SKU CH-XZ00-3G611

2U rack server with single Xeon E5-2609v3, 16GB DDR4, two 900GB SAS drives and H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD 2 x 900GB

  • Six-core Xeon at 1.9 GHz handles multi-threaded workloads
  • 16 GB DDR4 memory supports up to 1536 GB total capacity
  • Two 900 GB 10K SAS drives deliver fast hot-plug storage
  • H730 RAID controller enables RAID 0/1/5/6/10/50/60 across eight 2.5-inch bays
  • Dual 750 W redundant power supplies keep the 2U rack server running

2U Rack Server with Xeon E5-2609v3

The Dell PowerEdge R730 is a 2U rack server fitted with a single Intel Xeon E5-2609v3 six-core processor running at 1.9GHz. It ships with 16GB of DDR4 memory and two 900GB 10K SAS drives managed by a PERC H730 RAID controller. Dual 750W redundant power supplies and eight hot-plug 2.5-inch drive bays complete the platform.

Memory Ceiling and Drive Constraints

The system board provides 24 DIMM slots but the installed configuration reaches the stated maximum of 16GB, so no further memory can be added without replacing modules. Storage expansion is limited to the remaining six 2.5-inch bays and the SAS interface; the H730 controller supports RAID 0, 1, 5, 6, 10, 50 and 60 across a total raw capacity of 64TB.

Pre-Installation Checklist

Verify that your rack can accommodate a 2U chassis measuring 26.8 inches deep and that the facility provides power circuits suitable for dual 750W supplies. Confirm the network daughter card matches your infrastructure, as the default unit provides four 1GbE ports while 10GbE options exist separately. Ensure the operating environment meets the server's thermal requirements before deployment.

Points forts

  • Six-core Xeon at 1.9 GHz handles multi-threaded workloads
  • 16 GB DDR4 memory supports up to 1536 GB total capacity
  • Two 900 GB 10K SAS drives deliver fast hot-plug storage
  • H730 RAID controller enables RAID 0/1/5/6/10/50/60 across eight 2.5-inch bays
  • Dual 750 W redundant power supplies keep the 2U rack server running

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I choose the single E5-2609v3 or add a second processor?

The system board accepts up to two Xeon E5-2609v3 CPUs. A second processor doubles core count and unlocks the remaining 12 DIMM slots for memory expansion beyond the installed 16GB.

What does the 1.9 GHz clock speed deliver in this 2U server?

The six-core Xeon E5-2609v3 runs at a fixed 1.9 GHz base frequency. It provides steady throughput for virtualisation hosts, database nodes or file services without turbo boost variability.

How does the H730 controller's 12 Gbps SAS link affect the installed 900 GB 10K drives?

The PERC H730 supports 12 Gbps SAS, but the supplied 900 GB 10K drives operate at 6 Gbps. The controller will run them at their native 6 Gbps speed while keeping headroom for faster SAS SSDs later.
