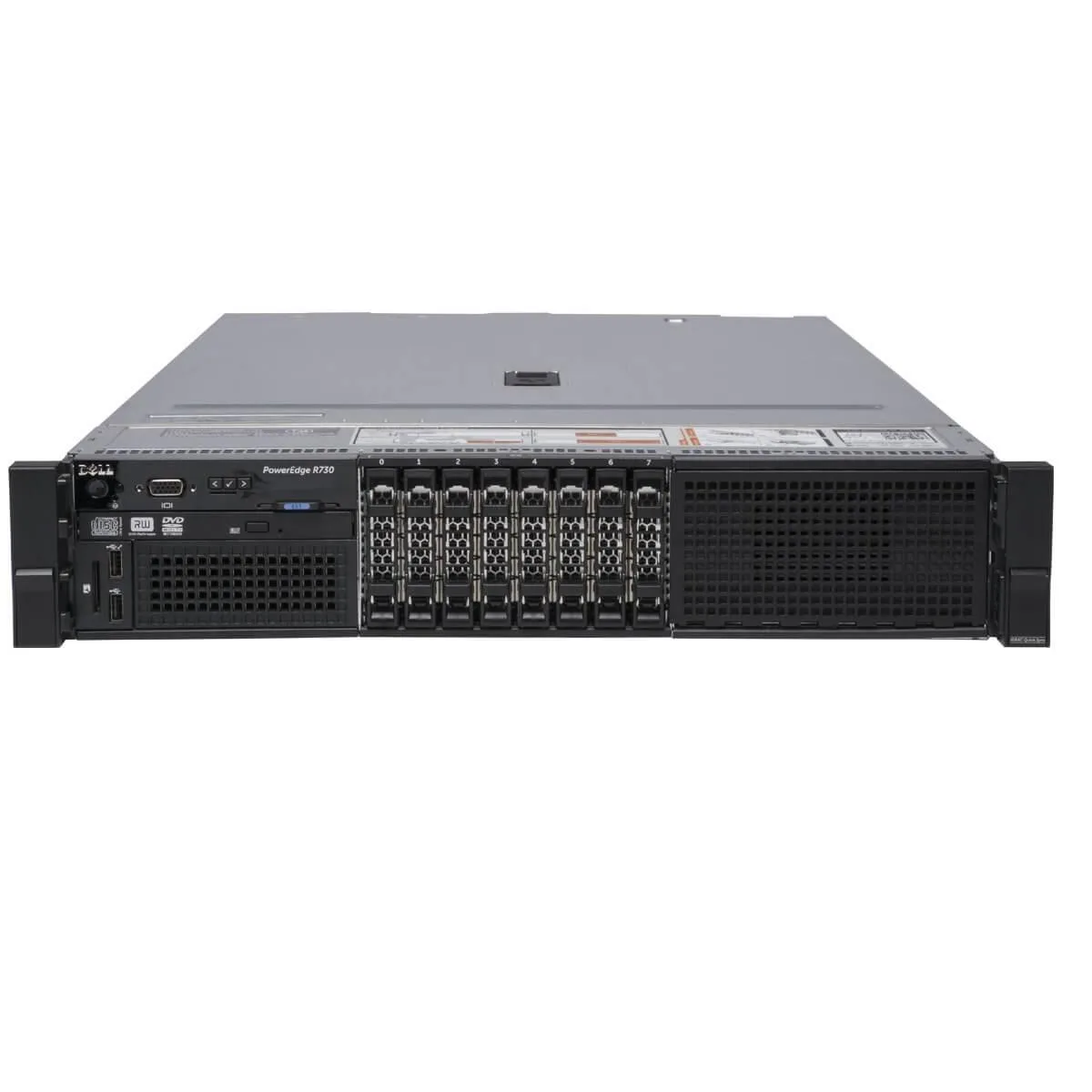

Silver 2U rack server with eight 2.5-inch drive bays

DELL

DELL PowerEdge R730 2U rack server E5-2630 v3 2.4GHz 8GB 2x 300GB SAS H730

SKU CH-3WC4-2NN2A

2U rack server with one Xeon E5-2630 v3 at 2.4 GHz, 8 GB DDR4, two 300 GB 15 K SAS drives and an H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 8GB

HDD 2 x 300GB

  • Eight-core Xeon E5-2630 v3 at 2.4 GHz for multi-threaded workloads
  • 8 GB DDR4 installed with 24 DIMM slots for up to 1536 GB expansion
  • Two 300 GB 15 K SAS drives on H730 1 GB 12 Gbps RAID controller
  • Dual 750 W hot-swap power supplies for continuous uptime
  • 2U rack form factor with eight 2.5-inch hot-plug bays and 7 PCIe 3.0 slots

Dell PowerEdge R730 2U rack server

The Dell PowerEdge R730 is a 2U rack server built for virtualisation hosts, database nodes and compute clusters. It ships with one Intel Xeon E5-2630 v3 eight-core processor at 2.4 GHz, 8 GB of DDR4 memory and two 300 GB 15 K SAS drives on a PERC H730 RAID controller. Dual 750 W redundant power supplies and iDRAC8 remote management come standard.

Check CPU socket count.

The chassis supports up to two processors and 24 DIMM slots, though only one CPU and 8 GB are installed. Verify that your workload can run on a single socket or budget for a second Xeon. The backplane accepts up to eight 2.5-inch hot-plug SAS or SATA drives; confirm cable routing and backplane version match the H730 controller before adding disks. PCIe 3.0 slots and the dedicated PERC slot are available for additional cards.

Dual 750 W supplies share load for redundancy

Two hot-swap 750 W power supplies operate in redundant mode, so each unit runs at partial load during normal operation. Fan speed ramps with inlet temperature and CPU utilisation; expect moderate airflow noise in a cooled rack aisle. The DVD-ROM drive adds negligible draw. Power consumption scales with processor count, memory population and drive quantity, so plan circuit capacity for the fully populated configuration.

Points forts

  • Eight-core Xeon E5-2630 v3 at 2.4 GHz for multi-threaded workloads
  • 8 GB DDR4 installed with 24 DIMM slots for up to 1536 GB expansion
  • Two 300 GB 15 K SAS drives on H730 1 GB 12 Gbps RAID controller
  • Dual 750 W hot-swap power supplies for continuous uptime
  • 2U rack form factor with eight 2.5-inch hot-plug bays and 7 PCIe 3.0 slots

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size8GB
Memory TypeDDR4
Max Memory Capacity8GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the server ship with drive trays for the 2.5-inch bays, or do I need to order them separately?

The two 300 GB 15K SAS drives include their trays; any additional 2.5-inch SAS or SATA drives you add will also come with trays.

The spec lists a maximum of 8 GB memory yet 24 DIMM slots — which capacity should I choose for this configuration?

The installed memory is 8 GB DDR4; the 24 slots support up to 1536 GB total using 4 GB, 8 GB, 16 GB, 32 GB, 64 GB or 128 GB DDR4 modules up to 2400 MT/s.

With a single E5-2630 v3 at 2.4 GHz and the H730 controller, what RAID levels can I actually run on the two 300 GB drives?

The H730 1 GB 12 Gbps controller supports RAID 0, 1, 5, 6, 10, 50 and 60; with two drives you can configure RAID 0 or RAID 1.
