DELL

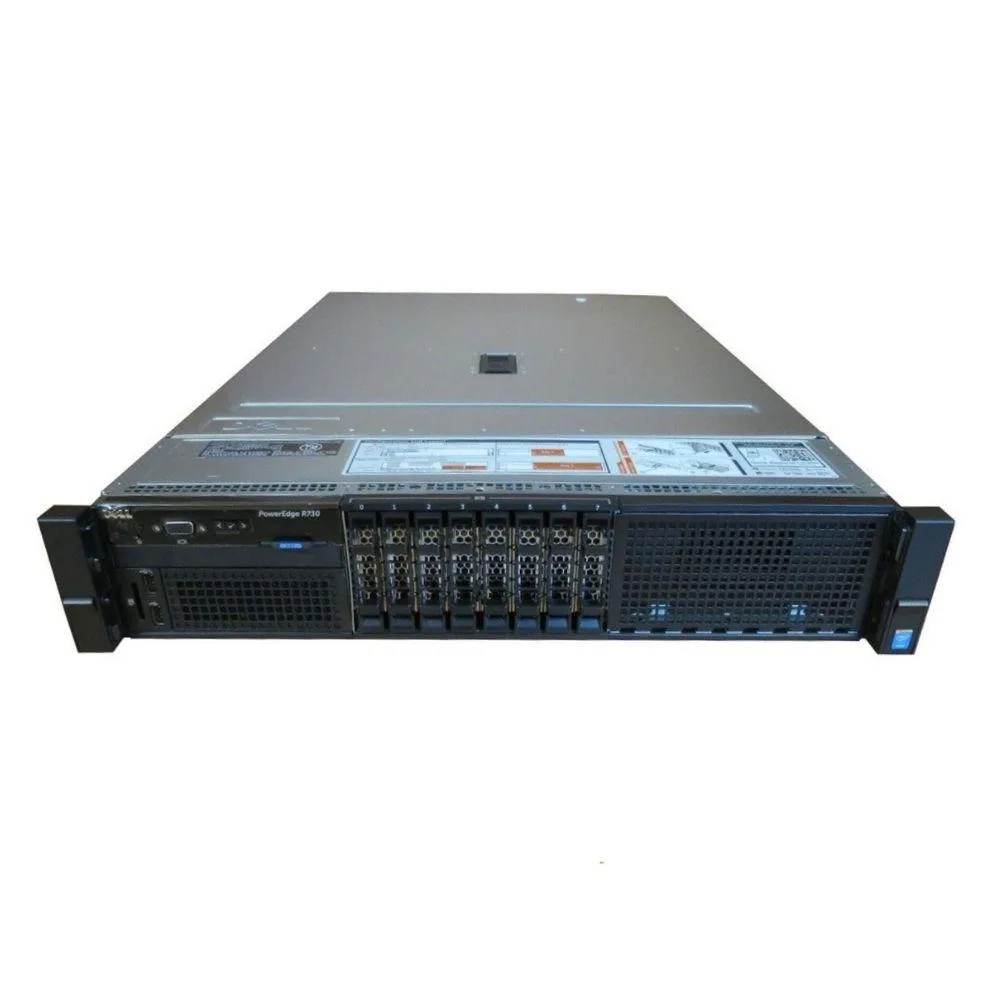

DELL PowerEdge R730 8SFF 2x Xeon E5-2699 v4 192GB DDR4 No Drive Rack Server
Dual Xeon E5-2699 v4 22-core CPUs at 2.2 GHz with 192 GB DDR4 and PERC H730 controller in an 8-bay 2.5-inch rack chassis
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.2GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size192GB
- Dual 22-core Xeon processors deliver high parallel throughput
- 192GB DDR4 ECC memory supports large virtualised workloads
- Eight 2.5-inch drive bays with PERC H730 SAS controller enable flexible storage
- iDRAC8 Enterprise remote management simplifies out-of-band administration
- Redundant 495W power supplies maintain uptime during failures
Dual Xeon E5-2699 v4 Compute Node
The Dell PowerEdge R730 is a 2U rack server built around two 22-core Intel Xeon E5-2699 v4 processors running at 2.2 GHz. It targets virtualisation hosts, database clusters and high-thread-count workloads that need maximum core density in a standard rack footprint.
192 GB DDR4 With 768 GB Ceiling
The system ships with 192 GB of DDR4 ECC registered memory installed across 24 DIMM slots, leaving headroom to scale to the 768 GB maximum. Eight 2.5-inch drive bays connect to a PERC H730 SAS controller supporting SATA media; storage is not included so capacity can be tailored to the workload.
Dual 495 W Supplies And iDRAC8 Enterprise
Redundant 495 W power supplies feed the chassis while iDRAC8 Enterprise provides out-of-band management. Integrated graphics handle console output and the onboard Intel I350/X540 adapter delivers two 10 GbE and two 1 GbE ports for network segmentation.
Points forts
- Dual 22-core Xeon processors deliver high parallel throughput
- 192GB DDR4 ECC memory supports large virtualised workloads
- Eight 2.5-inch drive bays with PERC H730 SAS controller enable flexible storage
- iDRAC8 Enterprise remote management simplifies out-of-band administration
- Redundant 495W power supplies maintain uptime during failures
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 192GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 768GB |
| Hard Drive (Installed) | 8,00 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
Will the PERC H730 RAID controller recognise my existing 2.5" SATA drives?
The PERC H730 SAS controller supports SATA drives in the eight 2.5" bays, so your current drives will be detected and can be configured in RAID.
How can I confirm the two Xeon E5-2699 v4 processors and 192 GB DDR4 are running correctly after install?
Use the iDRAC8 Enterprise remote management interface to view CPU inventory, memory health and sensor readings, or run the built-in system diagnostics from the BIOS.
Which components ship in the box and what must I purchase separately?
The server includes the chassis, two CPUs, 192 GB DDR4 ECC memory, PERC H730 controller, dual 495 W power supplies and the 10 GbE / 1 GbE network card; drives and rail kit are not included.
