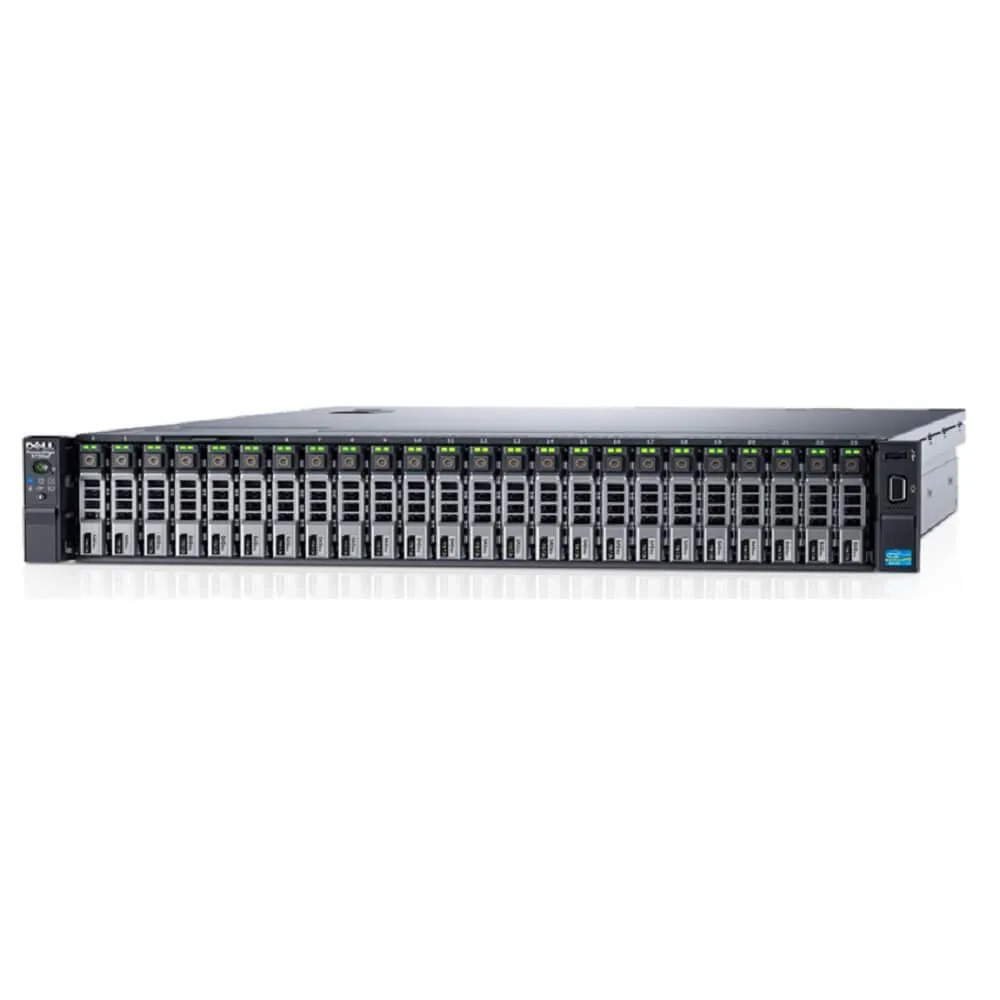

Silver 2U rack server front with 24 drive bays

DELL

DELL PowerEdge R730XD 2U rack server E5-2650 v3 10-core 2.3GHz 8GB DDR4 3x 900GB 10K SAS H330

SKU CH-ZBYY-GAY3F

2U rack server with one 10-core Xeon at 2.3 GHz, 8 GB DDR4, three 900 GB 10K SAS drives and an H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 8GB

HDD 3 x 900GB

  • Ten-core Xeon at 2.3 GHz delivers 20 threads
  • 8 GB DDR4 in a 24-slot chassis for expansion
  • Three 900 GB 10K SAS drives ready for RAID
  • H330 12 Gbps controller supports RAID 0/1/5/10/50/60
  • Dual 750 W hot-swap supplies keep the 2U server running

Dell PowerEdge R730XD 2U rack server

The Dell PowerEdge R730XD is a 2U rack server built for dense storage workloads. It ships with a single Intel Xeon E5-2650 v3 ten-core processor running at 2.3GHz and 8GB of DDR4 memory. Three 900GB 10K SAS drives and a PERC H330 RAID controller provide the storage foundation. Dual 750W redundant power supplies support continuous operation.

Suited for storage-heavy roles, not maximum compute

This configuration fits organisations that need up to twenty-four 2.5-inch hot-plug drive bays behind a 12Gbps RAID controller supporting RAID 0, 1, 5, 10, 50 and 60. The single installed processor leaves one socket open for a future upgrade to two CPUs. Buyers who require the full 1536GB memory ceiling or a second processor from day one should look elsewhere.

24-bay 2.5-inch SAS/SATA chassis decides fit

The defining specification is the twenty-four-bay 2.5-inch hot-plug chassis that accepts SAS or SATA drives. This density determines whether the server matches the planned storage capacity and drive-type strategy. If the deployment calls for a different bay count, form factor or drive interface, this model will not suit.

Points forts

  • Ten-core Xeon at 2.3 GHz delivers 20 threads
  • 8 GB DDR4 in a 24-slot chassis for expansion
  • Three 900 GB 10K SAS drives ready for RAID
  • H330 12 Gbps controller supports RAID 0/1/5/10/50/60
  • Dual 750 W hot-swap supplies keep the 2U server running

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size8GB
Memory TypeDDR4
Max Memory Capacity8GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What rack depth and clearance does the 2U R730XD chassis need?

The server is 26.8 inches long and 3.4 inches high, so a standard 2U rack space with at least that usable depth will accommodate it.

Which drive trays are required to populate the 24-bay front panel?

The 2.5-inch hot-plug bays accept Dell 2.5-inch SAS or SATA drive trays; the three included 900GB SAS drives ship with their own trays.

When should the redundant 750W power supplies be replaced?

Replace a supply when its status LED shows a fault or iDRAC8 reports a power-supply degradation alert.
