Silver 2U rack server with 24 front drive bays and bezel

DELL

DELL PowerEdge R740xd 2U rack server 2x Xeon Silver 4116 2.1GHz 12-core 256GB DDR4 24x 800GB SSD H730P

SKU CH-N08W-FY67R

A 2U rack server with dual 12-core Xeon Silver 4116 processors, 256GB DDR4 memory, a PERC H730P controller and 24 hot-swap 800GB SATA SSDs for high-density storage workloads

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Dual 12-core Xeon Silver 4116 processors at 2.1 GHz turbo to 3.0 GHz
  • 256 GB DDR4 2400 MHz registered ECC memory across 8 DIMMs
  • PERC H730P 2 GB controller supports RAID 0 1 5 6 10 50 60
  • 24 x 800 GB SATA SSDs provide high-density flash storage in 2U
  • iDRAC9 Enterprise plus quad-port 1 GbE and 10 GbE SFP+ networking

PowerEdge R740xd 2U rack server

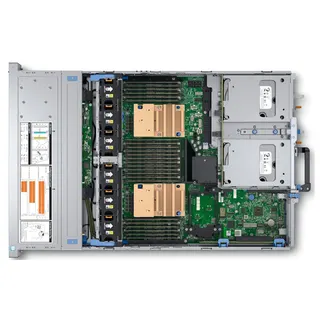

The Dell PowerEdge R740xd is a 2U rackmount server system built for storage density and compute performance. It ships with two Intel Xeon Silver 4116 processors, each running at 2.1 GHz with 12 cores. The system includes 256 GB of DDR4 registered ECC memory across eight 32 GB modules. Twenty-four 800 GB SATA SSDs are installed in the front 2.5 inch drive bays.

Suited for virtualisation and storage workloads

This configuration fits environments that need high local capacity in a compact rack footprint, such as software-defined storage clusters or virtual desktop infrastructure. The dual-socket design and large memory pool support heavy consolidation. Buyers who require a tower form factor, GPU expansion slots or a different drive interface should evaluate alternative platforms.

PERC H730P RAID controller with 2 GB cache

The storage controller is a Dell PERC H730P with 2 GB of onboard cache and a battery backup unit. It supports RAID levels 0, 1, 5, 6, 10, 50 and 60 as well as pass-through mode for direct drive access. The 12 Gb/s SAS/SATA interface connects all 24 installed SSDs and any additional drives added to the chassis.

Points forts

  • Dual 12-core Xeon Silver 4116 processors at 2.1 GHz turbo to 3.0 GHz
  • 256 GB DDR4 2400 MHz registered ECC memory across 8 DIMMs
  • PERC H730P 2 GB controller supports RAID 0 1 5 6 10 50 60
  • 24 x 800 GB SATA SSDs provide high-density flash storage in 2U
  • iDRAC9 Enterprise plus quad-port 1 GbE and 10 GbE SFP+ networking

Caractéristiques

BrandDELL
SeriesPowerEdge R740xd
ModelR740xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores12-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C620
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity3TB
Number of Memory Slots24
Storage ControllerDell Perc H730P 2GB Controller
HDD InterfaceSATA
SSD (Installed)24 x 800GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion SlotsRiser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What rack rails and space do I need to mount this 2U server?

The server ships with Ready Rails and a front bezel for direct installation into a standard rack cabinet; allow 2U of vertical space.

Will the PERC H730P controller recognise my existing SATA drives?

Yes — the H730P supports SATA and SAS drives and offers RAID 0, 1, 5, 6, 10, 50, 60 plus pass-through mode.

How can I confirm the iDRAC9 Enterprise remote management is active after first boot?

During POST the iDRAC9 IP address appears on screen; browse to that address and log in to verify the Enterprise licence is applied.
