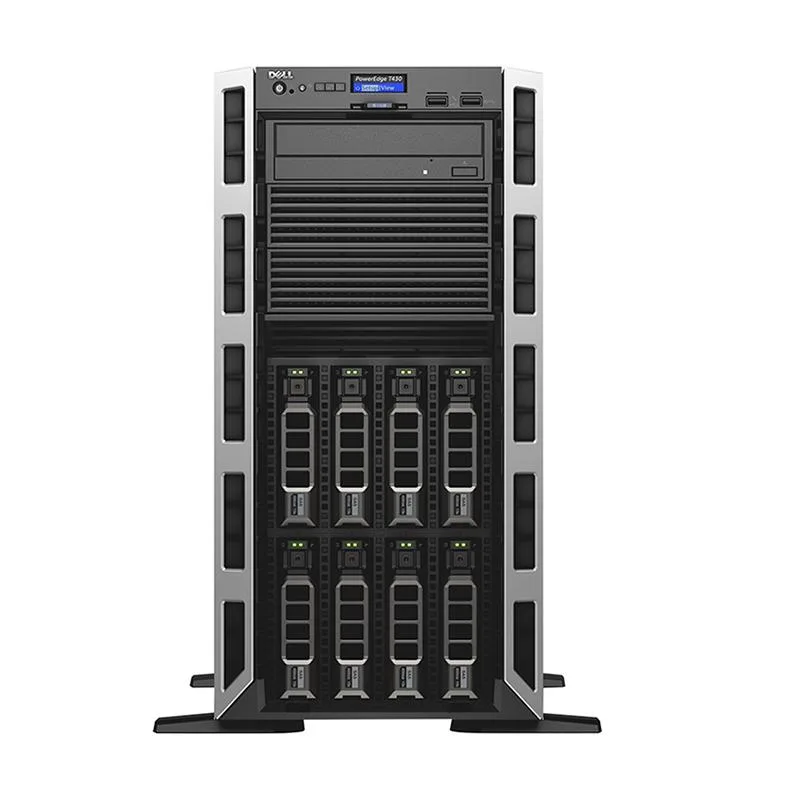

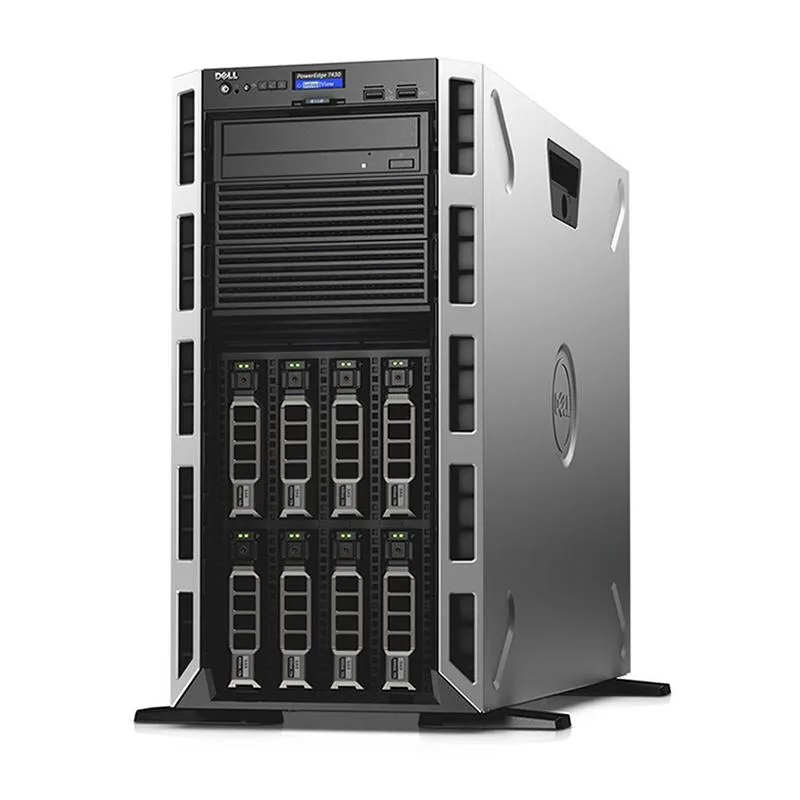

Tower server chassis with front bezel and eight drive bays

DELL

DELL PowerEdge T430 5U rack server 2× Xeon E5-2660 v4 2.0GHz 14-core 384GB DDR4 8× 8TB SATA H730 2× 750W PSU

SKU CH-Y1HR-5S9AP

5U rack server with dual 14-core Xeon processors, 384 GB DDR4 memory, eight 8 TB SATA drives and a PERC H730 RAID controller

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 384GB

HDD 8 x 8TB 7.2K SATA

  • Dual 14-core Xeon processors deliver 2.0 GHz base speed with 3.2 GHz turbo
  • 384 GB DDR4 registered ECC memory supports demanding virtualization workloads
  • PERC H730 controller enables RAID 0, 1, 5, 6, 10, 50, 60 configurations
  • Eight 8 TB 7.2K SATA drives provide high-capacity storage
  • Dual 750 W platinum power supplies with hot-swap redundancy

DELL PowerEdge T430 5U server

The DELL PowerEdge T430 is a 5U rack server built for small-office and remote-office workloads. It ships with dual Intel Xeon E5-2660 v4 processors, 384GB DDR4 memory and eight 8TB SATA hard drives. The PERC H730 controller manages storage across the eight 3.5-inch bays.

Thermals noise power draw

Redundant hot-swap 750W platinum power supplies share the load and allow one unit to fail without downtime. Dual 14-core Xeon CPUs run at 2.0GHz with 3.2GHz turbo, drawing significant power under full utilisation. Fan speeds ramp to cool the 5U chassis and the eight spinning drives.

Accessories software impact

iDRAC8 Express provides out-of-band remote management for power control and console access. The H730 RAID controller with 1GB cache enables RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through. Integrated Broadcom 5720 dual-port 1GbE handles network connectivity. A front bezel is included.

Points forts

  • Dual 14-core Xeon processors deliver 2.0 GHz base speed with 3.2 GHz turbo
  • 384 GB DDR4 registered ECC memory supports demanding virtualization workloads
  • PERC H730 controller enables RAID 0, 1, 5, 6, 10, 50, 60 configurations
  • Eight 8 TB 7.2K SATA drives provide high-capacity storage
  • Dual 750 W platinum power supplies with hot-swap redundancy

Caractéristiques

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size384GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 8TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the two Xeon E5-2660 v4 CPUs into the LGA 2011-3 sockets, and what step is most often missed?

Align each processor with the socket notches, lower the retention lever fully, then apply thermal paste before seating the heatsink; the step most often missed is locking the heatsink retention clips on both sides.

What maintenance will the PERC H730 controller battery and the eight 8TB 7.2K SATA drives need later?

The H730 battery typically requires replacement every three to five years to preserve write-back cache; monitor drive SMART data and replace any 8TB SATA drive that shows reallocated sectors or excessive seek errors.

Which limit appears first when the dual 750W PSUs and 384GB DDR4 run sustained loads?

The 750 watt power supplies set the ceiling; total system draw under full CPU, memory and eight-drive load approaches the combined capacity, so power headroom is the first constraint.
