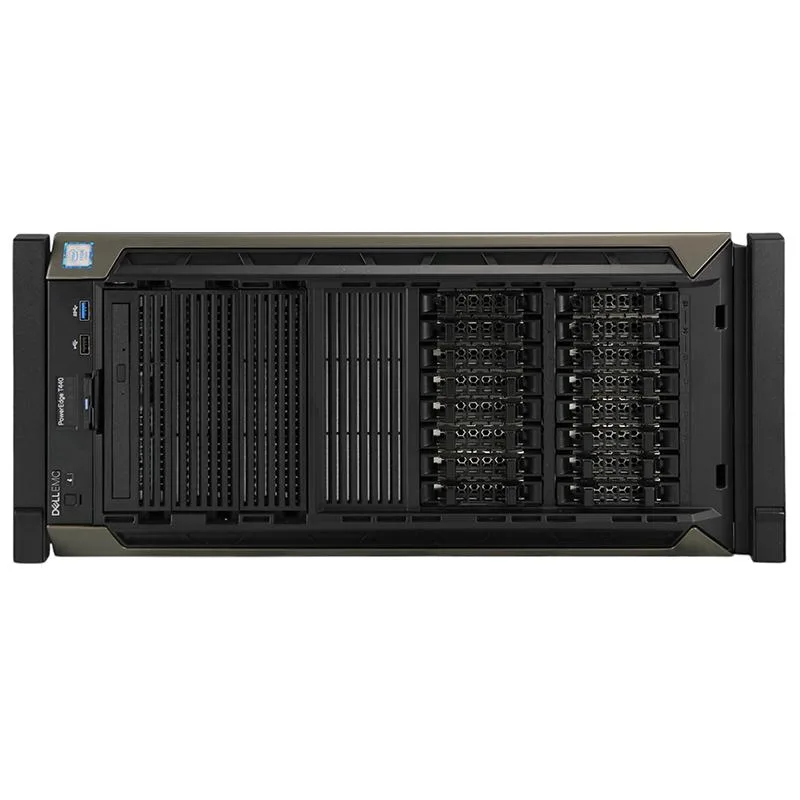

Silver 5U rack server, sixteen 2.5 inch drive bays, dual Xeon 4210 processors, 128GB DDR4 memory, redundant 750W power supplies

DELL

DELL PowerEdge T440 5U Rack Server 2x Xeon Silver 4210 2.2GHz 128GB DDR4 16 Bay 2.5

SKU CH-VHP5-D03XM

A 5U rack server with dual 10-core Xeon Silver 4210 processors at 2.2GHz, 128GB DDR4 memory, HBA330 storage controller, and sixteen 2.5-inch drive bays

  • TypeRack
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.2GHz (3.2GHz Turbo)
  • CPU SocketLGA 3647
  • Dual Xeon Silver 4210 processors provide 10 cores each at 2.2 GHz with 3.2 GHz turbo
  • 128 GB DDR4-2400 ECC registered memory across 4 modules supports up to 1 TB total
  • PERC HBA330 12Gb/s SAS/SATA controller manages 16 hot-swap 2.5-inch drive bays
  • Dual 750 W platinum power supplies and dual-port Gigabit Ethernet with iDRAC 9 Express remote management
  • 5U rack form factor with PCI Express expansion slots for RAID networking GPU or additional hardware

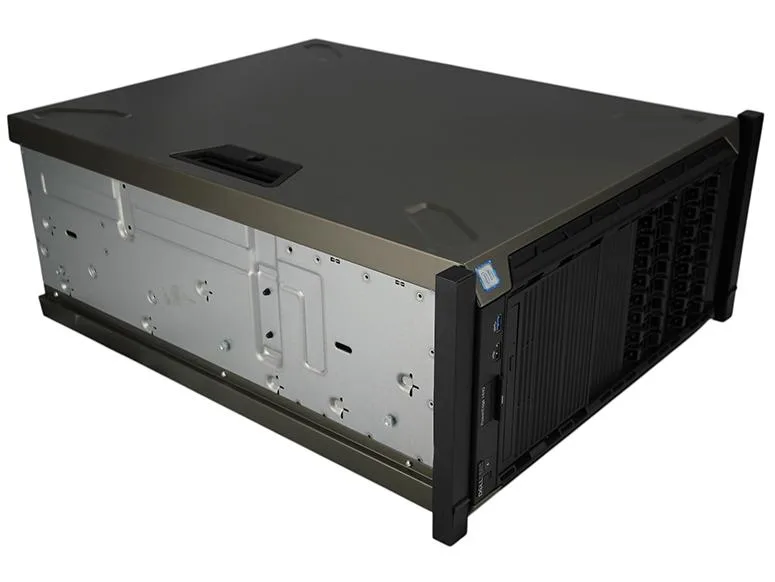

Enterprise 5U Tower Server

The Dell PowerEdge T440 is a 5U tower server built for virtualization, database hosting and software-defined storage. Two Intel Xeon Silver 4210 processors deliver twenty cores at 2.2 GHz with a 3.2 GHz turbo frequency. One hundred twenty-eight gigabytes of DDR4-2400 ECC registered memory is installed across four 32 GB modules. The chassis accepts up to sixteen 2.5-inch hot-swap drive bays and supports a maximum memory capacity of 1 TB across sixteen slots.

Hot-swap bays and redundant power

Sixteen front-access 2.5-inch trays allow SAS, SATA and SSD drives to be swapped without downtime. The PERC HBA330 controller provides 12 Gb/s connectivity for the storage array. Dual 750 W platinum-efficiency power supplies operate in a redundant hot-swap configuration. Integrated dual-port Gigabit Ethernet handles network traffic, while iDRAC 9 Express gives remote management access. Front bezel and ready rails are not included.

LGA 3647 platform constraints

The LGA 3647 socket limits CPU upgrades to the Intel Xeon Scalable family supported by this generation. Maximum memory reaches 1 TB using DDR4 ECC registered DIMMs only; other DDR generations are physically and electrically incompatible. Expansion relies on PCI Express slots for additional RAID, networking or GPU cards. Buyers needing more than sixteen drive bays or a different memory standard will require a different server platform.

Points forts

  • Dual Xeon Silver 4210 processors provide 10 cores each at 2.2 GHz with 3.2 GHz turbo
  • 128 GB DDR4-2400 ECC registered memory across 4 modules supports up to 1 TB total
  • PERC HBA330 12Gb/s SAS/SATA controller manages 16 hot-swap 2.5-inch drive bays
  • Dual 750 W platinum power supplies and dual-port Gigabit Ethernet with iDRAC 9 Express remote management
  • 5U rack form factor with PCI Express expansion slots for RAID networking GPU or additional hardware

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelT440
TypeRack
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.2GHz (3.2GHz Turbo)
CPU SocketLGA 3647
Number of CPU Cores10 Core-Processors
CPU FeaturesSilver 4210
# of Processors Installed2
MAX Processors2
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity1TB
Number of Memory Slots16
Hard Drive (Installed)None
Storage ControllerDell Perc HBA330 Controller
SSD (Installed)No
Raid LevelNone
Ethernet ControllerIntegrated Dell 2x1GbE Dual Port Ethernet Adapter
Remote ManagementiDRAC9 Express
LAN Ports2 x Ports
Management PortRJ 45
Operating SystemNo

Questions sur cet article

What does the 12 Gb/s SAS/SATA HBA330 controller limit in practice?

The HBA330 connects up to 16 hot-swap 2.5-inch drives at 12 Gb/s per SAS lane and 6 Gb/s per SATA lane, capping throughput to the controller's 12 Gb/s SAS interface.

What physical space and mounting hardware does the 5U tower chassis require?

The chassis occupies 5U of vertical space and needs an optional rack conversion kit for rack mounting; front bezel and ready rails are not included.

How are the two Xeon Silver 4210 processors and 128 GB DDR4-2400 memory installed, and what step is often missed?

Both LGA 3647 sockets are already populated with the two 10-core CPUs; the 128 GB ships as four 32 GB DDR4-2400 ECC RDIMMs pre-installed in the 16 DIMM slots, so no processor or memory installation is required.
