DELL

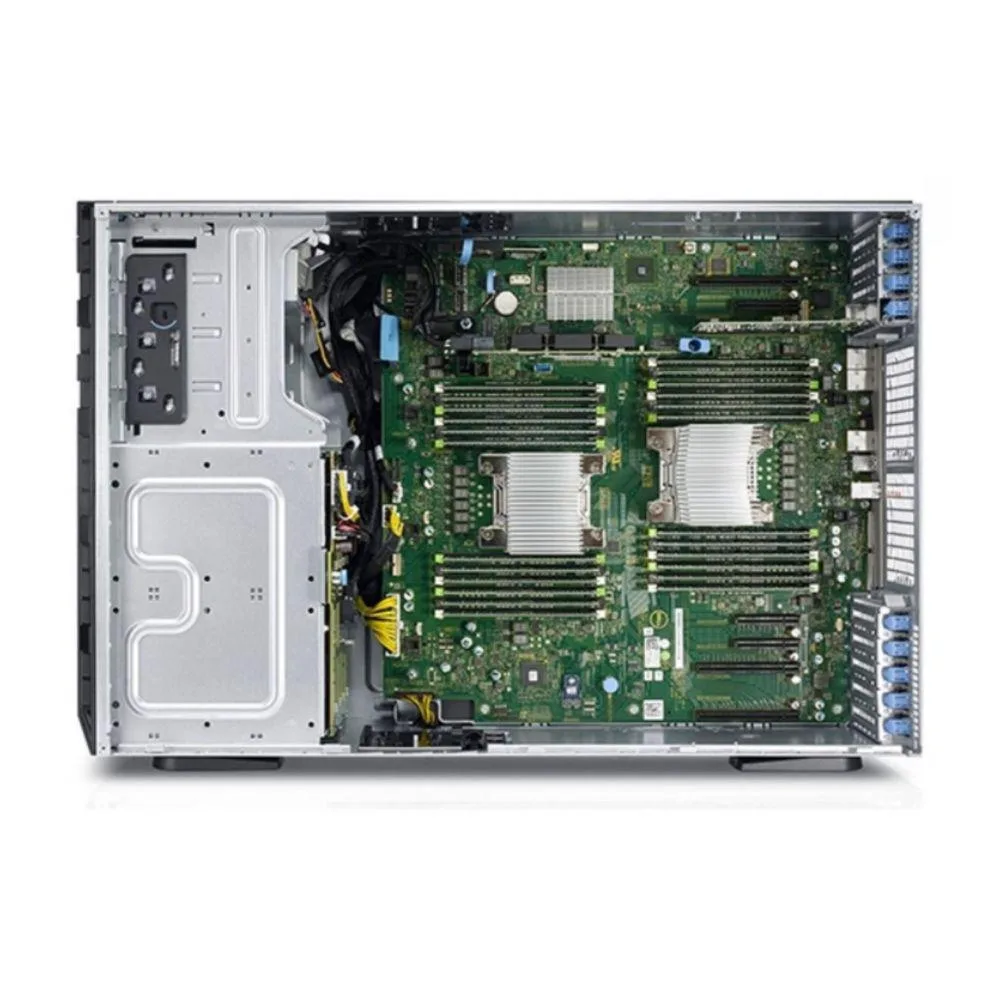

DELL PowerEdge T630 16SFF 2x Xeon E5-2620 v3 384GB DDR4 No Drive Rack Server
Rack server with two 2.4 GHz Xeon processors, 384 GB DDR4 memory and 16 drive bays for SAS storage
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.4GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size384GB
- Dual Xeon E5-2620 v3 CPUs provide multi-threaded performance for virtualization
- 384GB DDR4 ECC memory supports large datasets and concurrent applications
- 16 x 2.5-inch SAS bays with PERC H730 controller enable flexible storage arrays
- iDRAC8 Enterprise licence gives full remote management and monitoring
- 2 x 1100W power supplies deliver redundant power for uptime
Server purpose and audience
This Dell PowerEdge T630 rack server ships with two Xeon E5-2620 v3 processors at 2.4GHz and 384GB of DDR4 ECC memory. It targets organisations that need dense 2.5-inch drive capacity and integrated remote management in a 16-bay chassis. Buyers who require GPU compute or single-threaded frequency above the installed specification should evaluate other platforms.
Installation and common issues
The unit arrives with BIOS and firmware updated to the latest stable version and has passed full diagnostics and burn-in testing. Rail kits are available on request but are not included by default. The PERC H730 SAS controller manages RAID across the 16 drive bays; ensure compatible SAS drives are sourced separately as no storage is installed.
Capacity and headroom
Memory can scale from the installed 384GB up to a maximum of 1.5TB across the available DIMM slots. Dual 1100W power supplies provide redundancy for the configured processors and a full complement of drives. The two-port 1GbE 332T adapter handles baseline network traffic; heavier throughput workloads will need additional NICs.
Points forts
- Dual Xeon E5-2620 v3 CPUs provide multi-threaded performance for virtualization
- 384GB DDR4 ECC memory supports large datasets and concurrent applications
- 16 x 2.5-inch SAS bays with PERC H730 controller enable flexible storage arrays
- iDRAC8 Enterprise licence gives full remote management and monitoring
- 2 x 1100W power supplies deliver redundant power for uptime
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.4GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1.5TB |
| Hard Drive (Installed) | 9,60 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How can I verify the PERC H730 RAID controller is recognised after installation?
The iDRAC8 Enterprise remote management interface will display the H730 controller status and firmware version once the server posts.
What components are included and which must be sourced separately?
The chassis ships with two Xeon E5-2620 v3 CPUs, 384 GB DDR4 ECC memory, dual 1100 W supplies and the PERC H730 controller; 2.5" SAS drives and rail kit are not included.
Which memory capacity should I choose if I need room to expand later?
The system supports up to 1.5 TB total, so the installed 384 GB leaves eleven DIMM slots free for future upgrades.
