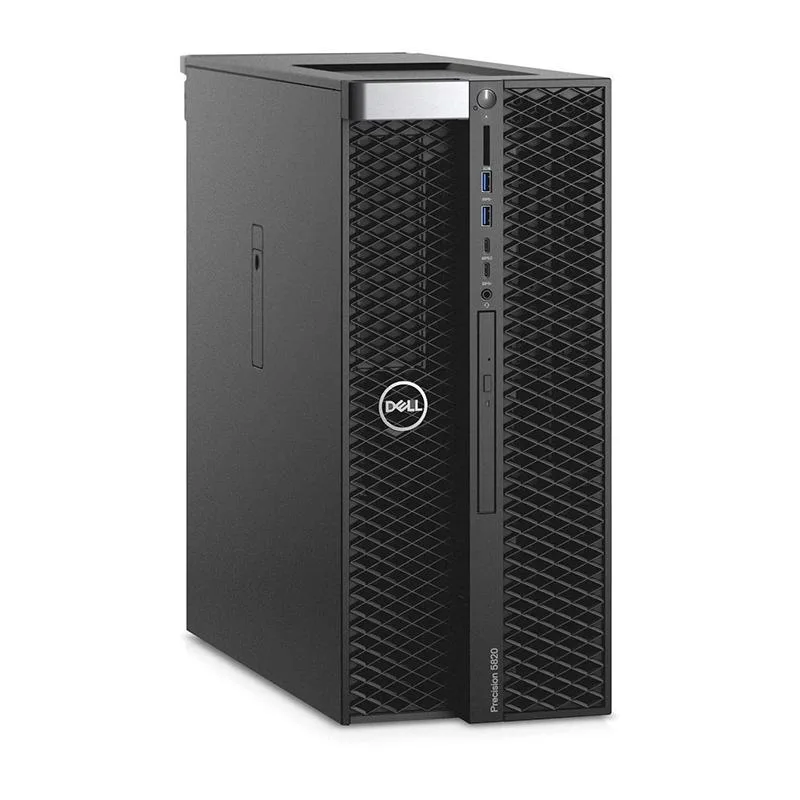

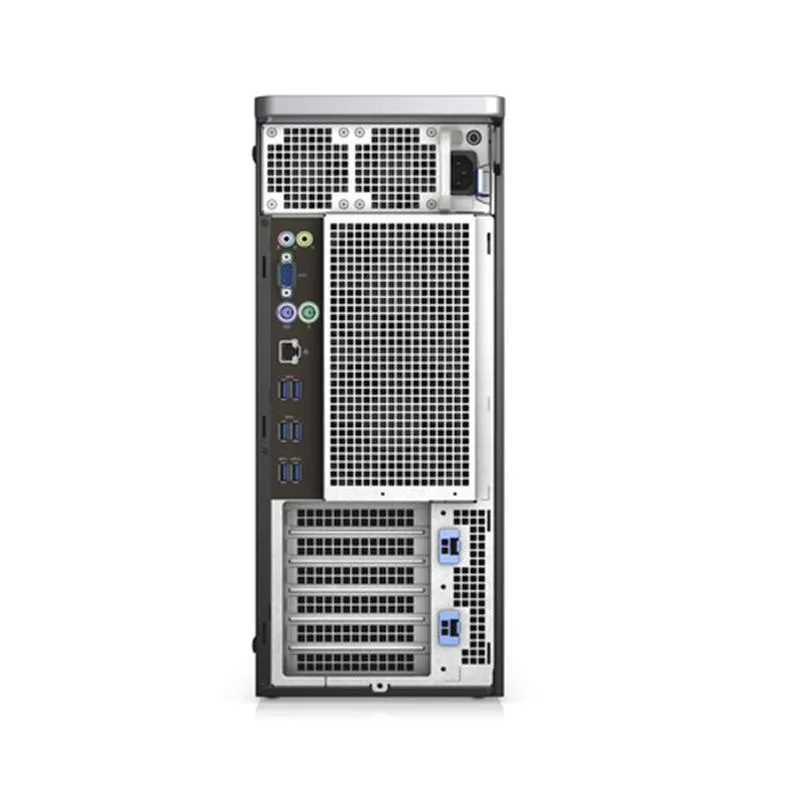

DELL Precision 5820 Tower Workstation Xeon W-2225 4.1GHz 16GB DDR4 500GB NVMe Quadro P600

Precision 5820 Xeon W-2225 workstation

The Dell Precision 5820 Tower is a mid-tower workstation built around an Intel Xeon W-2225 processor running at 4.1 GHz with a 4.6 GHz turbo boost. It ships with 16 GB of DDR4 2933 MHz registered ECC memory across eight total slots. A 500 GB M.2 NVMe SSD and Nvidia Quadro P600 graphics card with 2 GB GDDR5 provide the base platform for professional applications. Windows 11 Pro is pre-installed.

Installation ease and common issues

The tower chassis uses tool-less access for major components, allowing straightforward memory and drive upgrades. The 950 W 80 Plus Gold power supply offers headroom for additional cards or storage. Builders should verify that any added GPUs fit the mid-tower length restriction and that supplemental power cables match the card requirements. Registered ECC modules must match the existing DDR4 2933 specification for stability.

Capacity headroom and limits

The four-core Xeon handles single-threaded CAD and simulation tasks within its 4.6 GHz turbo ceiling. Memory can scale to 256 GB across the eight slots for large datasets or virtual machines. The 500 GB NVMe drive accommodates the OS and active projects, though heavy media libraries will require secondary storage. The Quadro P600 drives up to four DisplayPort monitors but lacks the VRAM for complex 3D scenes or GPU compute workloads.
