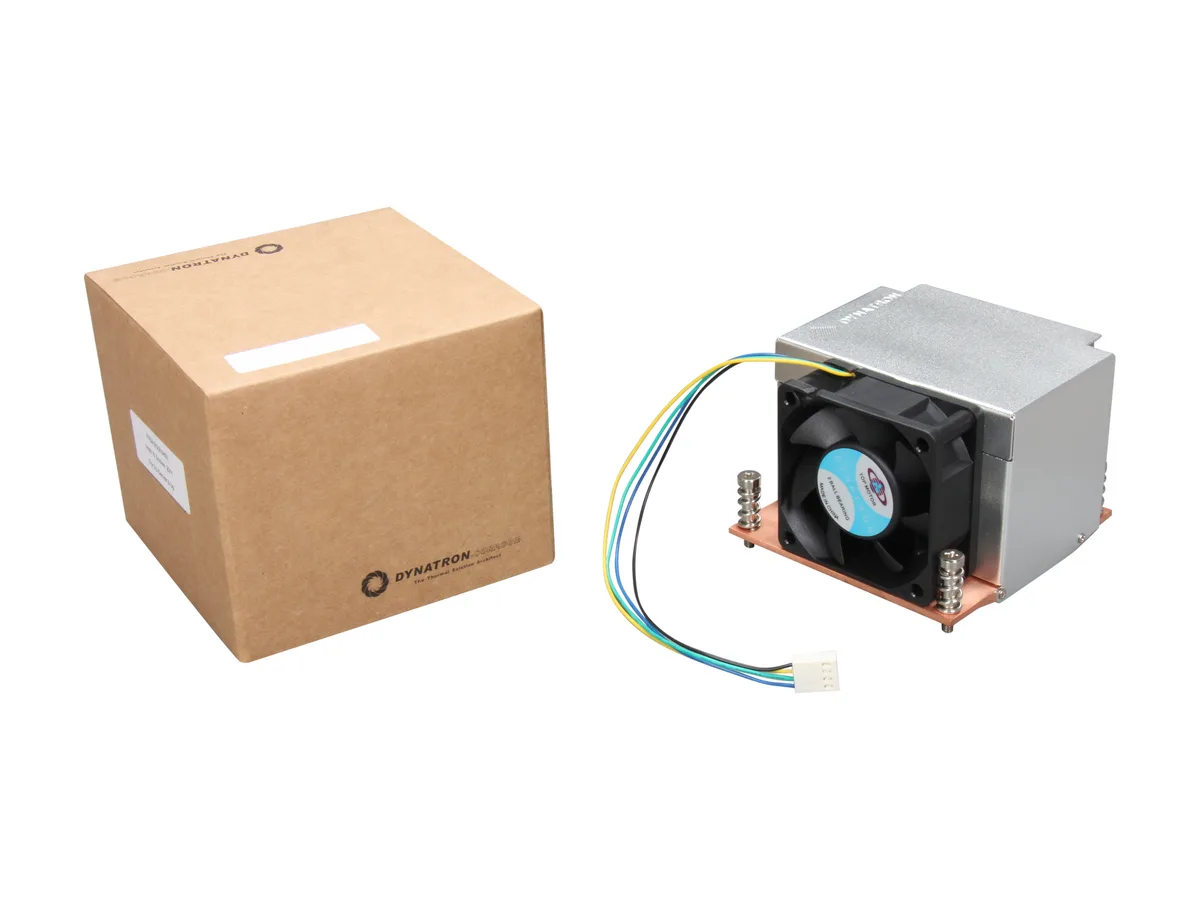

Black 60mm dual-ball bearing fan on copper-base aluminium-fin heatsink with embedded heatpipes, 66mm tall, LGA 2011 mounting

Dynatron

Dynatron R5 60mm 2 Ball Bearing CPU Cooler LGA 2011

SKU CH-TJP1-C8Q6B MPN R5

A 60 mm dual-ball bearing PWM fan and copper-base heatsink with four 6 mm heatpipes cool Intel LGA 2011 CPUs up to 150 W in 2U servers

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size60mm
  • CPU Socket CompatibilityIntel LGA 2011 (Square Type)
  • Bearing Type2 Ball Bearing
  • RPMAt Duty Cycle 0-20%: 1600 RPM At Duty Cycle 50%: 4000 RPM At
  • Designed for Intel Sandy Bridge EP/EX processors up to 150 watts

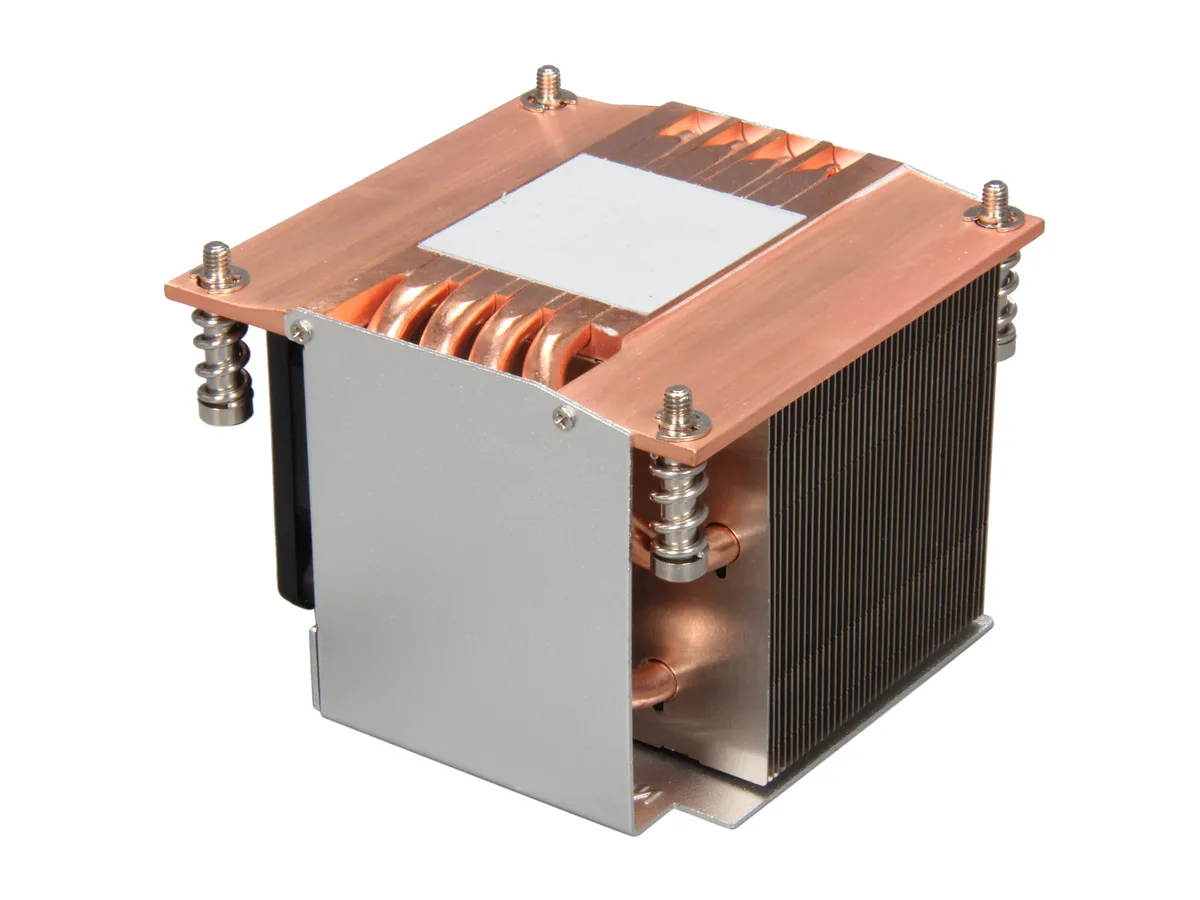

  • H.C.C. copper base directly contacts CPU for efficient heat transfer

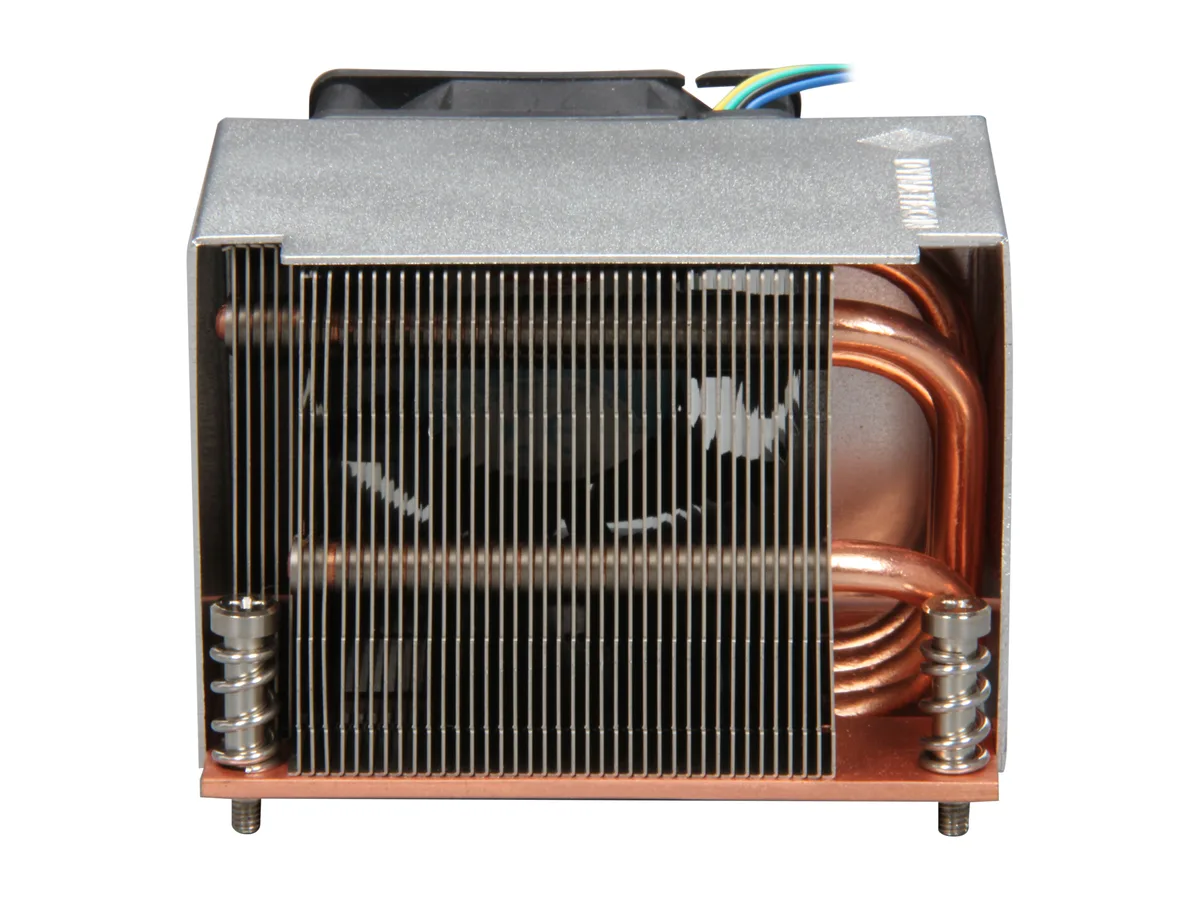

  • Four 6mm heatpipes with aluminum fins boost thermal dissipation
  • 60mm dual-ball bearing PWM fan adjusts 1600 to 8000 RPM
  • Low 16.85 dBA noise at 20% duty cycle

2U Server Cooler for LGA 2011

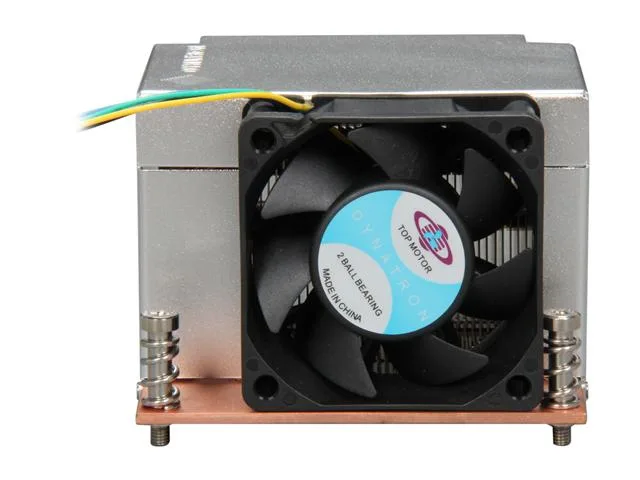

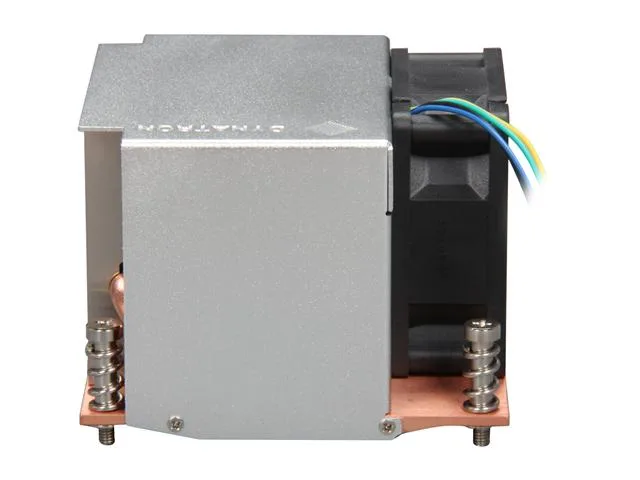

The Dynatron R5 is a 60 mm dual-ball-bearing CPU air cooler built for Intel Sandy Bridge EP and EX processors up to 150 W. Its H.C.C. copper base contacts the CPU directly while four 6 mm heatpipes feed high-density aluminium fins. A 60 x 60 x 25 mm PWM fan spins from 1600 RPM at low duty to 8000 RPM at full duty, pushing 8.75 to 43.75 CFM. The unit stands 66 mm tall, weighs 590 g, and mounts with standard server bolt-thru hardware.

Suits 2U-and-up server builds

This cooler fits 2U and taller server chassis that can accommodate a 66 mm stack height and need a 150 W thermal solution for LGA 2011 square-type sockets. It is not for systems limited to lower-profile coolers, for builds requiring quieter operation than 51 dBA at maximum fan speed, or for platforms using any socket other than LGA 2011.

66 mm maximum cooler height

The 66 mm overall height is the critical dimension that determines whether the R5 clears the chassis lid and adjacent components in a 2U rack. Verify the available vertical clearance in your enclosure before purchase; if the space is smaller, this cooler will not fit.

Points forts

  • Designed for Intel Sandy Bridge EP/EX processors up to 150 watts
  • H.C.C. copper base directly contacts CPU for efficient heat transfer
  • Four 6mm heatpipes with aluminum fins boost thermal dissipation
  • 60mm dual-ball bearing PWM fan adjusts 1600 to 8000 RPM
  • Low 16.85 dBA noise at 20% duty cycle

Caractéristiques

BrandDynatron
ModelR5
ColorBlack
TypeFan & Heatsinks
Fan Size60mm
CPU Socket CompatibilityIntel LGA 2011 (Square Type)
Bearing Type2 Ball Bearing
RPMAt Duty Cycle 0-20%: 1600 RPM
At Duty Cycle 50%: 4000 RPM
At Duty Cycle 100%: 8000 RPM
Air FlowAt Duty Cycle 0-20%: 8.75 CFM
At Duty Cycle 50%: 21.88 CFM
At Duty Cycle 100%: 43.75CFM
Noise LevelAt Duty Cycle 0-20%: 16.85 dBA
At Duty Cycle 50%: 35.94 dBA
At Duty Cycle 100%: 51.00 dBA
Power ConnectorPin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Tachometer/Signal output)
Pin4-Blue (PWM)
Heatsink MaterialH.C.C.(Heatpipes Contact CPU) Copper Base & Aluminum Fins with Heatpipes embedded
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height66 mm
Fan Dimensions60 x 60 x 25 mm
Heatsink Dimensions91.5 x 91.5 x 66.0 mm
Weight590 g
FeaturesCPU Support: Intel Sandy Bridge EP/EX Processors up to 150 Watts
Solution: 2U&Up Server
Rated Voltage: 12 V
Power:
At Duty Cycle 0~20%: 0.60 W
At Duty Cycle 50%: 1.8 W
At Duty Cycle 100%: 7.2 W
Air Pressure:
At Duty Cycle 0~20%: 0.70 mm-H2O
At Duty Cycle 50%: 4.42 mm-H2O
At Duty Cycle 100%: 17.70 mm-H2O
Note:
1. Thermal Grease Pre-Printed with Shin-Etsu G751
2. RoHS Compliance
Poids d’expédition0.65 kg
Dimensions du colis112 × 109 × 94 mm

Questions sur cet article

How long will the dual-ball bearing fan last before it needs replacing?

The 2 ball bearing fan is rated for continuous operation at up to 8000 RPM, and the cooler weighs 590 g with a 66 mm max height for 2U server chassis.

What thermal limit appears first when the CPU runs at 150 W continuously?

The cooler is validated for Intel Sandy Bridge EP/EX processors up to 150 W using four 6 mm heatpipes and a copper base in direct contact with the CPU.

How loud does the 60 mm PWM fan get at full speed in a 2U server running all day?

At 100 % duty cycle the fan spins at 8000 RPM, moves 43.75 CFM and produces 51.00 dBA while drawing 7.2 W at 12 V.
