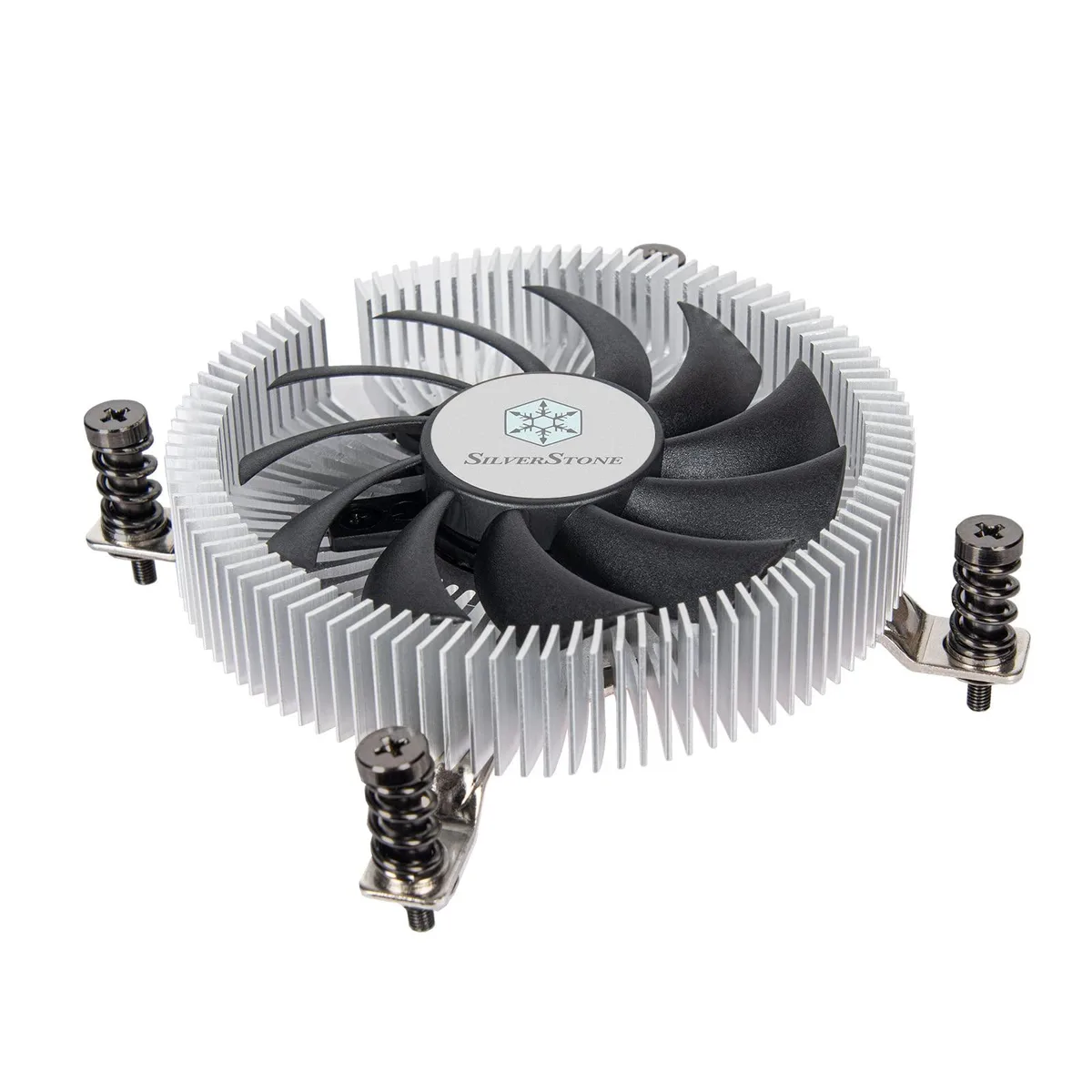

Silver low-profile CPU cooler with 80mm fan and copper centre aluminium fins

Silverstone

Silverstone NT07-1700 80mm Hydraulic Low-Profile CPU Cooler 22mm

SKU CH-EE56-MFMA6

Low-profile 22 mm cooler with 80 mm hydraulic fan fits Intel LGA 1700, delivering 28.14 CFM at 18–34.7 dBA

  • ColorSilver
  • TypeFan & Heatsinks
  • Fan Size80mm
  • CPU Socket CompatibilityIntel LGA 1700
  • Bearing TypeHydraulic
  • RPM1500-3600 RPM
  • Ultra-low 22 mm height fits tight small-form-factor cases
  • Hydraulic-bearing 80 mm fan runs 1500–3600 RPM via PWM
  • Copper centre with extruded aluminium fins draws heat efficiently
  • 14 CFM airflow at only 18–34.7 dBA noise
  • 4-pin PWM connector enables precise speed control

Low-Profile Cooler for Intel LGA 1700

The Silverstone NT07-1700 is a 22 mm tall air cooler built for Intel LGA 1700 sockets. It uses an 80 mm hydraulic-bearing fan mounted horizontally over a copper-centre heatsink with extruded aluminium fins. A 4-pin PWM connector lets the fan spin between 1500 and 3600 RPM, delivering up to 28.14 CFM at 34.7 dBA. The unit weighs 216 g and carries no LED lighting.

Builders fitting space-constrained cases

This cooler suits systems where vertical height is strictly limited to 22 mm and the socket is Intel LGA 1700. It is not for AMD platforms, other Intel sockets, or chassis that can accommodate taller coolers. Buyers needing higher airflow, larger fans, or RGB illumination should look elsewhere.

22 mm total height decides fit

The single specification that determines compatibility is the 22 mm maximum cooler height. Measure the available space above the CPU socket before purchasing; if the case allows more height, a larger cooler may perform better, but this model is designed specifically for the 22 mm limit.

Points forts

  • Ultra-low 22 mm height fits tight small-form-factor cases
  • Hydraulic-bearing 80 mm fan runs 1500–3600 RPM via PWM
  • Copper centre with extruded aluminium fins draws heat efficiently
  • 14 CFM airflow at only 18–34.7 dBA noise
  • 4-pin PWM connector enables precise speed control

Caractéristiques

BrandSILVERSTONE
ModelNT07-1700
ColorSilver
TypeFan & Heatsinks
Fan Size80mm
CPU Socket CompatibilityIntel LGA 1700
Bearing TypeHydraulic
RPM1500-3600 RPM
Air Flow28.14 CFM
Noise Level18-34.7 dBA
Power Connector4 Pin PWM
Pressure2.6mmH2O
LEDNon-LED
Heatsink MaterialCopper center, Extruded aluminum fins
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height22 mm
Fan Dimensions80 x 10 x 80 mm
Weight216g

Questions sur cet article

How loud is the 80 mm hydraulic fan at its 3600 RPM maximum?

The fan reaches 34.7 dBA at top speed and drops to 18 dBA at the 1500 RPM minimum, so noise scales with the PWM curve.

What motherboard header does the 4-pin PWM connector need?

A standard 4-pin CPU fan header supplies both power and speed control for the 1500–3600 RPM range.

Will the 22 mm height clear the RAM slots on an LGA 1700 board?

At 22 mm tall the cooler sits well below standard memory modules, leaving full access to all four DIMM slots.
