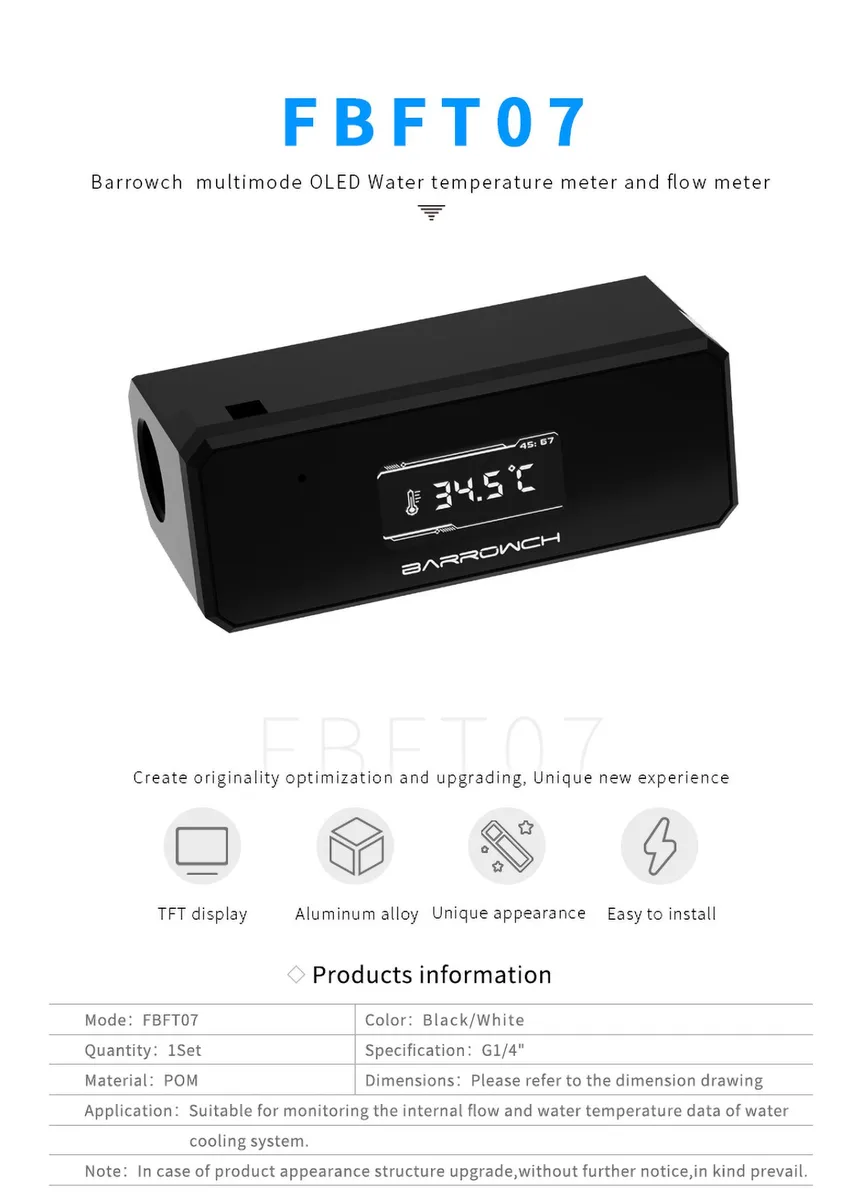

FormulaMod Flow Meter White FBFT07

Integrated Flow & Temperature Meter

The FormulaMod Flow Meter White FBFT07 adds real-time coolant flow and temperature readouts to a custom water-cooling loop. Its POM body resists heat while keeping weight low for straightforward mounting. Builders who want live system data without separate sensors will find it fits directly into standard tubing runs. Users who rely on software-only monitoring or have no space for an inline device cannot use this meter.

Adjustable Inline Connections

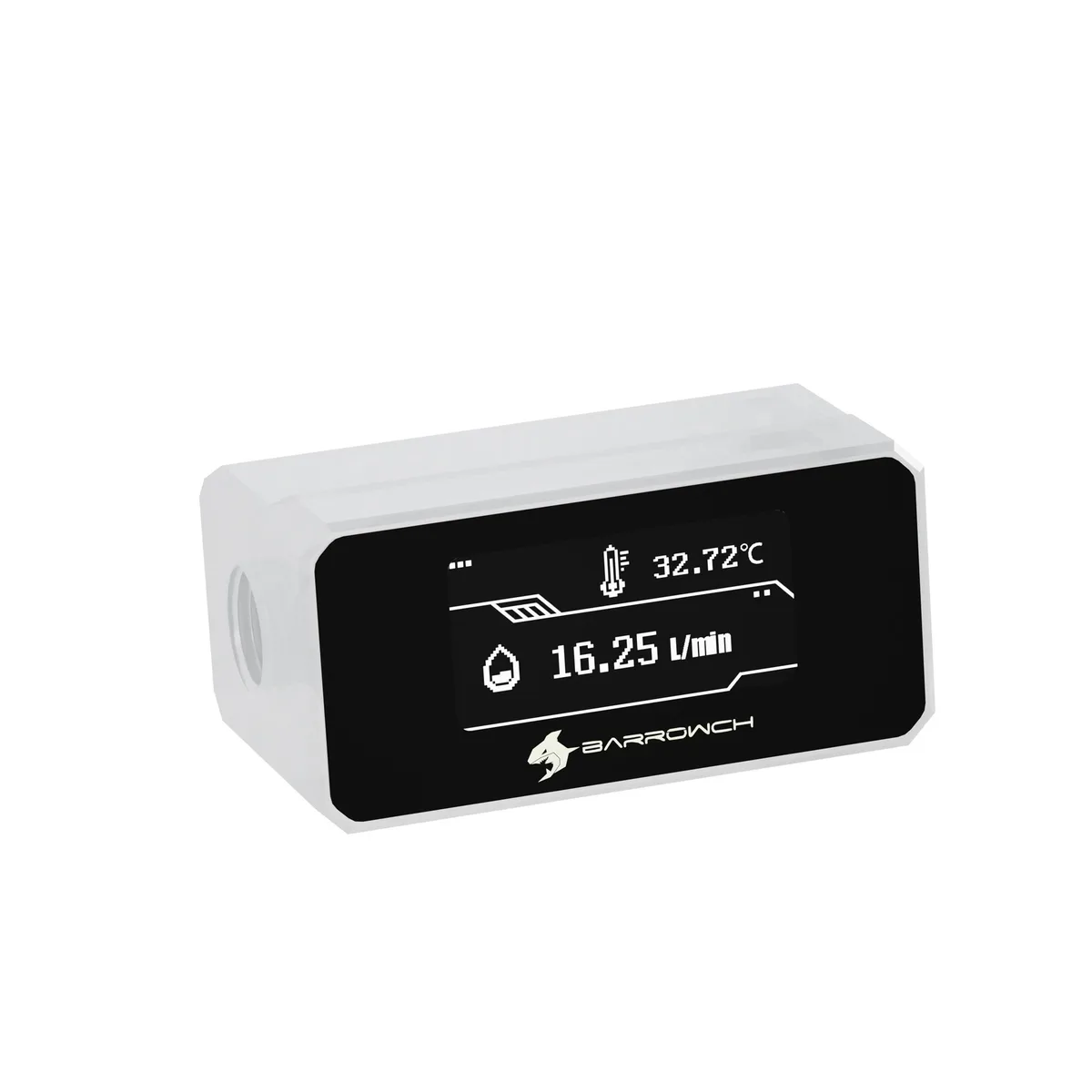

Rotatable inlet and outlet ports let the installer align the meter with existing tubing angles, reducing kinks and strain on fittings. A simple power connection drives the OLED display so flow rate and temperature appear instantly at a glance. The compact form factor leaves more room for other components inside tight cases. Loops that run rigid tubing with fixed bends may not gain the same alignment flexibility.

Inline Sensor Constraints

Because the meter sits inside the coolant path, it introduces a small restriction that slightly reduces overall flow compared to a straight coupling. The OLED panel requires a constant low-voltage supply, adding one more cable to route behind the motherboard tray. Readings are limited to the single point where the device is installed, so temperature deltas across radiators or blocks are not captured. Systems that already run near pump pressure limits should verify the added drop is acceptable.
