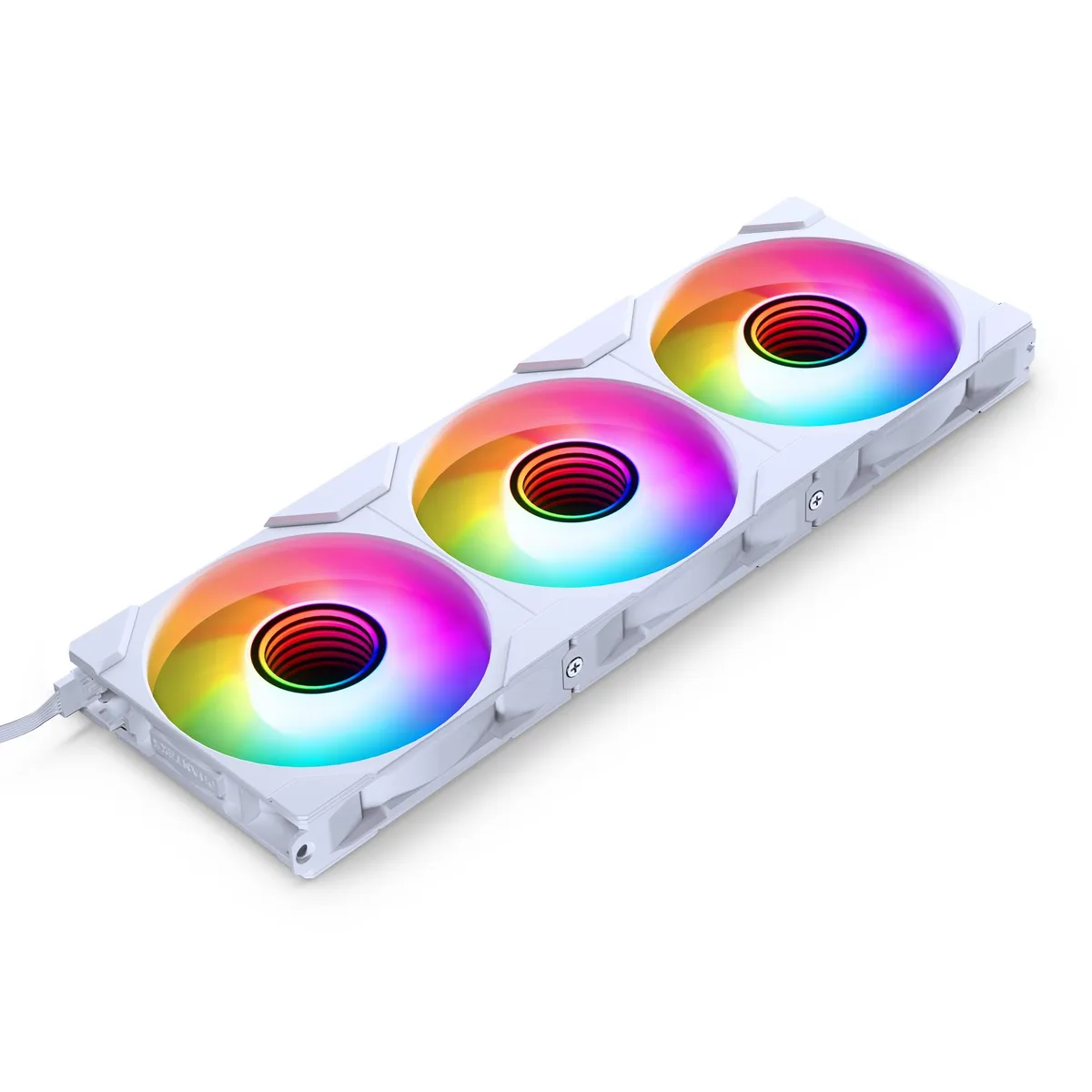

Three white 120mm case fans with matte blades and ARGB infinity mirror centres, shown as a triple pack

Phanteks

Phanteks PH-F120M25R_G2_DWT01_3P 3x 120mm case fan

SKU CH-X428-F0H1Q MPN PH-F120M25R_G2_DWT01_3P

Three white 120 mm fans with reversed blades, daisy-chain frames and a single Linq6 cable for PWM and D-RGB control

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 120mm

Style Reversed

Model M25 Gen2

  • M25 Gen2
  • M25
  • D30

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

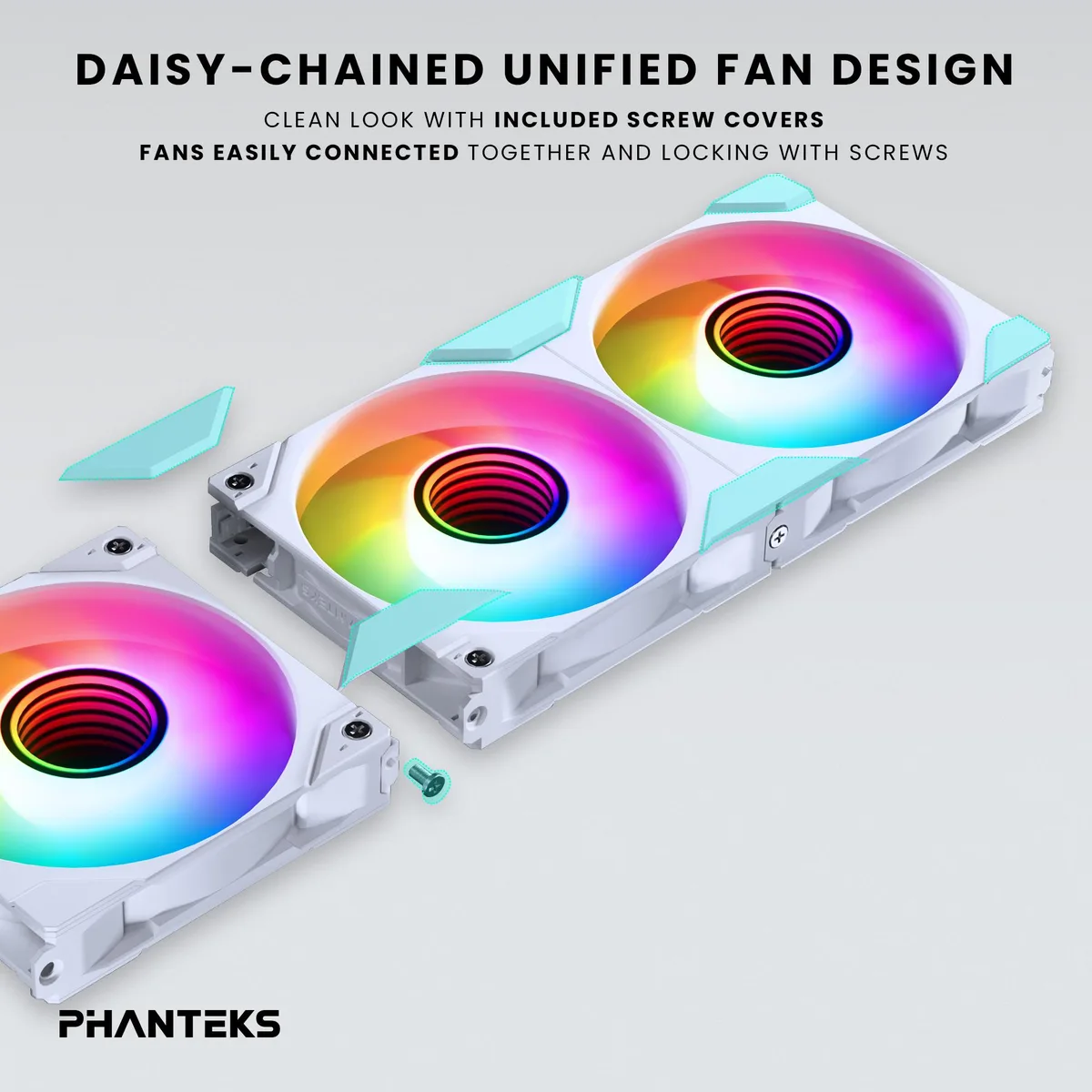

  • Daisy-chain frame links 3 fans with 1 cable
  • 69 CFM airflow at 2000 RPM max
  • 99 mmH2O pressure for radiator cooling
  • Hydraulic bearing runs 39.28 dBA max noise

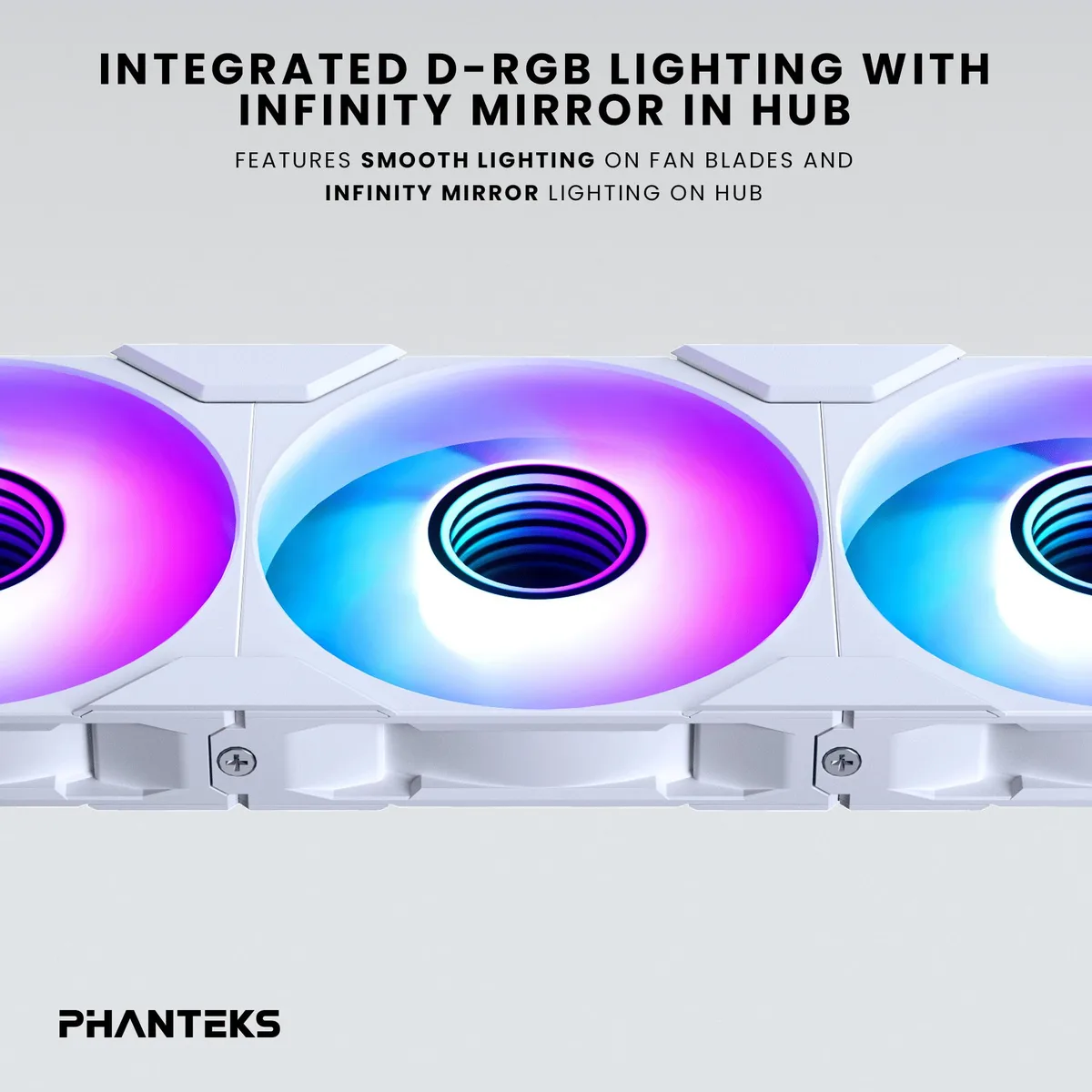

  • White DRGB infinity mirror lighting via Linq6

Three-Fan ARGB Pack for Clean Builds

This triple pack supplies three 120 mm Phanteks M25 Gen2 Reversed fans with white matte blades and DRGB lighting. Each unit uses a hydraulic bearing and spins between 350 and 2000 RPM, delivering up to 73.69 CFM and 1.99 mmH₂O static pressure at a maximum of 39.28 dBA. The Linq6 daisy-chain system merges PWM control and lighting into a single cable run.

Ideal for Radiator Stacks and Unified Lighting

Builders who want matching intake or exhaust arrays with minimal wiring will benefit from the interlocking frame and included 500 mm extension cables. The reversed blade orientation targets radiator and heatsink restriction, so pure unrestricted case airflow is not the primary design goal. Buyers needing a hardware controller in the box should look elsewhere.

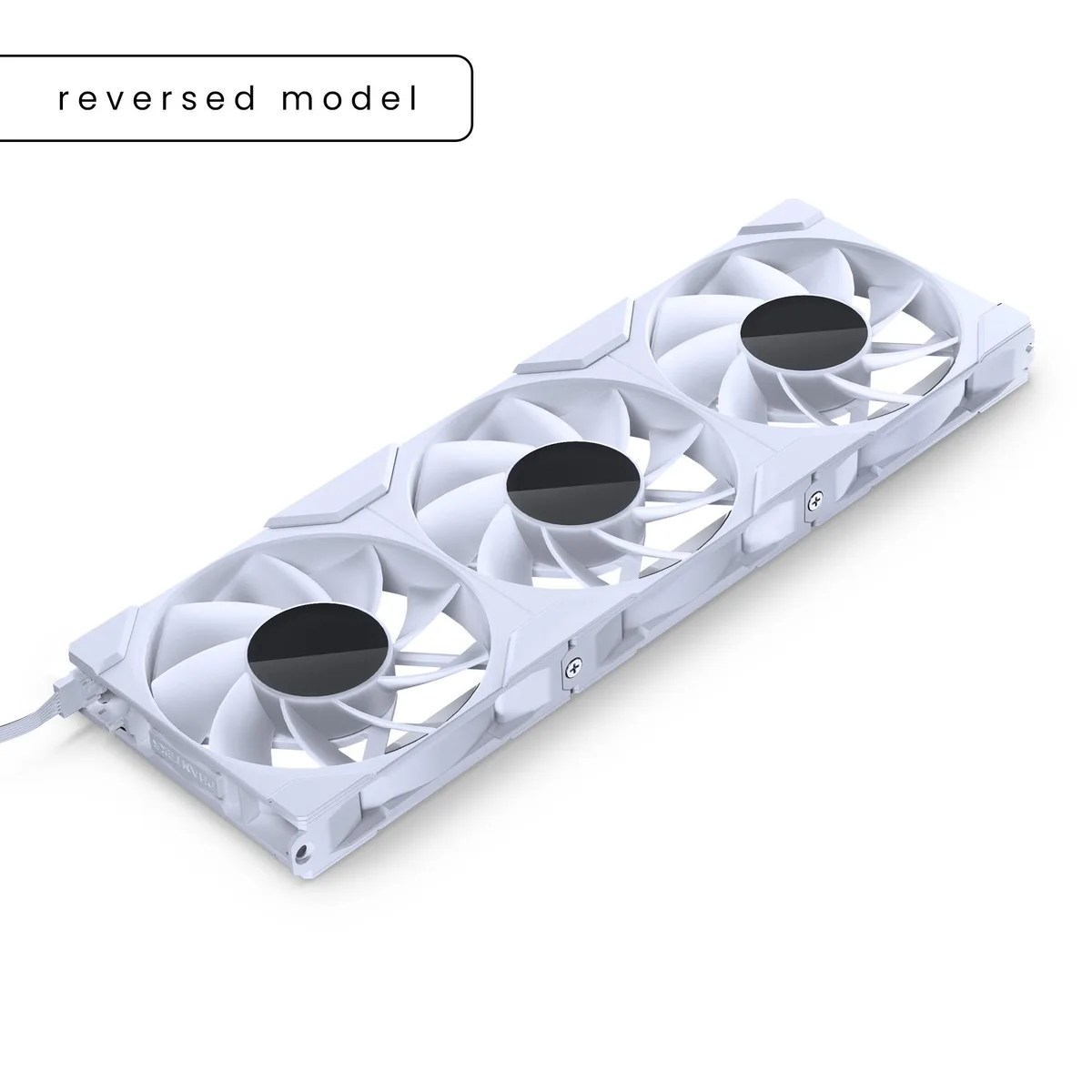

Reversed Blade Geometry for Restrictive Mounts

The defining specification is the reversed blade profile, which pushes air through dense fin stacks more effectively than standard blades. If the fans will mount on open mesh or serve as simple exhaust, the regular M25 Gen2 variant matches the same performance envelope without the reversed geometry.

Points forts

  • Daisy-chain frame links 3 fans with 1 cable
  • 69 CFM airflow at 2000 RPM max
  • 99 mmH2O pressure for radiator cooling
  • Hydraulic bearing runs 39.28 dBA max noise
  • White DRGB infinity mirror lighting via Linq6

Caractéristiques

BrandPhanteks
ModelM25-120 Gen2 Reversed
Part NumberPH-F120M25R_G2_DWT01_3P
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-2000 +/- 10% RPM Max
Air Flow73.69 CFM Max
Air Pressure1.99 mmH2O Max
Noise Level39.28 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / White Fan Frame
LEDDRGB

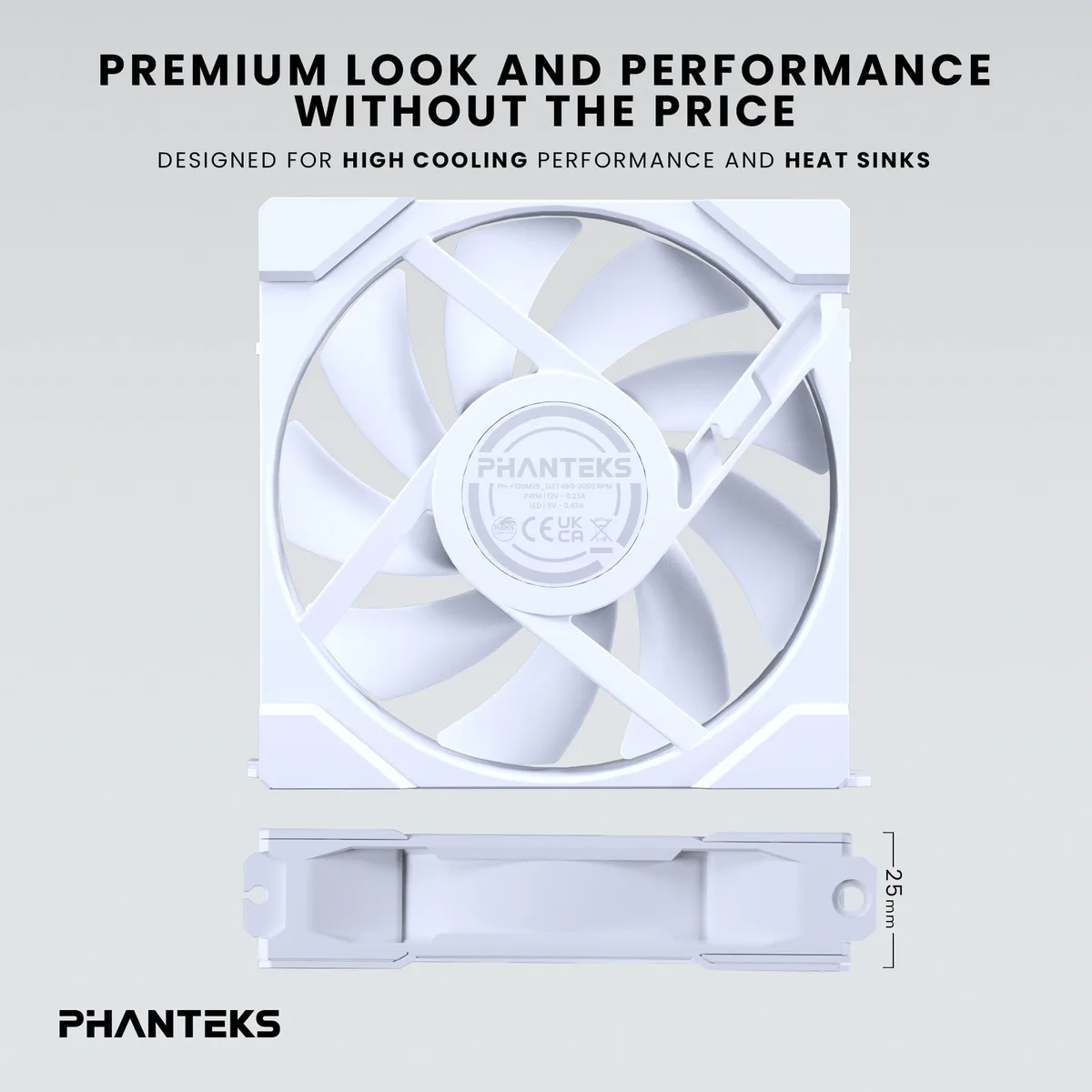

Dimensions120 x 120 x 25 mm
Package ContentsM25-120 Gen2 Reversed Fan: 3x
Fan Screws: 14x
500mm Linq6 Extension Cable: 2x
500mm Linq6 M/B Adapter: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 4x
Installation Guide: 1x
Poids d’expédition0.77 kg
Dimensions du colis406 × 152 × 64 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

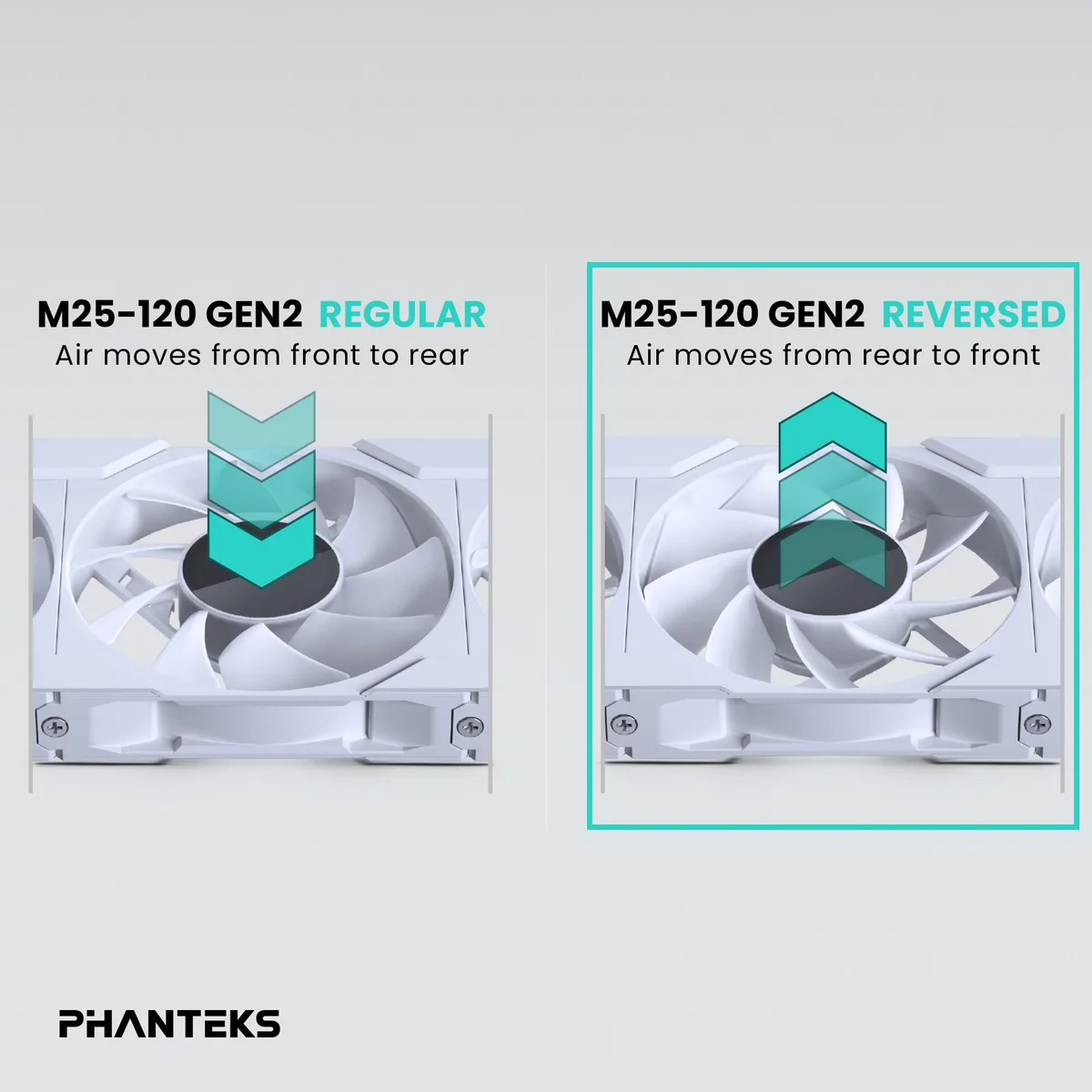

Should I pick the reversed-blade triple pack or a standard airflow version?

Choose the reversed-blade pack when you want the fans to pull air through a radiator or heatsink from the opposite side; the standard version pushes air in the normal direction.

What does 73.69 CFM and 1.99 mmH2O actually deliver inside a case?

At 2000 RPM the three fans move up to 73.69 CFM each with 1.99 mmH2O static pressure, enough to push or pull air through dense radiator fins while staying at 39.28 dBA.

How does the Linq6 daisy-chain connector work with a motherboard?

The 500 mm Linq6 cables link all three fans together, then the included motherboard adapter plugs into a single 4-pin PWM header for both speed and DRGB control.
