White 140mm square case fan with DRGB lighting ring and thick 30mm frame

Phanteks

Phanteks PH-F140D30_DRGB_PWM_WT01 140mm 30mm DRGB case fan

SKU CH-R3FX-EH74G MPN PH-F140D30_DRGB_PWM_WT01

A 30 mm thick 140 mm case fan with DRGB lighting, fluid dynamic bearing and 71.93 CFM maximum airflow

  • Fan Counts1 Fan
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness30mm
  • Bearing TypeFluid Dynamic
  • RPM250-1800 +/- 10% RPM

Fan Size 140mm

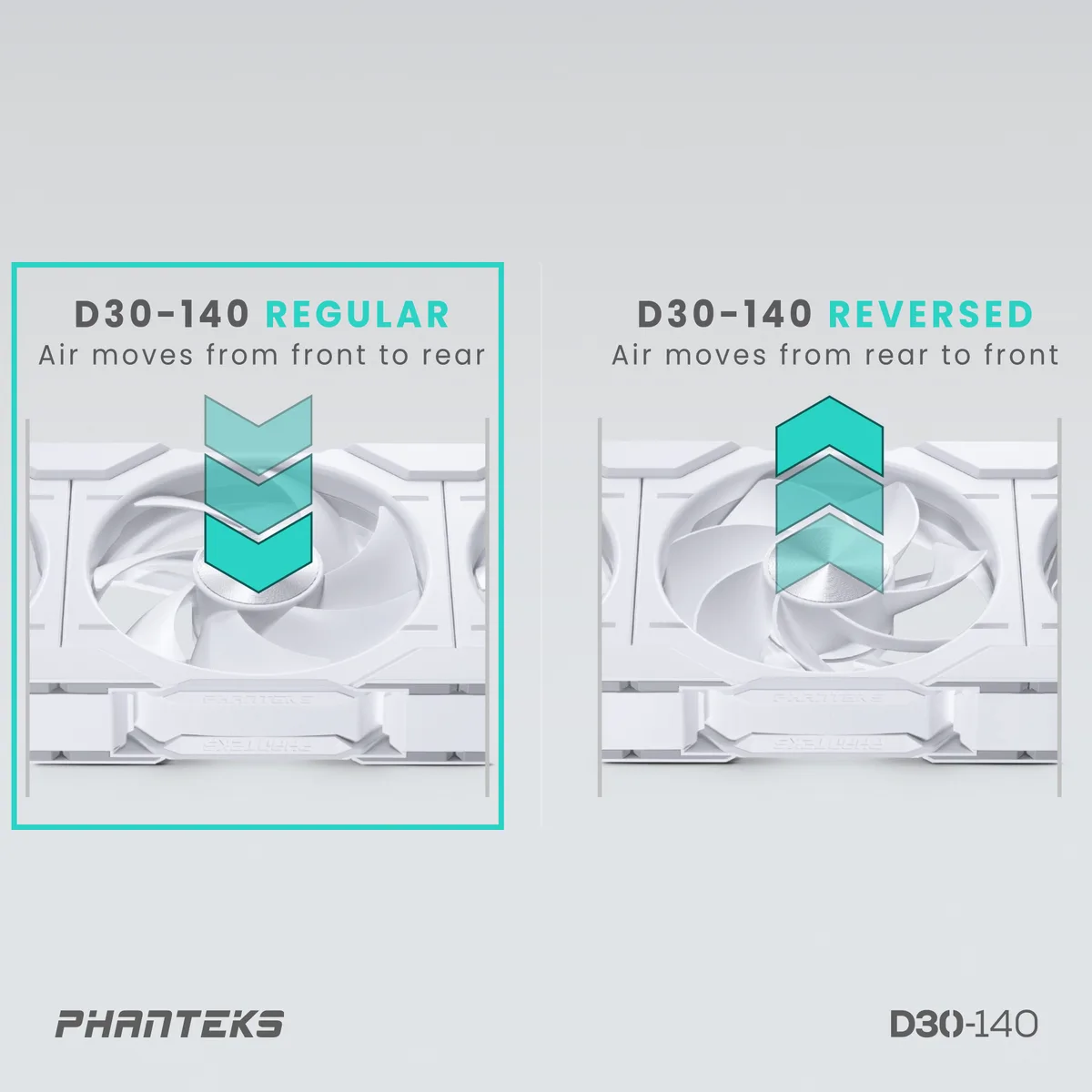

Style Regular

Model D30

Option Single Fan

Les versions barrées existent, mais ne sont pas disponibles ici.

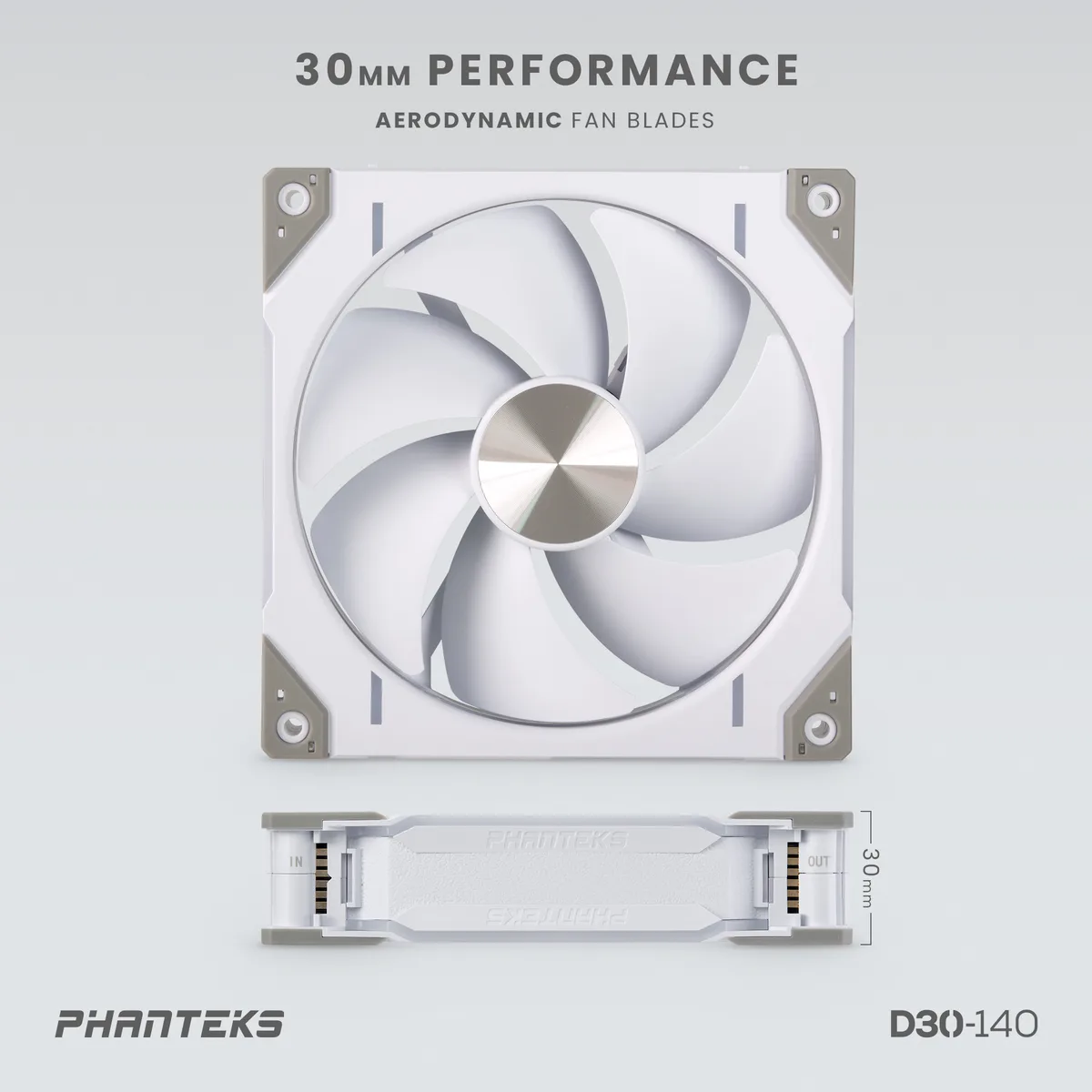

  • 30 mm thick frame delivers high static pressure for radiators and restrictive filters
  • Fluid dynamic bearing runs at 250-1800 RPM with 29.5 dB(A) max noise
  • 93 CFM maximum airflow moves plenty of air through dense mesh

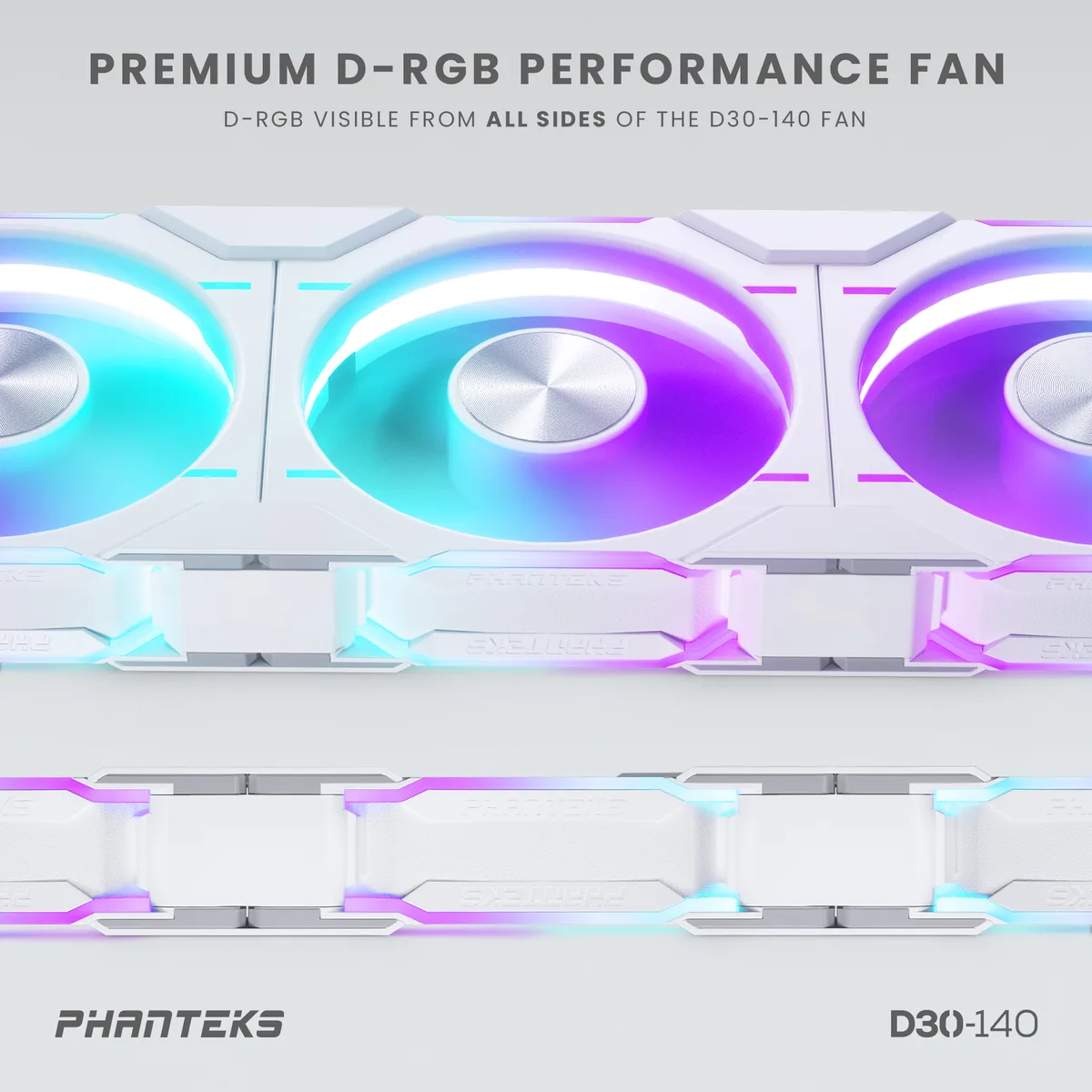

  • DRGB lighting visible from all sides syncs with motherboard ARGB headers

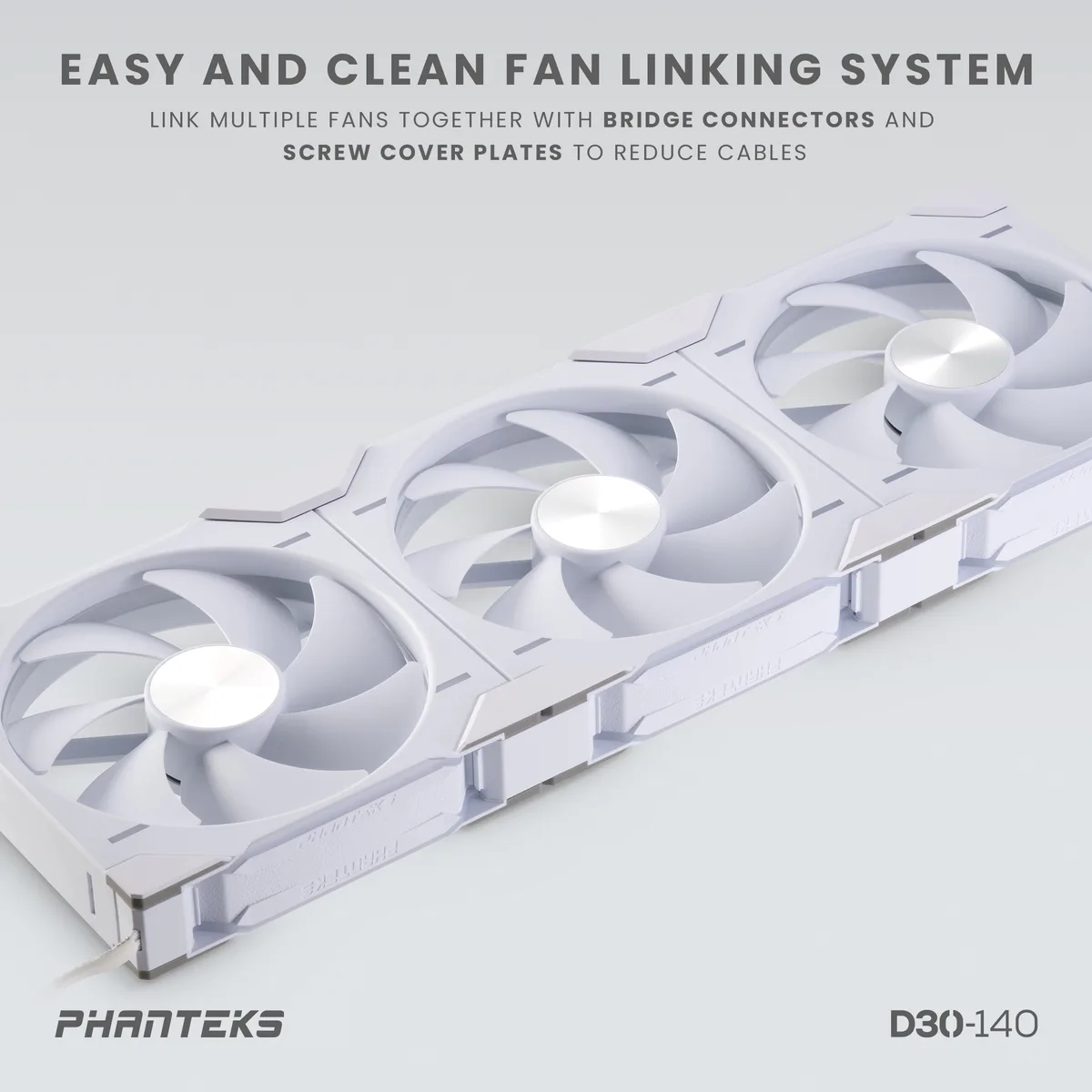

  • Daisy-chain linking with included clips and covers keeps multi-fan cable runs clean

140 mm 30 mm DRGB case fan

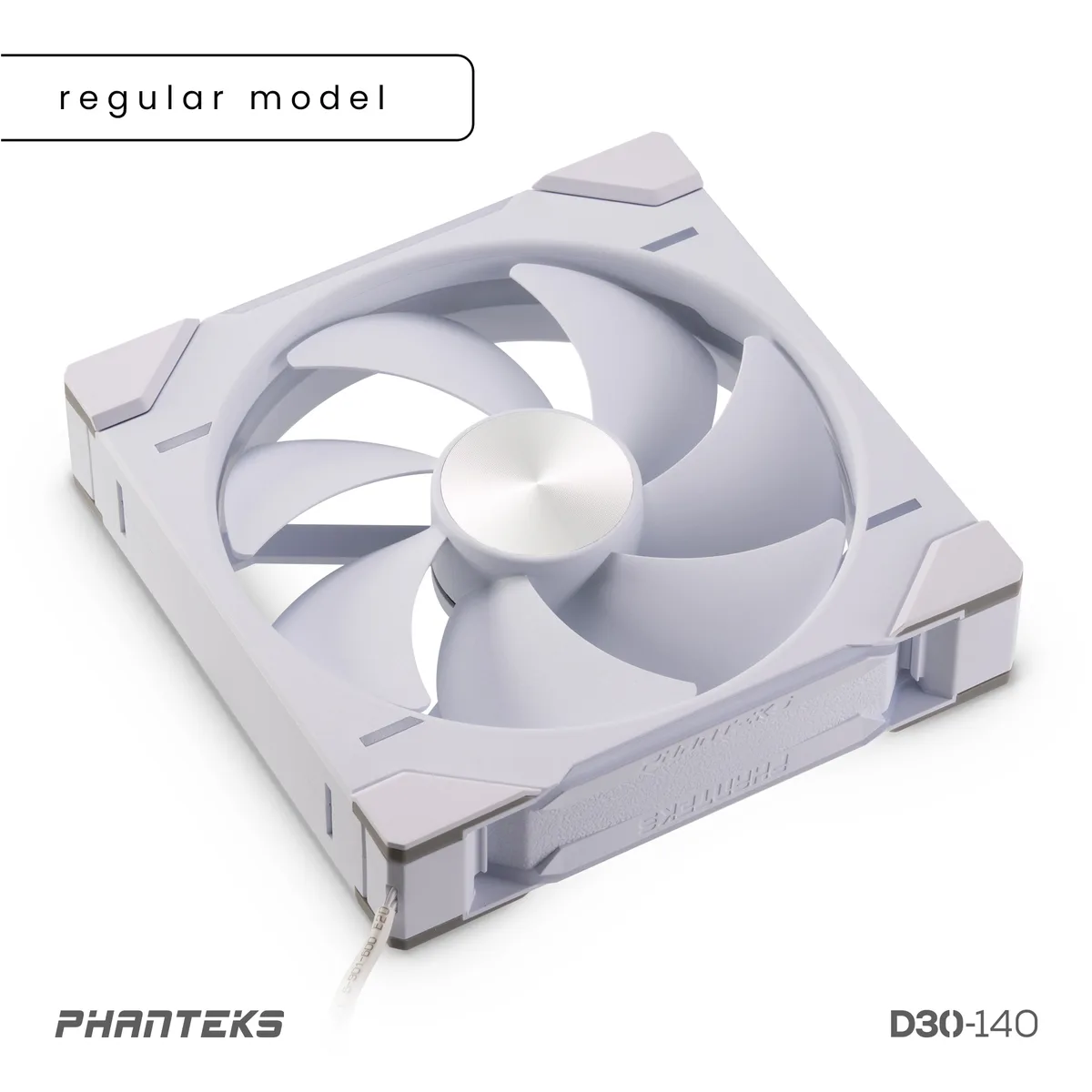

The Phanteks PH-F140D30_DRGB_PWM_WT01 is a single 140 mm case fan with a 30 mm thick frame designed for high static-pressure scenarios such as radiators or restrictive mesh panels. It targets builders who want integrated D-RGB illumination visible from all sides and a white colour scheme. Buyers needing a slimmer 25 mm fan for tight clearances should look elsewhere. The fluid-dynamic bearing supports a speed range of 250 to 1800 RPM with a tolerance of +/- 10 percent.

Thermals noise and power draw

At maximum speed the fan delivers 71.93 CFM of airflow while producing 29.5 dB(A) of noise, making it audible but not intrusive in a typical build. The 4-pin PWM connector allows the motherboard to scale speed down to 250 RPM for near-silent idle operation, reducing both airflow and acoustic output proportionally. Power draw scales with PWM duty cycle through the standard 4-pin header, so no separate power adapter is required for normal use.

Bundled accessories and software

The package includes mounting hardware for both case and radiator installation: four fan screws, four UNC 6-32 radiator screws at 36 mm, and four M4 radiator screws at 36 mm. A daisy-chain linking system uses one corner clip cable, three corner clips, one bridge clip and one bridge clip connector plus screw covers to merge multiple fans into a single cable run. A D-RGB motherboard adapter enables lighting control through standard 5 V addressable RGB headers and compatible software.

Points forts

  • 30 mm thick frame delivers high static pressure for radiators and restrictive filters
  • Fluid dynamic bearing runs at 250-1800 RPM with 29.5 dB(A) max noise
  • 93 CFM maximum airflow moves plenty of air through dense mesh
  • DRGB lighting visible from all sides syncs with motherboard ARGB headers
  • Daisy-chain linking with included clips and covers keeps multi-fan cable runs clean

Caractéristiques

BrandPhanteks
ModelPH-F140D30_DRGB_PWM_WT01
Fan Counts1 Fan
TypeCase Fan
Fan Size140mm
Fan Thickness30mm
Bearing TypeFluid Dynamic
RPM250-1800 +/- 10% RPM
Air Flow71.93 CFM Max
Noise Level29.5 dB(A)
Power Connector4 Pin
ColorWhite
LEDDRGB
Dimensions140 x 140 x 30 mm / 5.51" x 5.51" x 1.18"
Package Contents1 x PH-F140D30_DRGB_PWM_BK01
4 x Fan Screw
4 x UNC 6-32 Radiator Screw 36mm
4 x M4 Radiator Screw 36mm
1 x Corner Clip Cable, 3x Corner Clip
1 x Bridge Clip, 1x Bridge Clip Connector
4 x Screw Cover Corner (2L, 2R)
2 x Screw Cover Bridge
1 x D-RGB M/B Adapter
Poids d’expédition0.43 kg
Dimensions du colis222 × 146 × 41 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I daisy-chain the Phanteks D30-140 DRGB fans using the included Corner Clip Cable and Bridge Clip?

Connect the Corner Clip Cable between adjacent fans using the three Corner Clips, then join the chain to the motherboard with the Bridge Clip Connector; the 4-pin PWM and DRGB signals pass through each link so all fans share one header.

What maintenance does the fluid-dynamic bearing require over time?

The sealed fluid-dynamic bearing is lubricated for life and needs no re-oiling; only periodic dust removal from the 30 mm thick blades and frame is recommended to keep airflow at 71.93 CFM.

At what RPM does the fan hit its 29.5 dB(A) noise rating under sustained load?

The 29.5 dB(A) figure is measured at the maximum 1800 RPM; running the fan slower via PWM reduces noise further while still delivering up to 71.93 CFM.
