White 140mm square case fan with matte blades and frame, integrated D-RGB infinity mirror centre, single Linq6 cable

Phanteks

Phanteks PH-F140M25_G2_DWT01 140mm case fan white

SKU CH-C1KD-RW2NF MPN PH-F140M25_G2_DWT01

140 mm hydraulic-bearing fan delivers 101.78 CFM at up to 1800 RPM with 2.23 mmH₂O pressure, includes daisy-chain Linq6 cable and screw covers for clean D-RGB builds

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 140mm

Style Regular

Model M25 Gen2

Option Single Fan

  • Daisy-chain frame links multiple fans with one cable
  • Linq6 connector merges PWM and D-RGB control into single lead
  • 1800 RPM peak delivers 101.78 CFM for radiator cooling
  • Hydraulic bearing runs at 36.4 dBA maximum noise
  • White matte blades plus infinity-mirror D-RGB create clean lit look

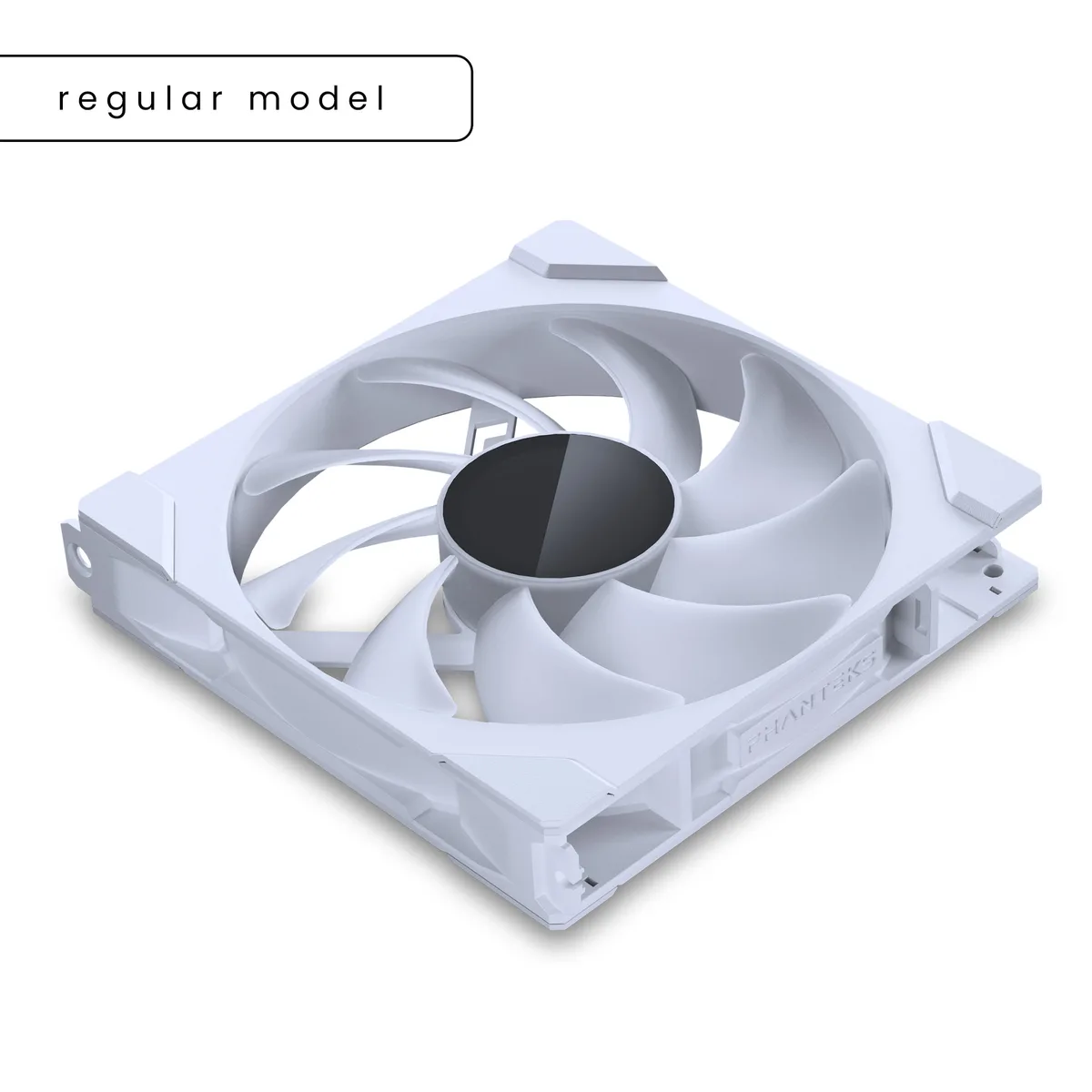

140 mm ARGB case fan

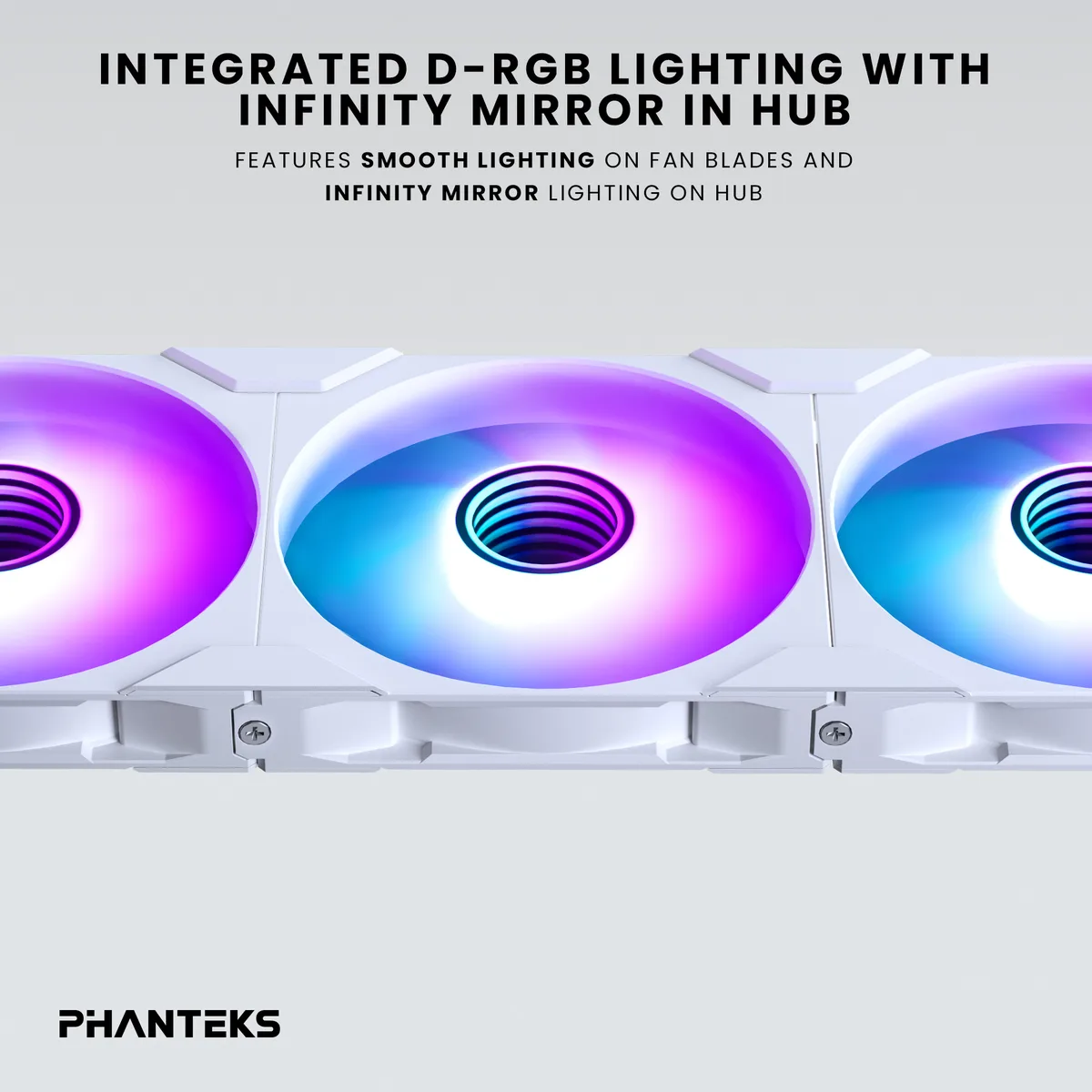

The Phanteks M25-140 Gen2 is a single 140 mm case fan with a white matte frame and blades. It uses a hydraulic bearing and runs between 350 and 1800 RPM. Integrated D-RGB lighting includes an infinity mirror effect for visual impact.

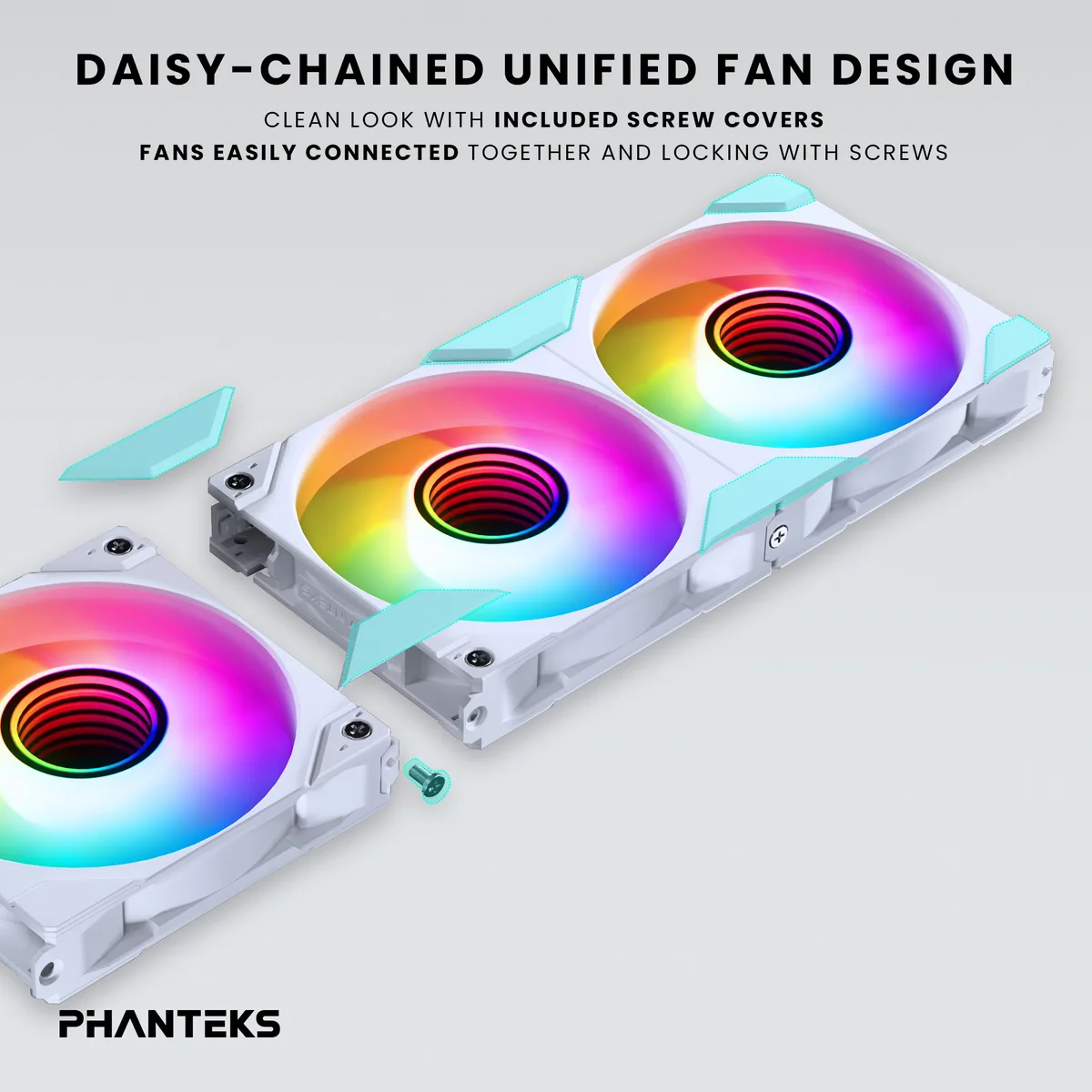

Daisy-chain Linq6 single-cable connection

One Linq6 cable carries both PWM fan control and D-RGB signals, allowing multiple fans to be linked without extra wiring. A 500 mm extension cable, five mounting screws, and screw covers are included for a tidy installation.

Builders who want clean cable routing

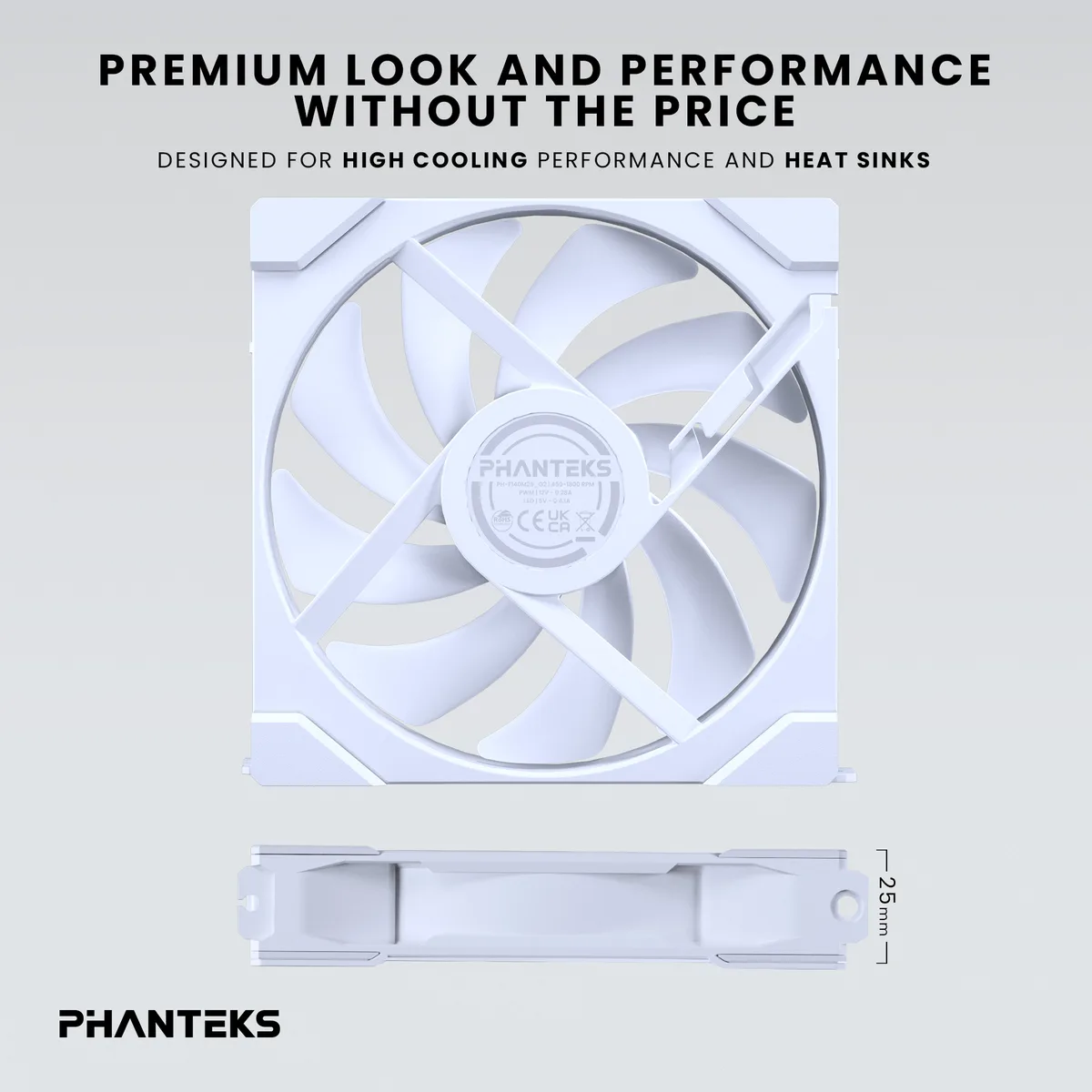

Users needing a bundled controller or a fan without addressable RGB should consider other models. The design targets radiator and heatsink performance with a maximum airflow of 101.78 CFM and 2.23 mmH2O static pressure.

Points forts

  • Daisy-chain frame links multiple fans with one cable
  • Linq6 connector merges PWM and D-RGB control into single lead
  • 1800 RPM peak delivers 101.78 CFM for radiator cooling
  • Hydraulic bearing runs at 36.4 dBA maximum noise
  • White matte blades plus infinity-mirror D-RGB create clean lit look

Caractéristiques

BrandPhanteks
ModelM25-140 Gen2 Regular
Part NumberPH-F140M25_G2_DWT01
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-1800 +/- 10% RPM Max
Air Flow101.78 CFM Max
Air Pressure2.23 mmH2O Max
Noise Level36.4 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / White Fan Frame
LEDDRGB
Dimensions140 x 140 x 25 mm
Package ContentsM25-140 Gen2 Fan: 1x
Fan Screws: 5x
500mm Linq6 Extension Cable: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 2x
Installation Guide: 1x
Poids d’expédition0.14 kg
Dimensions du colis152 × 147 × 51 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does 101.78 CFM maximum airflow mean for cooling inside a case?

At full speed the fan moves up to 101.78 CFM, providing strong airflow through radiators or heatsinks to lower component temperatures.

How does the PWM 4-pin connector and Linq6 daisy-chain limit control options?

The 4-pin PWM connector handles speed control while the Linq6 cable carries both power and DRGB signals, letting you chain multiple fans from one motherboard header.

What clearance is needed to mount this 140 mm by 25 mm fan?

The fan measures 140 mm square and 25 mm thick, so you need at least 25 mm depth and a 140 mm mounting pattern on your case or radiator.
