Three black 120mm PWM case fans with square frames and screw covers

Phanteks

Phanteks PH-F120M25_G2_BBK01_3P 120mm PWM case fan triple pack

SKU CH-MD67-ES4ZE MPN PH-F120M25_G2_BBK01_3P

Three 120 mm PWM case fans with daisy-chain frames, hydraulic bearings, 72.72 CFM maximum airflow, 2.51 mmH₂O pressure and 35.13 dBA noise

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120mm

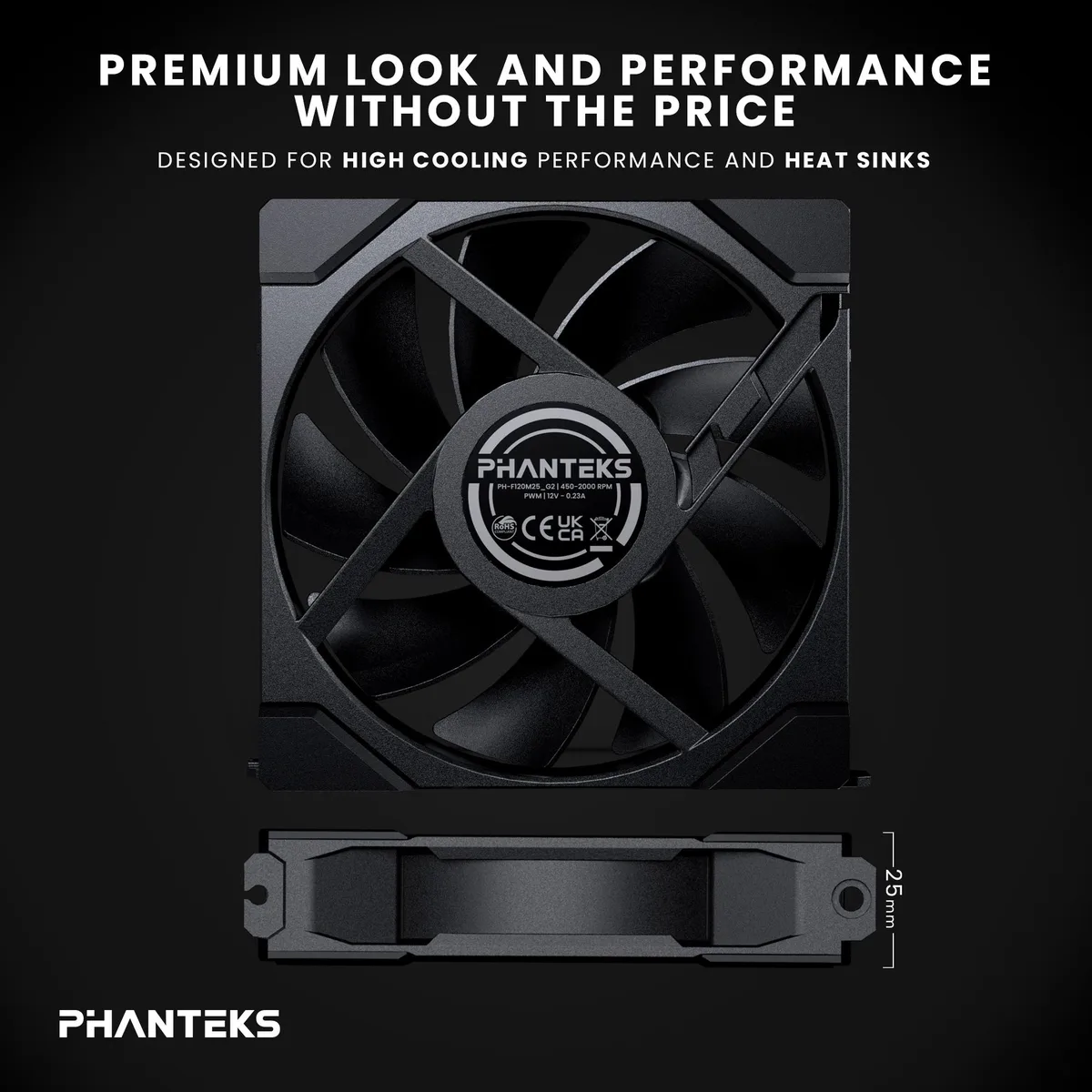

  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 120mm

Style Regular / No DRGB

Model M25 Gen2

  • M25 Gen2
  • M25
  • D30

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Daisy-chain frame links fans for tidy cable routing
  • Hydraulic bearing runs at 35.13 dBA max for quiet operation
  • 72 CFM airflow suits radiators and heatsinks
  • 350–2000 RPM PWM range adapts to thermal demand
  • Screw covers and extension cables included for clean install

Triple pack of 120mm PWM fans

Three 120mm fans arrive in one box, each 25mm thick and driven by a hydraulic bearing. They spin from 350 to 2000 RPM and deliver up to 72.72 CFM airflow with 2.51 mmH2O static pressure at a maximum of 35.13 dBA. The set targets builders who want matched cooling for radiators or heatsinks without mixing models.

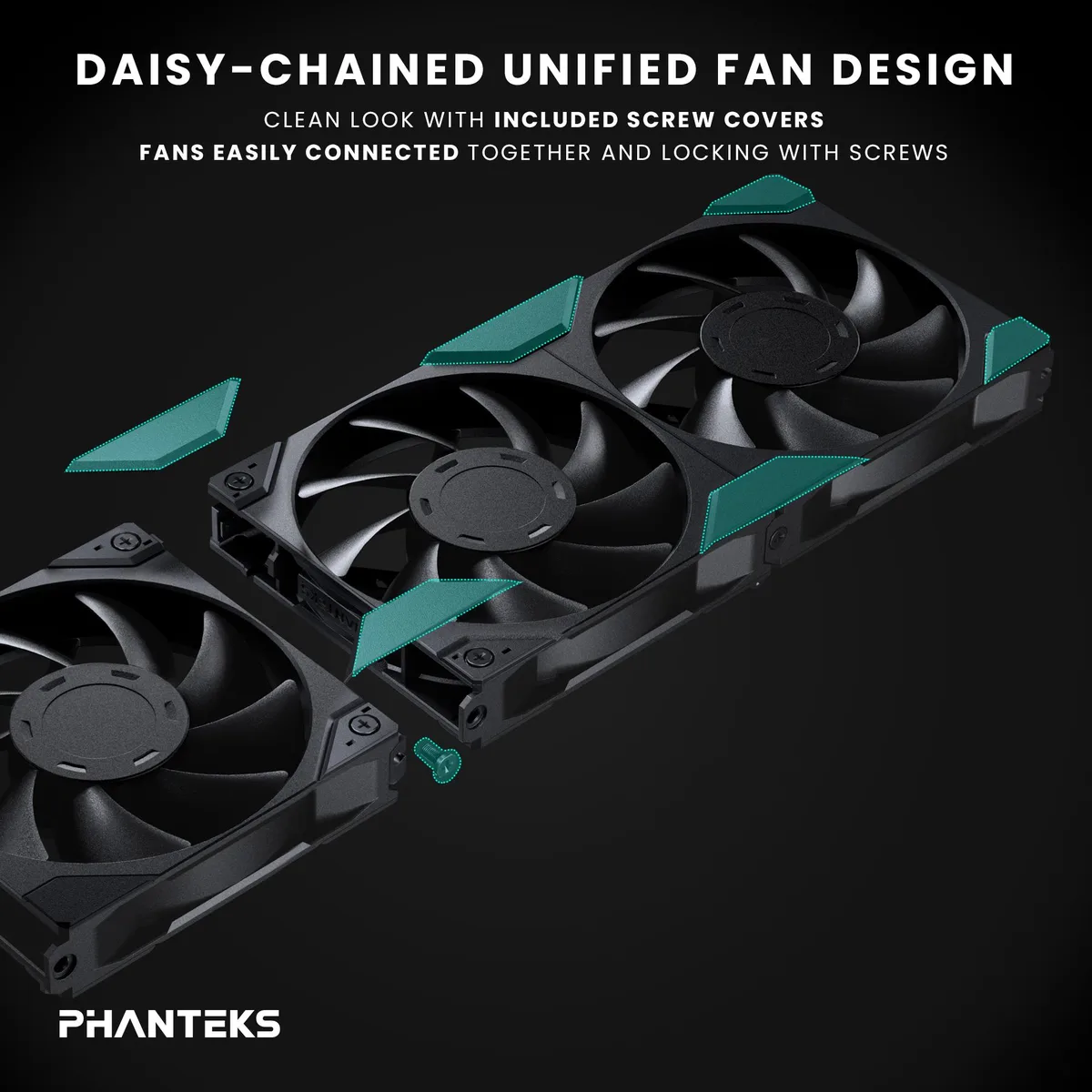

Daisy-chain frame and screw covers simplify daily

A unified frame lets each fan lock to the next so a single PWM signal runs the whole chain, cutting cable count inside the case. Two 500mm PWM extension cables ship in the kit for reaching distant headers. Fourteen mounting screws plus eight corner covers and four bridge covers hide fasteners for a clean look once installed.

Replaces single-fan kits when uniform airflow

Moving from individual fans to this matched trio removes speed variance across a radiator or dual-tower cooler. The jump pays off when you need consistent static pressure across the whole surface and want one software curve via the Phanteks NexLinq ecosystem. Builders needing only one or two fans, or who prefer addressable RGB, should look elsewhere.

Points forts

  • Daisy-chain frame links fans for tidy cable routing
  • Hydraulic bearing runs at 35.13 dBA max for quiet operation
  • 72 CFM airflow suits radiators and heatsinks
  • 350–2000 RPM PWM range adapts to thermal demand
  • Screw covers and extension cables included for clean install

Caractéristiques

BrandPhanteks
ModelM25-120 Gen2 Regular Triple Pack
Part NumberPH-F120M25_G2_BBK01_3P
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-2000 +/- 10% RPM Max
Air Flow72.72 CFM Max
Air Pressure2.51 mmH2O Max
Noise Level35.13 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorBlack Fan Blade / Black Fan Frame
LEDNo DRGB
Dimensions120 x 120 x 25 mm
Package ContentsM25-120 Gen2 Fan: 3x
Fan Screws: 14x
500mm PWM Extension Cable: 2x
Screw Cover Corner: 8x (4xL, 4xR)
Screw Cover Bridge: 4x
Installation Guide: : 1x
Poids d’expédition0.77 kg
Dimensions du colis401 × 152 × 51 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does the PWM 4-pin connector control on the M25 Gen2 fans?

The PWM 4-pin connector lets the motherboard vary each fan between 350 and 2000 RPM for up to 72.72 CFM airflow and 2.51 mmH2O static pressure at a maximum of 35.13 dBA.

Will the 120 mm by 25 mm frames fit my case and radiator mounts?

Yes, the fans measure 120 x 120 x 25 mm, matching standard 120 mm mounting holes on cases and radiators, and the pack includes 14 screws for installation.

How do I link the three fans together with the daisy-chain frame?

Slide the unified frames together until they lock, attach the two 500 mm PWM extension cables to bridge the fans, then plug the lead fan into a single motherboard PWM header.
