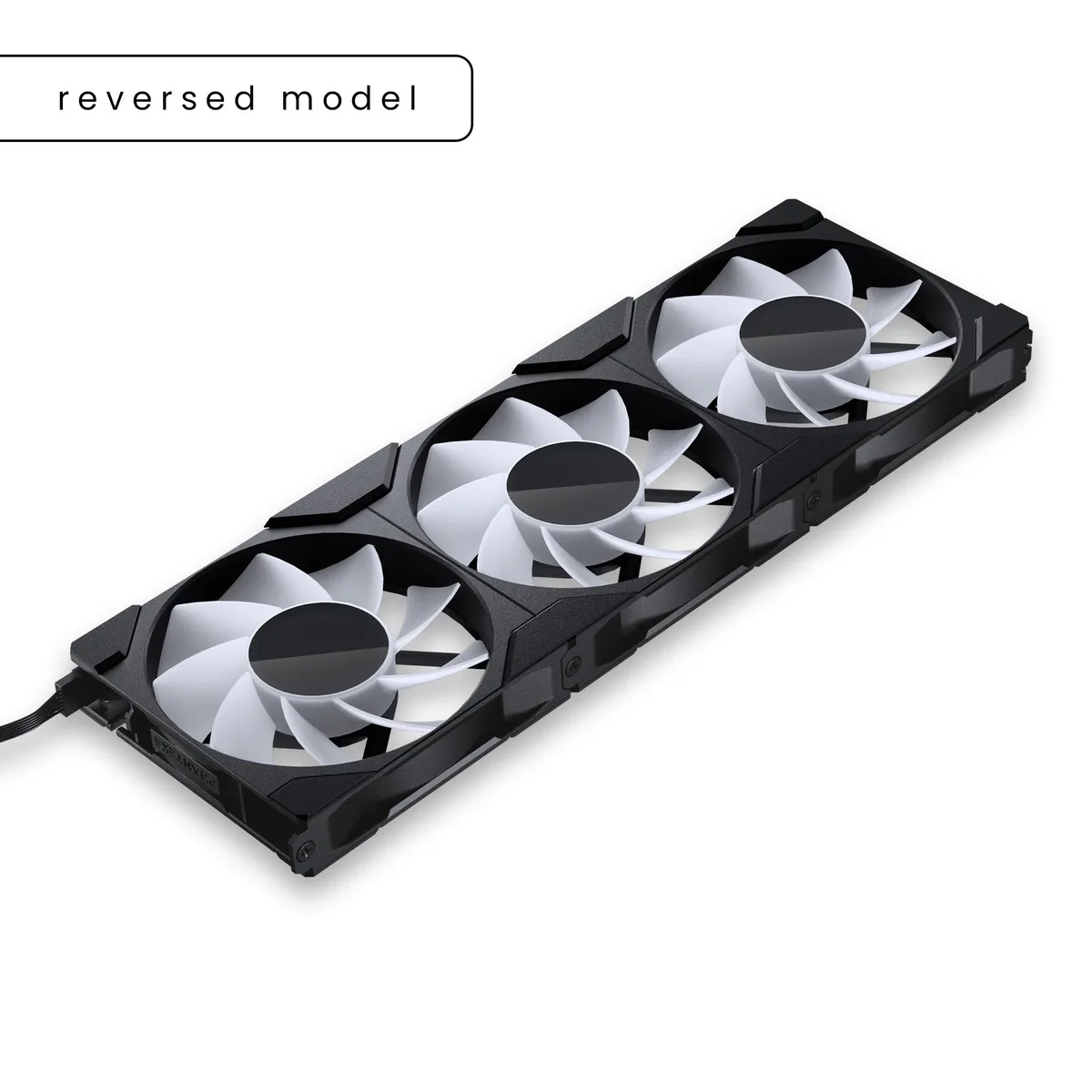

Three black frame 120mm fans with white matte blades and DRGB infinity mirror centres, shown as a triple pack

Phanteks

Phanteks PH-F120M25R_G2_DBK01_3P case fan 3-pack 120mm 25mm DRGB

SKU CH-SV9W-P66VC MPN PH-F120M25R_G2_DBK01_3P

Three 120mm reversed-blade case fans with daisy-chain Linq6 connectors, DRGB infinity-mirror lighting and hydraulic bearings delivering up to 73.69 CFM at 39.28 dBA

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 120mm

Style Reversed

Model M25 Gen2

  • M25 Gen2
  • M25
  • D30

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

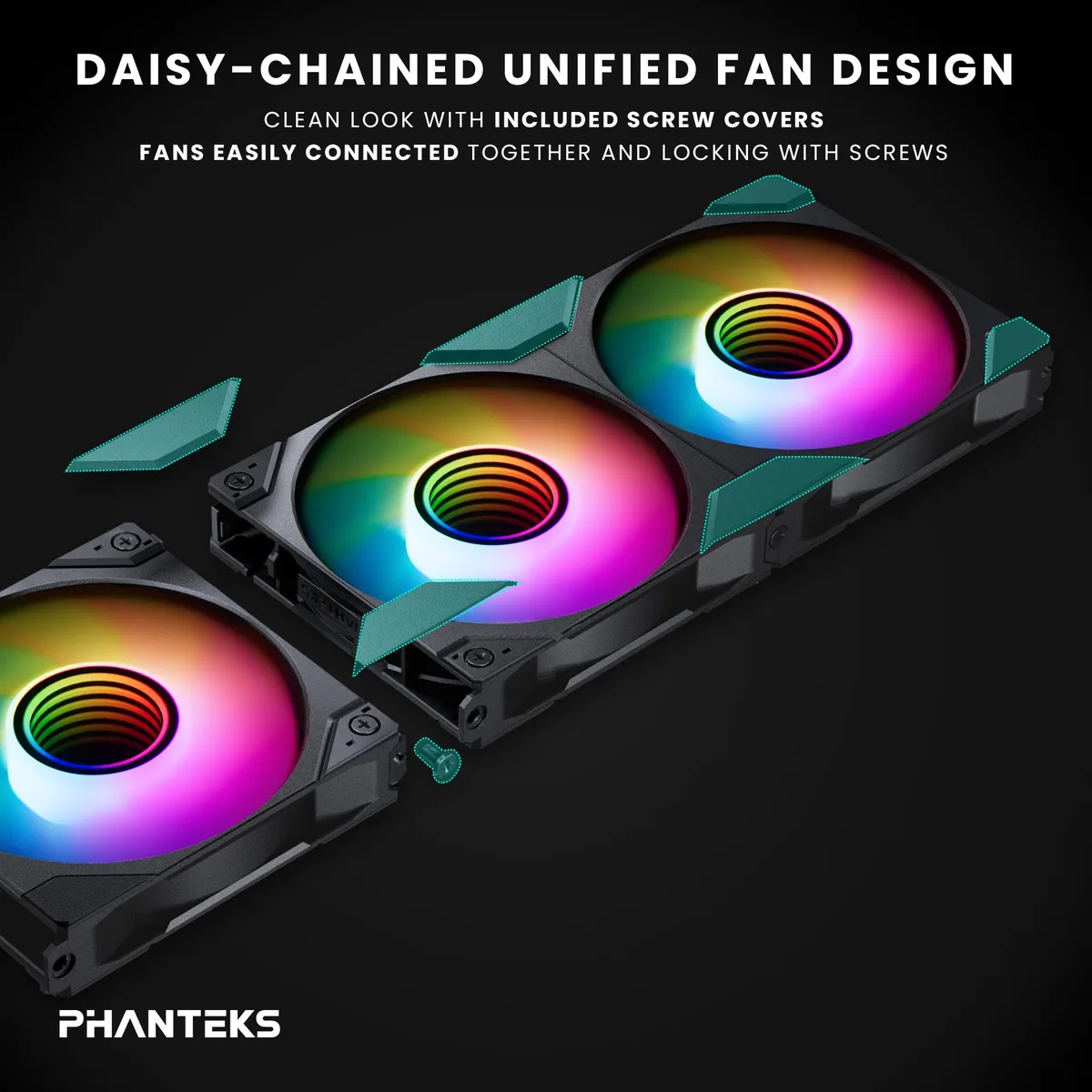

  • Three fans interlock with a unified frame for tidy daisy-chaining
  • One Linq6 cable handles both PWM control and DRGB lighting
  • 69 CFM airflow and 1.99 mmH₂O pressure suit radiators and heatsinks
  • Hydraulic bearing runs from 350 to 2000 RPM at 39.28 dBA max
  • Screw covers and corner bridges create a clean, finished look

Triple-pack 120 mm DRGB fans

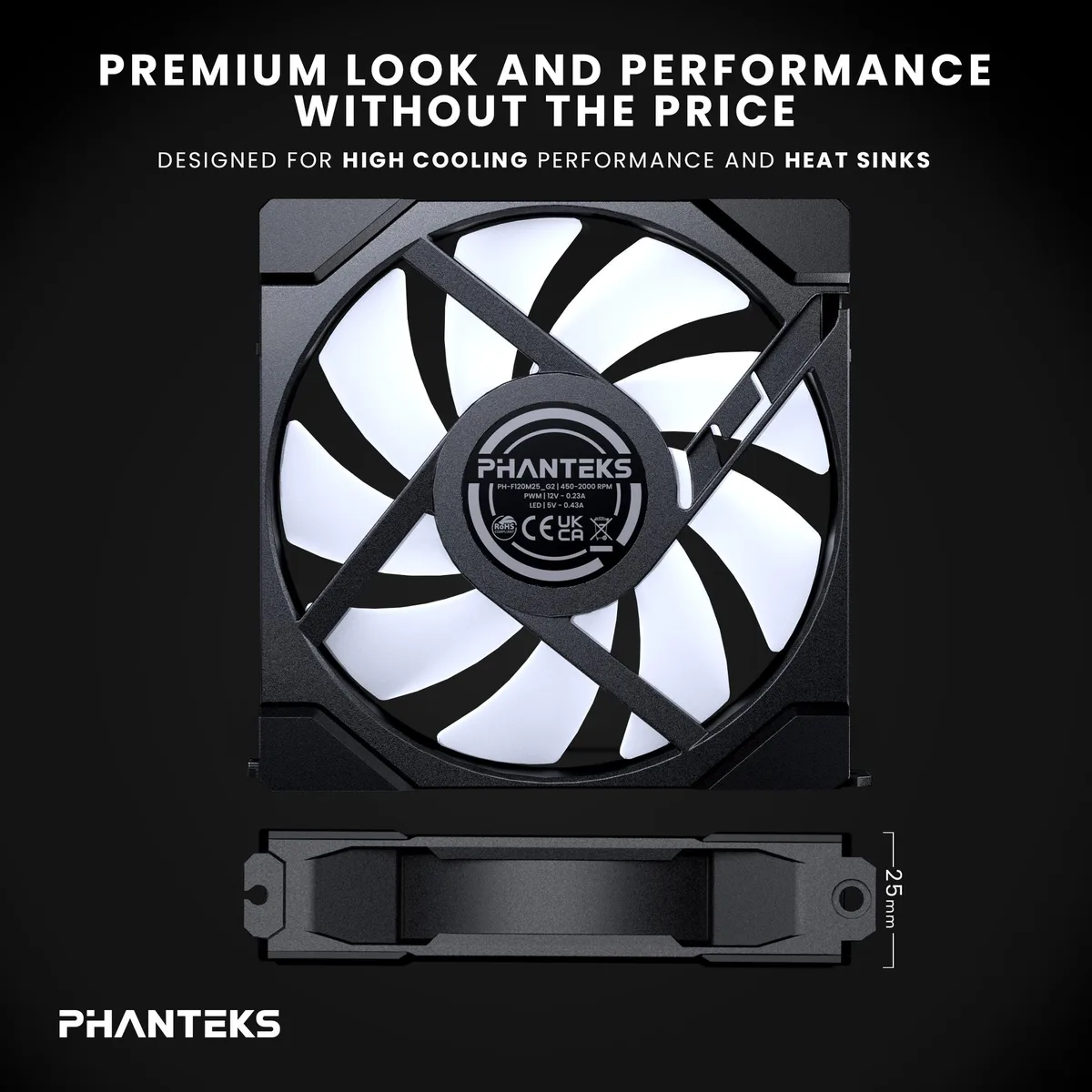

This set includes three 120 mm Phanteks M25 Gen2 Reversed fans with a 25 mm frame. Each unit uses a hydraulic bearing and a Linq6 connector that merges PWM control and DRGB lighting into one cable. The daisy-chain frame lets the fans lock together for a tidy installation. They ship new in black frames with white matte blades.

Builders who want unified lighting

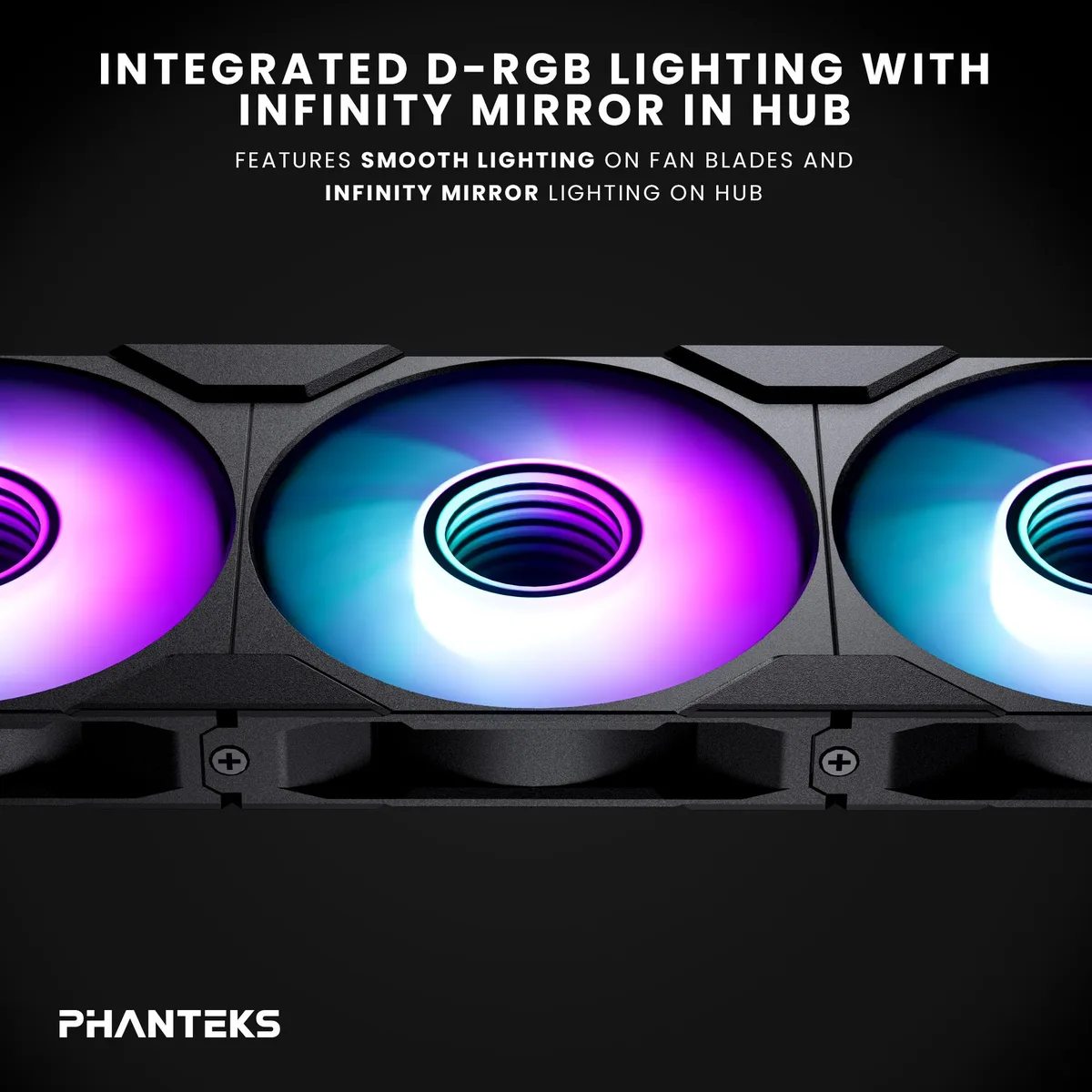

The single-cable Linq6 system suits anyone who prefers a clean interior and software-controlled effects via the Phanteks NexLinq app. The pack provides three fans, so a build needing four or more units will require an additional kit. No standalone controller is included, so motherboard or hub headers must handle PWM and addressable RGB signals.

73.69 CFM airflow at 2000 RPM

At maximum speed the fans move 73.69 CFM and generate 1.99 mmH₂O static pressure, making them effective on radiators and dense heatsinks. Noise peaks at 39.28 dBA. The 350 RPM minimum allows quiet idle operation, but very high-restriction loops may need faster or additional fans beyond this triple pack.

Points forts

  • Three fans interlock with a unified frame for tidy daisy-chaining
  • One Linq6 cable handles both PWM control and DRGB lighting
  • 69 CFM airflow and 1.99 mmH₂O pressure suit radiators and heatsinks
  • Hydraulic bearing runs from 350 to 2000 RPM at 39.28 dBA max
  • Screw covers and corner bridges create a clean, finished look

Caractéristiques

BrandPhanteks
ModelM25-120 Gen2 Reversed
Part NumberPH-F120M25R_G2_DBK01_3P
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-2000 +/- 10% RPM Max
Air Flow73.69 CFM Max
Air Pressure1.99 mmH2O Max
Noise Level39.28 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / Black Fan Frame
LEDDRGB
Dimensions120 x 120 x 25 mm
Package ContentsM25-120 Gen2 Reversed Fan: 3x
Fan Screws: 14x
500mm Linq6 Extension Cable: 2x
500mm Linq6 M/B Adapter: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 4x
Installation Guide: 1x
Poids d’expédition0.77 kg
Dimensions du colis401 × 152 × 51 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Do I need a motherboard header that supports PWM 4-pin control to run these three 120 mm fans?

Yes, each fan uses a PWM 4-pin power connector, so a compatible motherboard header or fan controller is required for speed regulation.

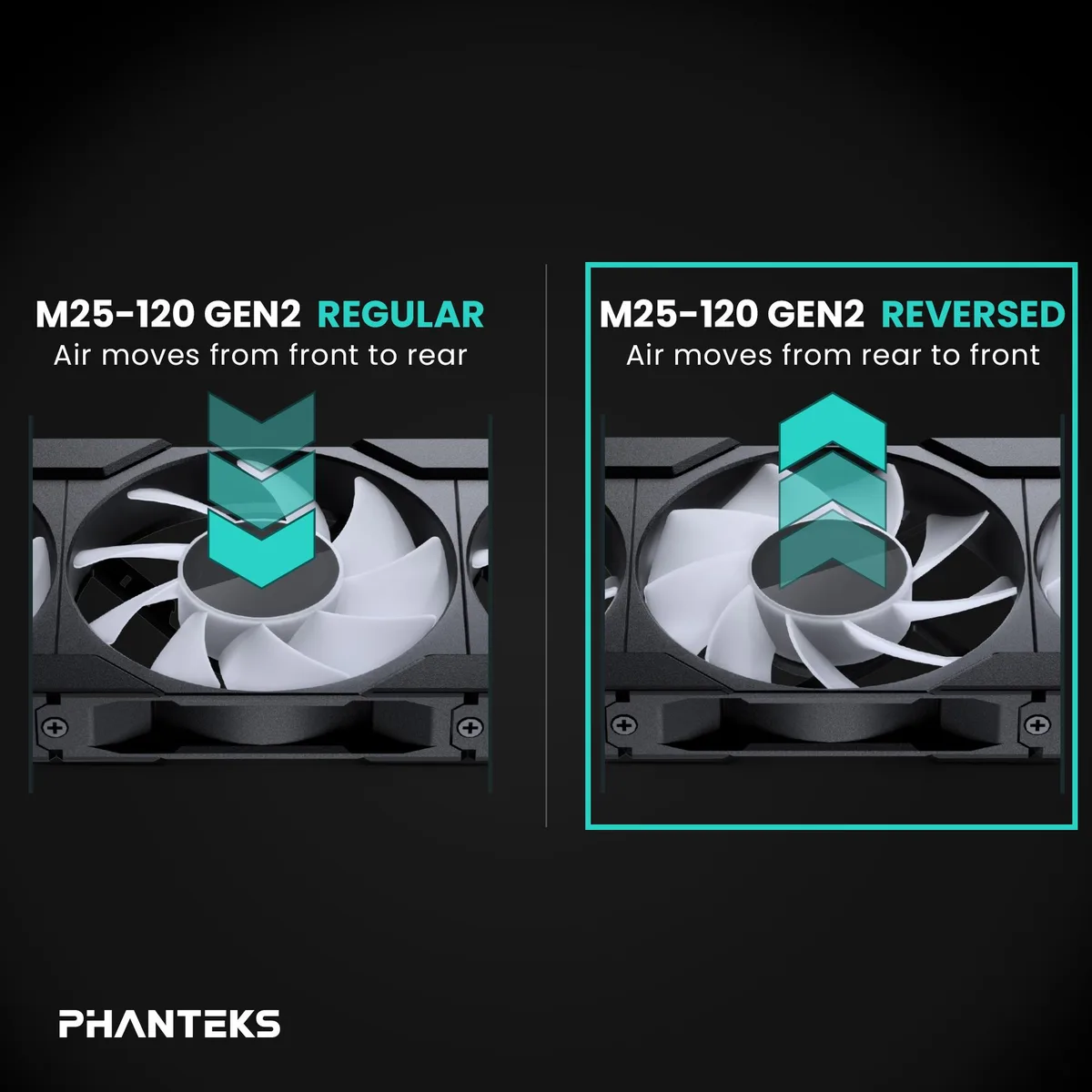

Will the reversed-blade design of these fans still push air through my existing 120 mm radiator the same way a standard fan does?

The reversed blades pull air through the radiator instead of pushing it, so you should mount them on the opposite side of the radiator to maintain the same airflow direction.

How can I verify the DRGB lighting and fan speed are working together after I connect the single Linq6 cable?

In the Phanteks NexLinq App you can set a lighting effect and a fan curve; if the infinity-mirror LEDs change colour while the RPM readout follows the curve, both channels are active.
