Three white 140mm fans with DRGB lighting and screw covers

Phanteks

Phanteks PH-F140M25R_G2_DWT01_3P 140mm case fan 3-pack

SKU CH-1SZP-TMH70 MPN PH-F140M25R_G2_DWT01_3P

Three 140 mm hydro-bearing fans deliver up to 100.07 CFM at 1800 RPM with DRGB lighting and daisy-chain Linq6 cabling

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydro Bearing

Fan Size 140mm

Style Reversed

Model M25 Gen2

  • M25 Gen2
  • M25
  • D30

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 140 mm fans deliver 100.07 CFM max airflow for strong cooling
  • Hydro bearing runs at 40.95 dBA max for quiet operation
  • Daisy-chain frame links three fans with a single Linq6 cable

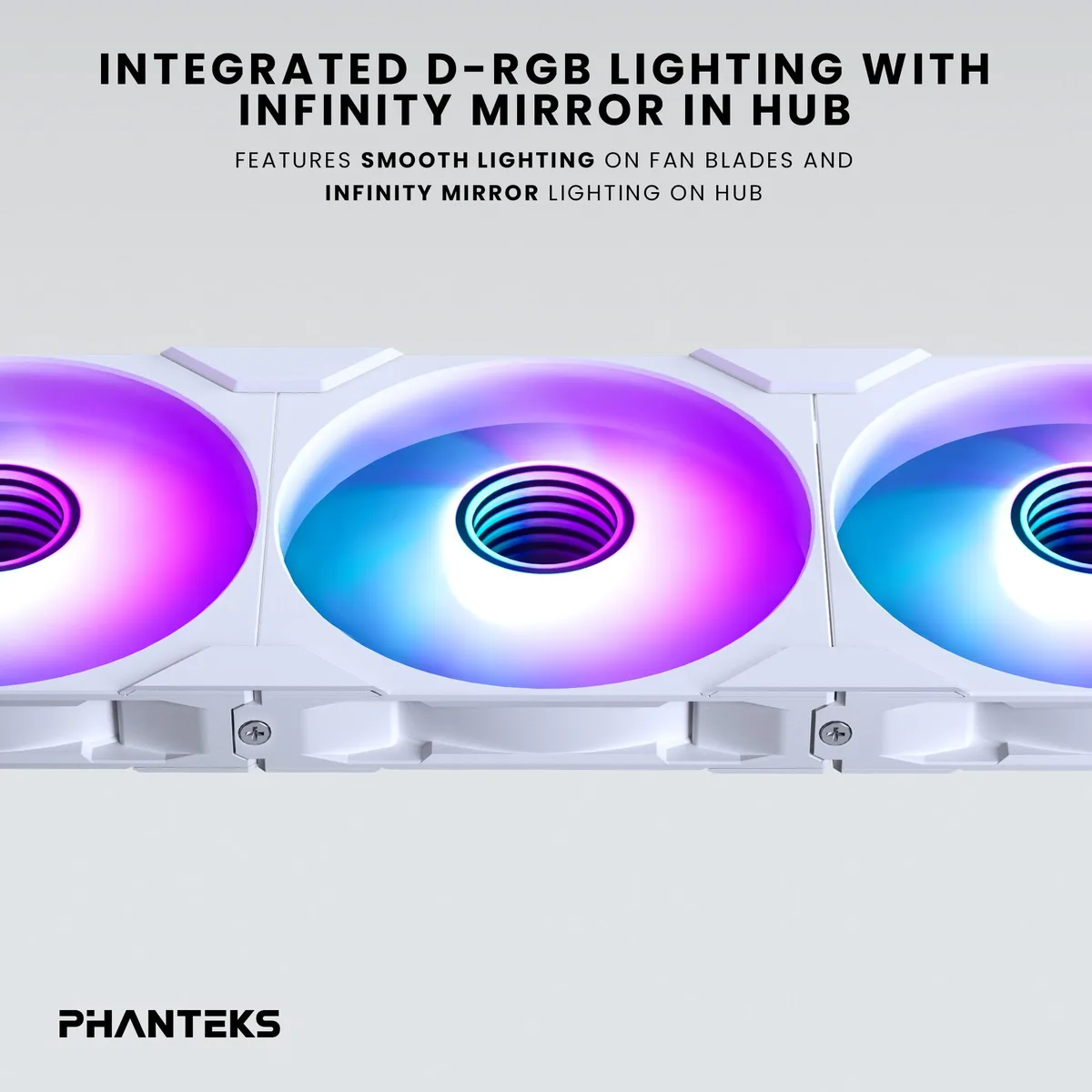

  • DRGB lighting adds addressable colour through motherboard sync
  • PWM control spans 350 to 1800 RPM for precise speed tuning

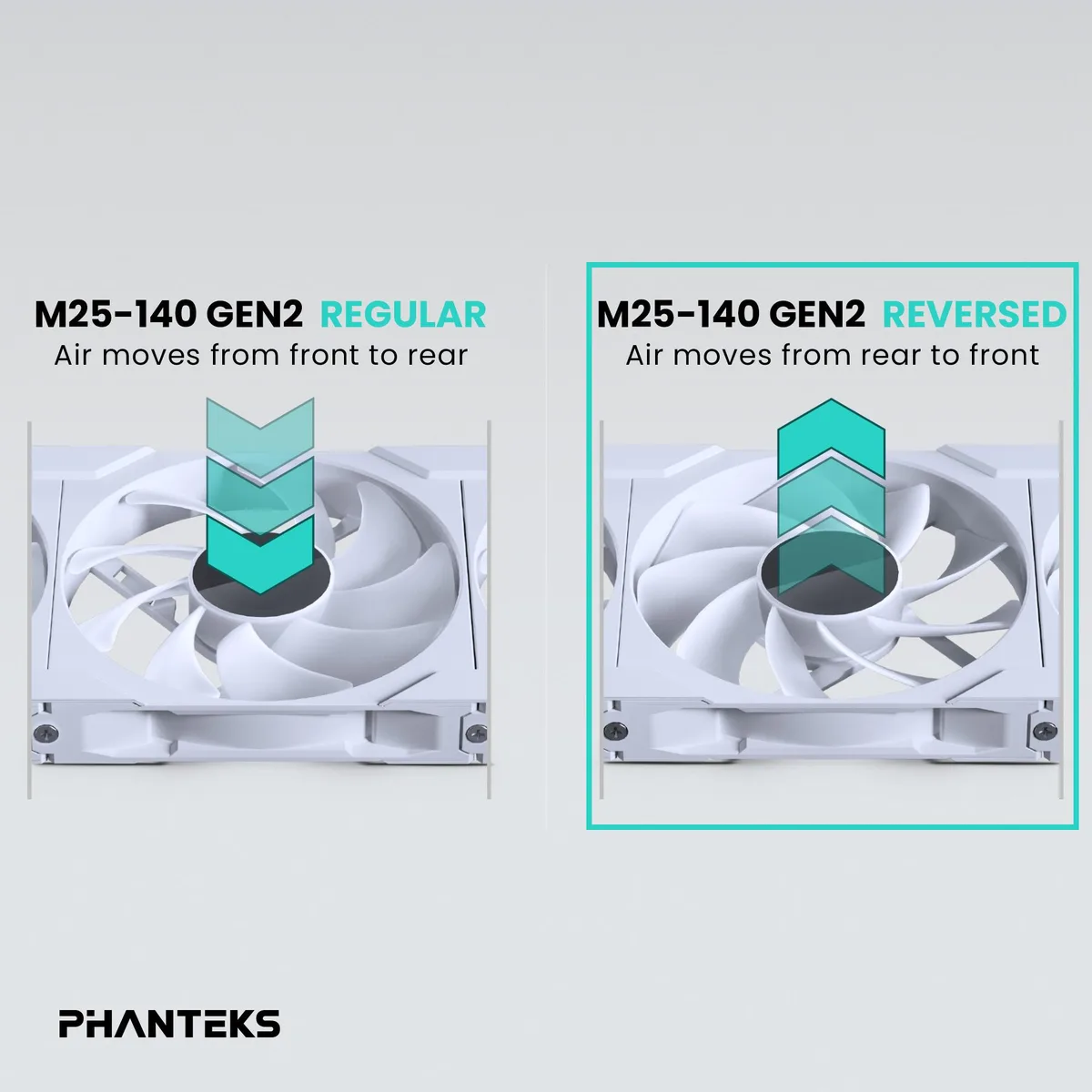

Three-Fan Kit with Reverse Airflow

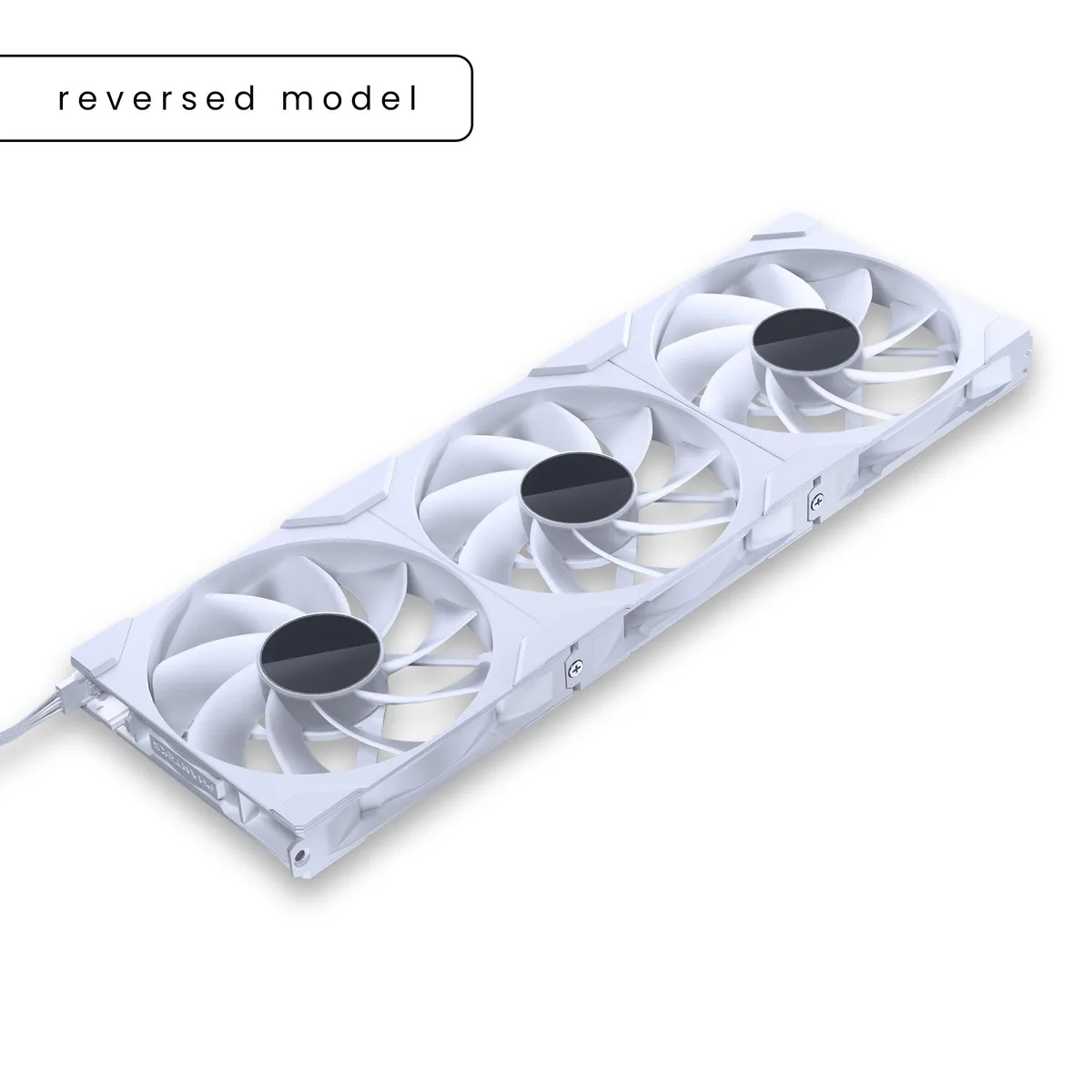

This pack contains three 140 mm Phanteks M25 Gen2 Reversed fans in a white matte finish. Each unit uses a hydro bearing and spins between 350 and 1800 RPM, moving up to 100.07 CFM at a maximum static pressure of 2.04 mmH2O. Integrated DRGB lighting runs through a single Linq6 cable that also carries the PWM signal.

Builders Who Want Clean Cable Routing

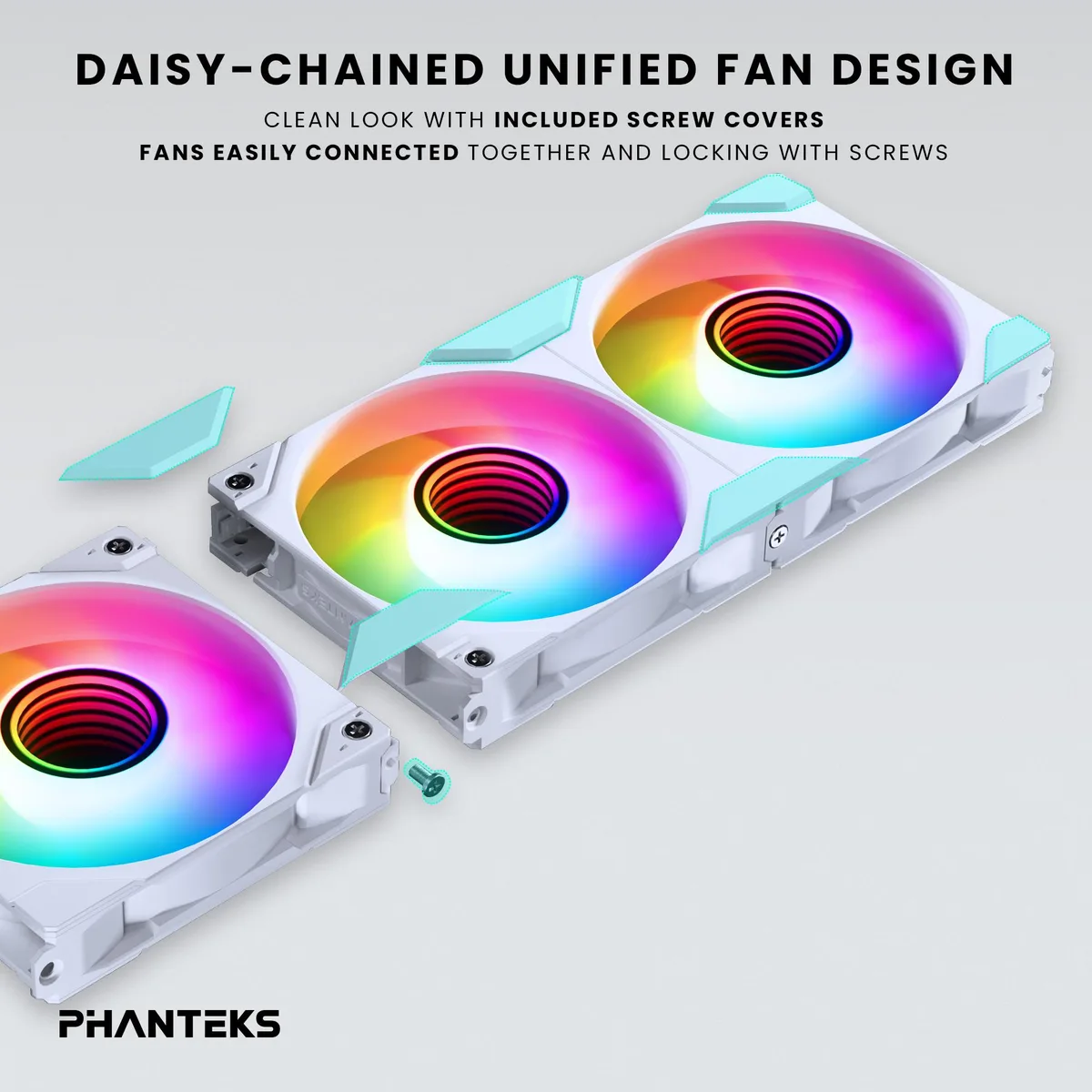

The daisy-chain frame lets adjacent fans lock together so one Linq6 lead powers and controls the whole chain. Two 500 mm extension cables and a motherboard adapter are included for flexible placement. Buyers who need a hardware fan controller in the box or prefer traditional 3-pin voltage control should look at other models.

Screw Covers and Linq6 Cabling Included

Fourteen mounting screws ship with corner and bridge covers that hide fastener heads for a uniform appearance. The Linq6 ecosystem merges fan speed and DRGB control into one connector, reducing wire count behind the motherboard tray. An installation guide walks through the interlocking frame assembly step by step.

Points forts

  • 140 mm fans deliver 100.07 CFM max airflow for strong cooling
  • Hydro bearing runs at 40.95 dBA max for quiet operation
  • Daisy-chain frame links three fans with a single Linq6 cable
  • DRGB lighting adds addressable colour through motherboard sync
  • PWM control spans 350 to 1800 RPM for precise speed tuning

Caractéristiques

BrandPhanteks
ModelM25-140 Gen2 Reversed
Part NumberPH-F140M25R_G2_DWT01_3P
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydro Bearing
RPM350-1800 +/- 10% RPM
Air Flow100.07 CFM Max
Air Pressure2.04 mmH2O
Noise Level40.95 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / White Fan Frame
LEDDRGB

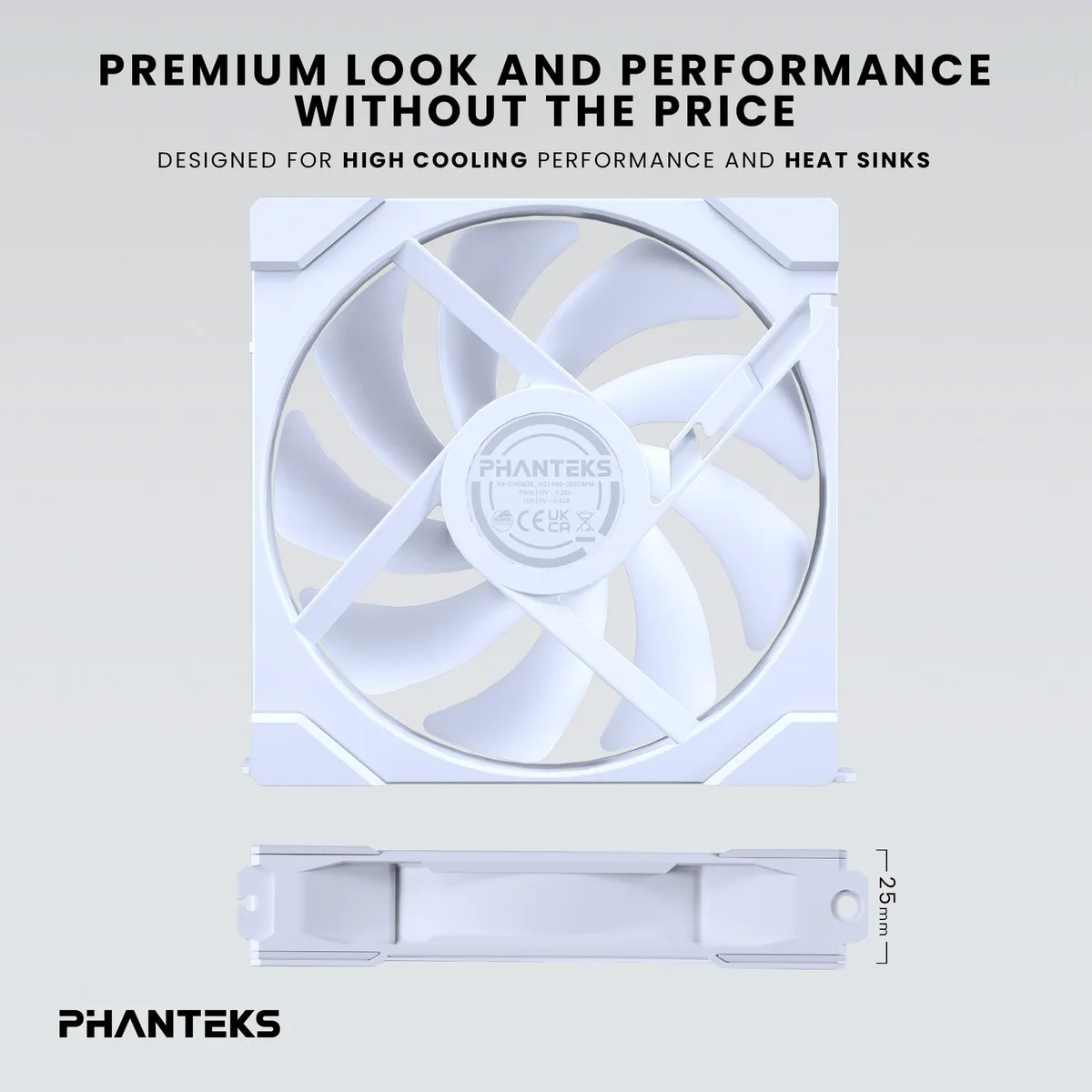

Dimensions140 x 140 x 25 mm
Package ContentsM25-140 Gen2 Reversed Fan: 3x
Fan Screws: 14x
500mm Linq6 Extension Cable: 2x
500mm Linq6 M/B Adapter: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 4x
Installation Guide: 1x
Poids d’expédition0.93 kg
Dimensions du colis457 × 165 × 51 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does my motherboard need a PWM 4-pin header for these fans?

Yes, each fan uses a PWM 4-pin power connector and the pack includes a 500mm Linq6 motherboard adapter for a single header.

Can I daisy-chain these reversed fans with my older Phanteks fans that use a different connector?

The Gen2 reversed fans use the Linq6 connector for daisy-chaining; older Phanteks fans with a different connector cannot be linked in the same chain.

How do I verify the DRGB lighting and fan speed are working after I install the three fans?

Connect the included Linq6 motherboard adapter to a 4-pin PWM header and a DRGB header, then check for smooth lighting effects and RPM readings between 350 and 1800 in your motherboard software.
