Three 140 mm square case fans, 30 mm thick, white matte blades in black frames, DRGB halo lighting visible from all sides

Phanteks

Phanteks PH-F140D30R_DRGB_PWM_BK01_3P 140mm 30mm DRGB PWM case fan 3-pack

SKU CH-WKD3-DB39P MPN PH-F140D30R_DRGB_PWM_BK01_3P

Three 140 mm thick fans deliver up to 71.76 CFM at 32.1 dB(A) with daisy-chainable DRGB lighting

  • Fan Counts3 Fans
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness30mm
  • Bearing TypeFluid Dynamic
  • RPM250-1800 +/- 10% RPM

Fan Size 140mm

Style Reversed

  • Regular / No DRGB
  • Regular
  • Reversed

Model D30

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Reverse airflow option keeps lighting visible
  • Daisy-chain linking cuts cable clutter across three fans
  • 30 mm frame pushes 71.76 CFM through radiators
  • Fluid-dynamic bearing runs at 32.1 dB(A)

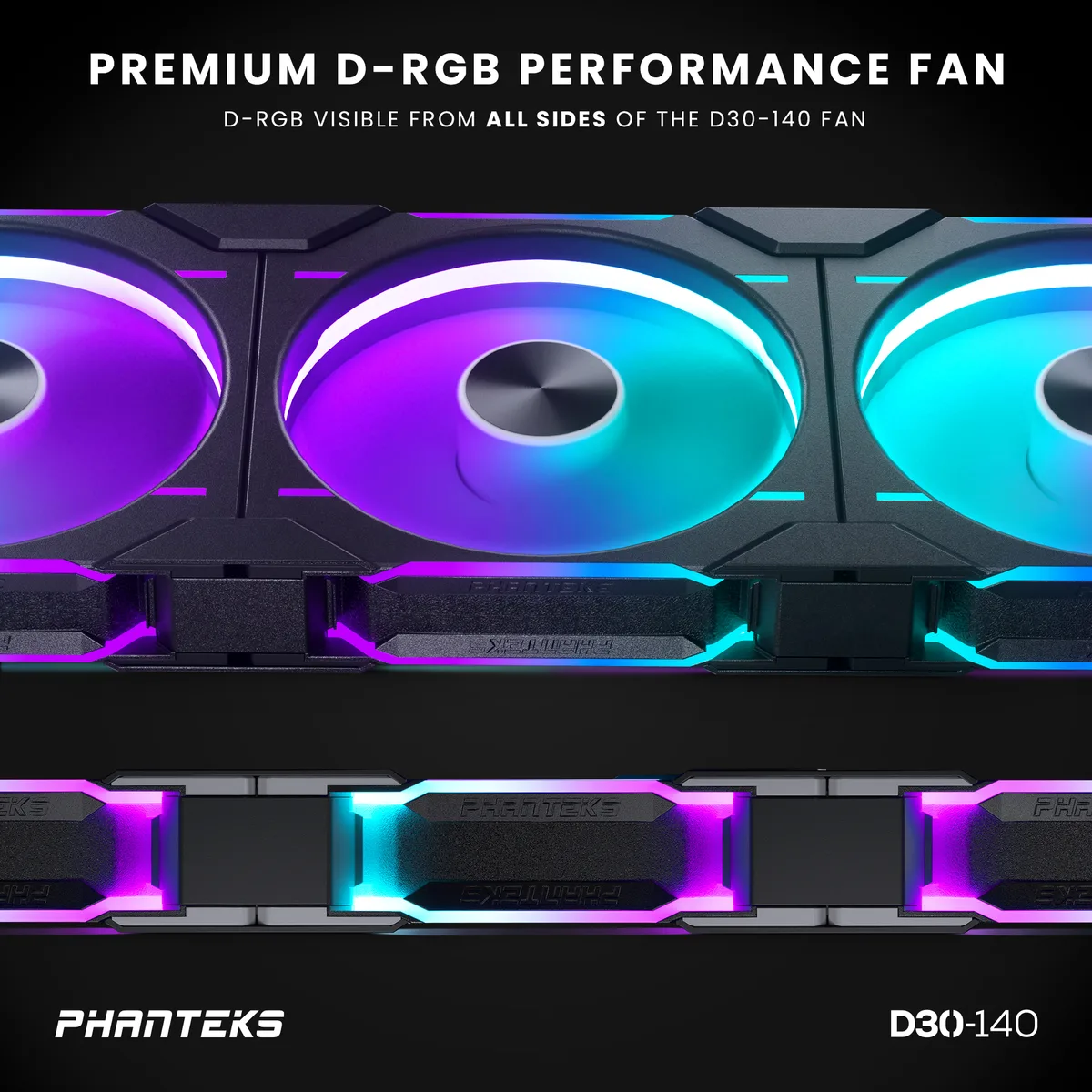

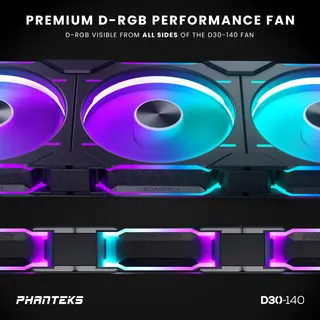

  • DRGB halos sync with motherboard RGB headers

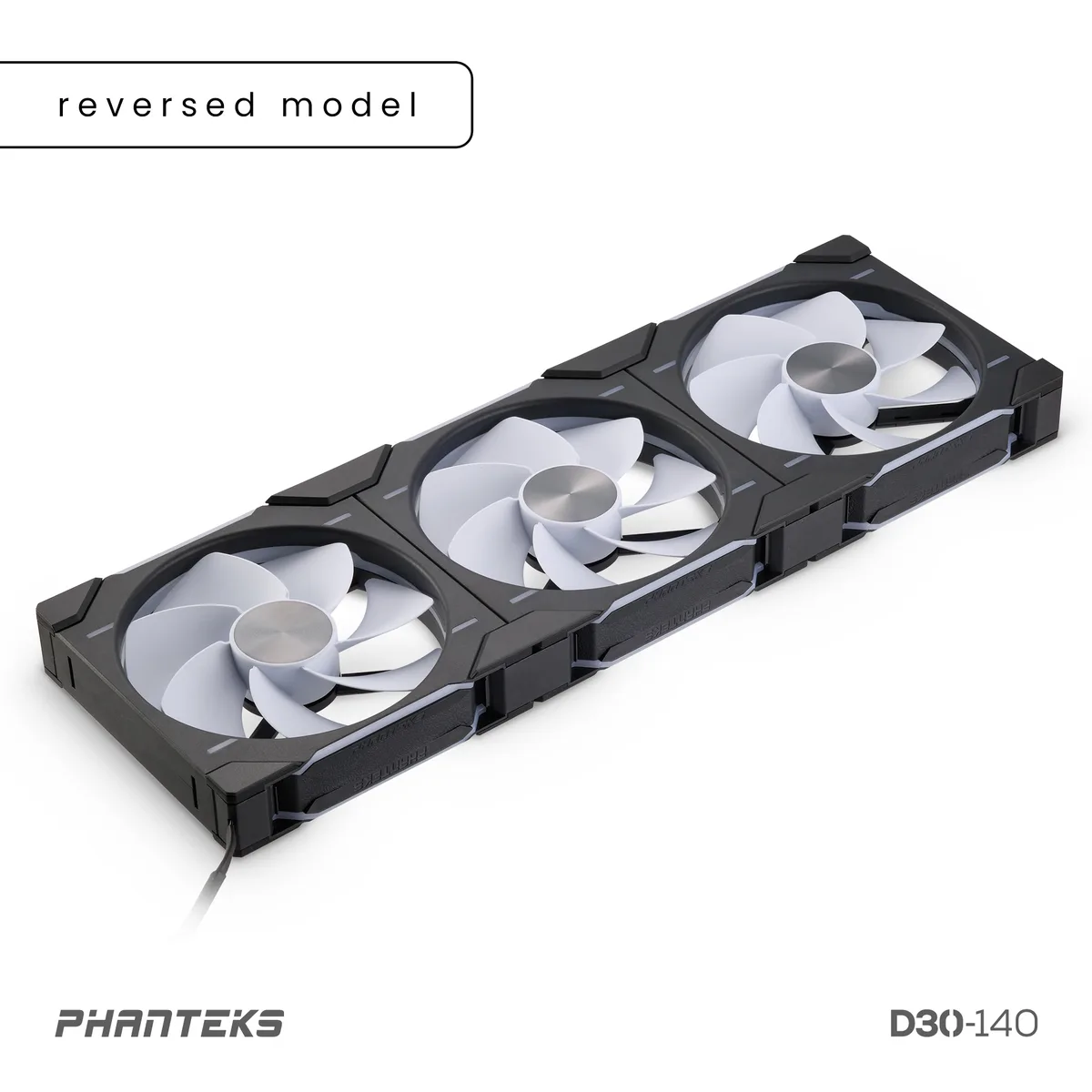

Three-Pack Reverse Airflow DRGB Fans

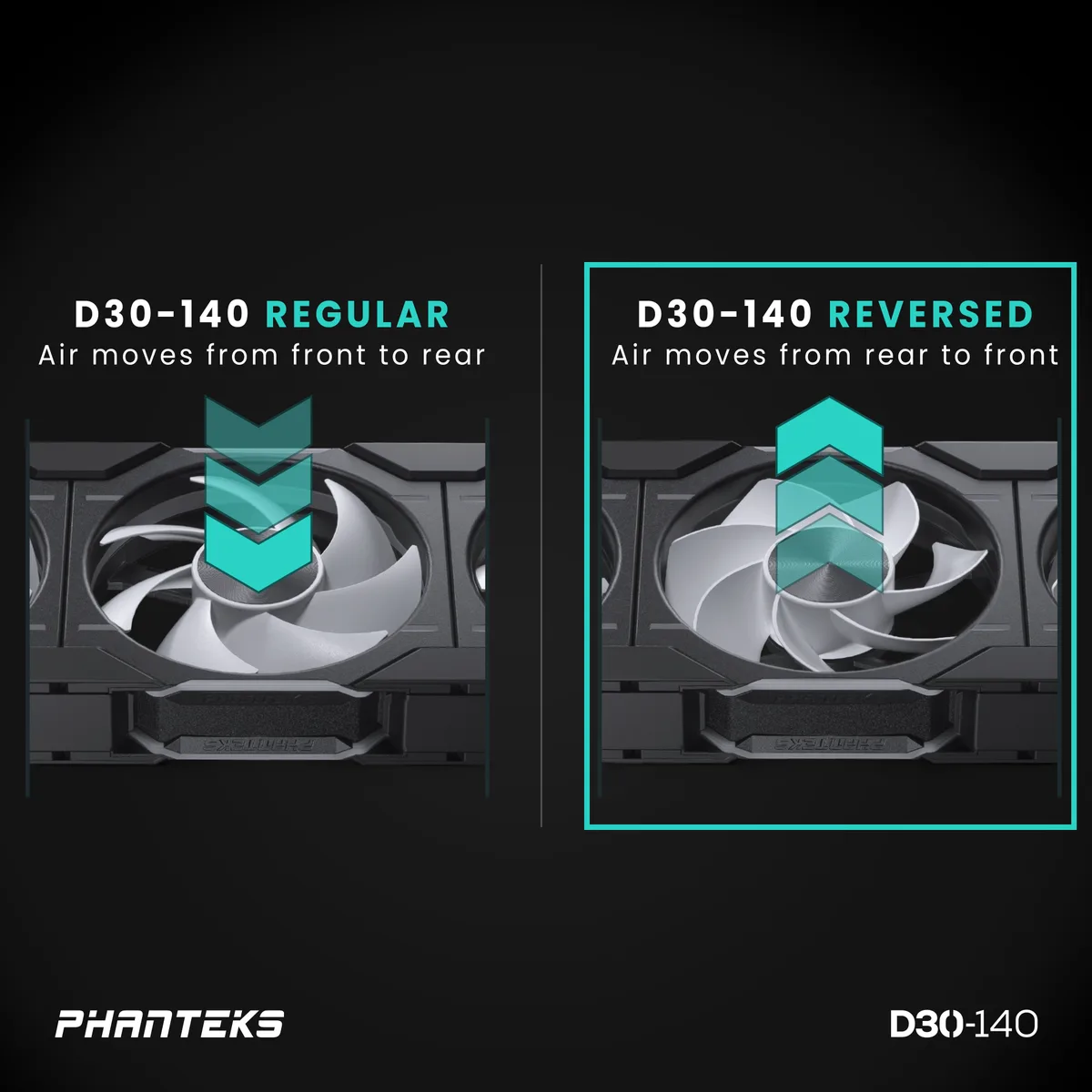

This set includes three 140 mm Phanteks D30 fans with reverse airflow so the illuminated blades face the interior while air moves away from the lighting ring. Each unit uses a fluid-dynamic bearing and a 4-pin PWM connector for motherboard speed control. The pack suits builders who want coordinated DRGB lighting and push-pull radiator setups without mixing fan directions.

Sustained Pressure At Thirty Millimetres Thick

At full speed the fans reach 1800 RPM and deliver 71.76 CFM while producing 32.1 dB(A). The 30 mm frame maintains static pressure through dense radiator fins or restrictive mesh during long gaming or rendering sessions. Speed ramps from 250 RPM for quiet idle operation up to the maximum when thermal load demands it.

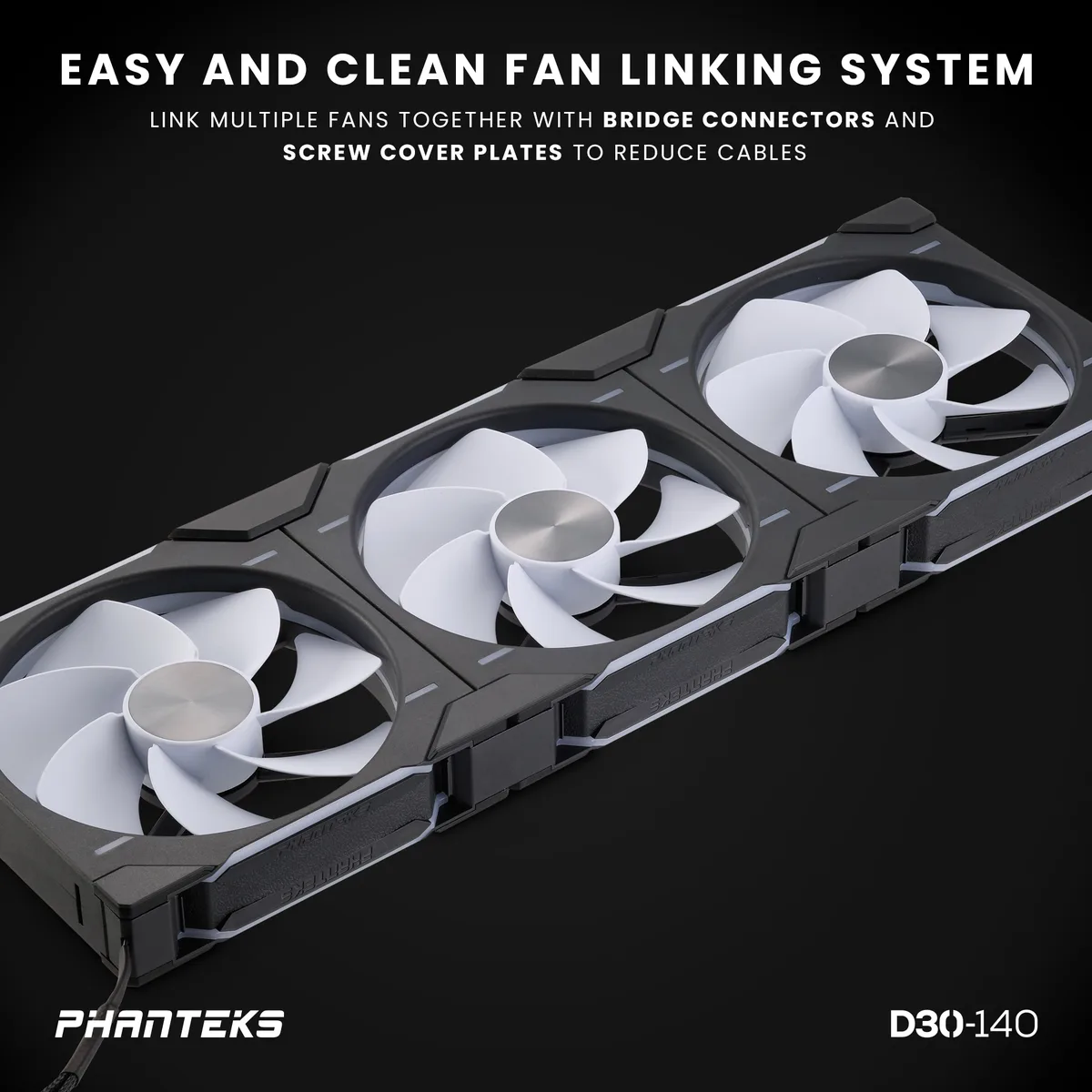

Daisy-Chain Mounting With Included Hardware

Twelve fan screws, twelve UNC 6-32 and twelve M4 radiator screws plus corner clips, bridge clips and screw covers let you link all three fans into a single cable run. The DRGB motherboard adapter connects the chain to a 5 V addressable header. Builders who need only one or two fans, or who lack a 5 V DRGB header, should note the kit is designed around the three-fan linking system.

Points forts

  • Reverse airflow option keeps lighting visible
  • Daisy-chain linking cuts cable clutter across three fans
  • 30 mm frame pushes 71.76 CFM through radiators
  • Fluid-dynamic bearing runs at 32.1 dB(A)
  • DRGB halos sync with motherboard RGB headers

Caractéristiques

BrandPhanteks
ModelPH-F140D30R_DRGB_PWM_BK01_3P
Fan Counts3 Fans
TypeCase Fan
Fan Size140mm
Fan Thickness30mm
Bearing TypeFluid Dynamic
RPM250-1800 +/- 10% RPM
Air Flow71.76 CFM Max
Noise Level32.1 dB(A)
Power Connector4 Pin
ColorWhite Matte blade / Black Fan Frame
LEDDRGB
Dimensions140 x 140 x 30 mm / 5.51" x 5.51" x 1.18"
Package Contents3 x PH-F140D30R_DRGB_PWM_BK01
12 x Fan Screw
12 x UNC 6-32 Radiator Screw 36mm
12 x M4 Radiator Screw 36mm
2 x Corner Clip Cable, 6 x Corner Clip
2 x Bridge Clip, 2 x Bridge Clip Connector
8 x Screw Cover Corner (4L, 4R)
4 x Screw Cover Bridge
1 x D-RGB M/B Adapter
Poids d’expédition1.36 kg
Dimensions du colis196 × 143 × 100 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud are the three 140 mm fans when they spin at the maximum 1800 RPM all day?

The fans reach 32.1 dB(A) at full speed, which is a quiet hum even during extended loads.

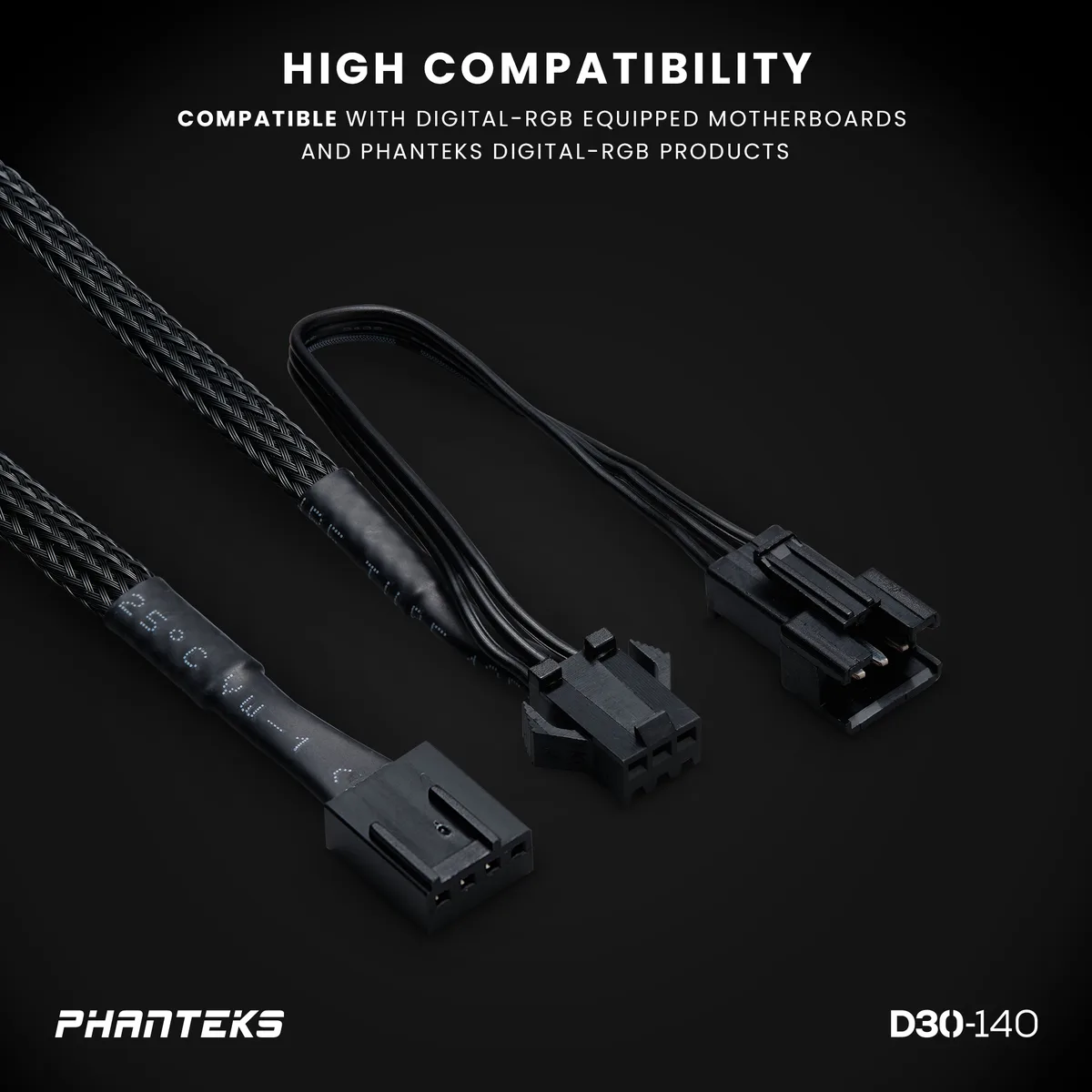

What motherboard headers are required to run the PWM control and DRGB lighting on this 3-pack?

You need one 4-pin PWM header for fan control and a 5 V 3-pin DRGB header or the included adapter for lighting.

Will the 30 mm thick frames fit alongside my existing 25 mm fans without blocking the DRGB halos?

The extra 5 mm thickness means you need 30 mm clearance at each mount; the reverse-blade design keeps the halo lighting visible from the front.
