Three white 120mm case fans with DRGB lighting, 30mm thick, reverse airflow design

Phanteks

Phanteks PH-F120D30R_DRGB_PWM_WT01_3P case fan 120mm 30mm 3 pack white reverse airflow

SKU CH-8HRF-5K11P MPN PH-F120D30R_DRGB_PWM_WT01_3P

Three 120 mm white PWM fans with 30 mm frames, DRGB lighting and reverse airflow deliver 61.5 CFM at 31.8 dB(A)

  • Fan Counts3 Fans
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness30mm
  • Bearing TypeFDB (Fluid Dynamic Bearing)

Fan Size 120mm

Style Reversed

  • Regular / No DRGB
  • Regular
  • Reversed

Model D30

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Reverse airflow keeps blade lighting visible
  • 30 mm frame delivers high static pressure
  • Daisy-chain linking cuts cable clutter
  • DRGB lighting shines from all sides
  • FDB bearing runs 250-2000 RPM at 31.8 dB(A)

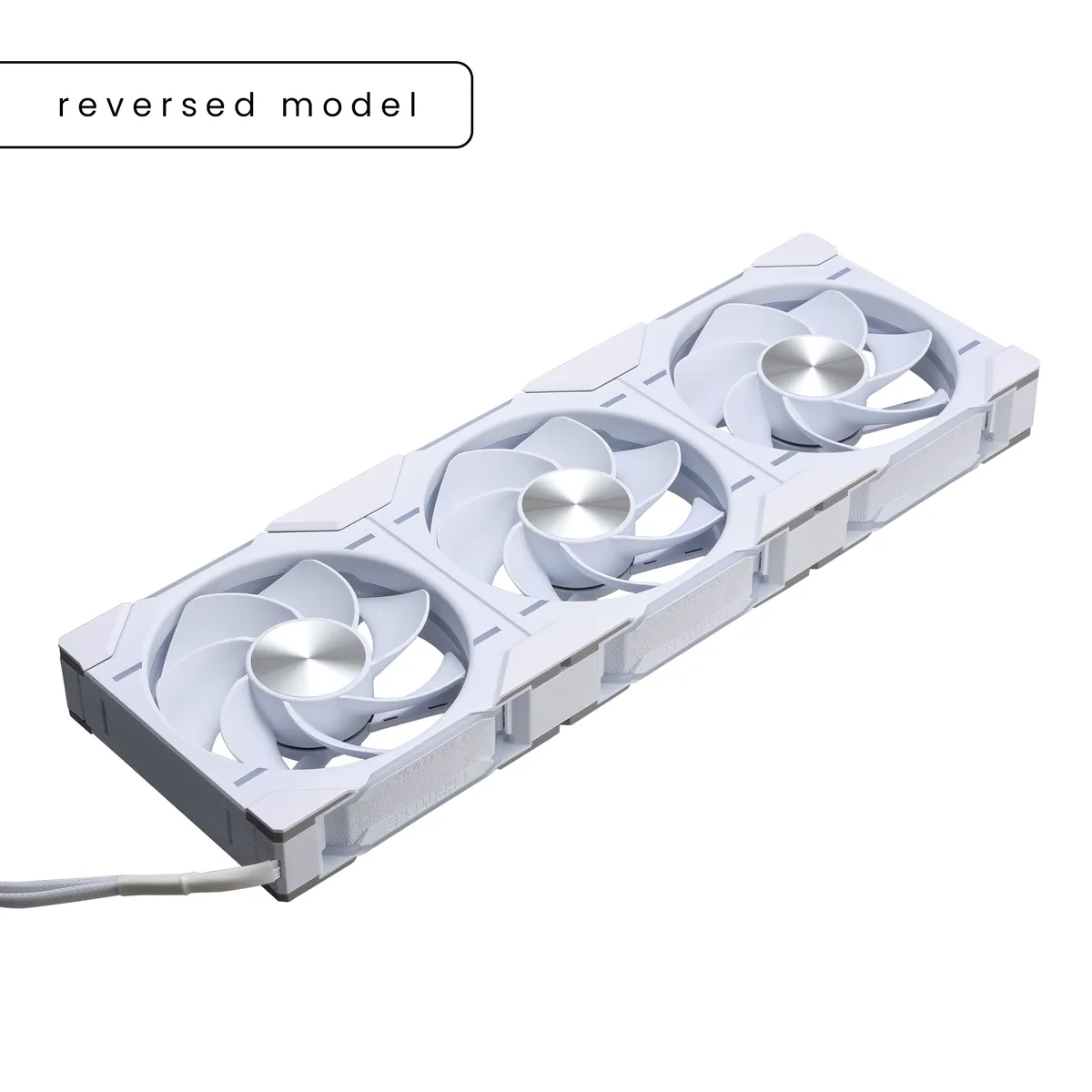

Three-pack white reverse fans

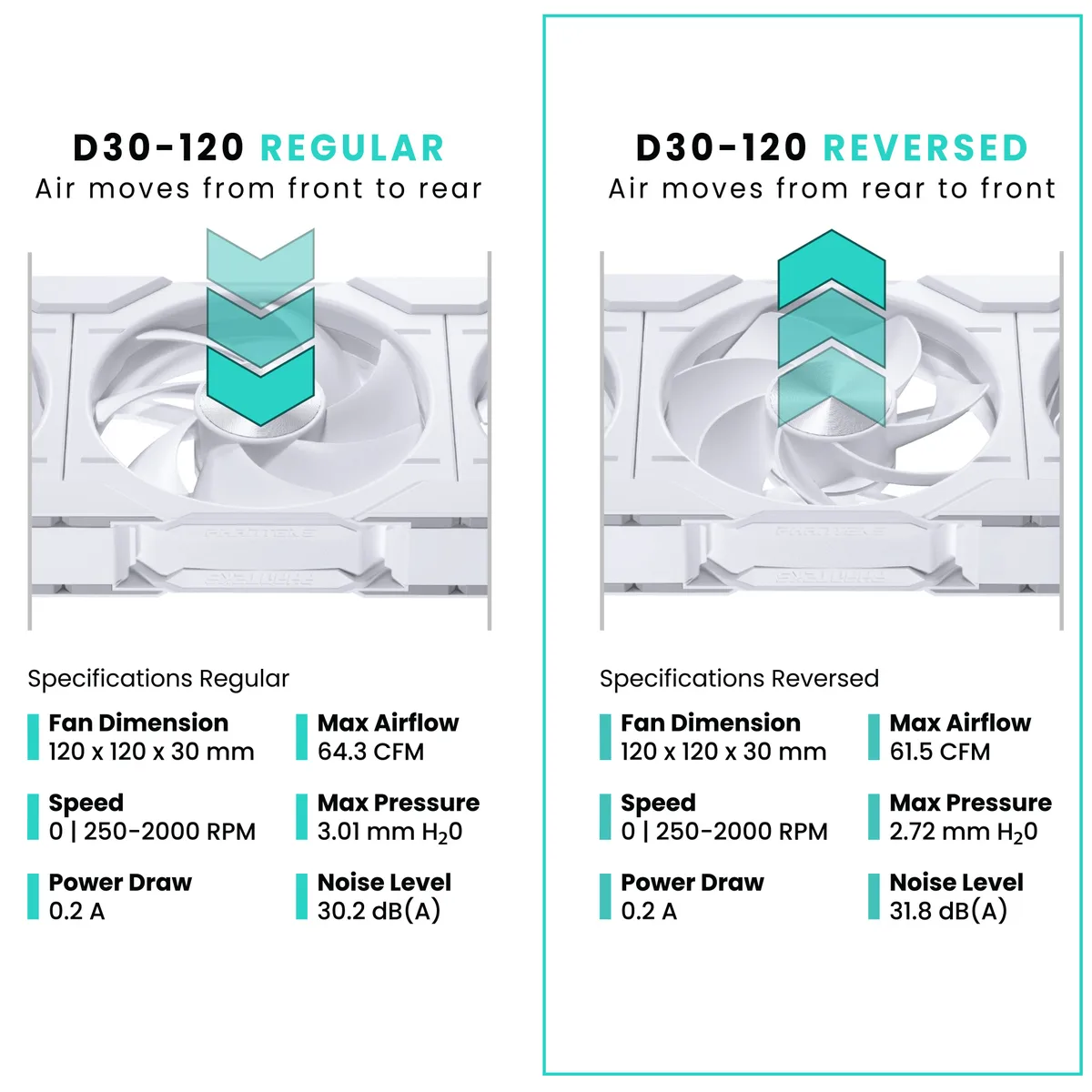

This three-pack supplies 120 mm case fans with a 30 mm thick frame and reverse airflow direction. The white matte blades and frame suit light-themed builds. Fluid dynamic bearings support a 250 to 2000 RPM range. Maximum airflow reaches 61.5 CFM at 31.8 dB(A).

Daisy-chain DRGB linking

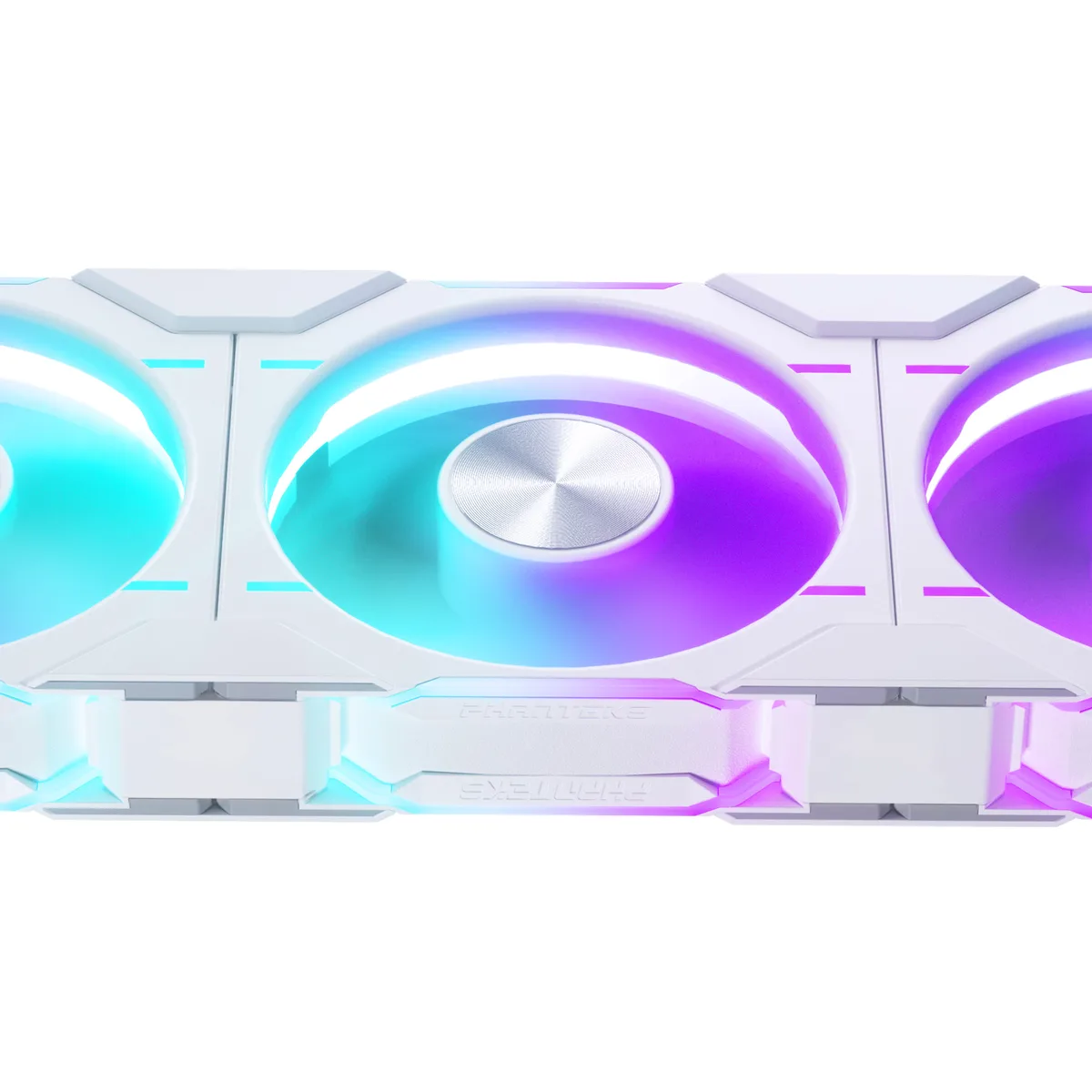

The integrated DRGB lighting is visible from all sides and reflects off the blades via an internal halo ring. A daisy-chain linking system connects multiple fans with bridge connectors and screw cover plates, reducing cable clutter. The fans work with digital-RGB motherboard headers and Phanteks DRGB accessories.

30 mm thickness constraint

The 30 mm thickness exceeds the standard 25 mm slot depth found in many cases and radiators. Builders must verify clearance before installation. The 4-pin PWM connector provides speed control, but the thicker frame can block side-panel closure or interfere with adjacent components in tight layouts.

Points forts

  • Reverse airflow keeps blade lighting visible
  • 30 mm frame delivers high static pressure
  • Daisy-chain linking cuts cable clutter
  • DRGB lighting shines from all sides
  • FDB bearing runs 250-2000 RPM at 31.8 dB(A)

Caractéristiques

BrandPhanteks
SeriesD30-120
ModelD30-120, White, Reversed, 3 Pack
Part NumberPH-F120D30R_DRGB_PWM_WT01_3P
Fan Counts3 Fans
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness30mm
Bearing TypeFDB (Fluid Dynamic Bearing)
RPM250-2000±10% RPM
Air FlowMax. Airflow 61.5 CFM
Noise Level31.8 dB(A)
Power Connector4-Pin PWN
ColorWhite Matte blade / White Fan Frame
LEDDRGB
Dimensions120 x 120 x 30 mm
Poids d’expédition1.02 kg
Dimensions du colis183 × 124 × 102 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How often should the FDB bearing in these 120mm D30 fans be replaced under normal use?

The FDB (Fluid Dynamic Bearing) is sealed for life and does not have a published replacement interval; the fan runs at 250-2000 RPM with a maximum noise of 31.8 dB(A).

What limits continuous operation first — the 61.5 CFM airflow ceiling or the 31.8 dB(A) noise floor?

The fan tops out at 2000 RPM delivering 61.5 CFM; at that speed the noise reaches 31.8 dB(A), so airflow and acoustic limits arrive together.

How much heat and power does the 30mm thick DRGB frame add when all three fans run at 2000 RPM all day?

Each fan draws power through its 4-pin PWM connector; the 30mm thickness is designed for static pressure on radiators, and noise stays at 31.8 dB(A) max.
