White 140mm square case fan, 30mm thick, matte blades and frame, DRGB lighting ring visible through translucent blades

Phanteks

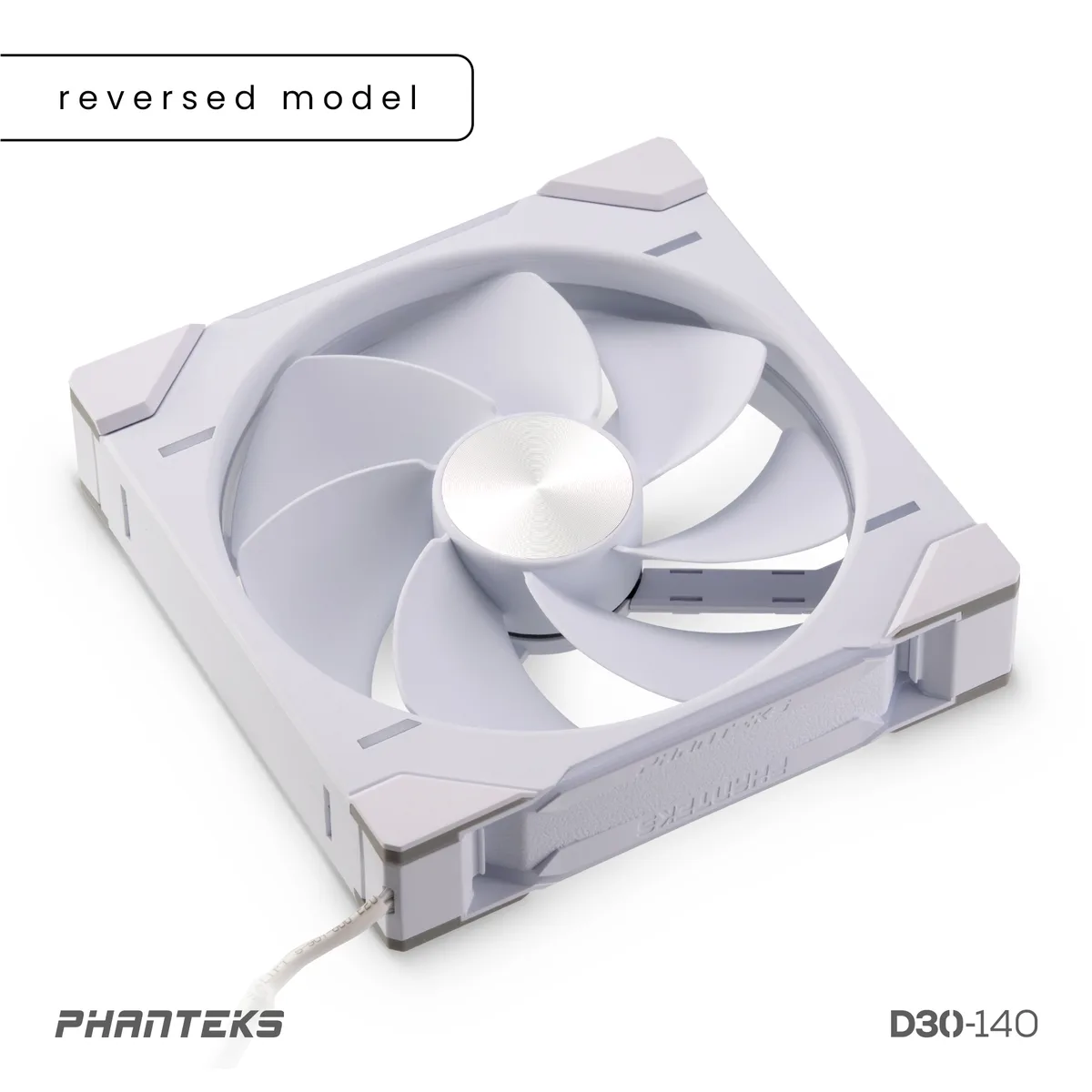

Phanteks PH-F140D30R_DRGB_PWM_WT01 140mm 30mm reverse airflow case fan

SKU CH-V57K-NHFVD MPN PH-F140D30R_DRGB_PWM_WT01

White 140 mm reverse-airflow fan with 30 mm frame, fluid-dynamic bearing, 71.76 CFM max flow and 32.1 dB(A) noise, plus daisy-chainable DRGB lighting

  • Fan Counts1 Fan
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness30mm
  • Bearing TypeFluid Dynamic
  • RPM250-1800 +/- 10% RPM

Fan Size 140mm

Style Reversed

  • Regular / No DRGB
  • Regular
  • Reversed

Model D30

Option Single Fan

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Reverse airflow design keeps blade lighting fully visible
  • 30 mm thick frame pushes air through radiators and dense mesh
  • Daisy-chain linking cuts cable clutter for multi-fan setups
  • Fluid-dynamic bearing runs 250-1800 RPM at 32.1 dB(A) max noise
  • DRGB illumination syncs with motherboard RGB headers

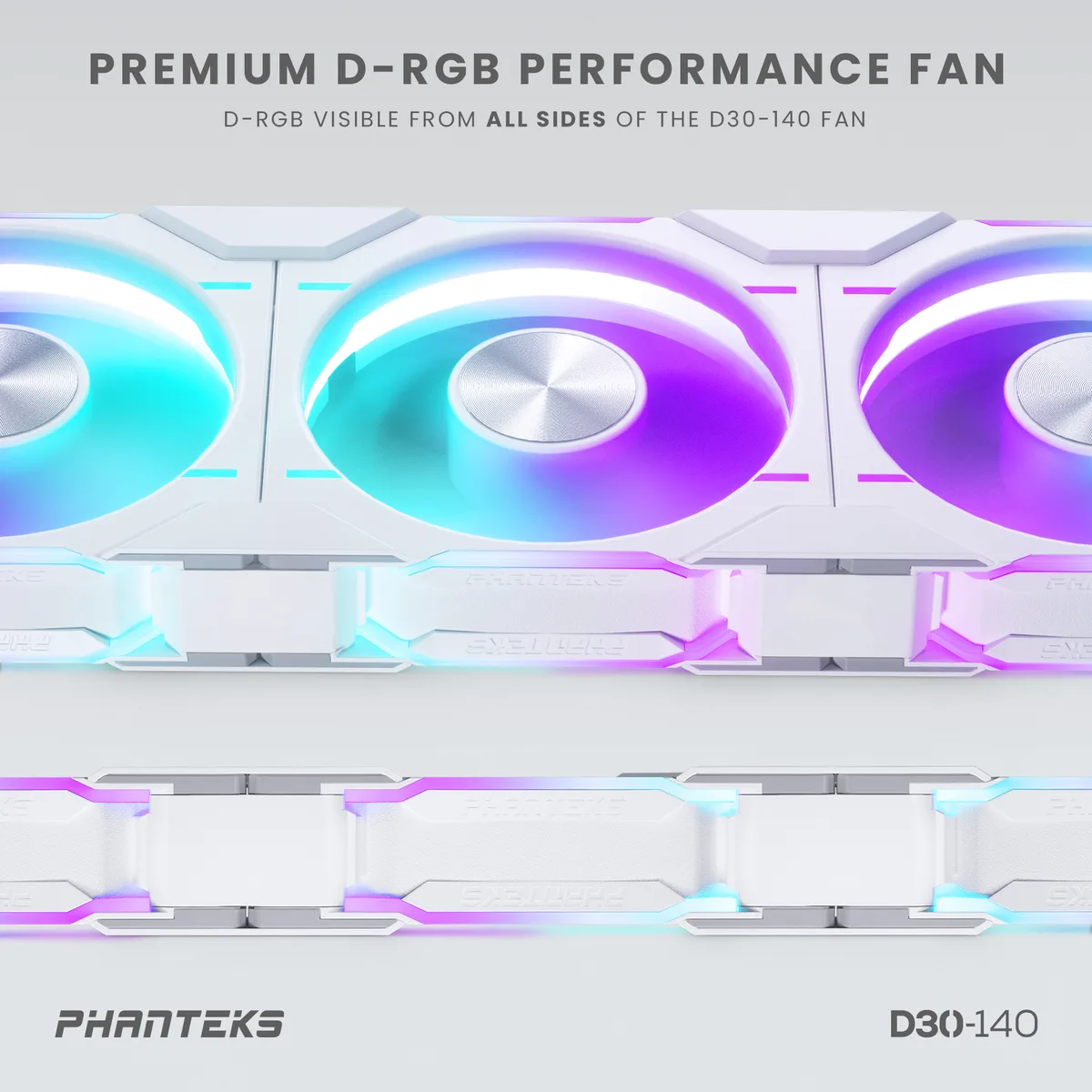

Reverse Airflow DRGB Fan

The Phanteks D30-140 DRGB PWM fan uses a reverse airflow design so the illuminated blades face outward while pulling air through radiators or restrictive mesh. White matte blades and a white frame match light-themed builds and the integrated DRGB halos remain visible from every angle. One fan is supplied in the box.

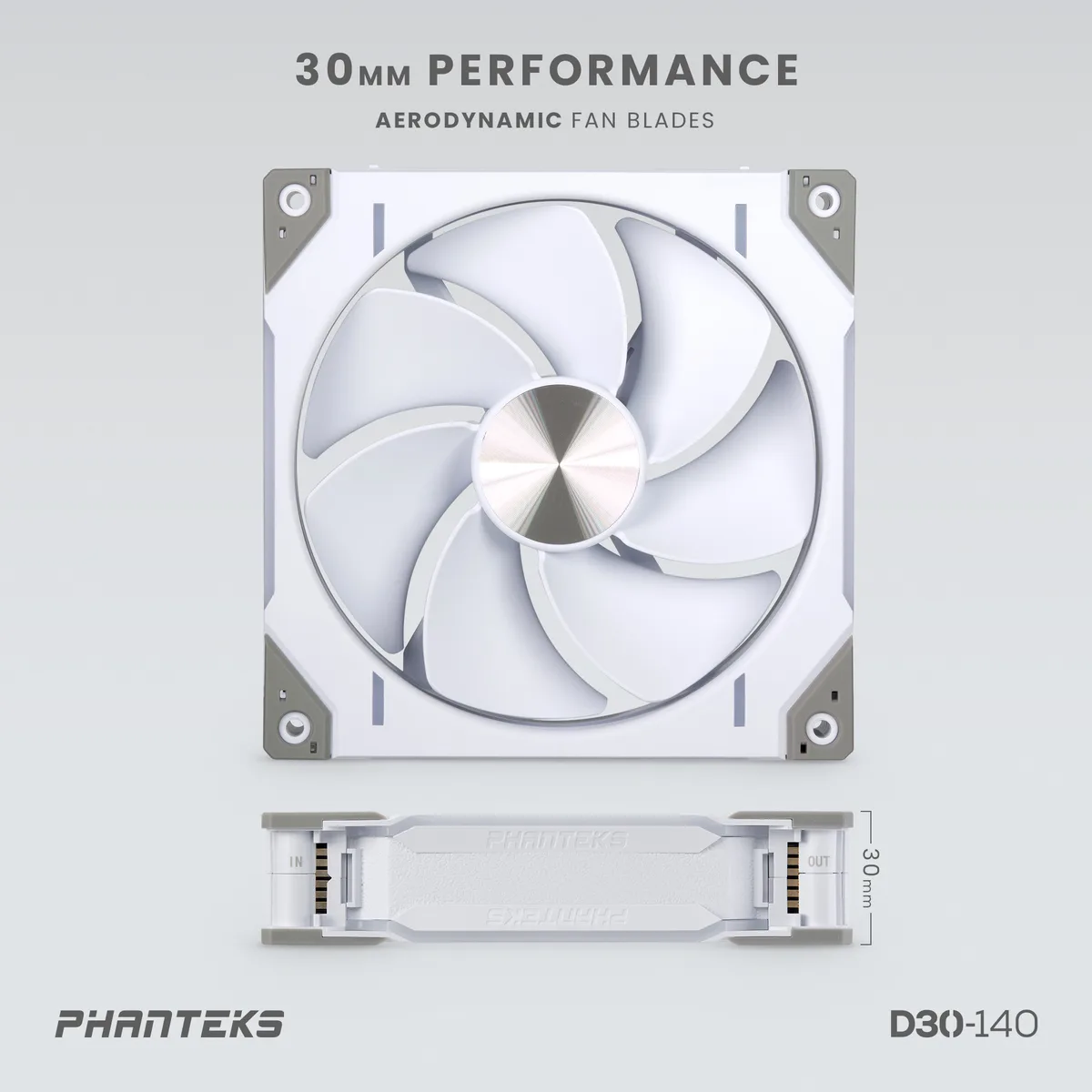

PWM Control and 30 mm Thickness

A 4-pin PWM connector lets the motherboard vary speed between 250 and 1800 RPM with a 10 percent tolerance. At maximum speed the fan delivers 71.76 CFM while producing 32.1 dB(A). The 30 mm thick frame generates the static pressure needed for dense radiator fins or thick dust filters where slimmer fans lose effectiveness.

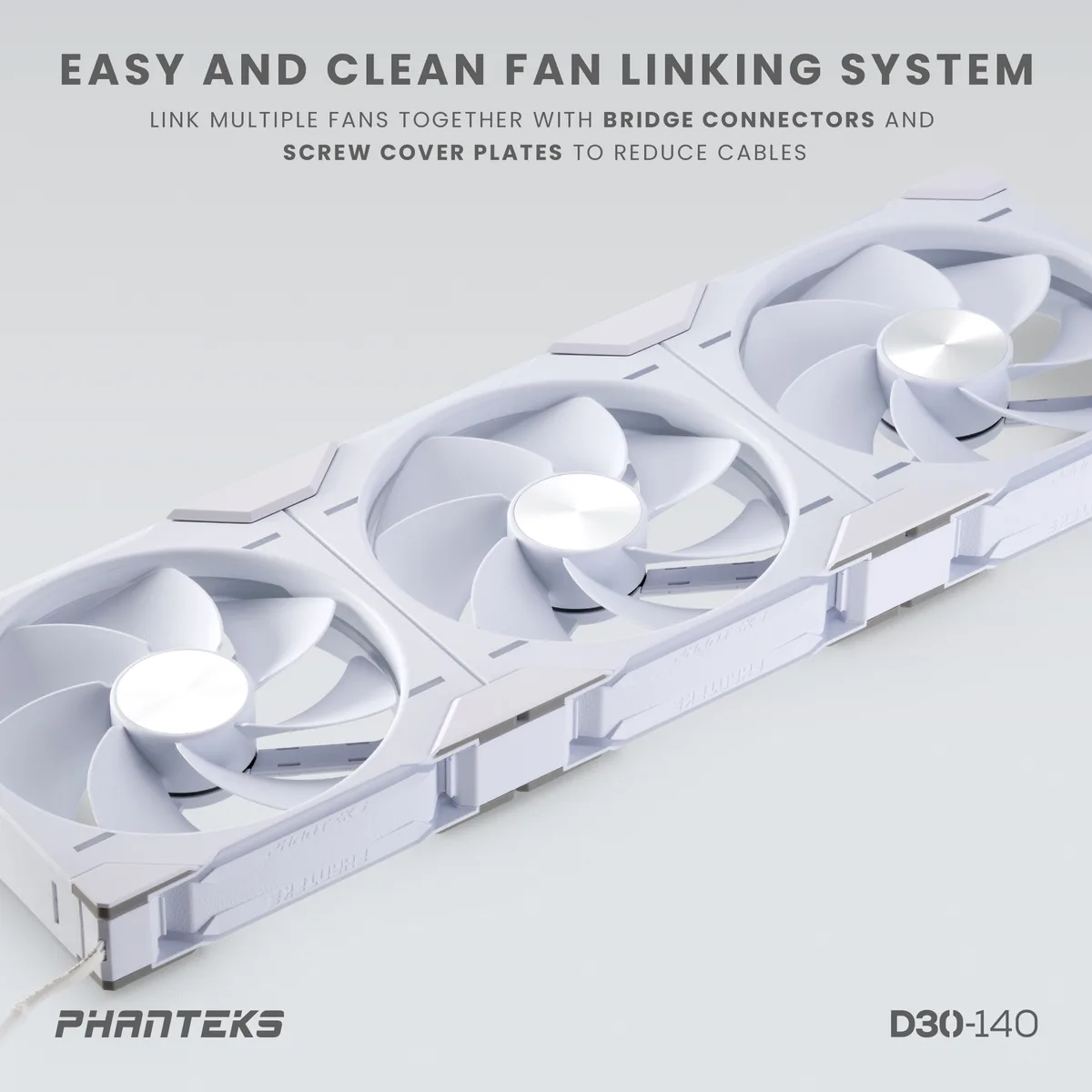

Daisy-Chain Mounting Kit Included

Four standard fan screws, four UNC 6-32 radiator screws, four M4 radiator screws and a DRGB motherboard adapter ship with the unit. Corner clips, bridge clips and screw covers link multiple fans into a single cable run. Builders who need regular airflow direction or a non-DRGB variant should choose the matching model instead.

Points forts

  • Reverse airflow design keeps blade lighting fully visible
  • 30 mm thick frame pushes air through radiators and dense mesh
  • Daisy-chain linking cuts cable clutter for multi-fan setups
  • Fluid-dynamic bearing runs 250-1800 RPM at 32.1 dB(A) max noise
  • DRGB illumination syncs with motherboard RGB headers

Caractéristiques

BrandPhanteks
ModelPH-F140D30R_DRGB_PWM_WT01
Fan Counts1 Fan
TypeCase Fan
Fan Size140mm
Fan Thickness30mm
Bearing TypeFluid Dynamic
RPM250-1800 +/- 10% RPM
Air Flow71.76 CFM Max
Noise Level32.1 dB(A)
Power Connector4 Pin
ColorWhite Matte blade / White Fan Frame
LEDDRGB
Dimensions140 x 140 x 30 mm / 5.51" x 5.51" x 1.18"
Package Contents1 x PH-F140D30R_DRGB_PWM_WT01
4 x Fan Screw
4 x UNC 6-32 Radiator Screw 36mm
4 x M4 Radiator Screw 36mm
1 x Corner Clip Cable, 3 x Corner Clip
1 x Bridge Clip, 1 x Bridge Clip Connector
4 x Screw Cover Corner (2L, 2R)
2 x Screw Cover Bridge
1 x D-RGB M/B Adapter
Poids d’expédition0.45 kg
Dimensions du colis217 × 143 × 34 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

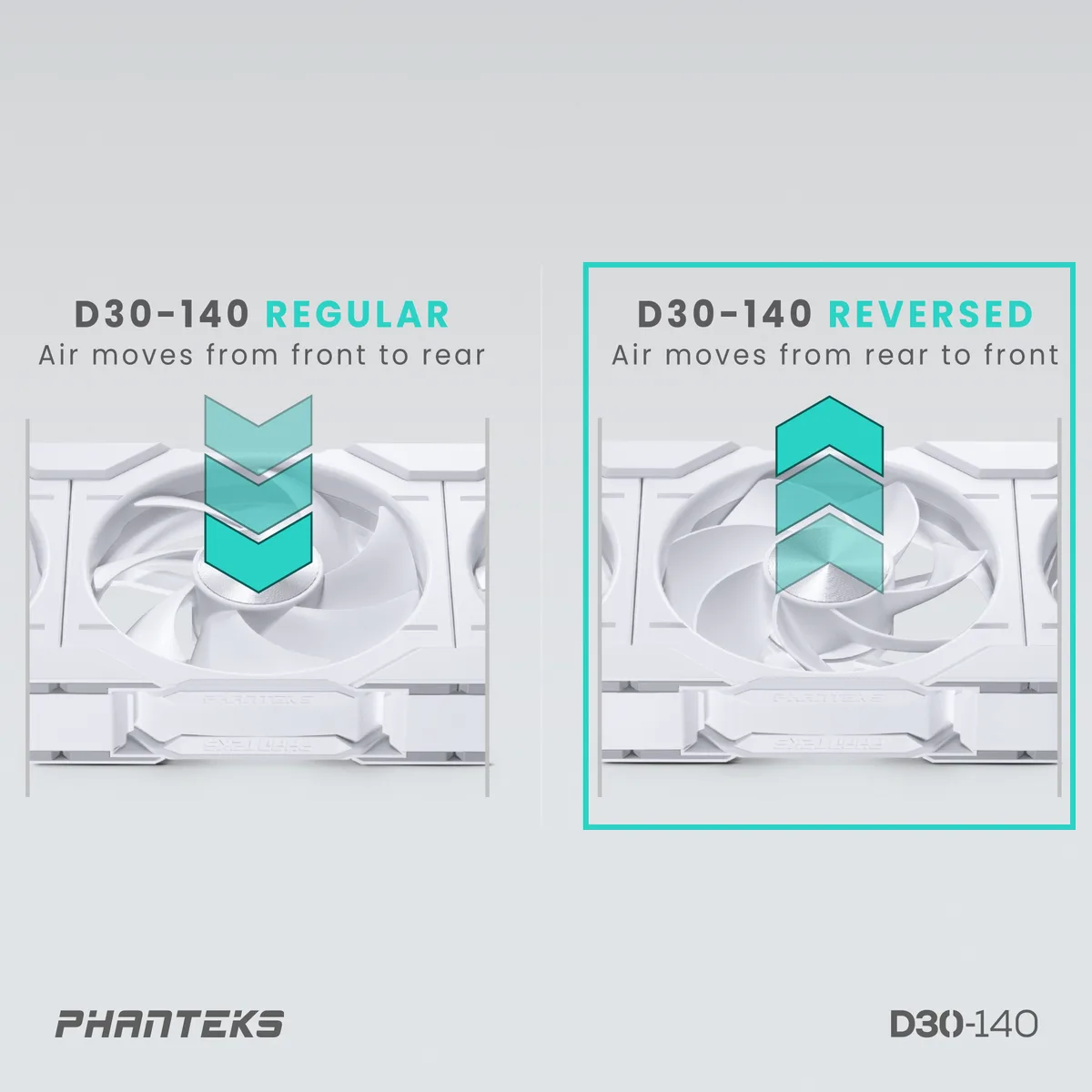

Should I pick the regular or reverse airflow version of this 140 mm fan?

Choose the reverse model when you want the blades to pull air through a radiator or filter so the DRGB lighting stays visible; choose the regular model for standard exhaust or intake where the frame faces outward.

What does the 71.76 CFM maximum airflow mean once the fan is installed in a case?

At 1800 RPM the fan can move up to 71.76 CFM through open space; behind a radiator or dense mesh the 30 mm thick frame maintains higher static pressure so actual flow stays closer to that peak than thinner fans.

How does the 4-pin PWM connector control the 250-1800 RPM range in practice?

The motherboard varies the duty cycle on the fourth pin to set any speed between 250 and 1800 RPM, letting the fan run near-silent at idle and ramp up only when cooling demand rises.
